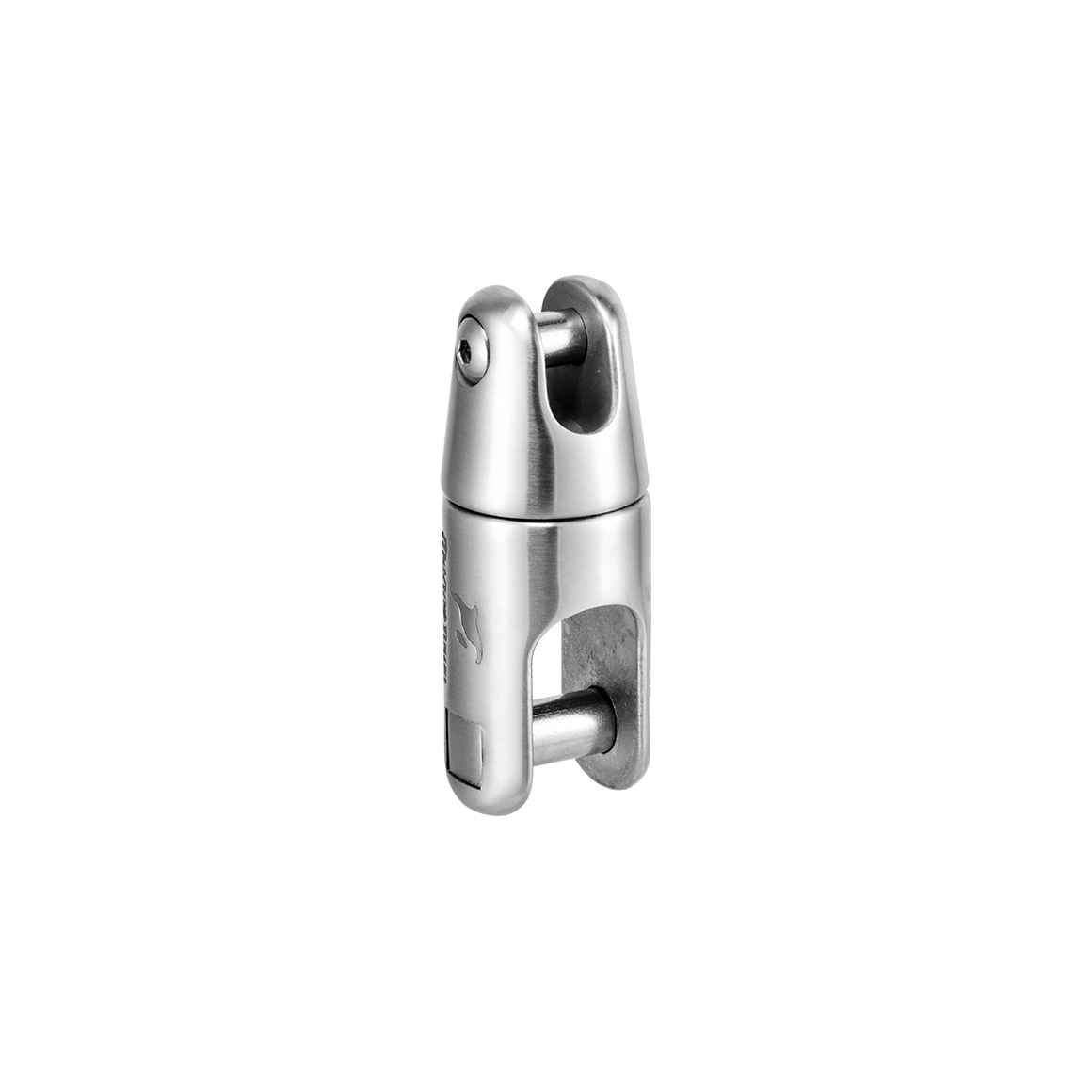

ANCHOR CONNECTOR - SINGLE SWIVEL
Stainless Steel 316

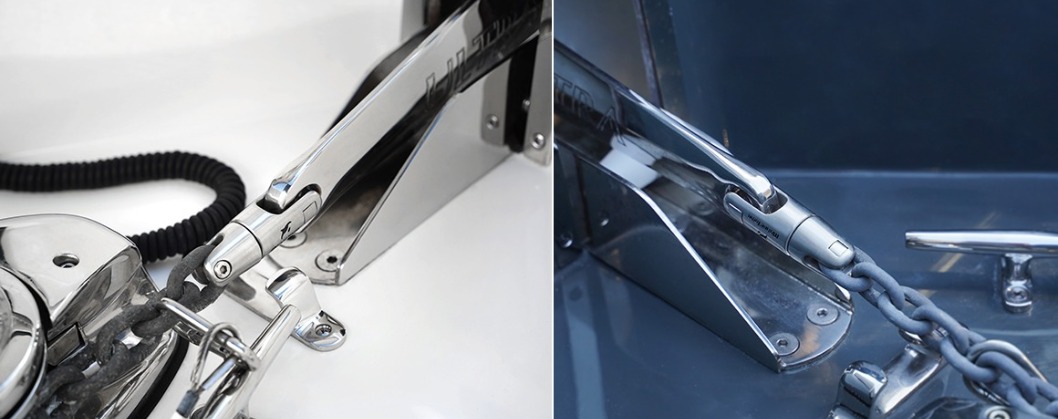

- Easy to pull anchor over bow roller.
- Captured pins will not loosen when under load.
- Pins can be removed by using an Allen wrench.
- Loctite on screws is required after installation.
- Easy to pull anchor over bow roller.
- Captured pins will not loosen when under load.
- Pins can be removed by using an Allen wrench.
- Loctite on screws is required after installation.
Qty
Qty
Qty
MOQ
-
Bulk No.

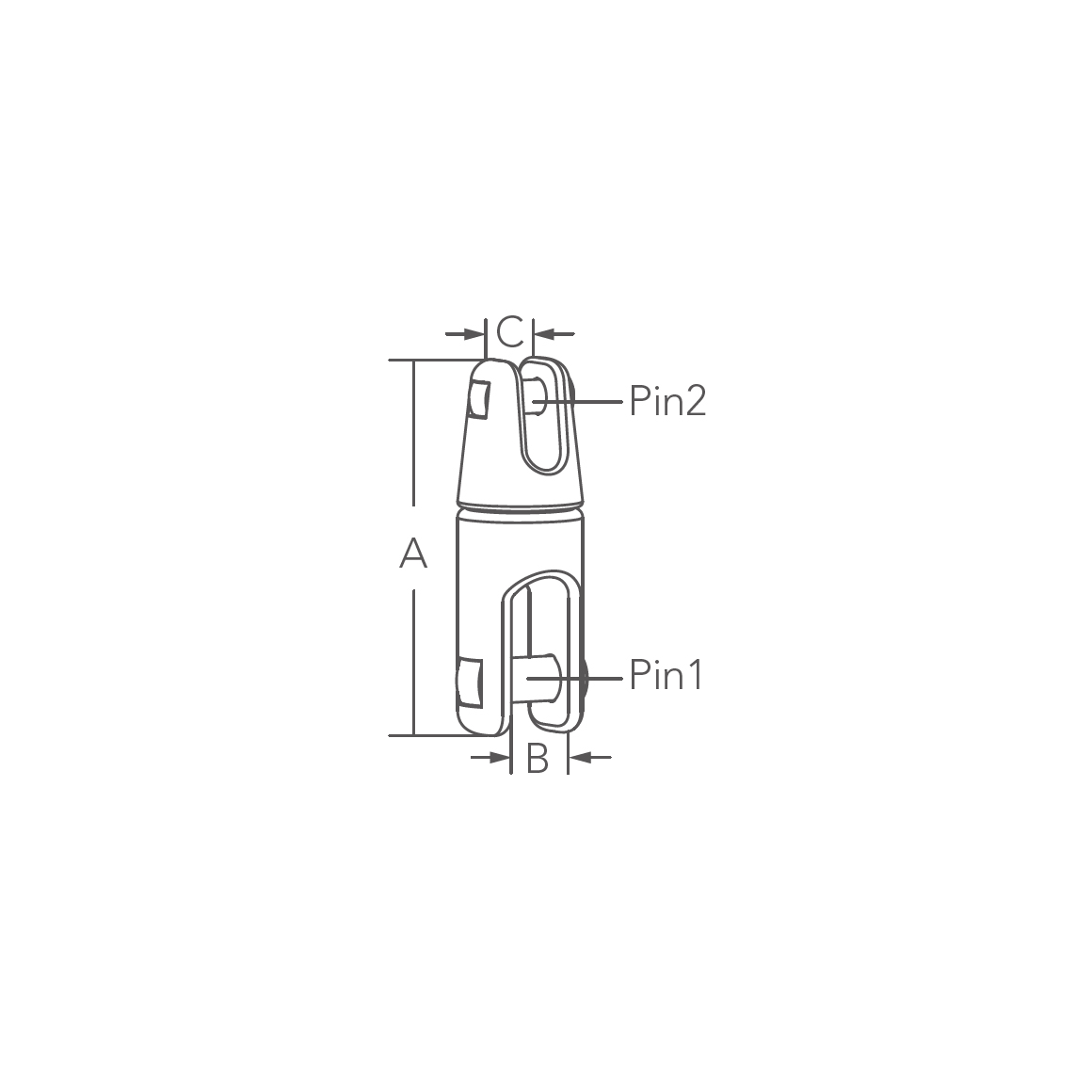

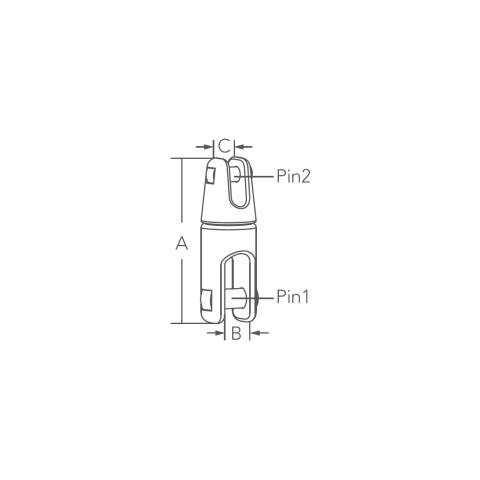

A mm
B mm
C mm
Pin1 Ø mm
Pin2 Ø mm
WLL
NDH-AC-09-S 84(3-5/16") 16(5/8") 9.5(3/8") 10(3/8") 7.5(5/16") 850 kgf/ 1900 lbf NDH-AC-13-S 96(3-3/4") 22(7/8") 13.5(1/2") 12(1/2") 10(3/8") 1350 kgf/ 3000 lbf NDH-AC-17-S 150(5-15/16") 26(1") 16.5(5/8") 16(5/8") 12(1/2") 2000 kgf/ 4500 lbf
