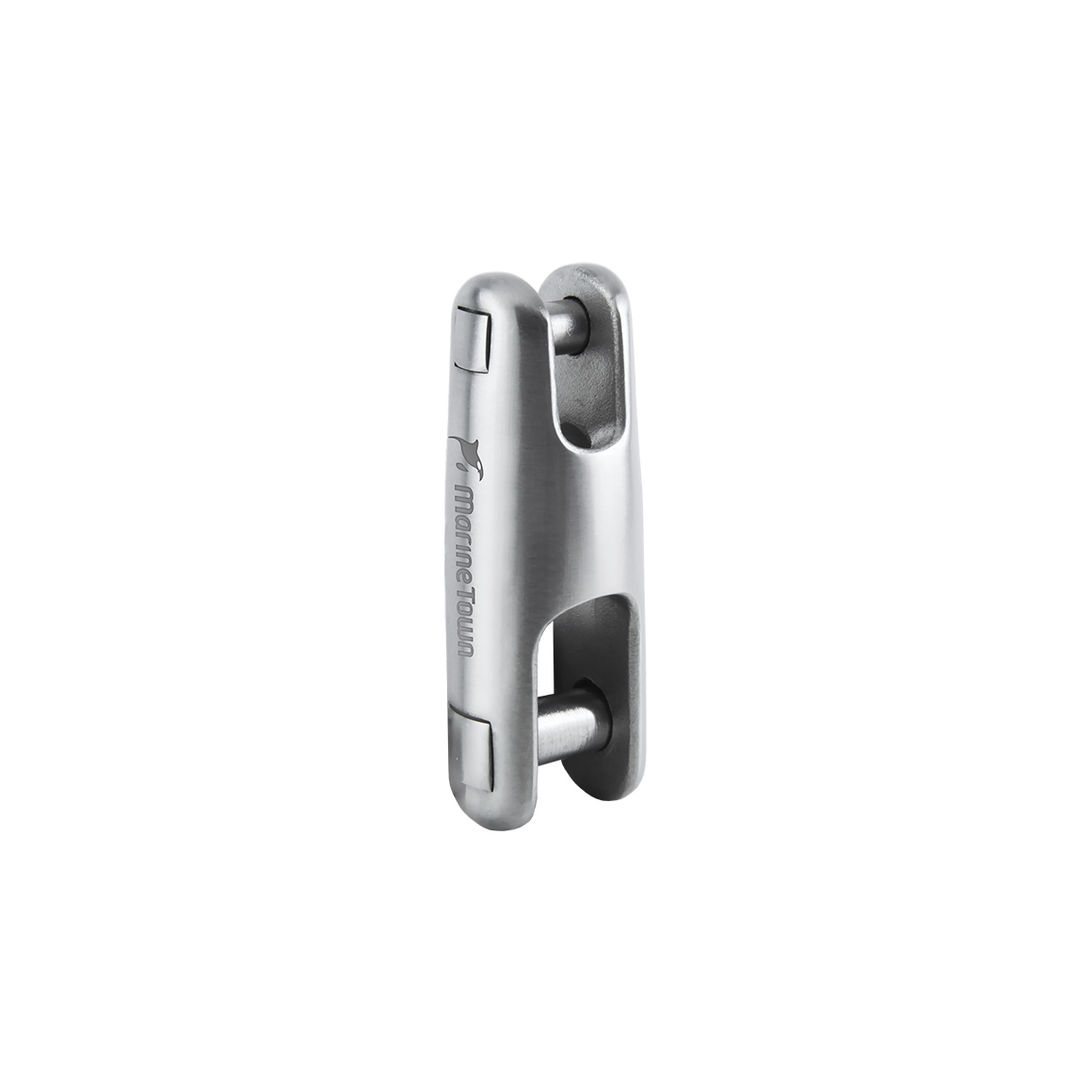

ANCHOR CONNECTOR - FIXED TYPE
Stainless Steel 316
- Easy to pull anchor over bow roller.
- Captured pins will not loosen when under load.
- Pins can be removed by using an Allen wrench.
- Loctite on screws is required after installation.
- Easy to pull anchor over bow roller.
- Captured pins will not loosen when under load.
- Pins can be removed by using an Allen wrench.
- Loctite on screws is required after installation.
Qty
MOQ
Qty
MOQ
-

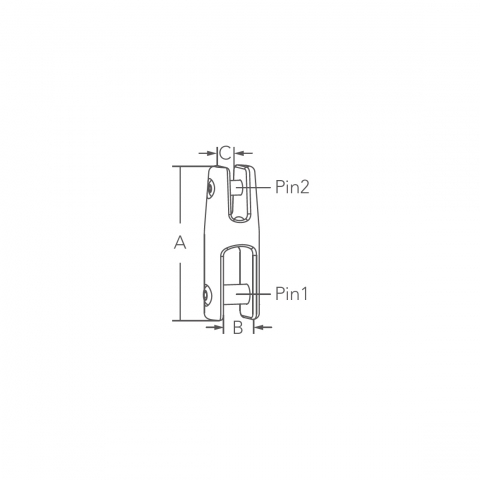

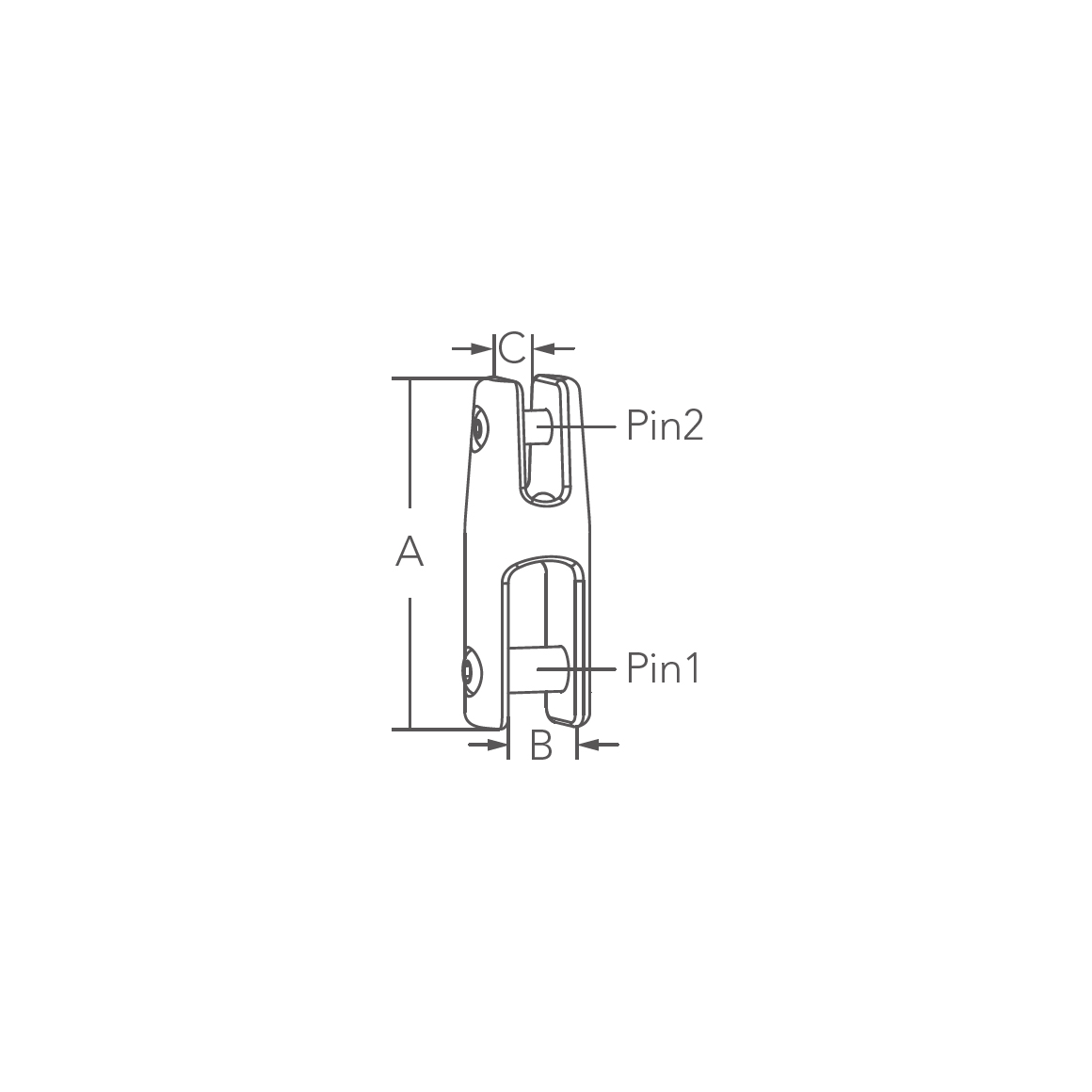

Bulk No.
A mm
B mm
C mm
Pin1 Ø mm
Pin2 Ø mm
WLL
NDH-AC-09-F 79(3-1/8") 15(9/16") 10(3/8") 10(3/8") 7.5(5/16") 850 kgf/ 1900 lbf NDH-AC-13-F 91(3-9/16") 22(7/8") 13(1/2") 12(1/2") 10(3/8") 1350 kgf/ 3000 lbf
