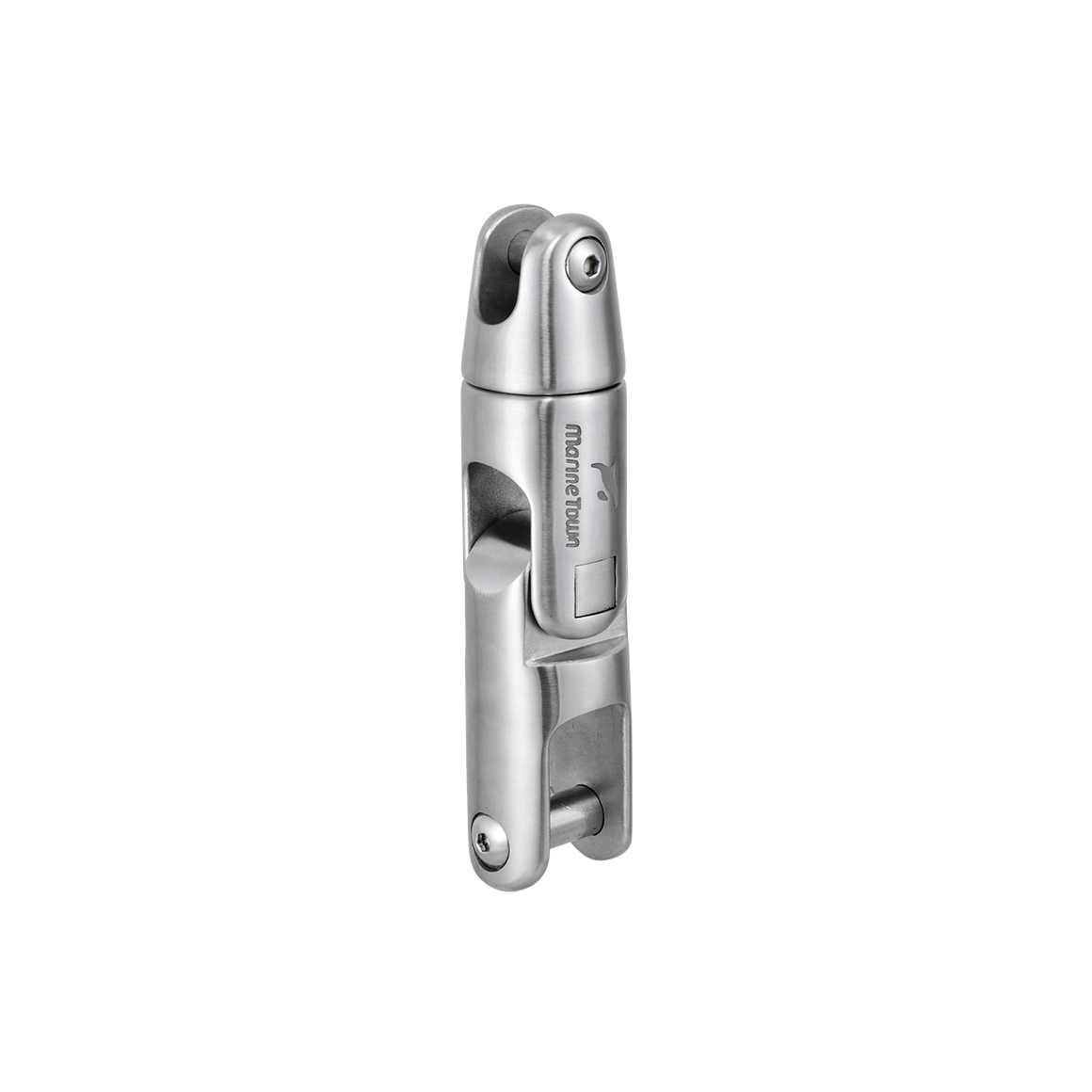

ANCHOR CONNECTOR - DOUBLE SWIVEL
Stainless Steel 316
- Same construction as Anchor Connector but with double swivel which
prevents the chain from twisting.
- Loctite on screws is required after installation.
- Same construction as Anchor Connector but with double swivel which
prevents the chain from twisting.
- Loctite on screws is required after installation.
Qty
MOQ
Qty
MOQ
-
Bulk No.

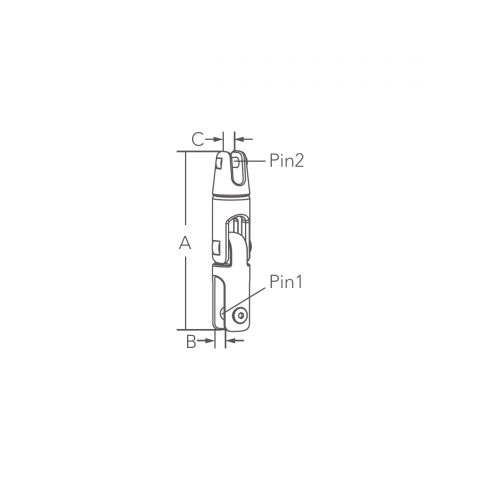

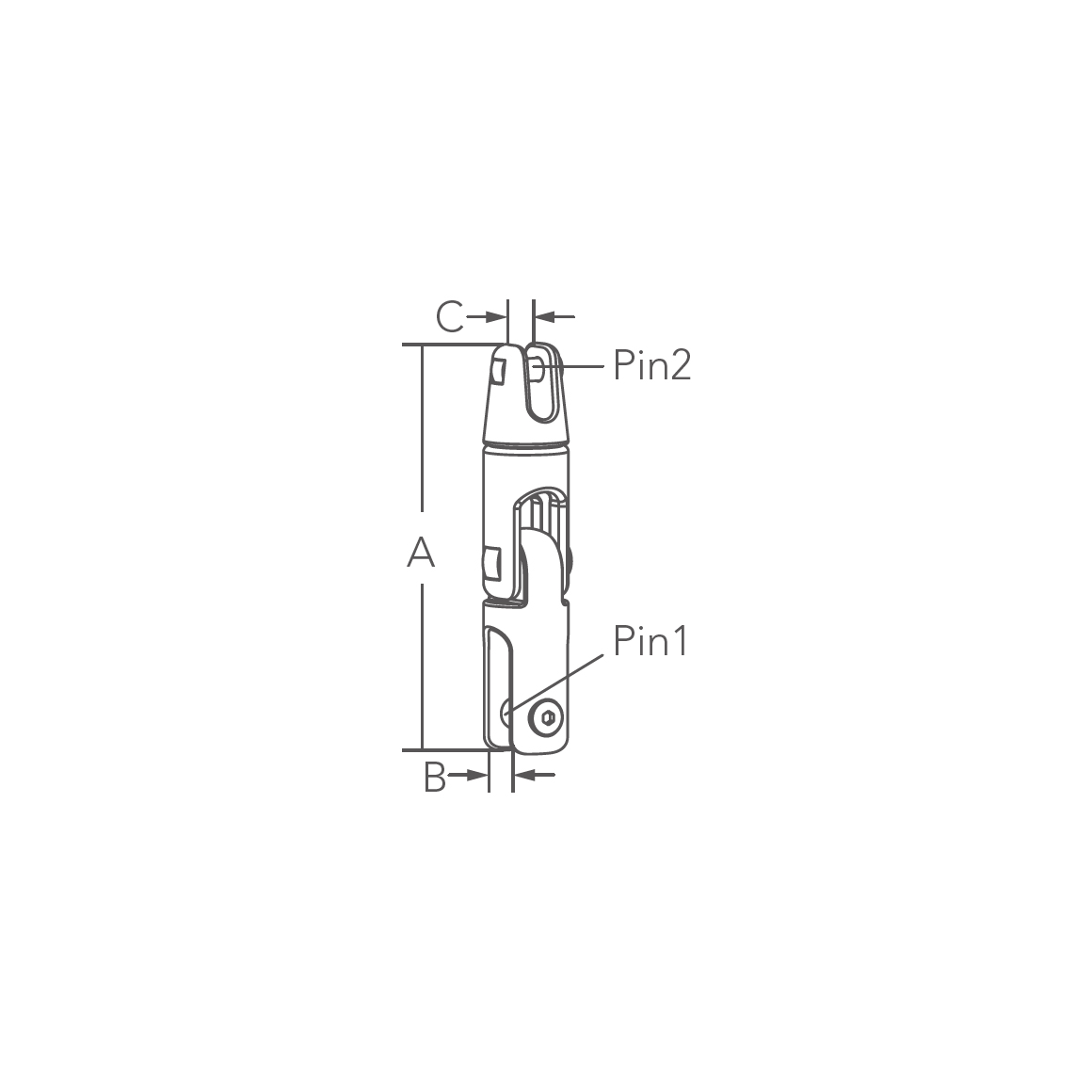

A mm
B mm
C mm
Pin1 Ø mm
Pin2 Ø mm
WLL
NDH-AC-09-D 135(5-5/16") 15(9/16") 9(3/8") 10(3/8") 7.5(5/16") 850 kgf/ 1900 lbf NDH-AC-13-D 158(6-1/4") 22(7/8") 13.5(1/2") 12(1/2") 10(3/8") 1350 kgf/ 3000 lbf
