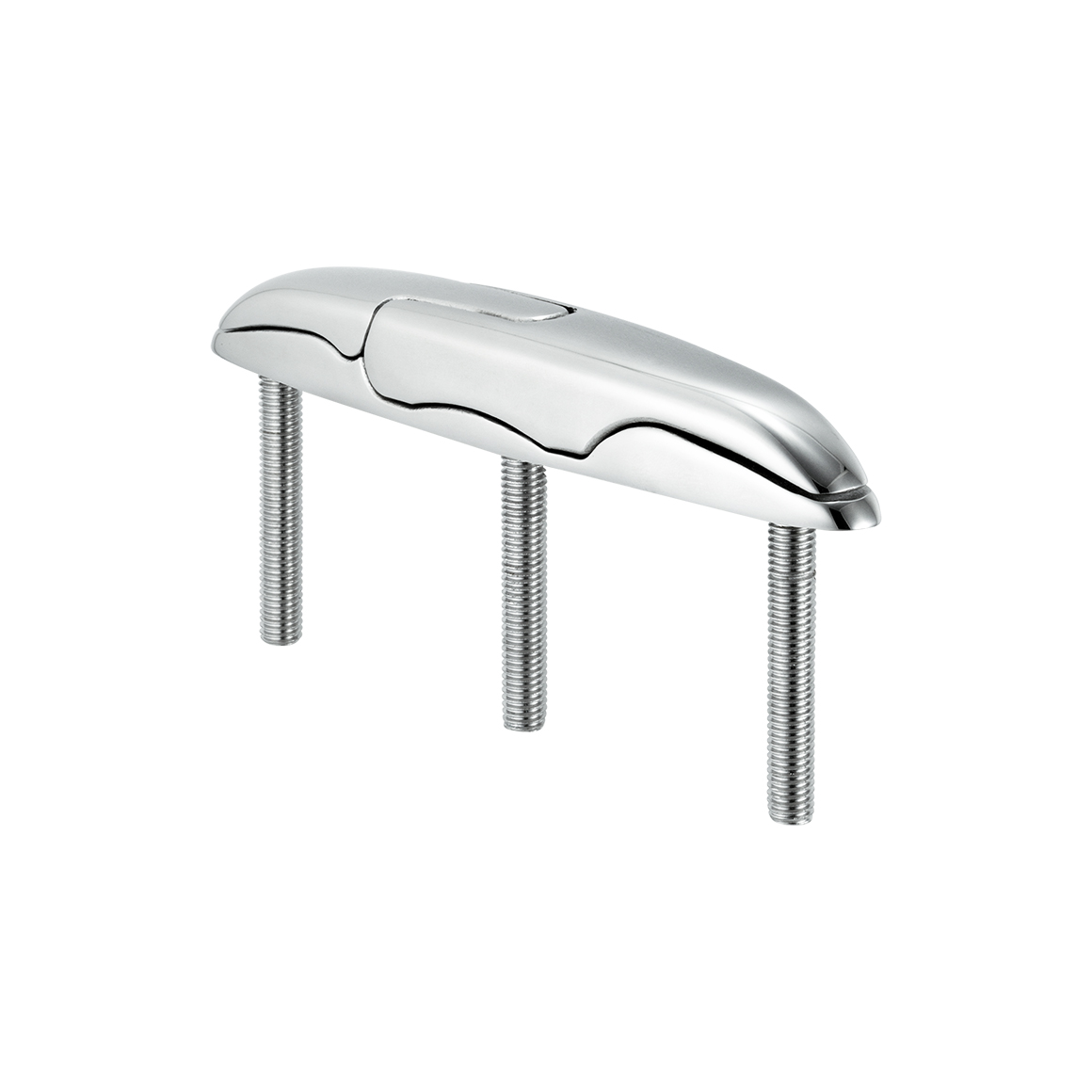

X-FOLDING CLEAT
Stainless Steel 316
- Special modern "X" design.
- Push down for low profile appearance when not in use to prevent accidental
catching of lines.

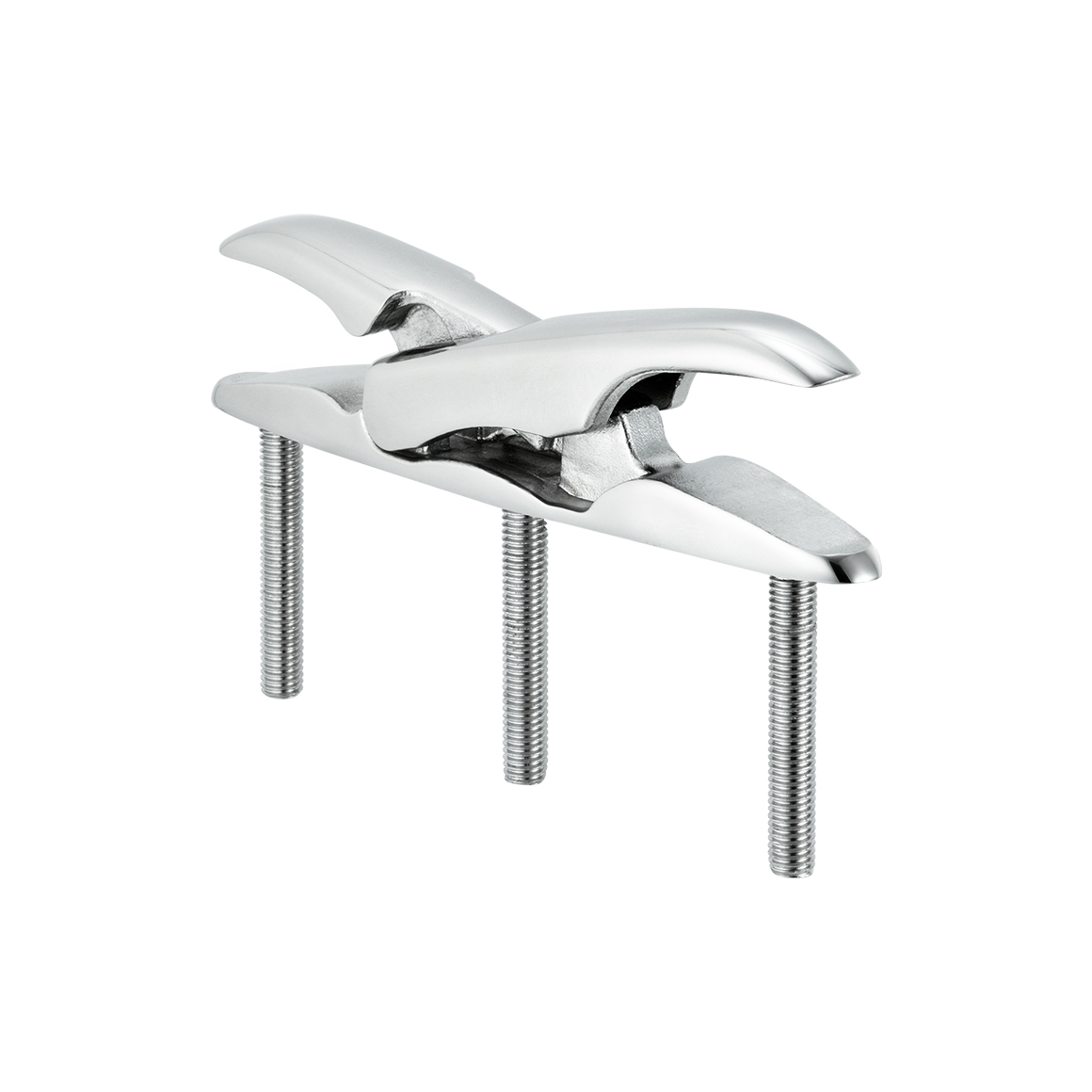

- Simple lift action to open and create a strong tie off point.
- No need for water drainage.
- Smooth edge avoids rope chafing or causing injury.
- Washers and nuts are included.
- Special modern "X" design.
- Push down for low profile appearance when not in use to prevent accidental
catching of lines.
- Simple lift action to open and create a strong tie off point.
- No need for water drainage.
- Smooth edge avoids rope chafing or causing injury.
- Washers and nuts are included.
Qty
MOQ
-
Bulk No.

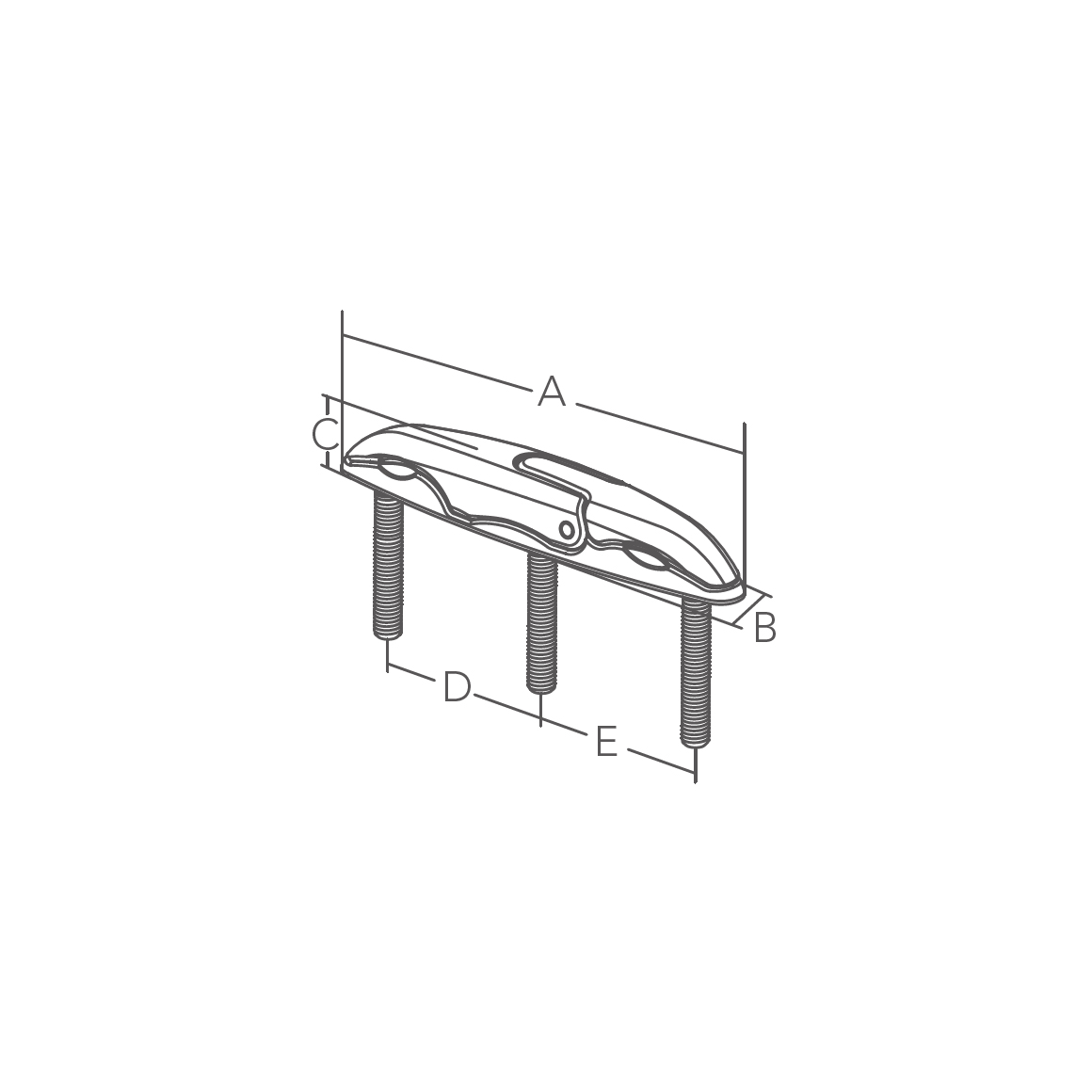

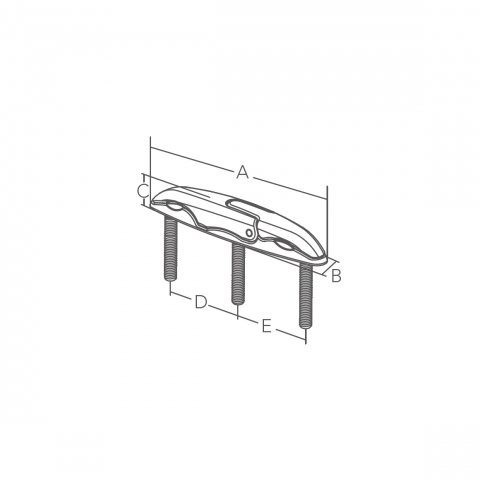

A mm
B mm
C mm
D mm
E mm
Stud Size
9806496 152(6") 27(1-1/16") 22(7/8") 60(2-3/8") 60(2-3/8") M8 or 5/16" x L: 50(2") WORKING LOAD LIMIT
Bulk No.
Lateral Pull
9806496 500 kgf/ 1102 lbf -
Bulk No.
Download
9806496 Drawing
