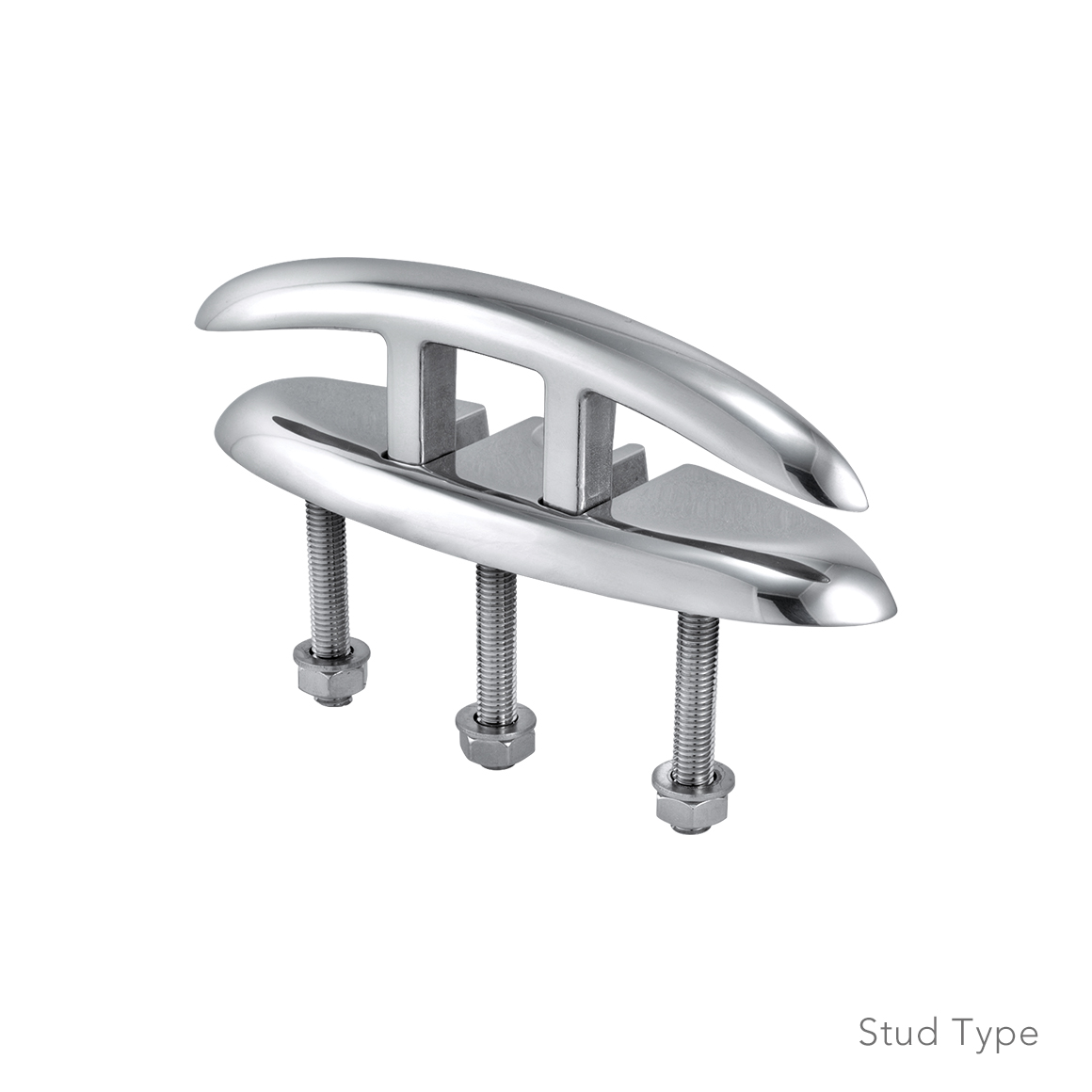

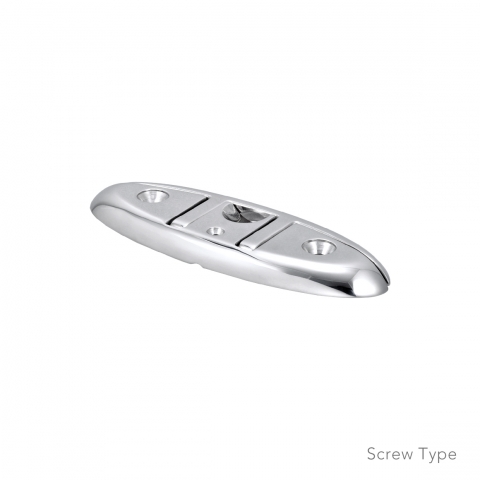

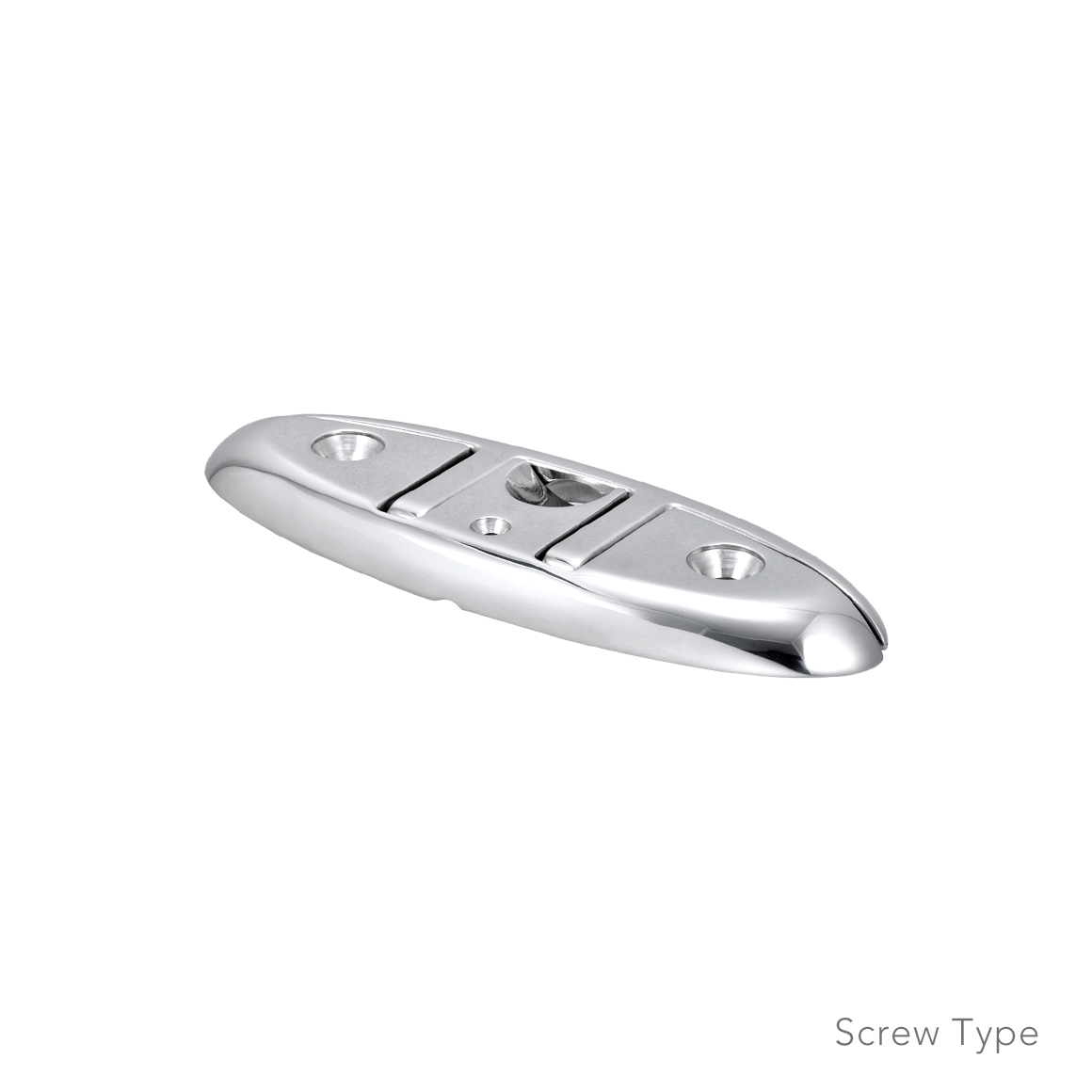

PULL UP FOLDING CLEAT
Stainless Steel 316
- Features a clean, low profile appearance, with a large handle
for easy operation.
- Easy installation.
- Fold-down design prevents accidental catching of lines.
- Surface mount eliminates the need for water drainage.
- Smooth edge to prevent rope chafing or potential for injury.
- Features a clean, low profile appearance, with a large handle
for easy operation.
- Easy installation.
- Fold-down design prevents accidental catching of lines.
- Surface mount eliminates the need for water drainage.
- Smooth edge to prevent rope chafing or potential for injury.
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
-

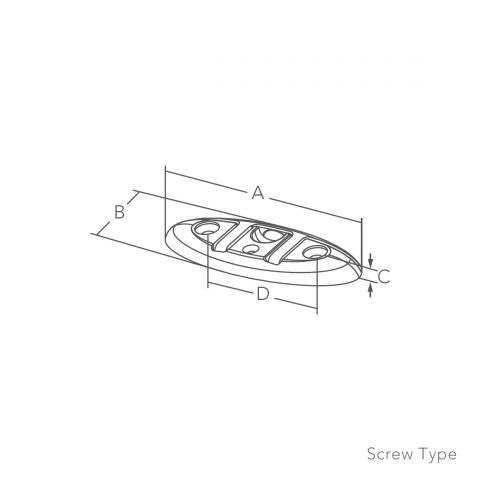

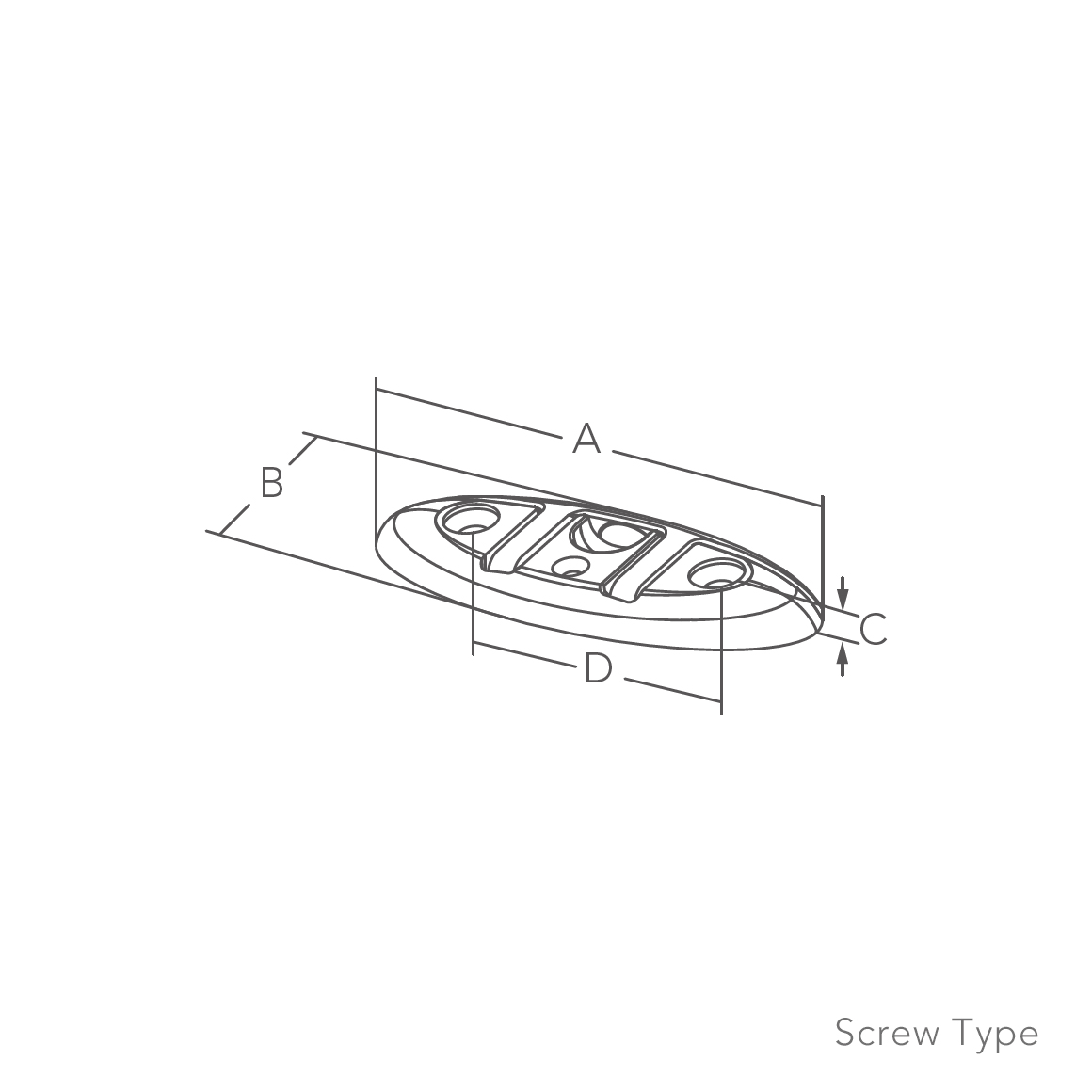

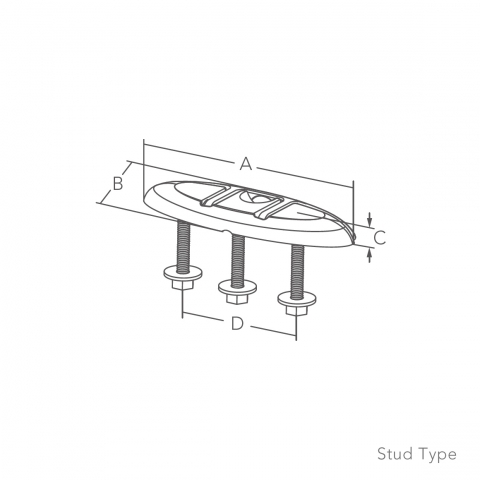

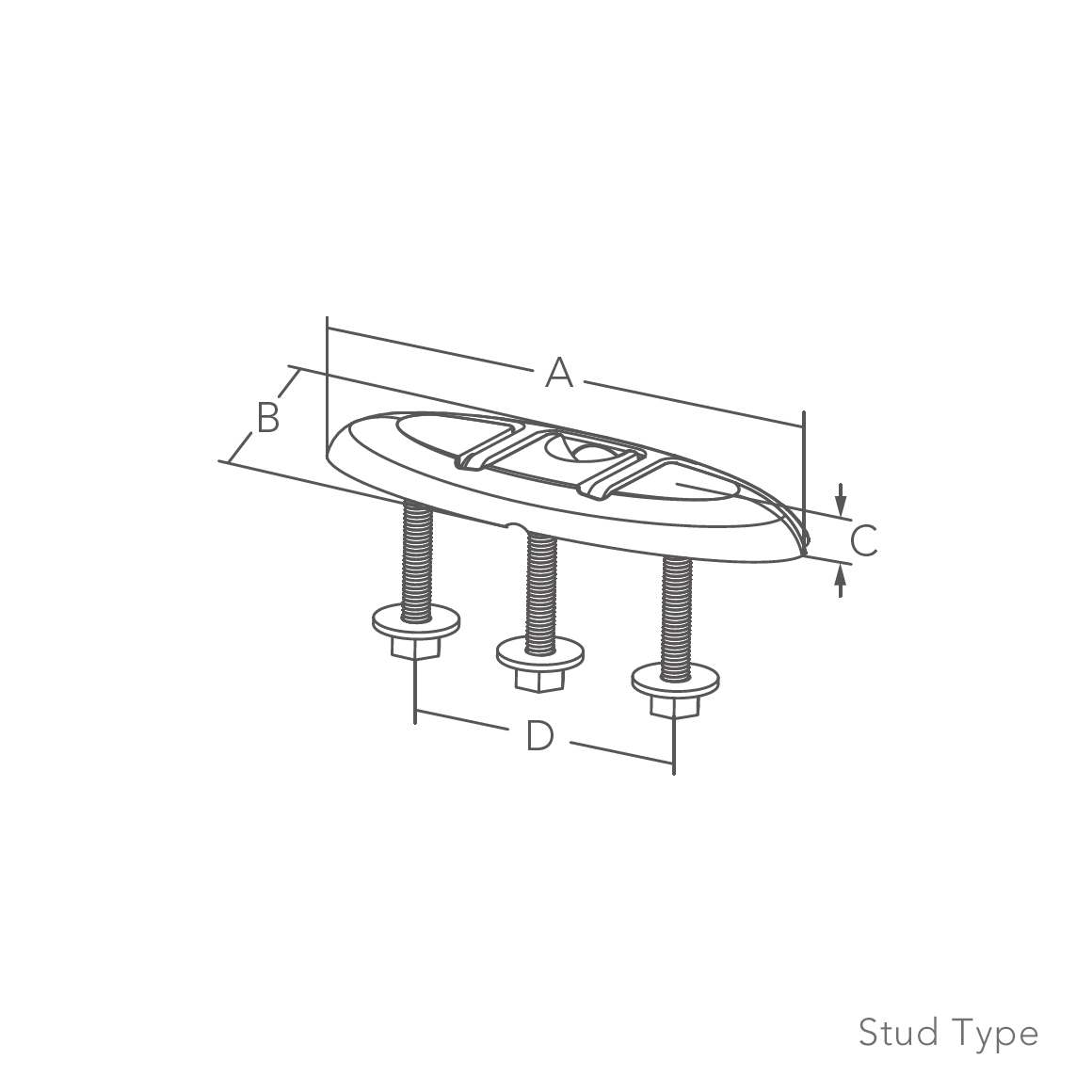

Bulk No.
Model
A mm
B mm
C mm
D mm
9806464 Screw 115(4-1/2") 41(1-5/8") 10(3/8") 65(2-9/16") 9806466 Screw 155(6-1/8") 55(2-3/16") 14(9/16") 86(3-3/8") 9806468 Screw 202(7-15/16") 73(2-7/8") 15(9/16") 114(4-1/2") 9806476 Stud 155(6-1/8") 55(2-3/16") 14(9/16") 86(3-3/8") 9806478 Stud 202(7-15/16") 73(2-7/8") 15(9/16") 114(4-1/2")
Bulk No.
Screw / Stud Size
Middle Screw
WORKING LOAD LIMIT
Lateral Pull
9806464 M6 or 1/4" M4 or #8
150 kgf/ 330 lbf 9806466 M8 or 5/16" M4 or #8 250 kgf/ 551 lbf 9806468 M10 or 3/8" M5 or #10 350 kgf/ 771 lbf 9806476 M8 or 5/16" x L: 50(2") 500 kgf/ 1102 lbf 9806478 M10 or 3/8" x L: 62(2-7/16") 750 kgf/ 1653 lbf
