90° DECK DRAIN SCUPPER
Stainless Steel 316 Grate & Nylon Elbow
- Compact design for tight space.
- Stainless steel 316 grate screws into nylon elbow.
- Incorporates one way check ball to hold water back temporarily.
- 60mm (2-3/8") installation hole is required for 9405838/44.
- 8731437, 0403436-G and 9405838-B are sold separately.
- Compact design for tight space.
- Stainless steel 316 grate screws into nylon elbow.
- Incorporates one way check ball to hold water back temporarily.
- 60mm (2-3/8") installation hole is required for 9405838/44.
- 8731437, 0403436-G and 9405838-B are sold separately.
Qty
Qty
MOQ
Qty
Qty
Qty
-
Bulk No.

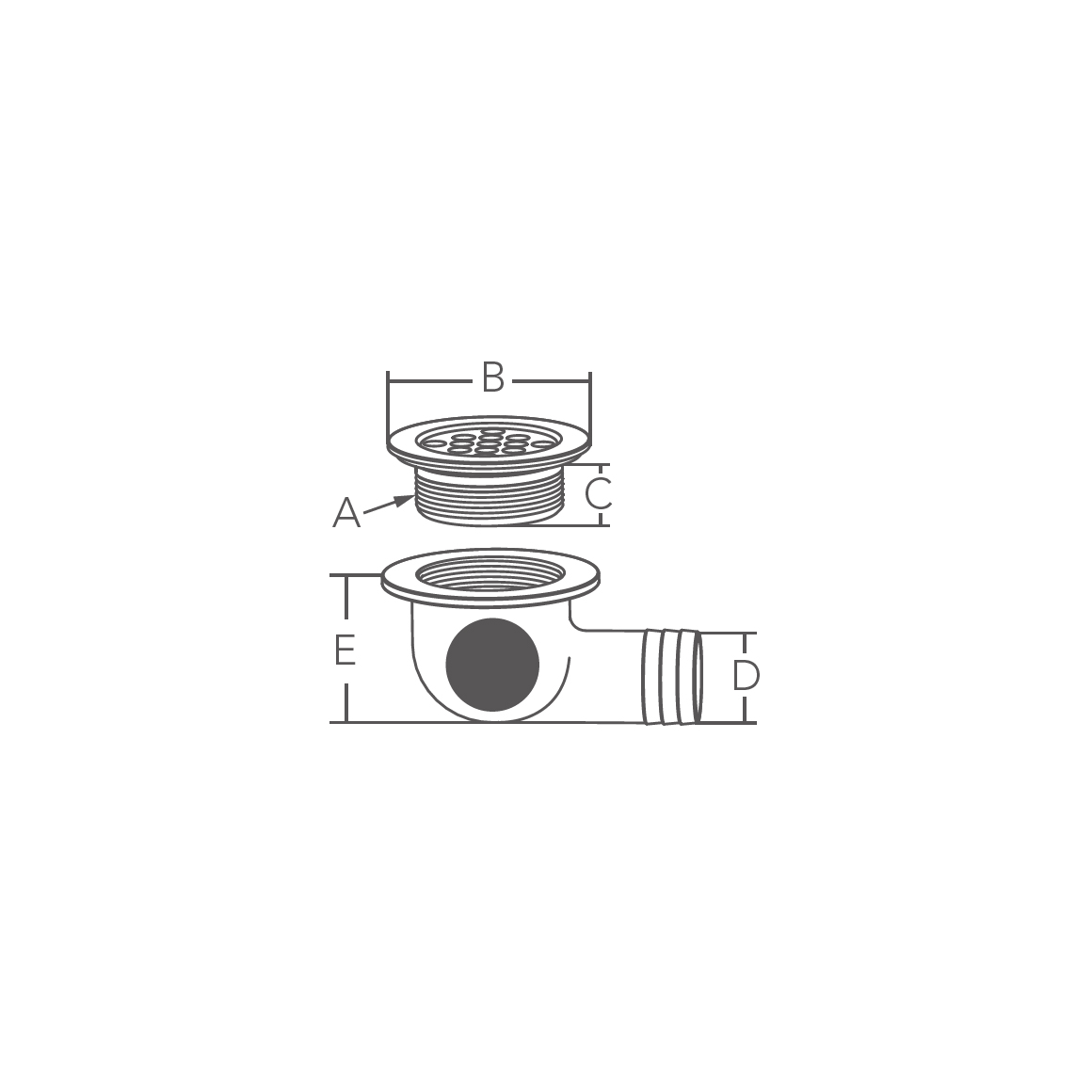

Model
A
B mm
C mm
D mm
E mm

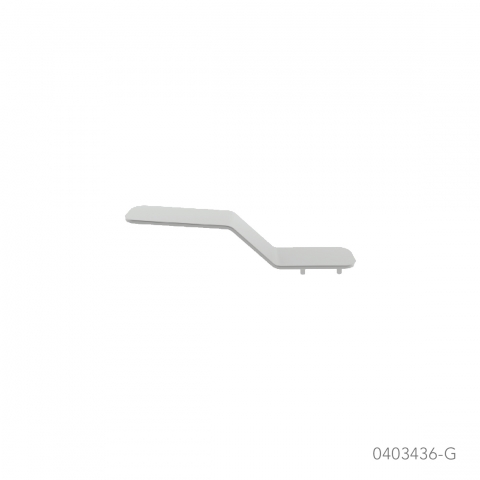

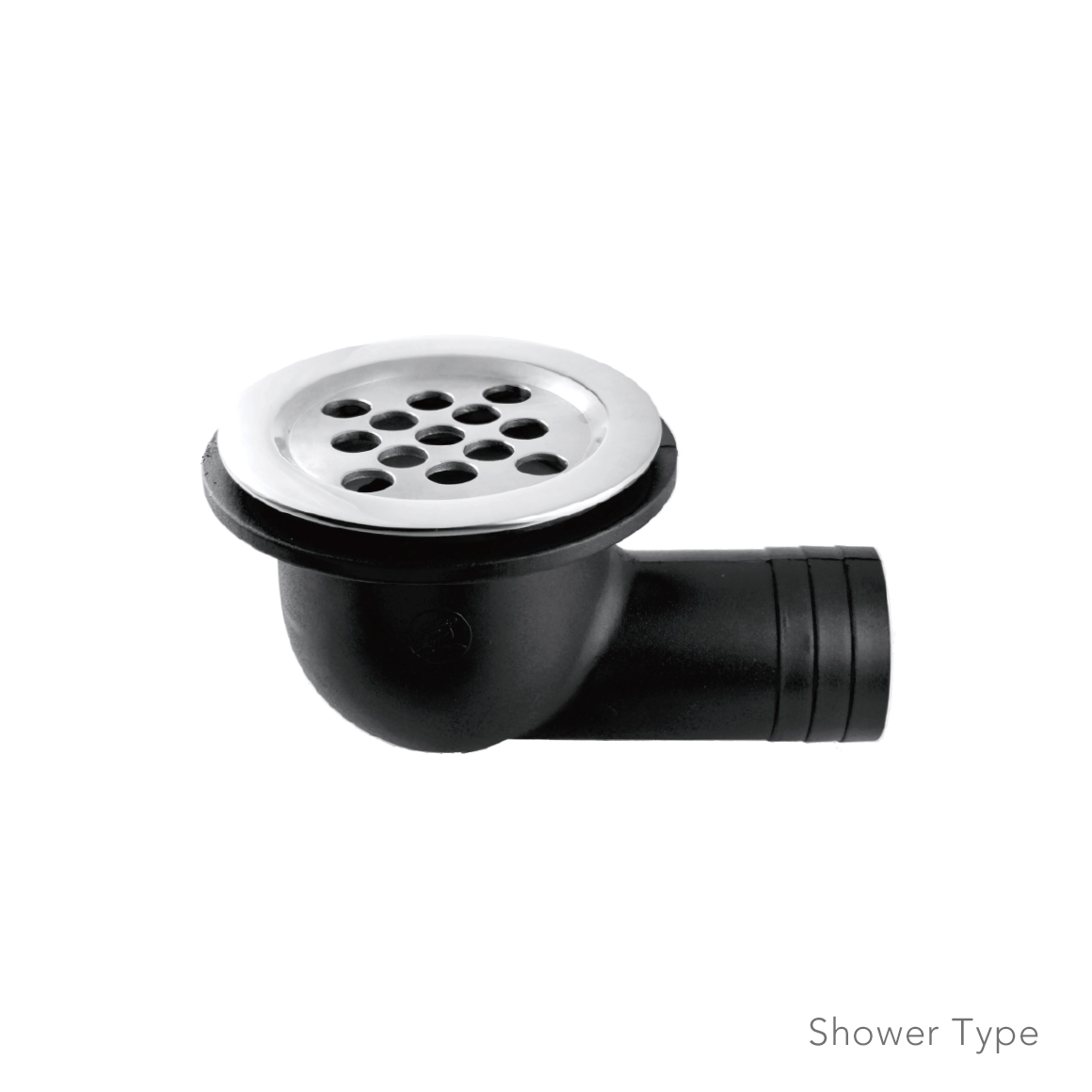

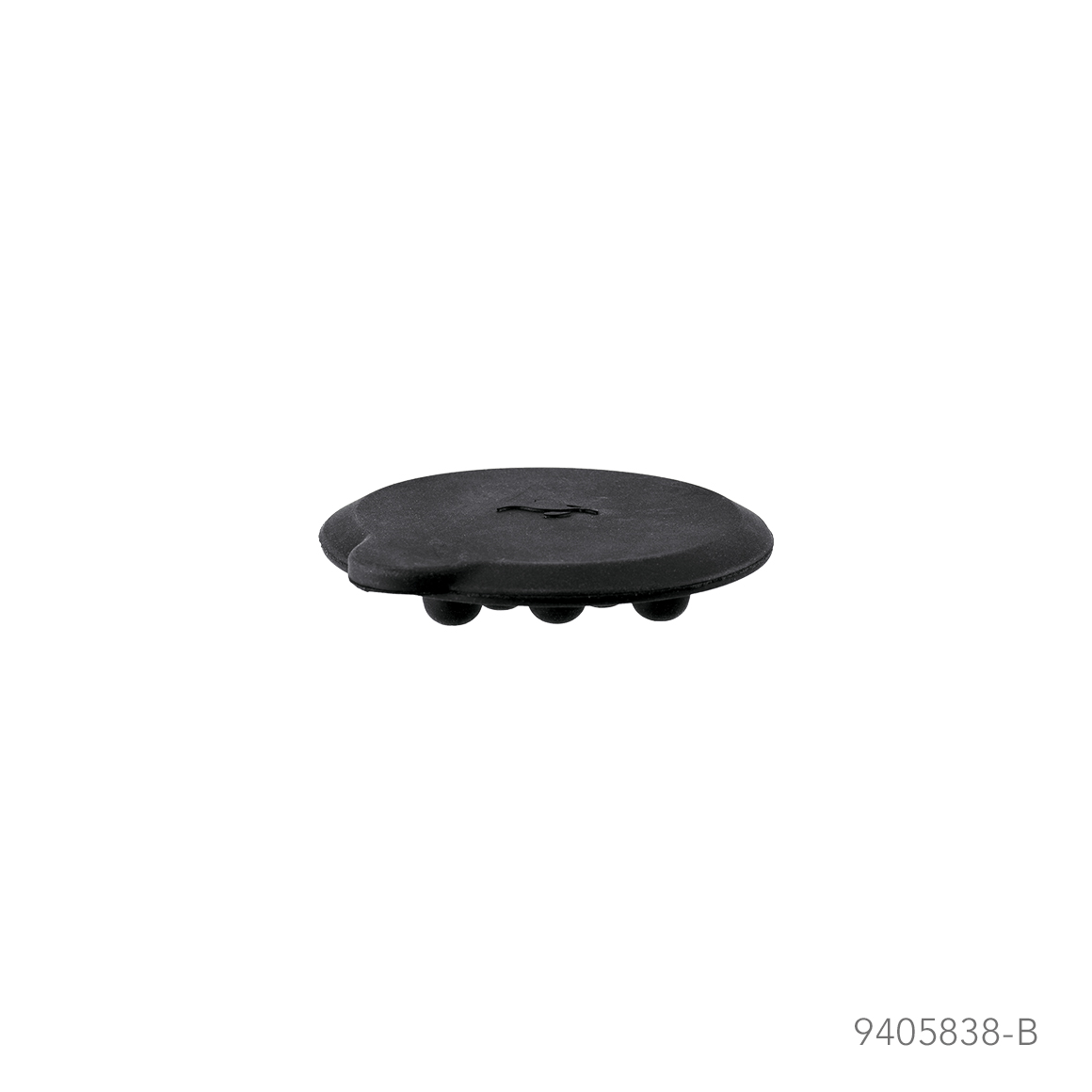

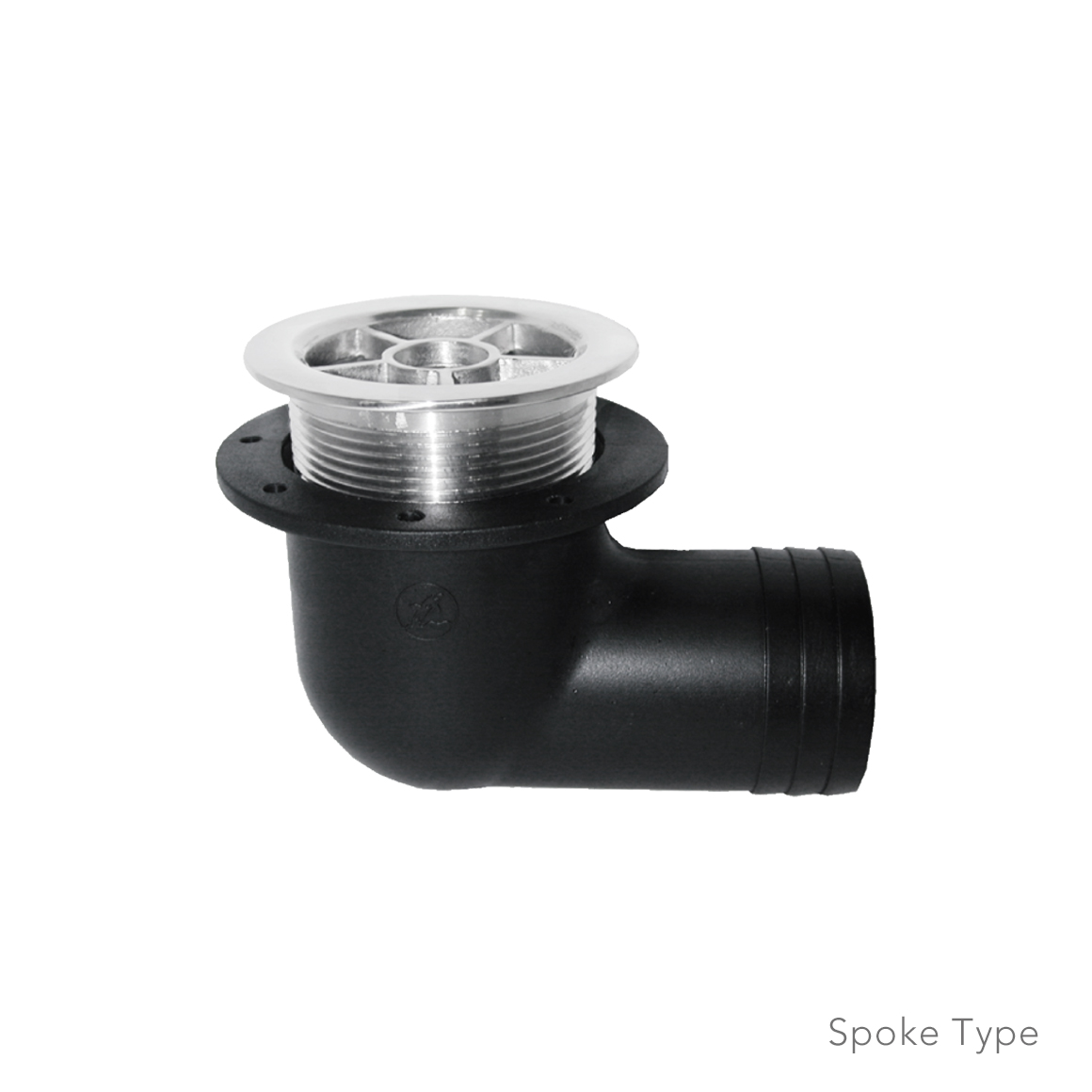

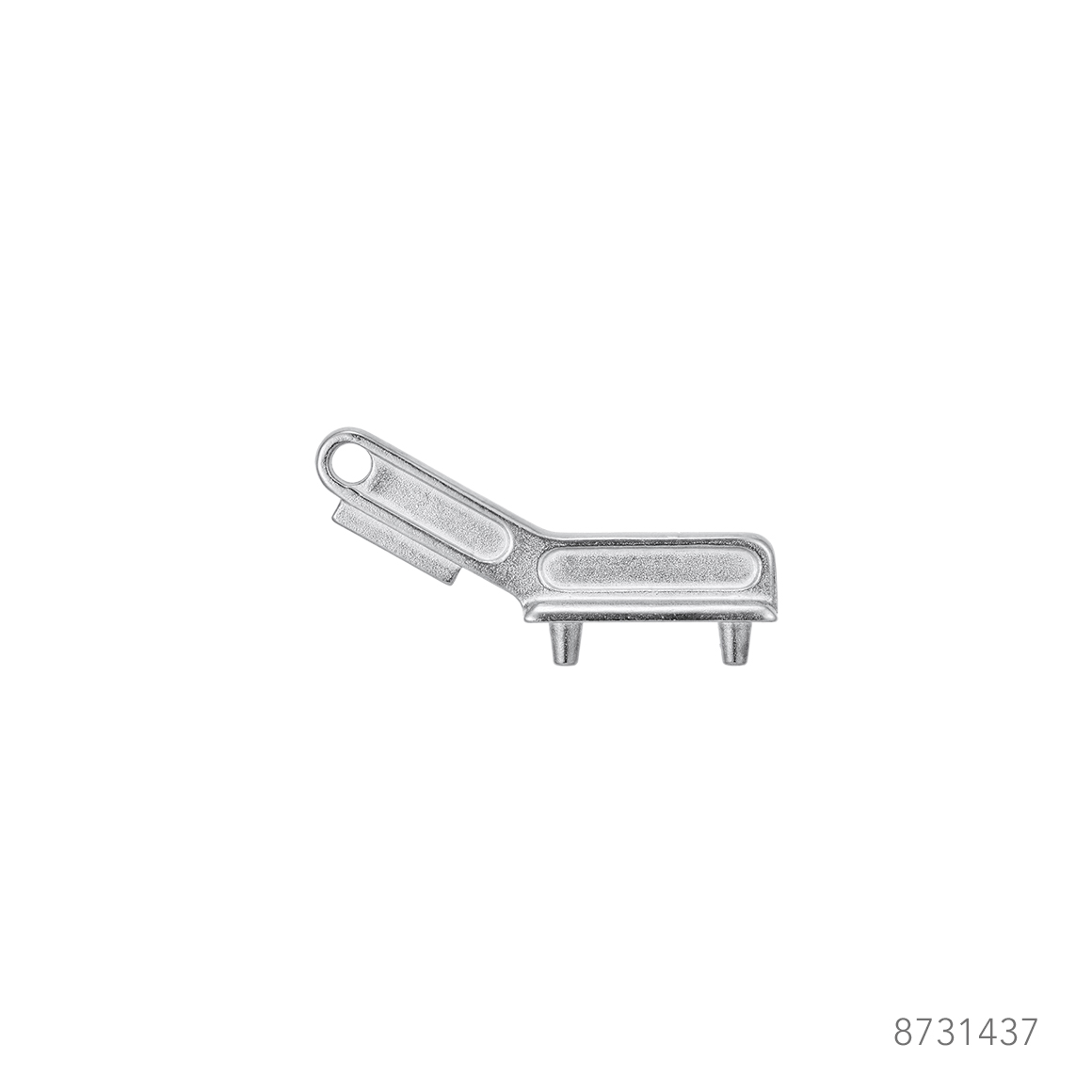

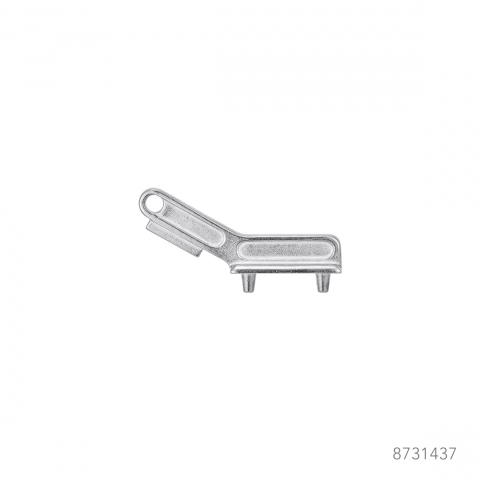

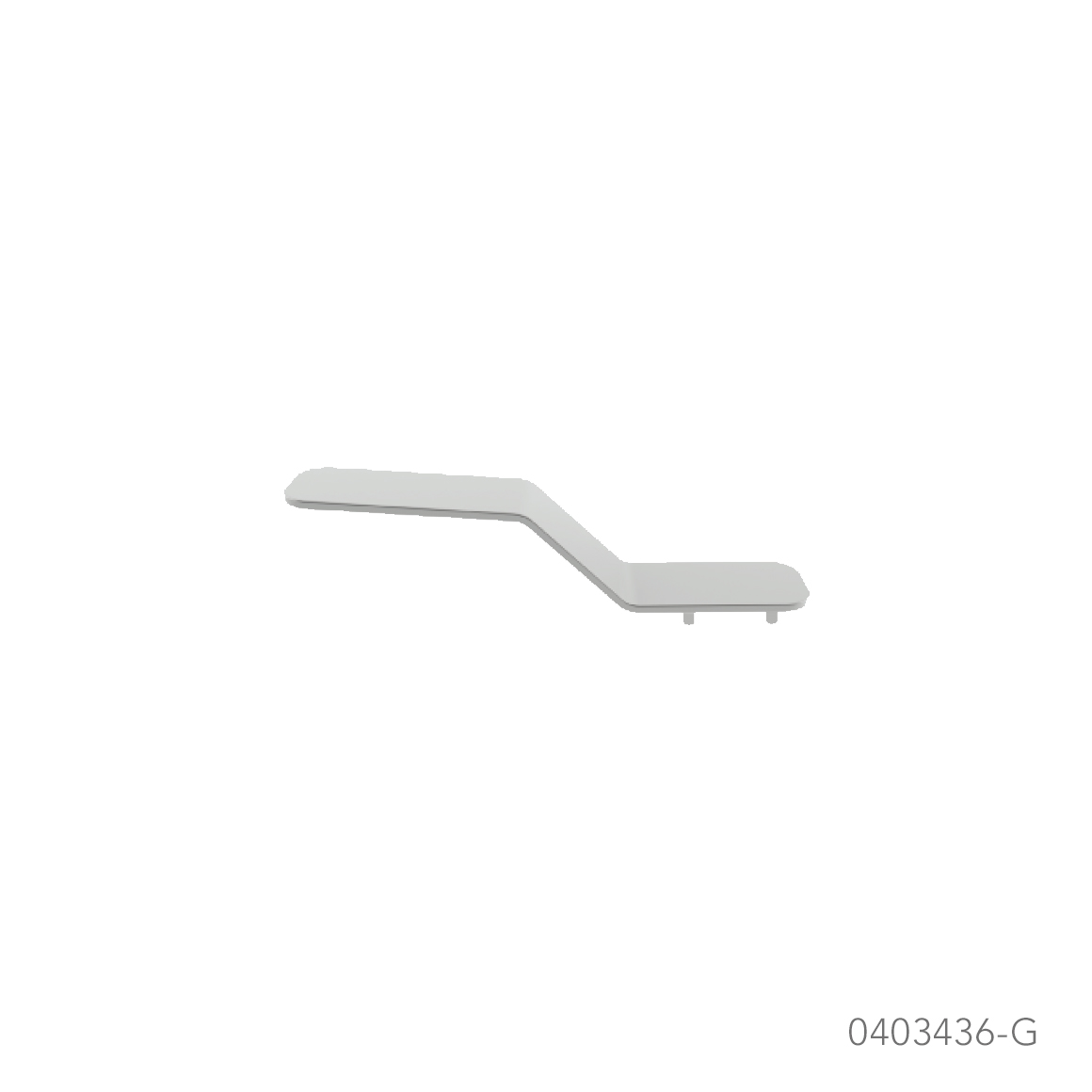

9405838 Shower Type 2" NPSM 82(3-1/4") 27(1-1/16") 38(1-1/2") 61(2-3/8") 9405844 Spoke Type 2" NPSM 75(2-15/16") 27(1-1/16") 50(2") 74(2-15/16") 8731437 Grate Removal Key for Shower Type 0403436-G Stainless Steel 304 Key for Spoke Type Grate Removal 9405838-B Rubber Drain Plug
