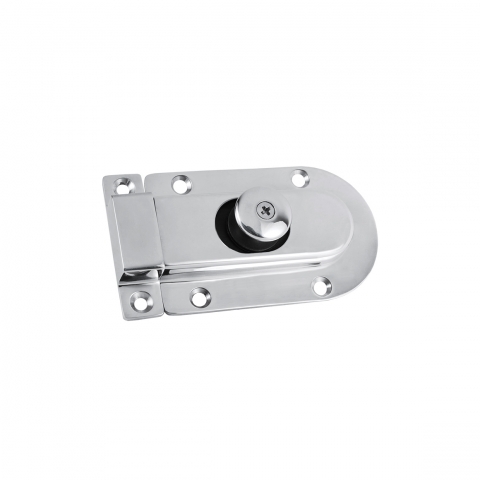

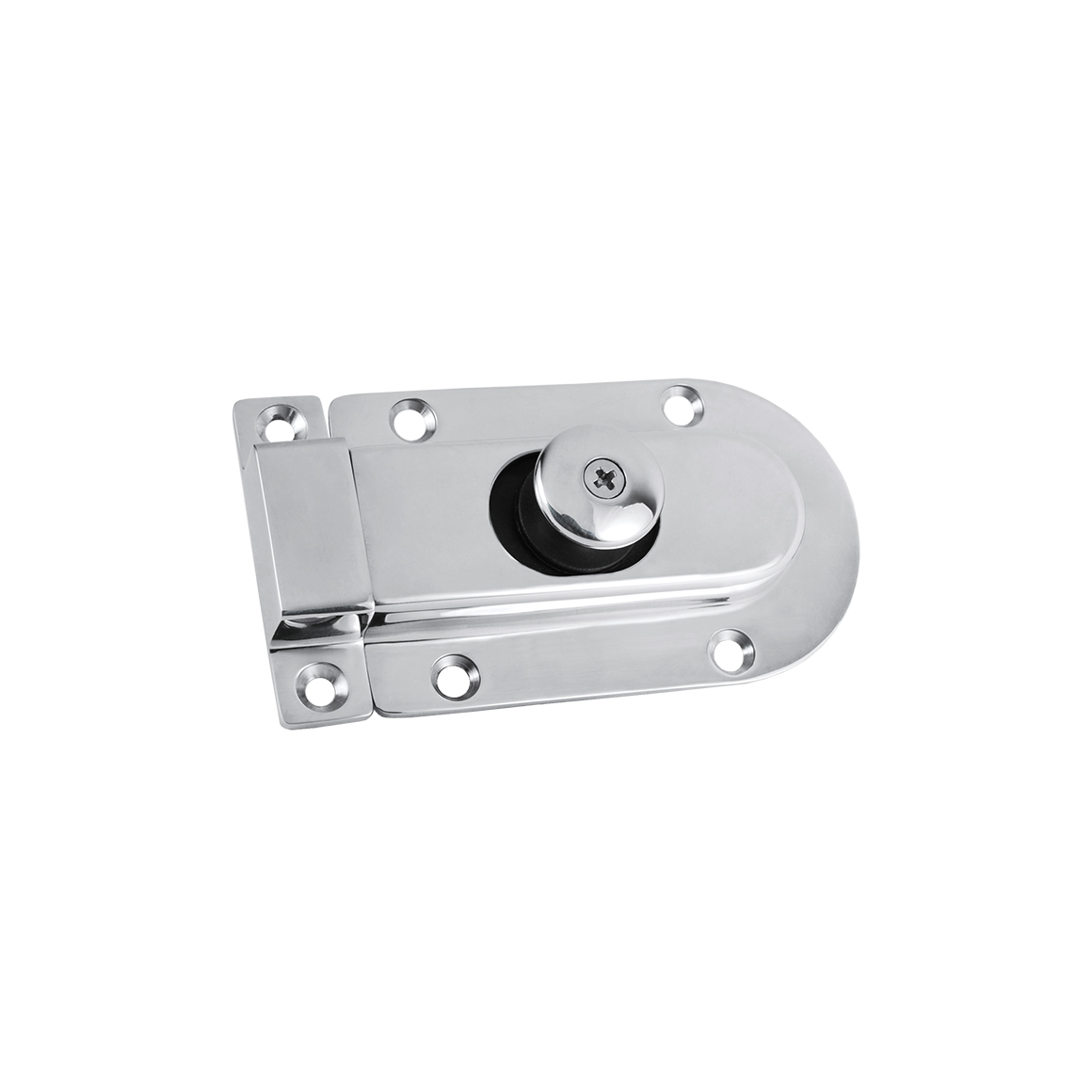

SURFACE MOUNT MAG. LATCH
Stainless Steel 316
- Encapsulated magnet for marine use.
- Magnetic slide and strike ensure positive and quiet engagement.
- Slide can be spaced up to 15mm (9/16") from latch body and still actuated.
- Slide can be adjusted to desired length by loosening the knob screw.
- Screw size M4 or #8.
- Encapsulated magnet for marine use.
- Magnetic slide and strike ensure positive and quiet engagement.
- Slide can be spaced up to 15mm (9/16") from latch body and still actuated.
- Slide can be adjusted to desired length by loosening the knob screw.
- Screw size M4 or #8.
Qty
MOQ
-
Bulk No.

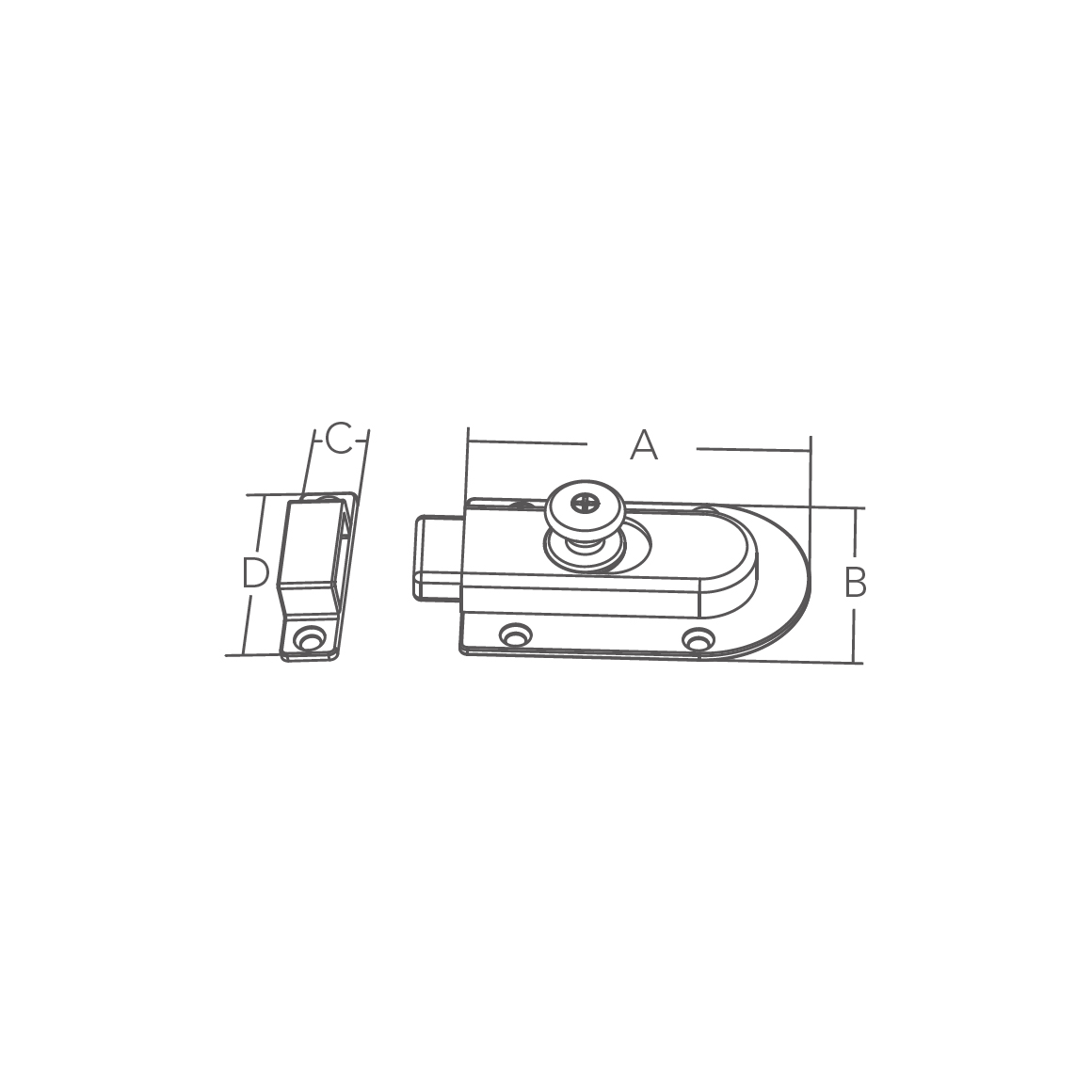

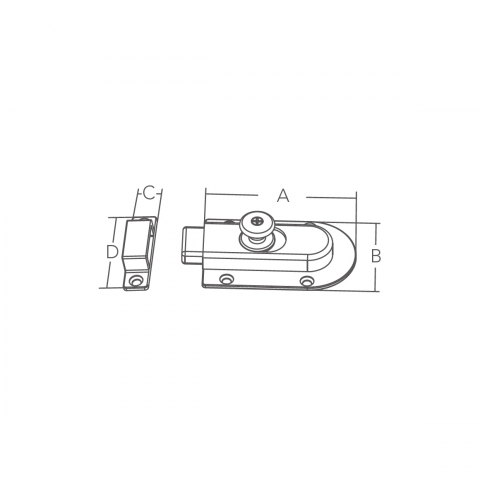

A mm
B mm
C mm
D mm
9321255 91(3-9/16") 56(2-3/16") 15(9/16") 56(2-3/16")
-
Bulk No.
Download
9321255 Drawing
