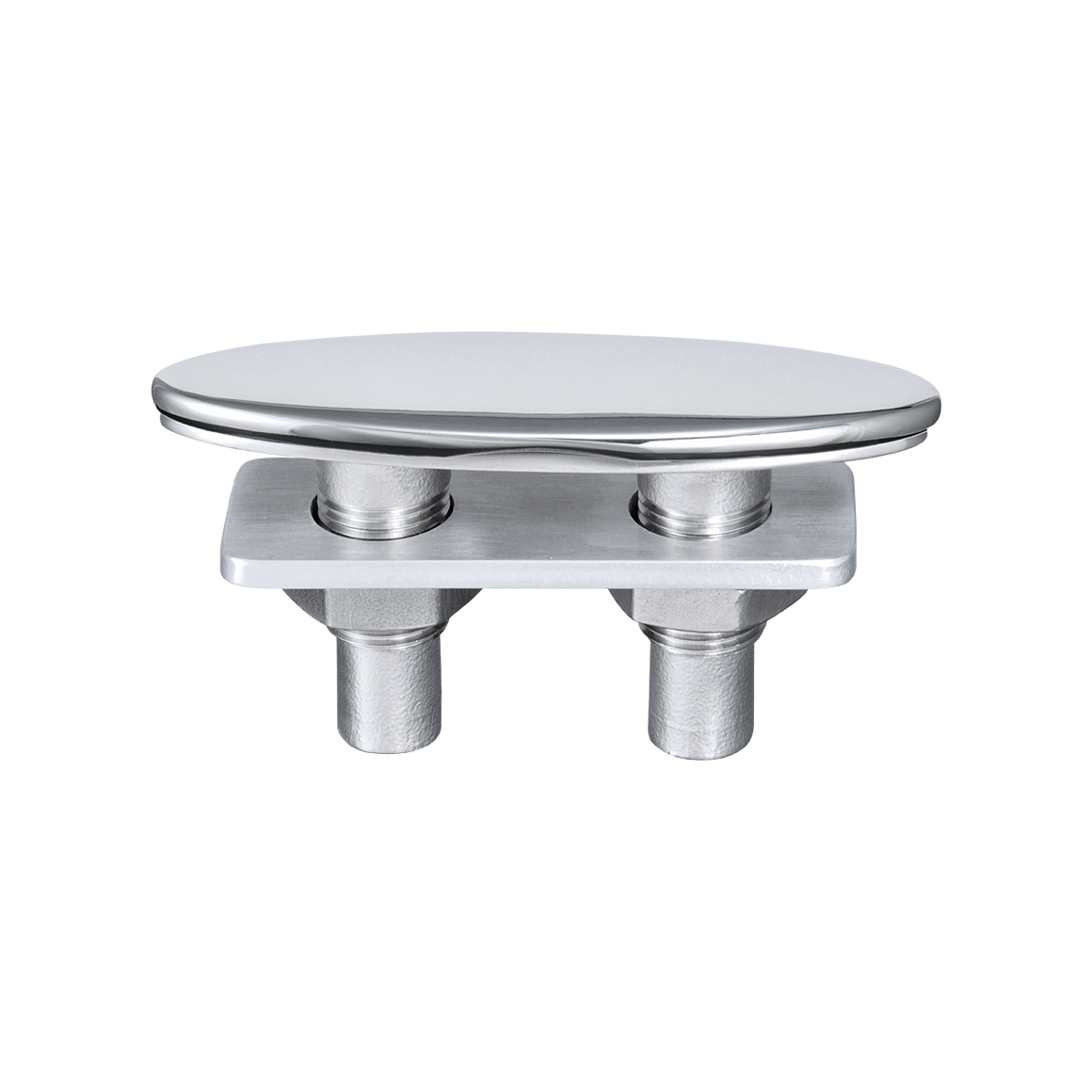

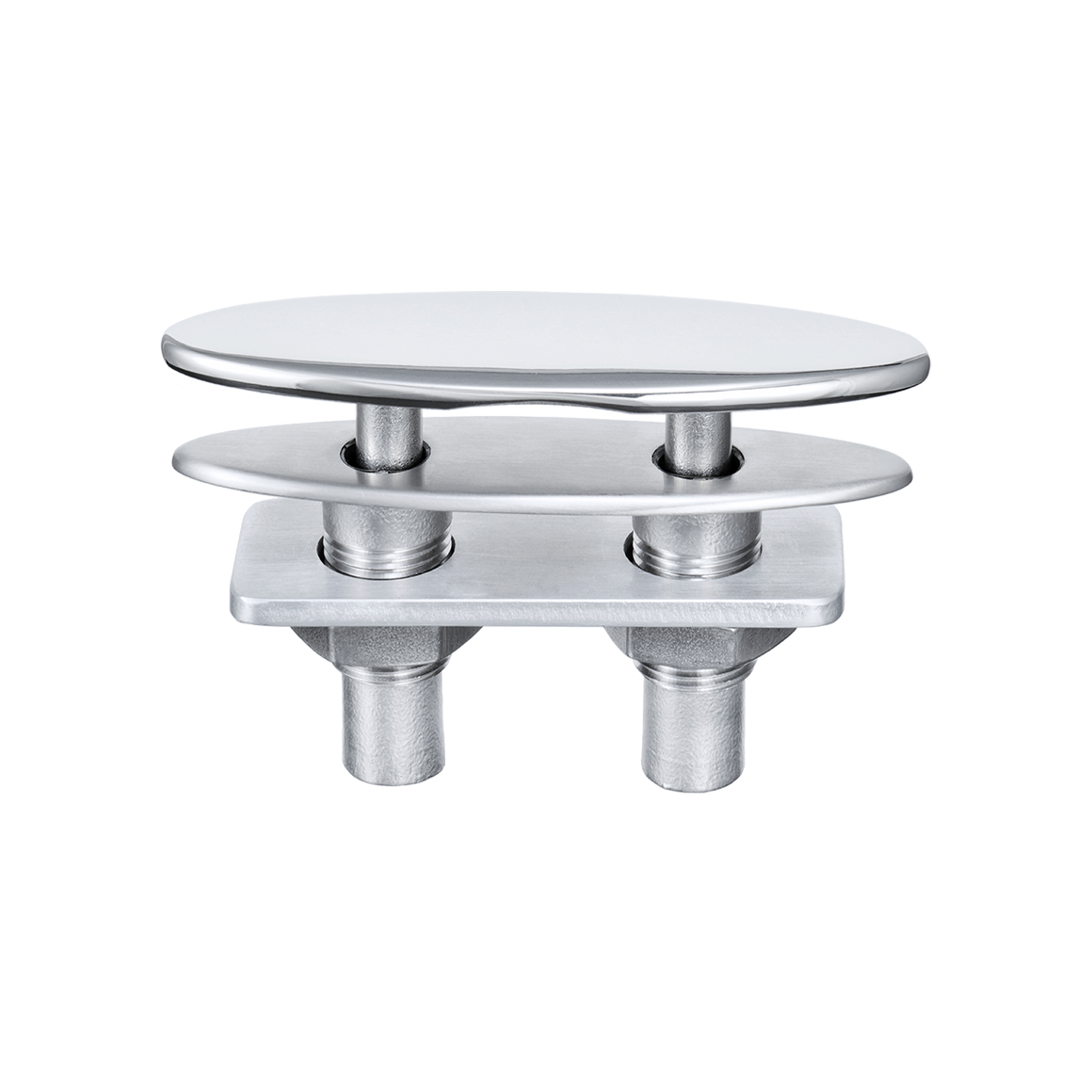

PULL UP FLAT CLEAT
Stainless Steel 316
- Anti-rattle design.

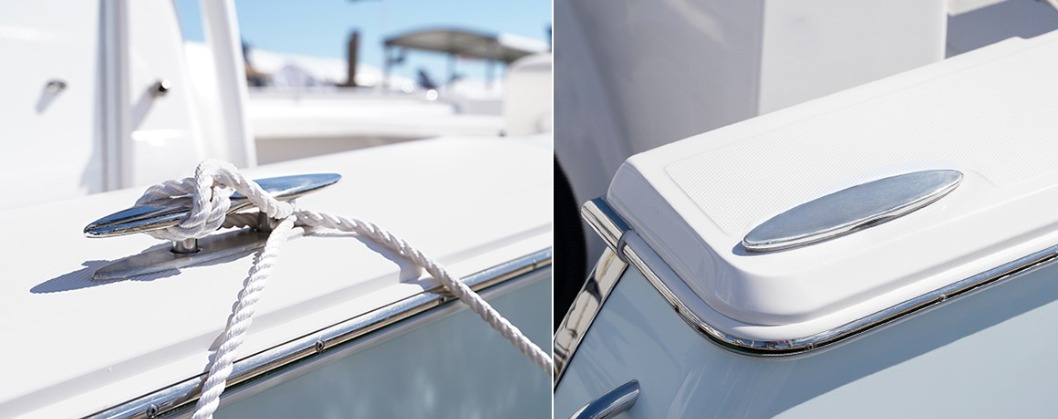

- Flush appearance that covers entire cleat base when stowed.
- Aluminum backing plate is included.
- Anti-rattle design.
- Flush appearance that covers entire cleat base when stowed.
- Aluminum backing plate is included.
Qty
MOQ
Qty
MOQ
Qty
Qty
-

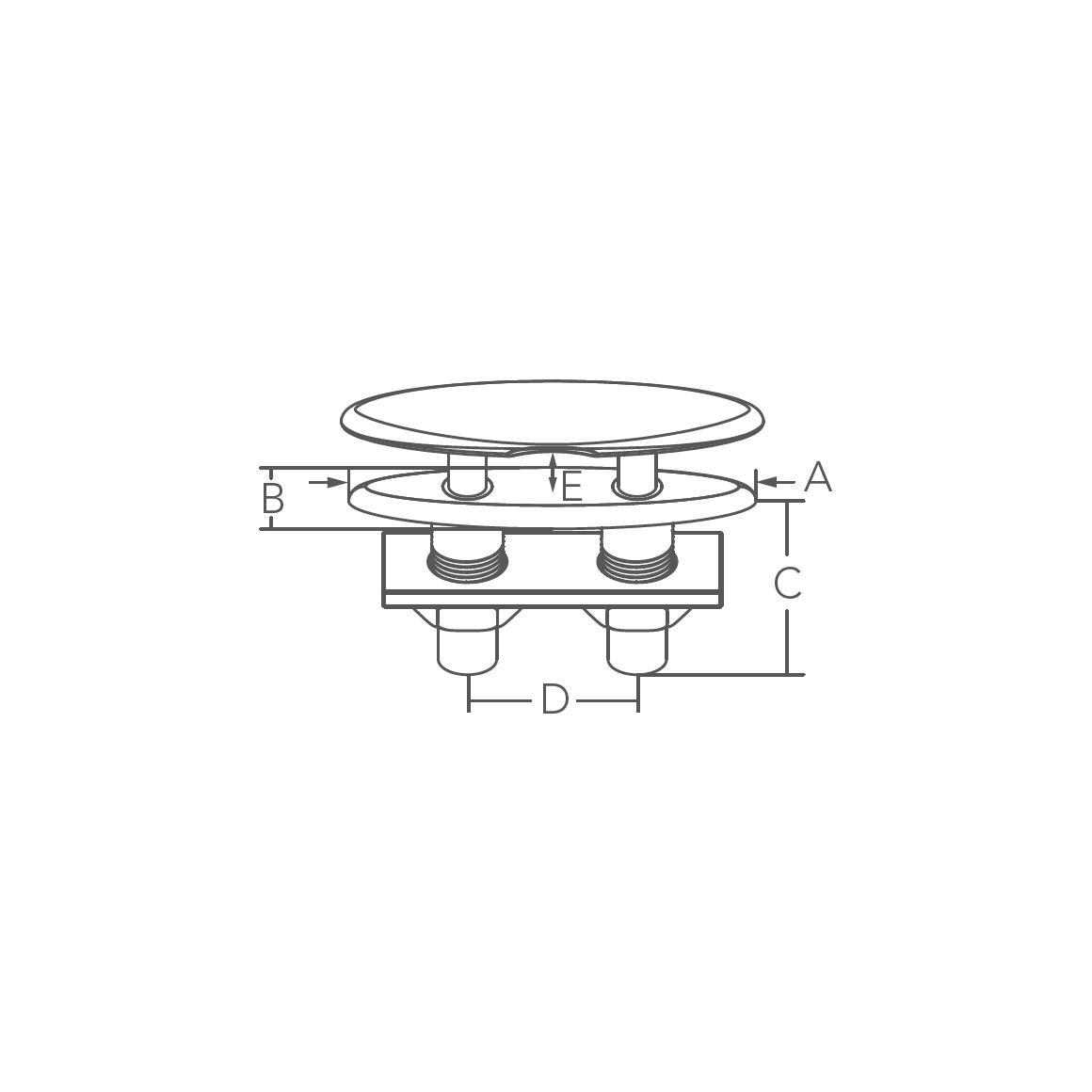

Bulk No.
A mm
B mm
C mm
D mm
E mm
Installation Hole
Grip mm
9218730 108(4-1/4") 28(1-1/8") 50(2") 45(1-3/4") 19(3/4") 22(7/8") 1.5~17(1/16"~11/16") 9218732 146(5-3/4") 34(1-5/16") 60(2-3/8") 57(2-1/4") 26(1") 24(15/16") 3.5~23(1/8"~15/16") 9218734 202(7-15/16") 37(1-7/16") 71(2-13/16") 70(2-3/4") 31(1-1/4") 27(1-1/16") 4.5~27(3/16"~1-1/16") 9218736 250(9-13/16") 46(1-13/16") 94(3-11/16") 87(3-7/16") 42(1-5/8") 35(1-3/8") 6~43(1/4"~1-11/16") WORKING LOAD LIMIT
Bulk No.
Vertical Pull
9218730 890 kgf/ 1958 lbf 9218732 1050 kgf/ 2310 lbf 9218734 1430 kgf/ 3146 lbf 9218736 1735 kgf/ 3817 lbf
