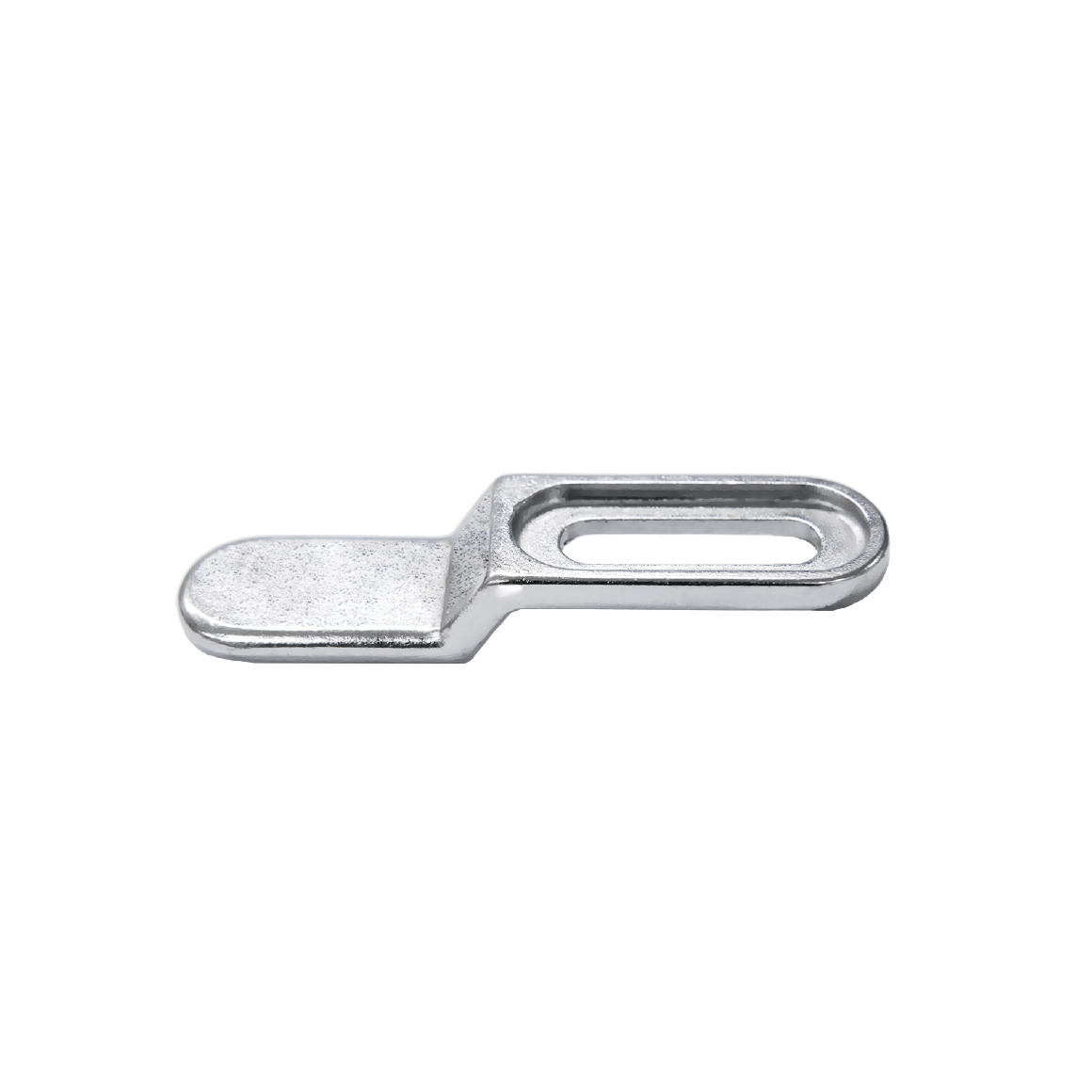

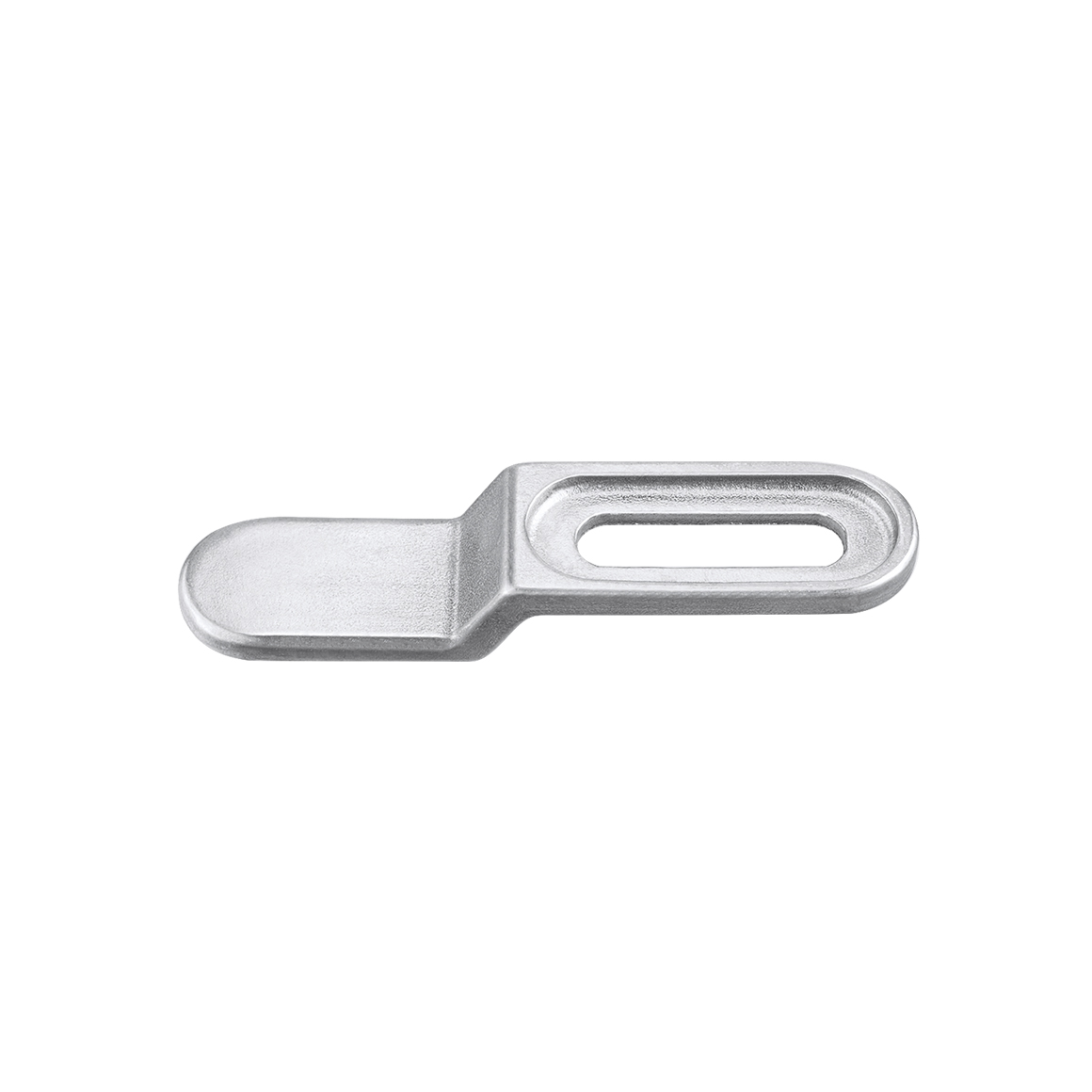

CAST LATCH PAWL - ADJUSTABLE
Stainless Steel 316
- 38mm (1-1/2") adjustable slot.
- Optional pawl for 64mm (2-1/2") Compression Latch and 70mm (2-3/4")
Compression Round "T" Handle Latch.
- Fits 1/2" pawl shaft.
- Pawl can be positioned forward or reverse to accommodate a
wide range of applications.
- 38mm (1-1/2") adjustable slot.
- Optional pawl for 64mm (2-1/2") Compression Latch and 70mm (2-3/4")
Compression Round "T" Handle Latch.
- Fits 1/2" pawl shaft.
- Pawl can be positioned forward or reverse to accommodate a
wide range of applications.
Qty
-
Bulk No.

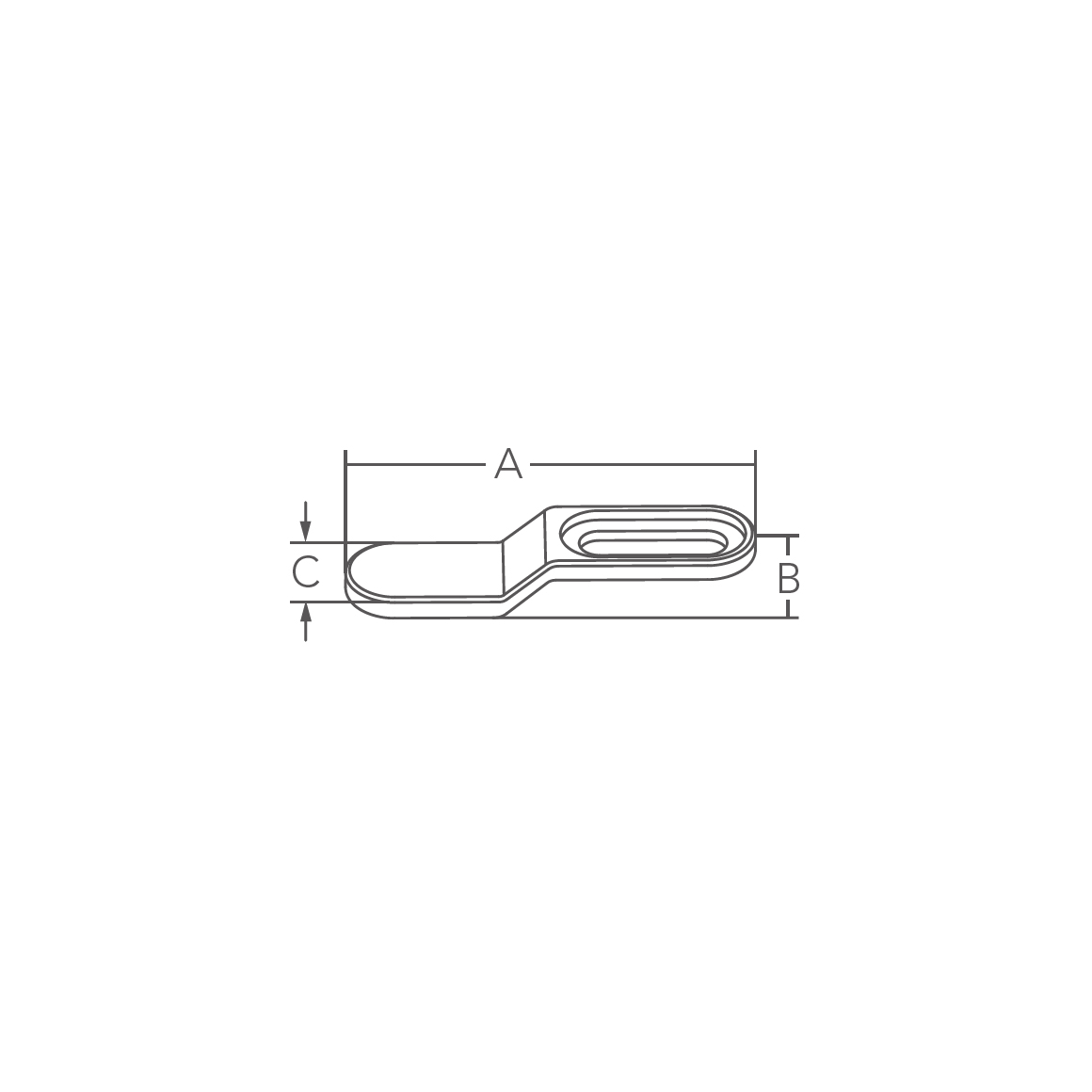

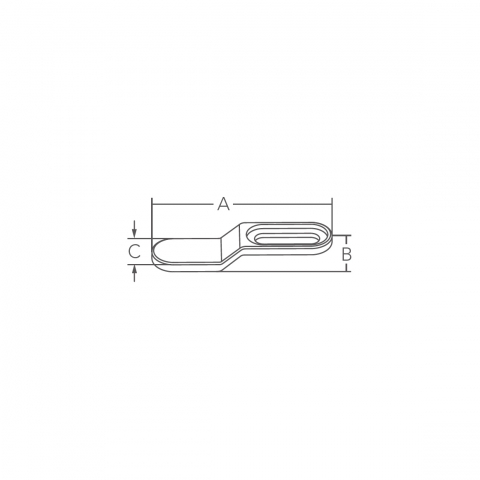

A mm
B mm
C mm
9121828 105(4-1/8'') 18(11/16'') 25(1'') -
Bulk No.
Download
9121828 Drawing
