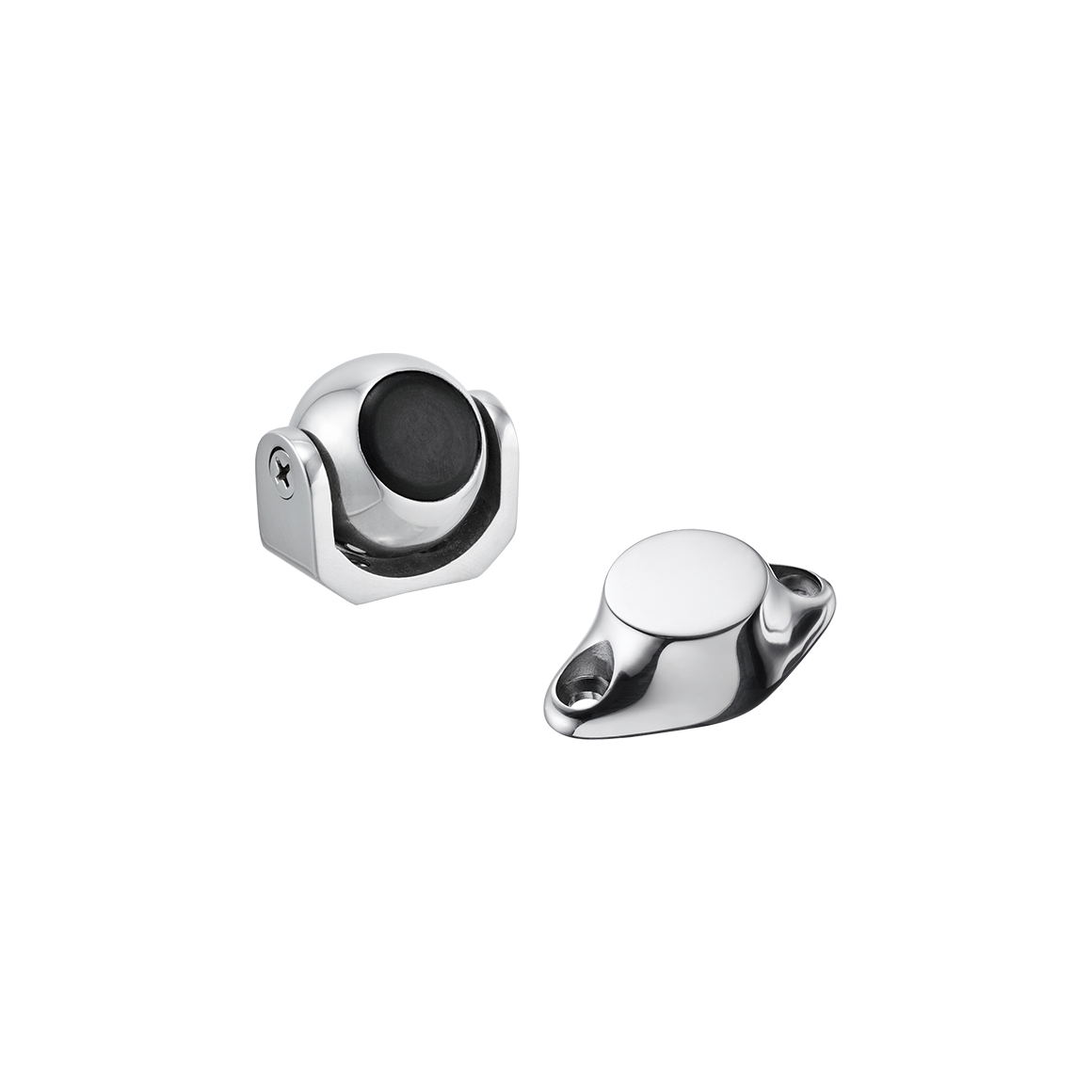

MAG. DOOR HOLDER W/ PROUD STRIKE
Stainless Steel 316
- Holder can be adjusted to any desired angle.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Sold as set.
- Screw size M4 or #8.
- Holder can be adjusted to any desired angle.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Sold as set.
- Screw size M4 or #8.
Qty
MOQ
Qty
MOQ
Qty
MOQ
-

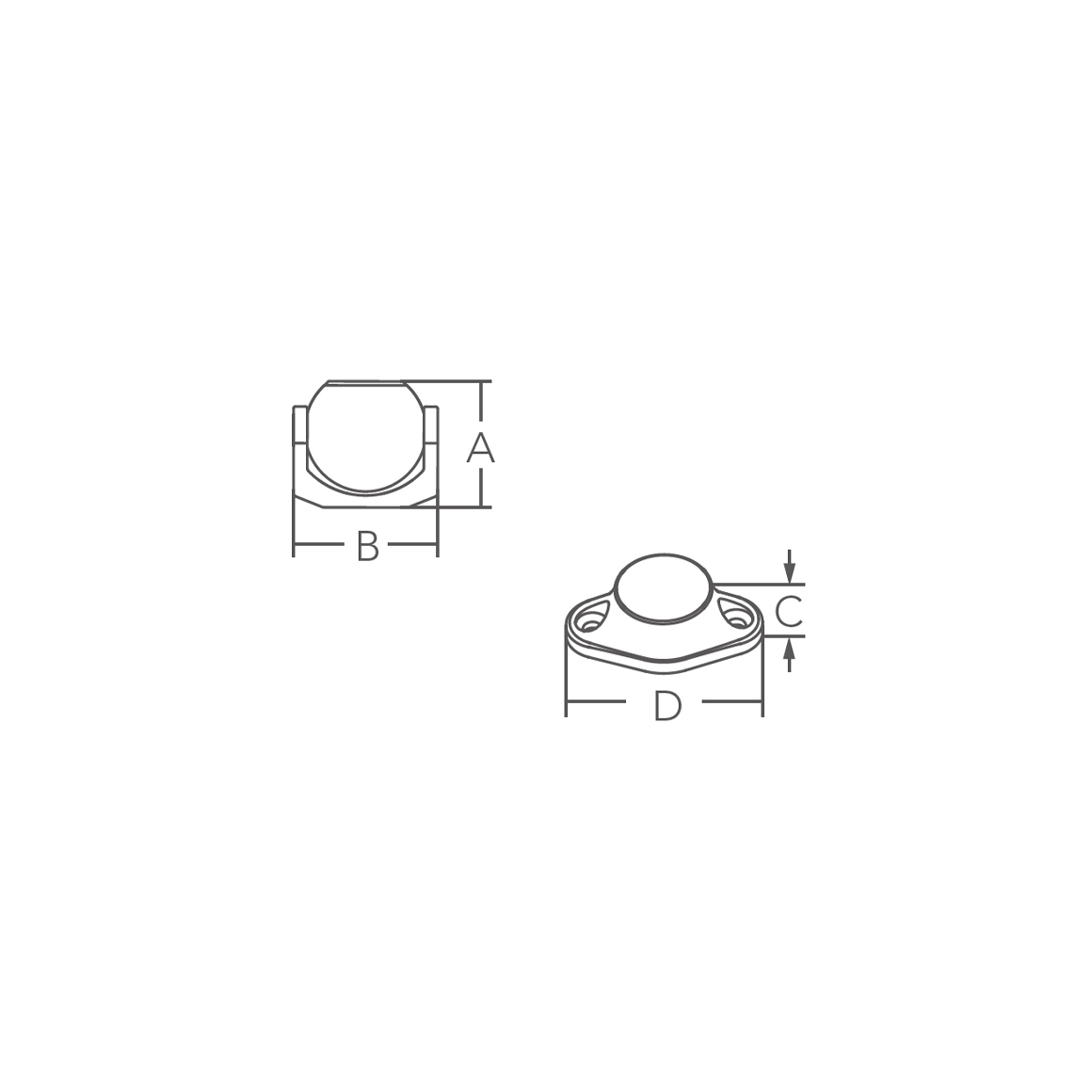

Bulk No.
Mag. Size
A mm
B mm
C mm
D mm
Holding Power
Ball
Strike
9121380 20x15 Proud 20x10 33(1-5/16") 37(1-7/16") 15(9/16") 47(1-7/8") 3.7 kg(8.2 lb) 9321755 20x15 Proud 30x15 33(1-5/16") 37(1-7/16") 19(3/4") 70(2-3/4") 5.9 kg(13 lb) 9421155 30x15 Proud 30x15 46(1-13/16") 50(2") 19(3/4") 70(2-3/4") 10.8 kg(23.8 lb)
