HEAVY DUTY STERN EYE
Stainless Steel
- Upgraded quality appearance.
- Welded and polished face plate to reduce potential rust.
- Upgraded quality appearance.
- Welded and polished face plate to reduce potential rust.
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Material

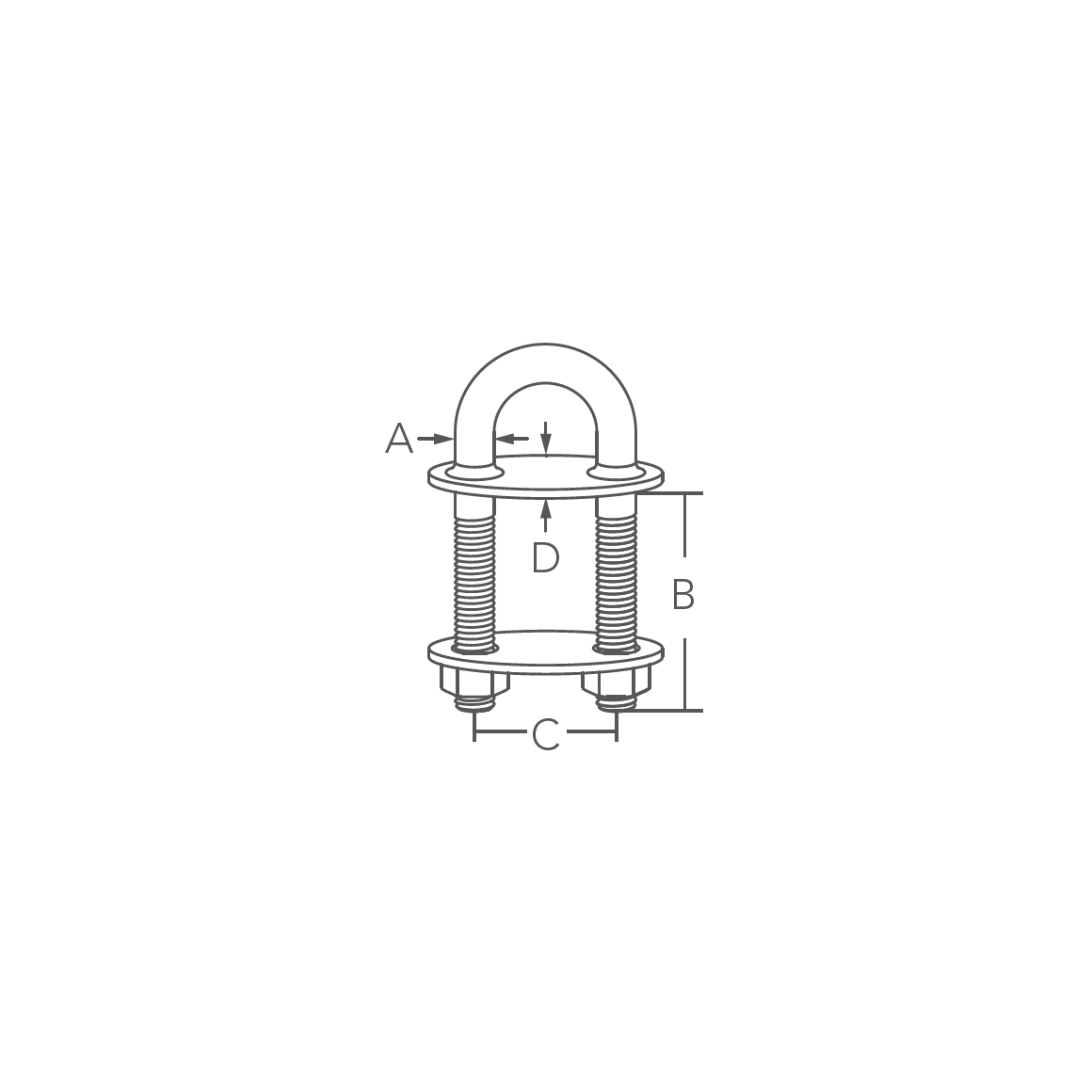

A mm
B mm
C mm
D mm
Face Plate Thickness
Thread

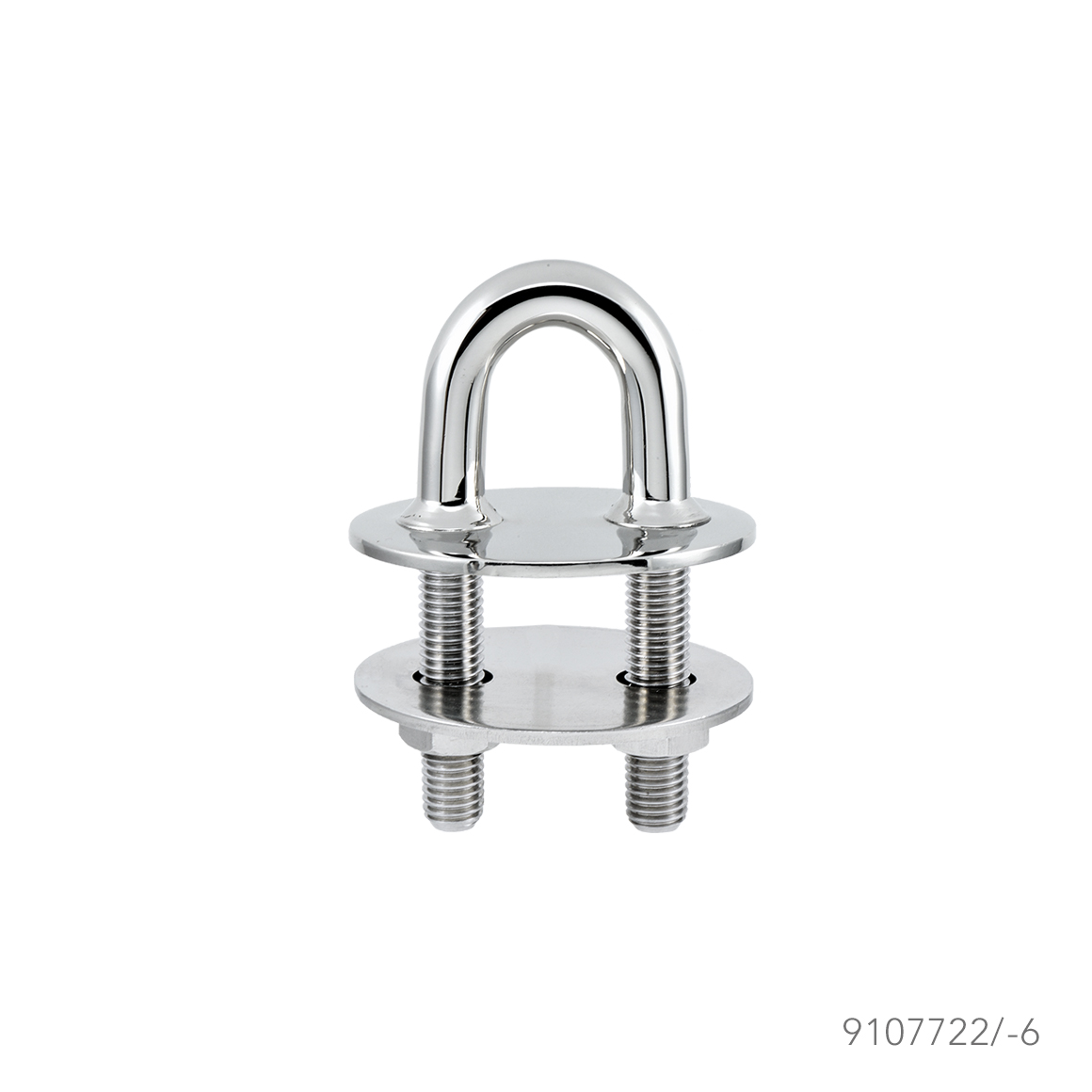

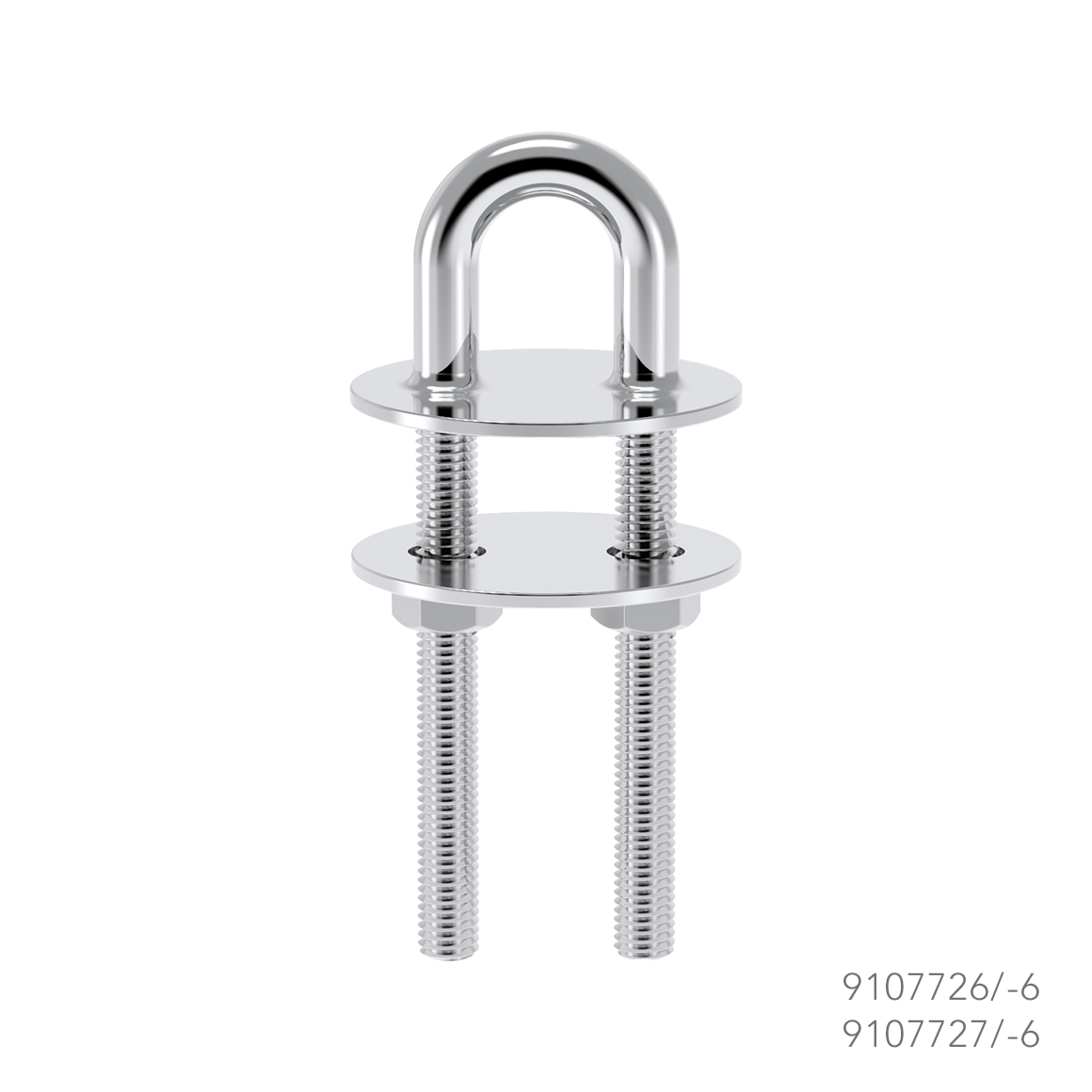

9107722 SS304 12.7(1/2") 76(3") 46(1-13/16") 43(1-11/16") 3mm(1/8") 1/2"-13T 9107726 SS304 16(5/8") 75.2(2-15/16") 48.3(1-7/8") 83(3-1/4") 4mm(3/16") 5/8"-11T 9107727 SS304 16(5/8") 139.7(5-1/2") 48.3(1-7/8") 83(3-1/4") 4mm(3/16") 5/8"-11T 9107722-6 SS316 12.7(1/2") 76.2(3") 46(1-13/16") 43(1-11/16") 3mm(1/8") 1/2"-13T 9107726-6 SS316 16(5/8") 75.2(2-15/16") 48.3(1-7/8") 83(3-1/4") 4mm(3/16") 5/8"-11T 9107727-6 SS316 16(5/8") 140(5-1/2") 48.3(1-7/8") 83(3-1/4") 4mm(3/16") 5/8"-11T
