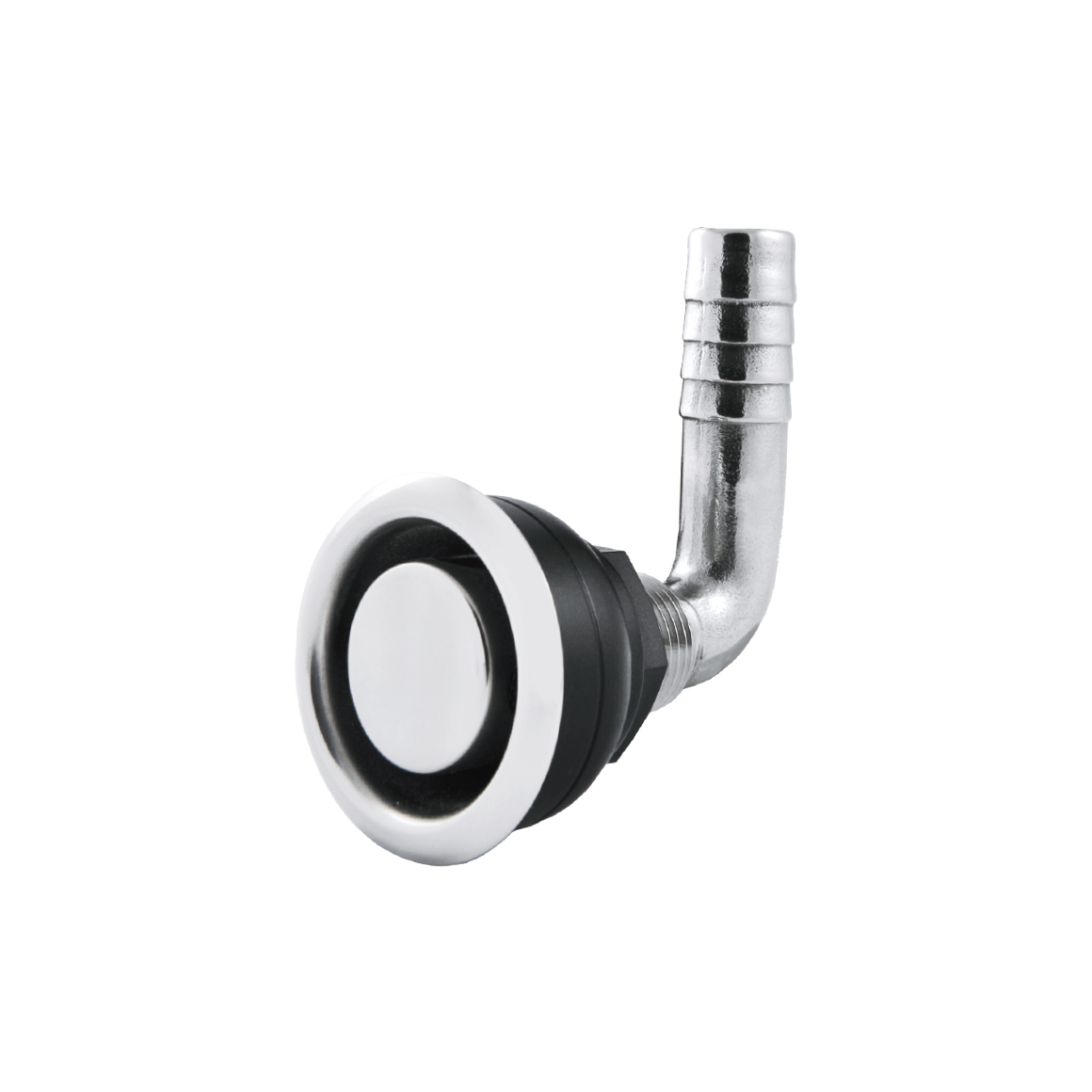

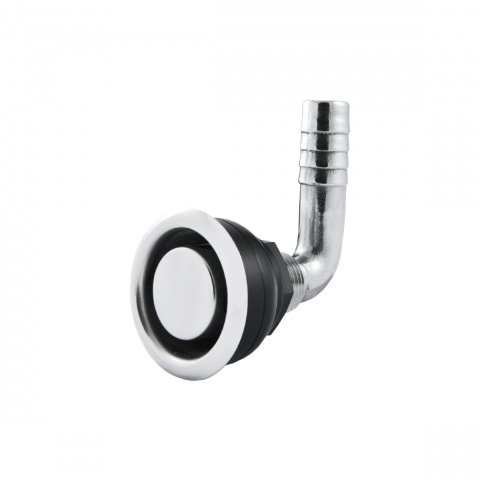

90° STALON TANK VENT
Stainless Steel 316 & Nylon

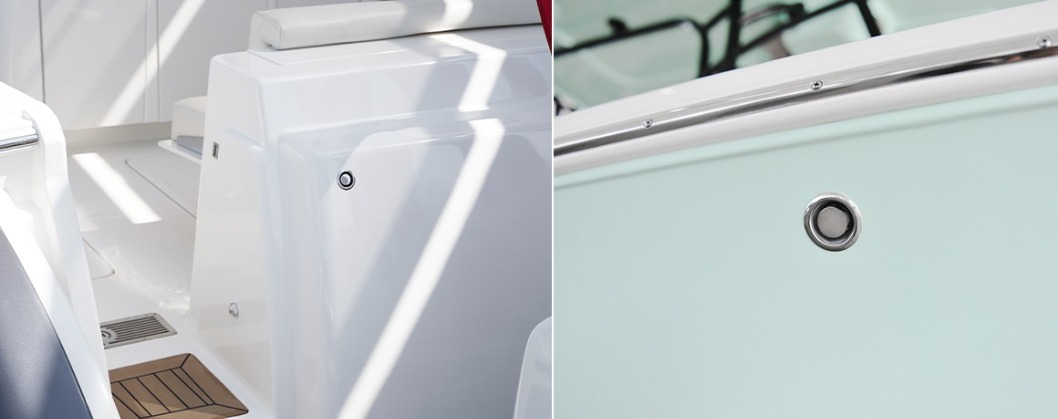

- Provides flush hull installation.
- Comes with stainless steel 304 front cup and flame arrestor screen.
- Uses a nylon backing cup and nut to save cost without compromising
the vent integrity.
- Retains the stainless steel external appearance.
- Provides flush hull installation.
- Comes with stainless steel 304 front cup and flame arrestor screen.
- Uses a nylon backing cup and nut to save cost without compromising
the vent integrity.
- Retains the stainless steel external appearance.

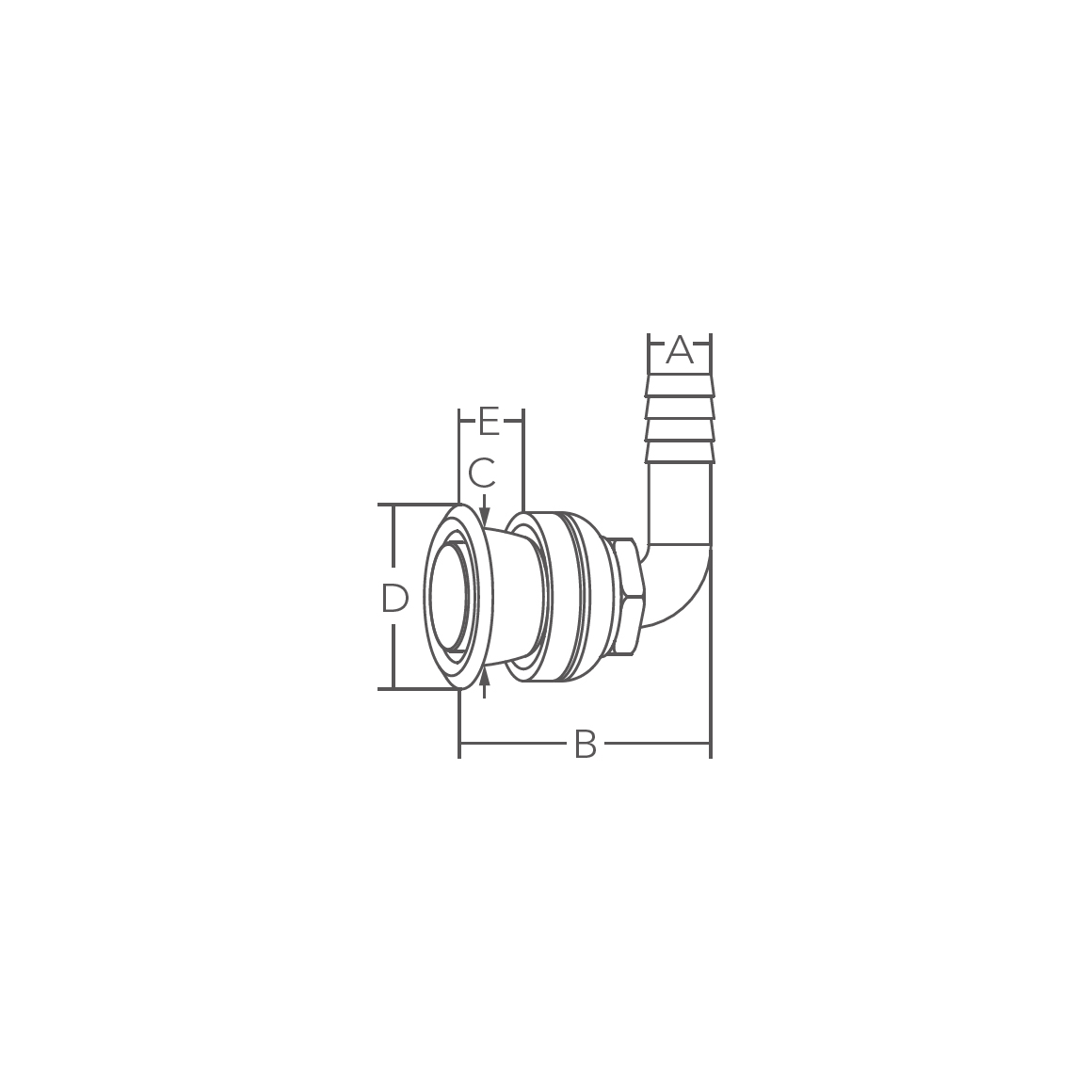

Qty
-
Bulk No.
A mm
B mm
C mm
D mm
E mm
9106364 16(5/8") 70(2-3/4") 35(1-3/8") 46(1-13/16") up to 15(9/16")
-
Bulk No.
Download
9106364 Drawing
