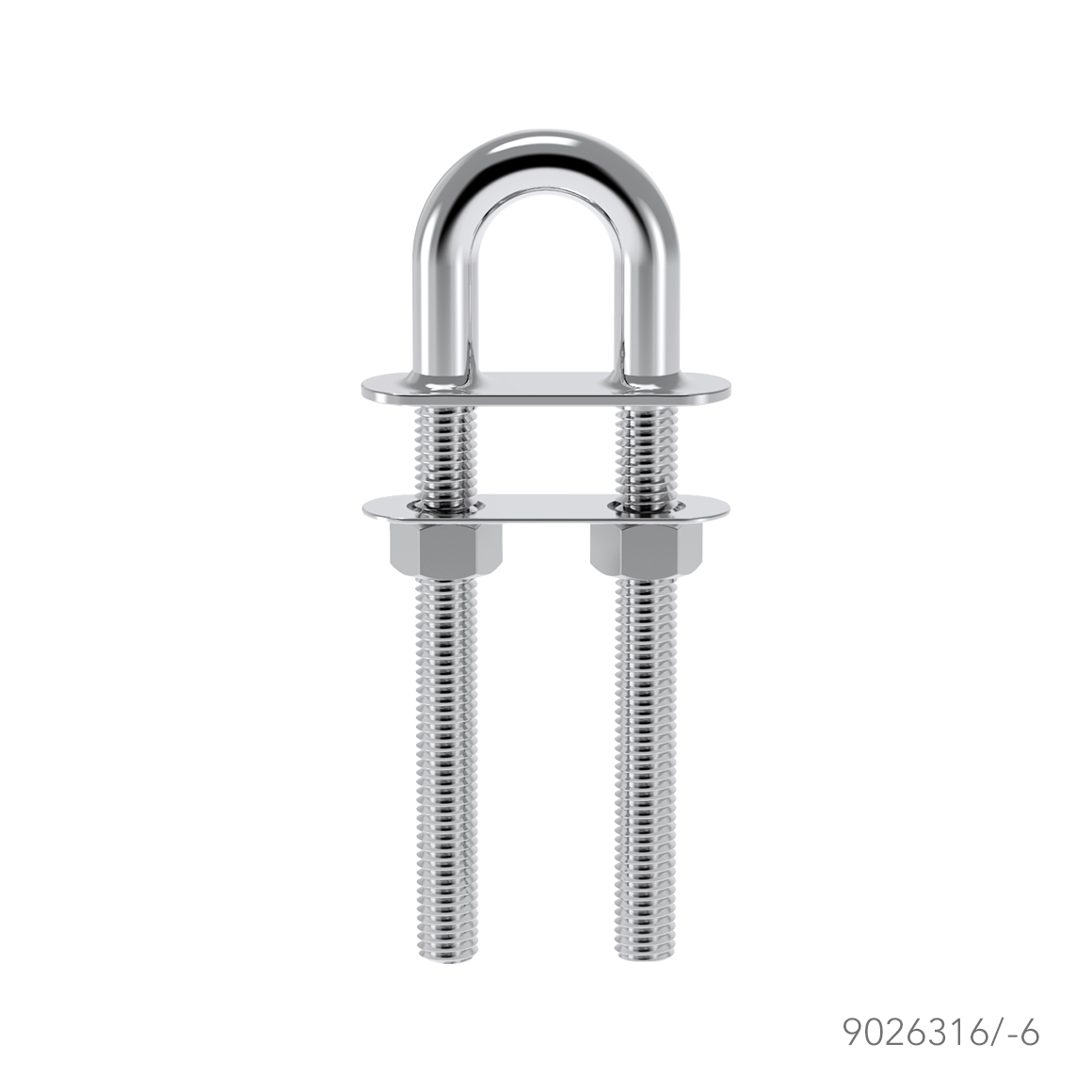

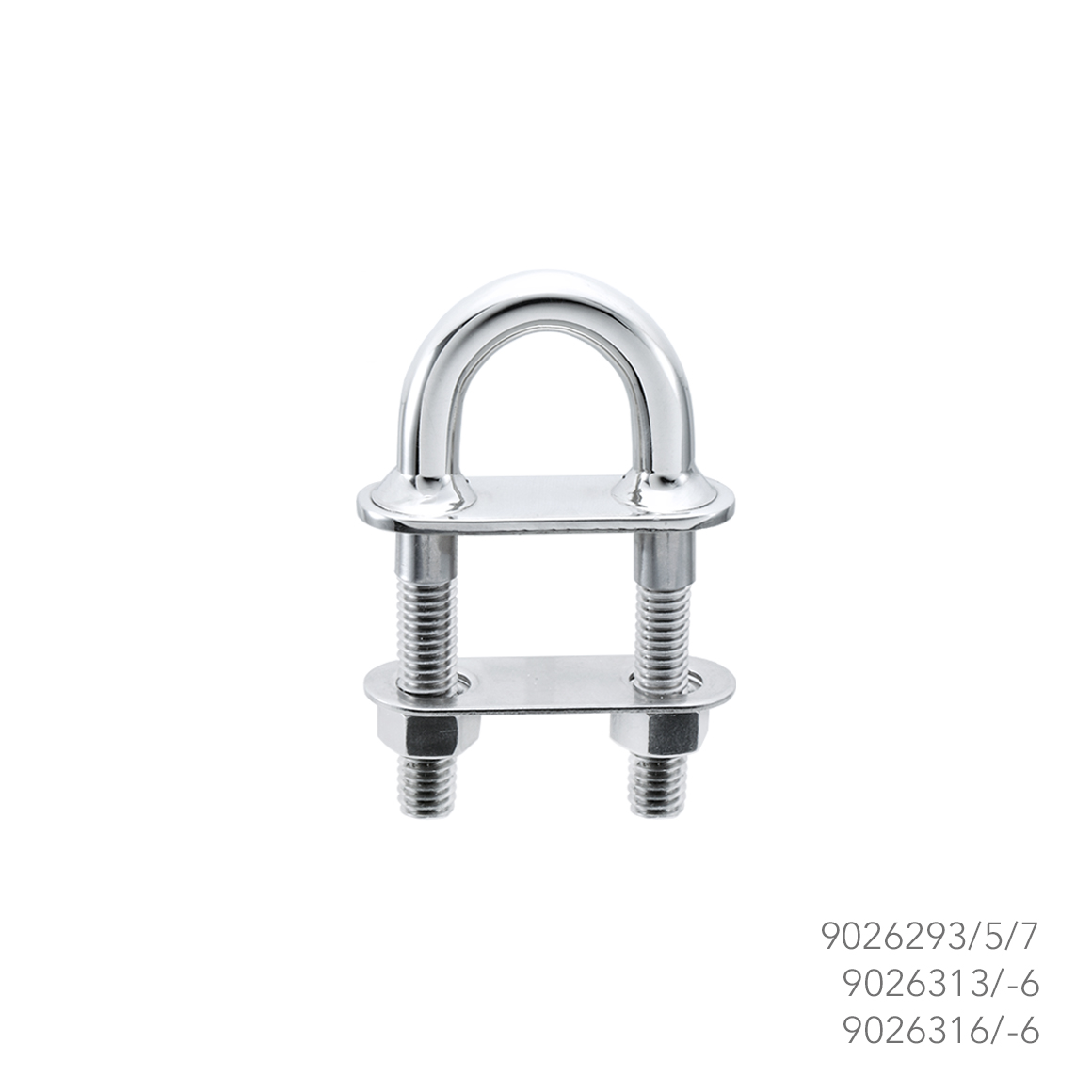

DELUXE BOW EYE

Stainless Steel
- Upgraded quality appearance.
- Welded and polished face plate to reduce potential rust.
- 3mm (1/8") thick face plate.


Qty
Qty
MOQ
Qty
MOQ
Qty
Qty
Qty
Qty
  •

    Bulk No.

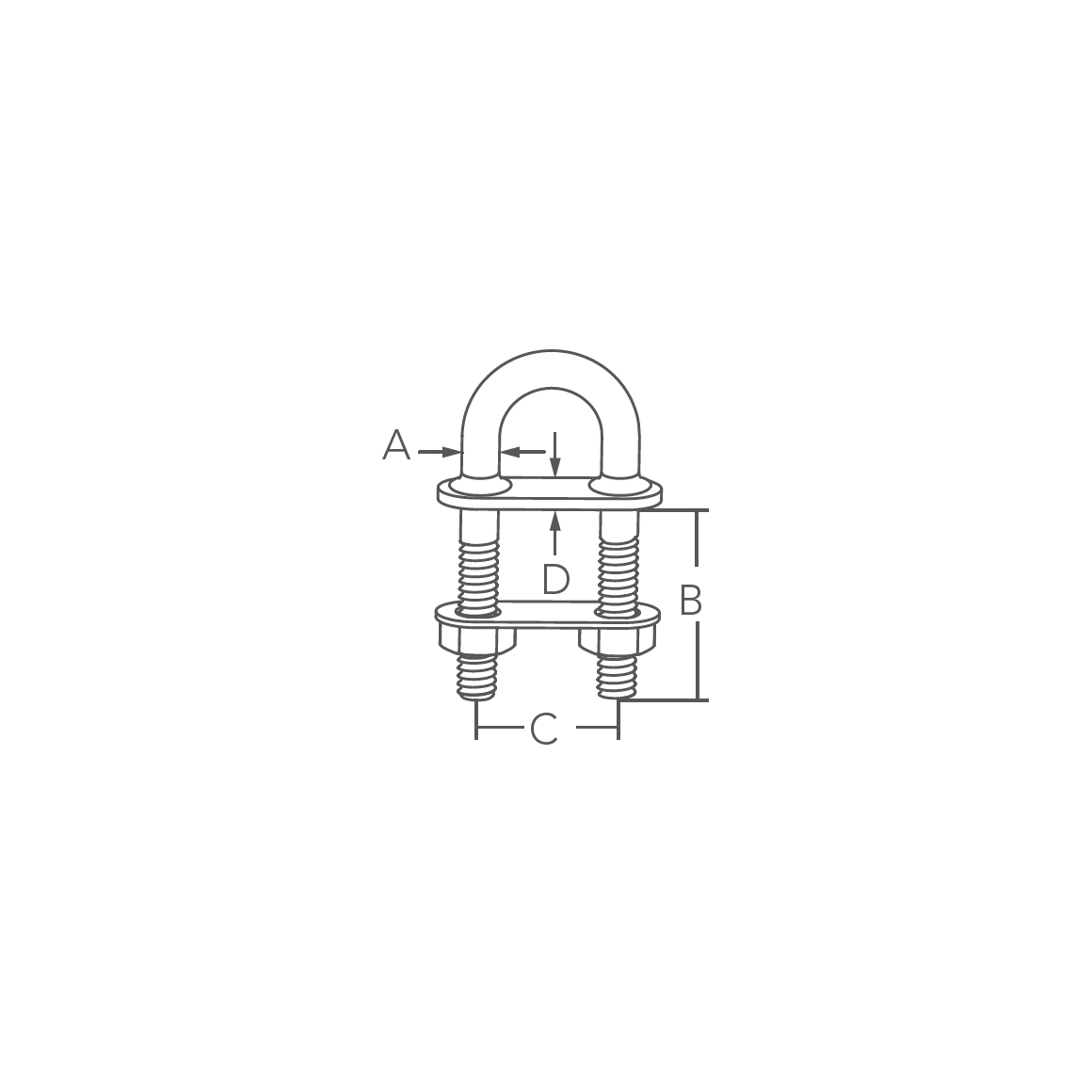

    Material

    A mm

    B mm

    C mm

    D mm

    Thread

    9026293 SS304 9.6(3/8") 63(2-1/2") 35.7(1-7/16") 19(3/4") 3/8"-16T
    9026295 SS304 9.6(3/8") 88(3-7/16") 35.7(1-7/16") 19(3/4") 3/8"-16T
    9026297 SS304 12.7(1/2") 75(2-15/16") 46(1-13/16") 19(3/4") 1/2"-13T
    9026313 SS304 12.7(1/2") 113(4-7/16") 46(1-13/16") 19(3/4") 1/2"-13T
    9026316 SS304 16(5/8") 137.2(5-3/8") 48.3(1-7/8") 25.4(1") 5/8"-11T
    9026313-6 SS316 12.7(1/2") 113(4-7/16") 46(1-13/16") 19(3/4") 1/2"-13T
    9026316-6 SS316 16(5/8") 141(5-9/16") 48.3(1-7/8") 25.4(1") 5/8"-11T

  •

    Bulk No.

    Download

    9026293 Drawing
    9026295 Drawing
    9026297 Drawing
    9026313 Drawing
    9026316 Drawing
    9026313-6 Drawing
    9026316-6 Drawing
