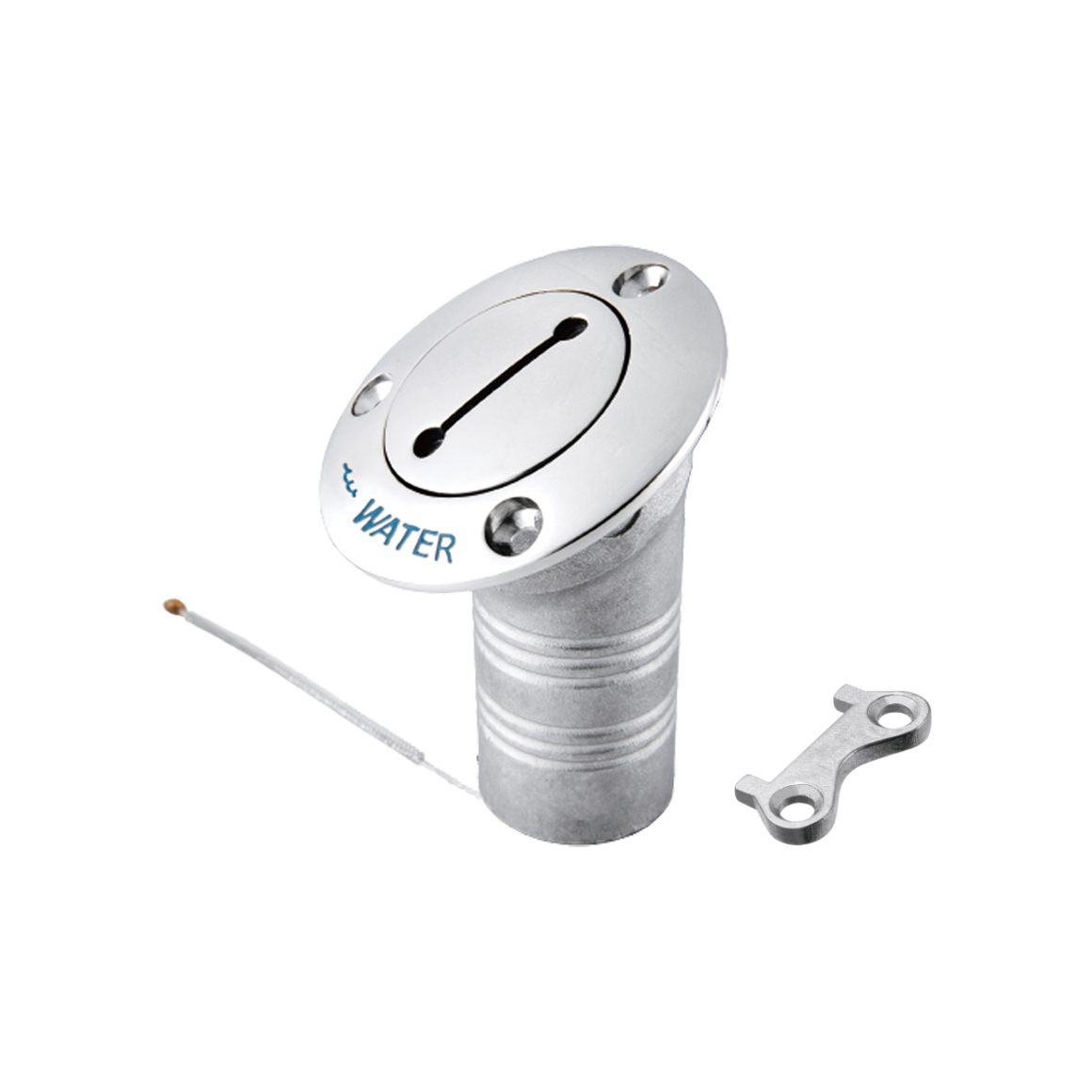

30° STANDARD DECK FILL
Stainless Steel 316
- Cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 56mm (2-1/4") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.
- Cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 56mm (2-1/4") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.
Qty
MOQ
Qty
Qty
MOQ
Qty
MOQ
Qty
Qty
Qty
MOQ
Qty
Qty
-
Bulk No.

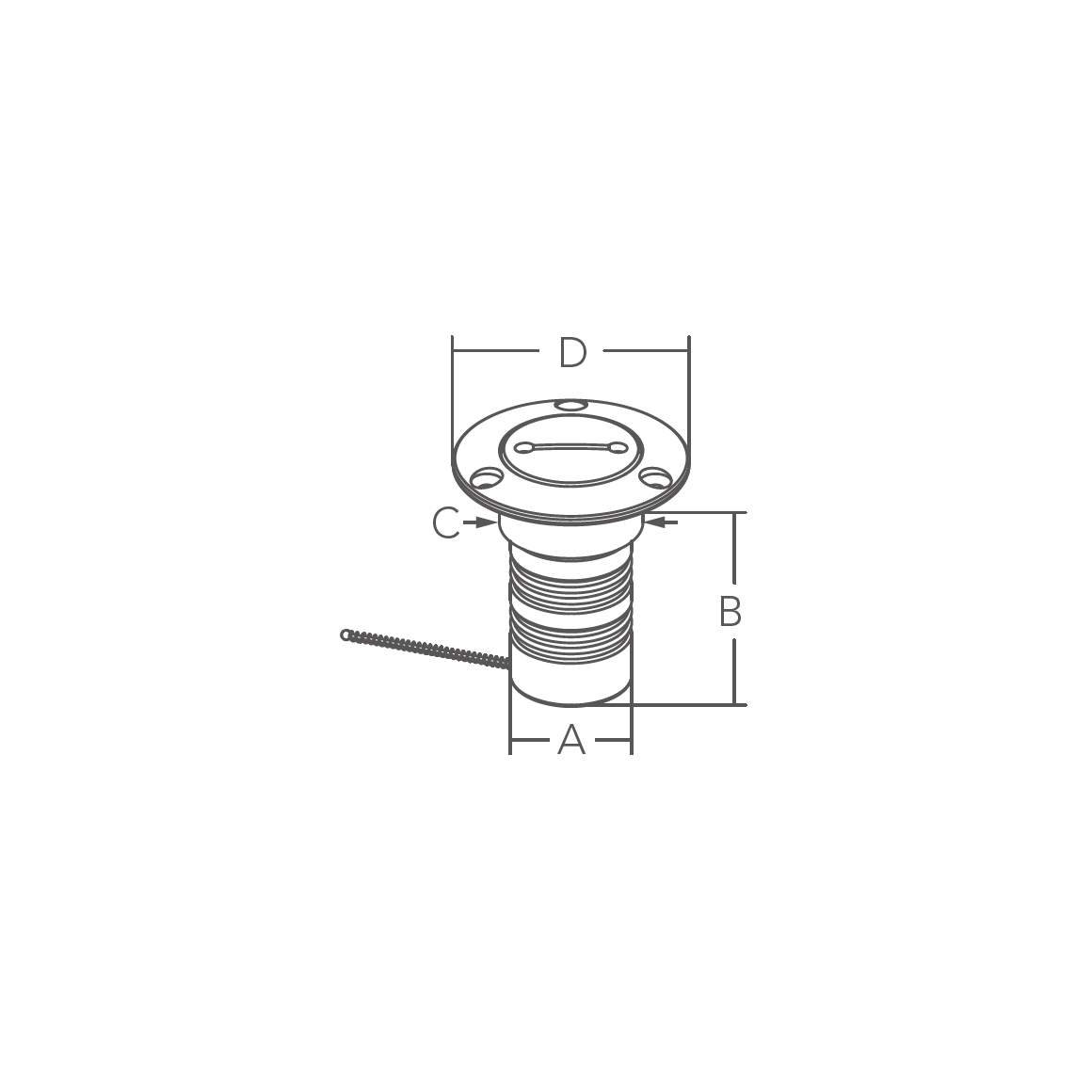

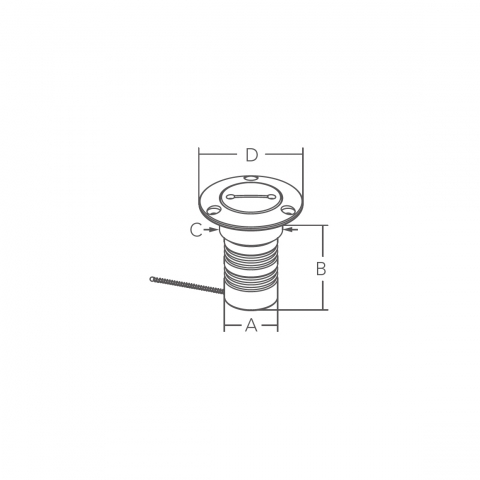

Model
A mm
B mm
C mm
D mm
9007219 Water 38(1-1/2") 85(3-3/8") 45(1-3/4") 74(2-15/16") 9007220 Waste 38(1-1/2") 85(3-3/8") 45(1-3/4") 74(2-15/16") 9206429 Diesel 38(1-1/2") 85(3-3/8") 45(1-3/4") 74(2-15/16") 9007222 Fuel 38(1-1/2") 85(3-3/8") 45(1-3/4") 74(2-15/16") 9007250 Water 51(2") 94(3-11/16") 53(2-1/16") 84(3-5/16") 9007251 Waste 51(2") 94(3-11/16") 53(2-1/16") 84(3-5/16") 9007253 Diesel 51(2") 94(3-11/16") 53(2-1/16") 84(3-5/16") 9007254 Fuel 51(2") 94(3-11/16") 53(2-1/16") 84(3-5/16") 8407019-K Key Only
