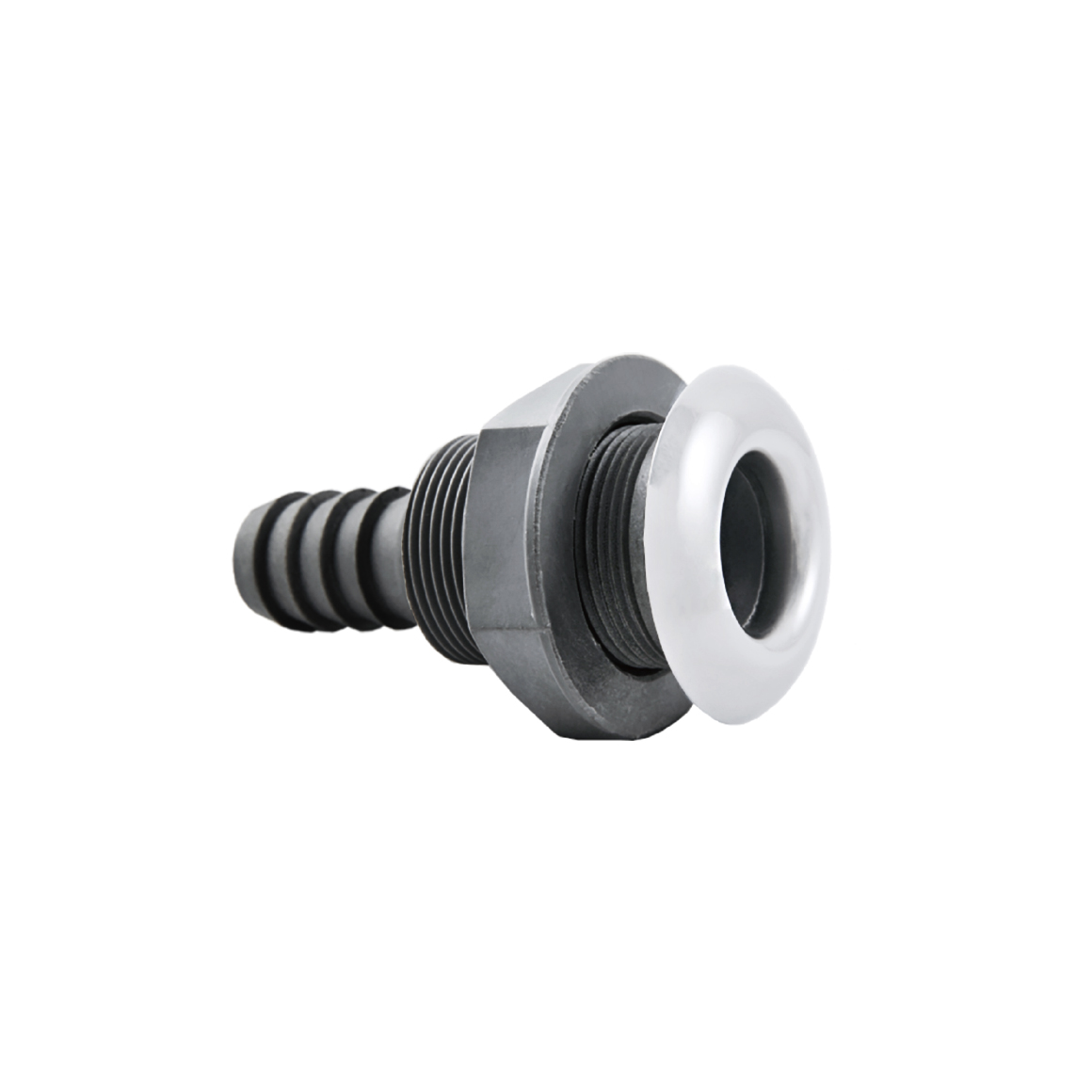

0° STALON THRU HULL
Stainless Steel 316 Face &
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.

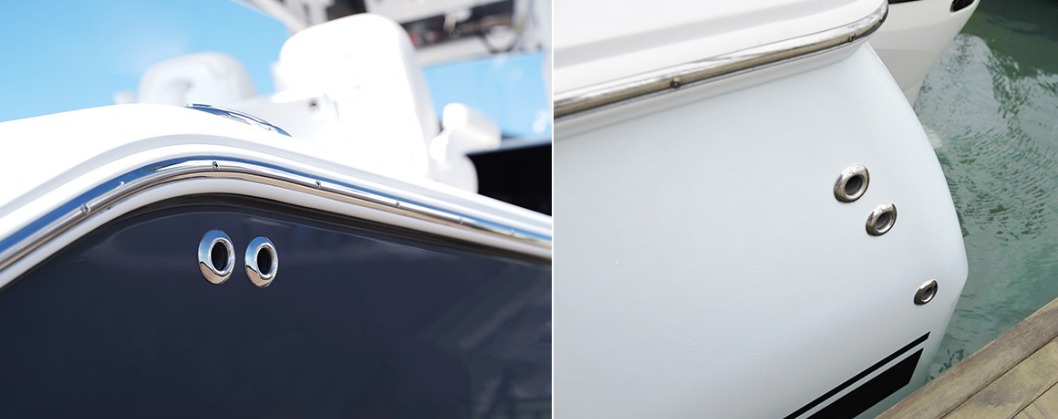

- Suitable for above waterline outlets.
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Suitable for above waterline outlets.
Qty
Qty
Qty
Qty
Qty
MOQ
Qty
Qty
Qty
Qty
Qty
-
Bulk No.

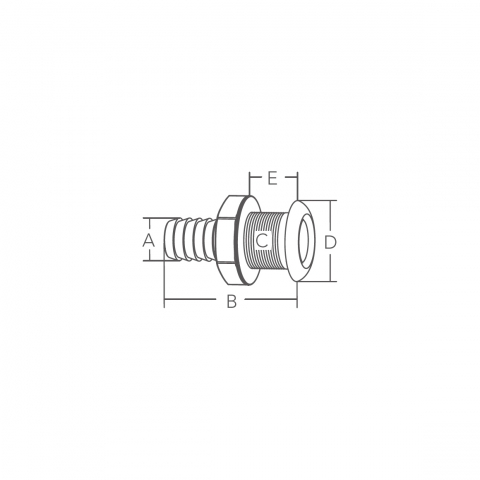

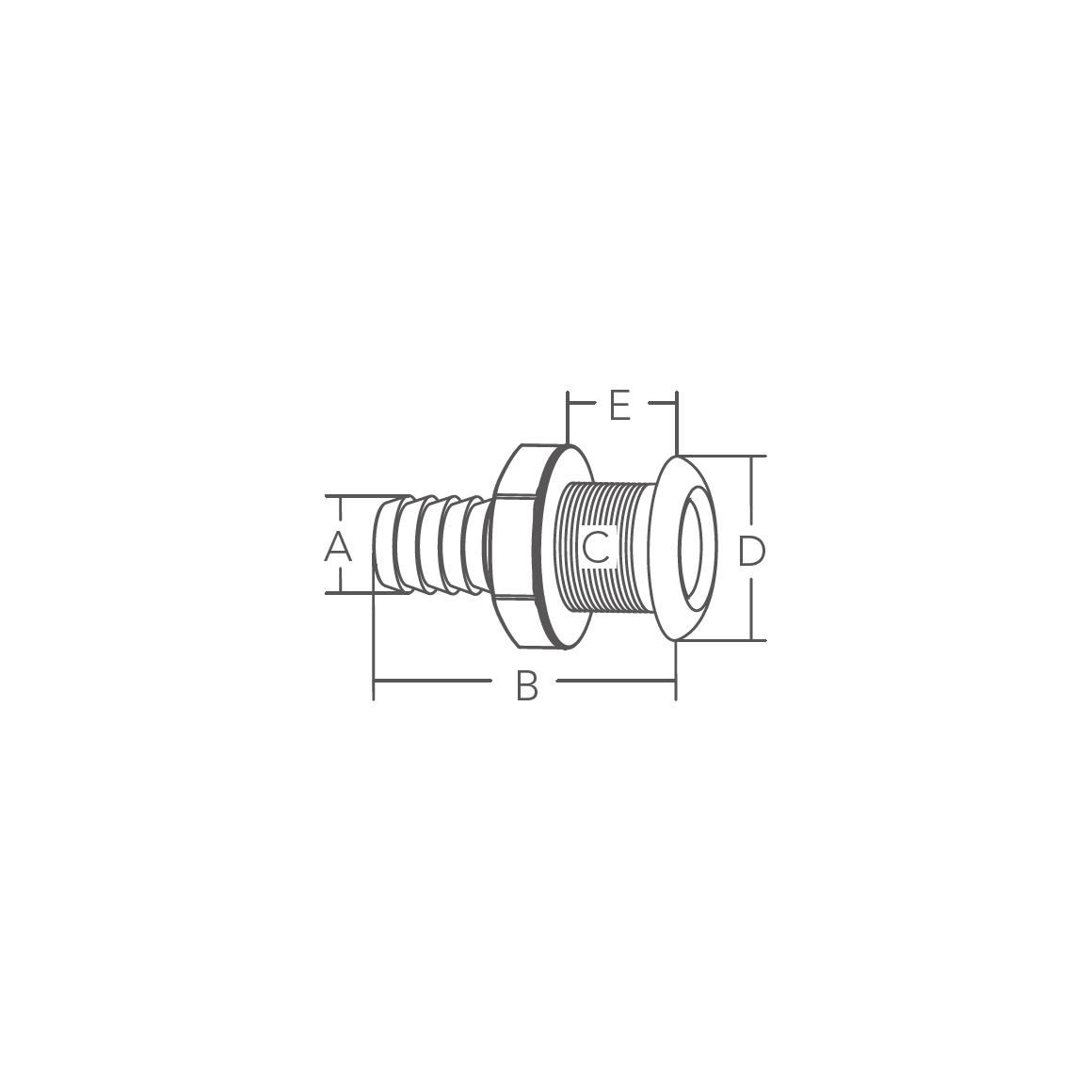

A mm
B mm
C mm
D mm
E-Max. mm
9005241 16(5/8") 75(2-15/16") 33(1-5/16") 48(1-7/8") 29(1-1/8") 9005242 19(3/4") 81(3-3/16") 33(1-5/16") 48(1-7/8") 29(1-1/8") 9005263 19(3/4") 138(5-7/16") 33(1-5/16") 48(1-7/8") 86(3-3/8") 9005243 26(1") 79(3-1/8") 33(1-5/16") 48(1-7/8") 29(1-1/8") 0803253 26(1") 96(3-3/4") 40(1-9/16") 60(2-3/8") 35(1-3/8") 9005244 29(1-1/8") 81(3-3/16") 33(1-5/16") 48(1-7/8") 29(1-1/8") 9005264 29(1-1/8") 138(5-7/16") 33(1-5/16") 48(1-7/8") 86(3-3/8") 9005245 32(1-1/4") 96(3-3/4") 41(1-5/8") 60(2-3/8") 32(1-1/4'') 9005246 38(1-1/2") 96(3-3/4") 41(1-5/8") 60(2-3/8") 32(1-1/4'') 9005255 52(2-1/16") 121(4-3/4") 56(2-3/16") 83(3-1/4") 45(1-3/4'')
