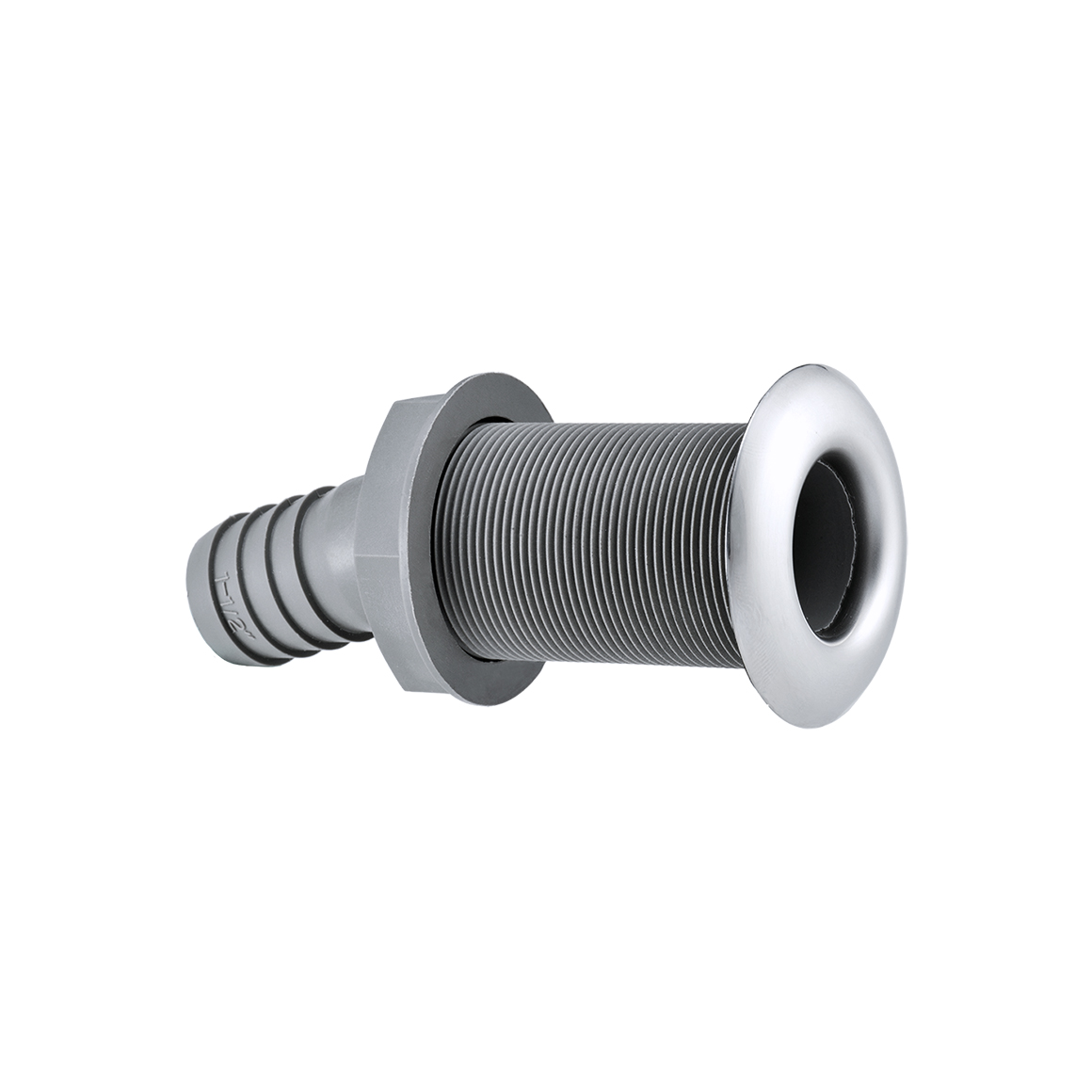

15° STALON THRU HULL
Stainless Steel 316 Face &
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Barb angle is designed to eliminate trapped water in the drain hose.

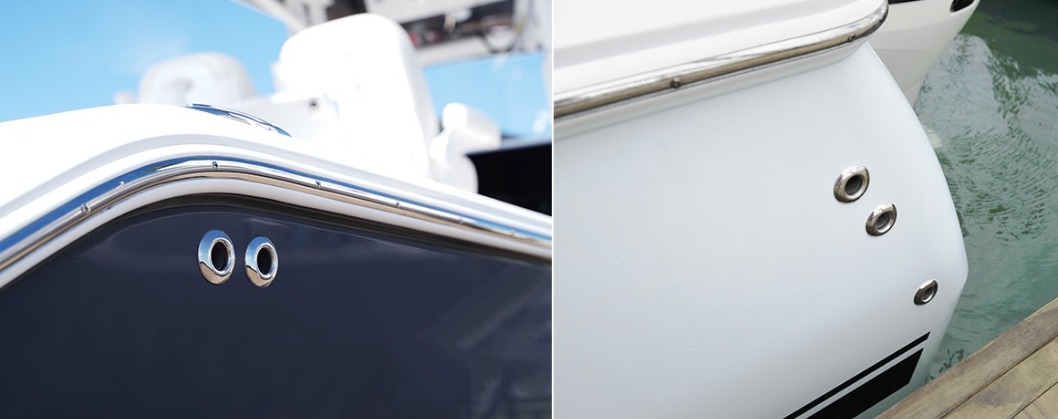

- Suitable for above waterline outlets.
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Barb angle is designed to eliminate trapped water in the drain hose.
- Suitable for above waterline outlets.

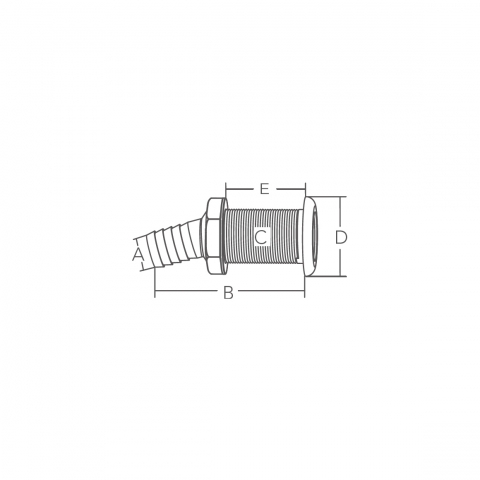

Qty
-
Bulk No.
A mm
B mm
C mm
D mm
E-Max. mm
9005260 38(1-1/2") 166(6-9/16") 56(2-3/16") 83(3-1/4") 83(3-9/32")
-
Bulk No.
Download
9005260 Drawing
