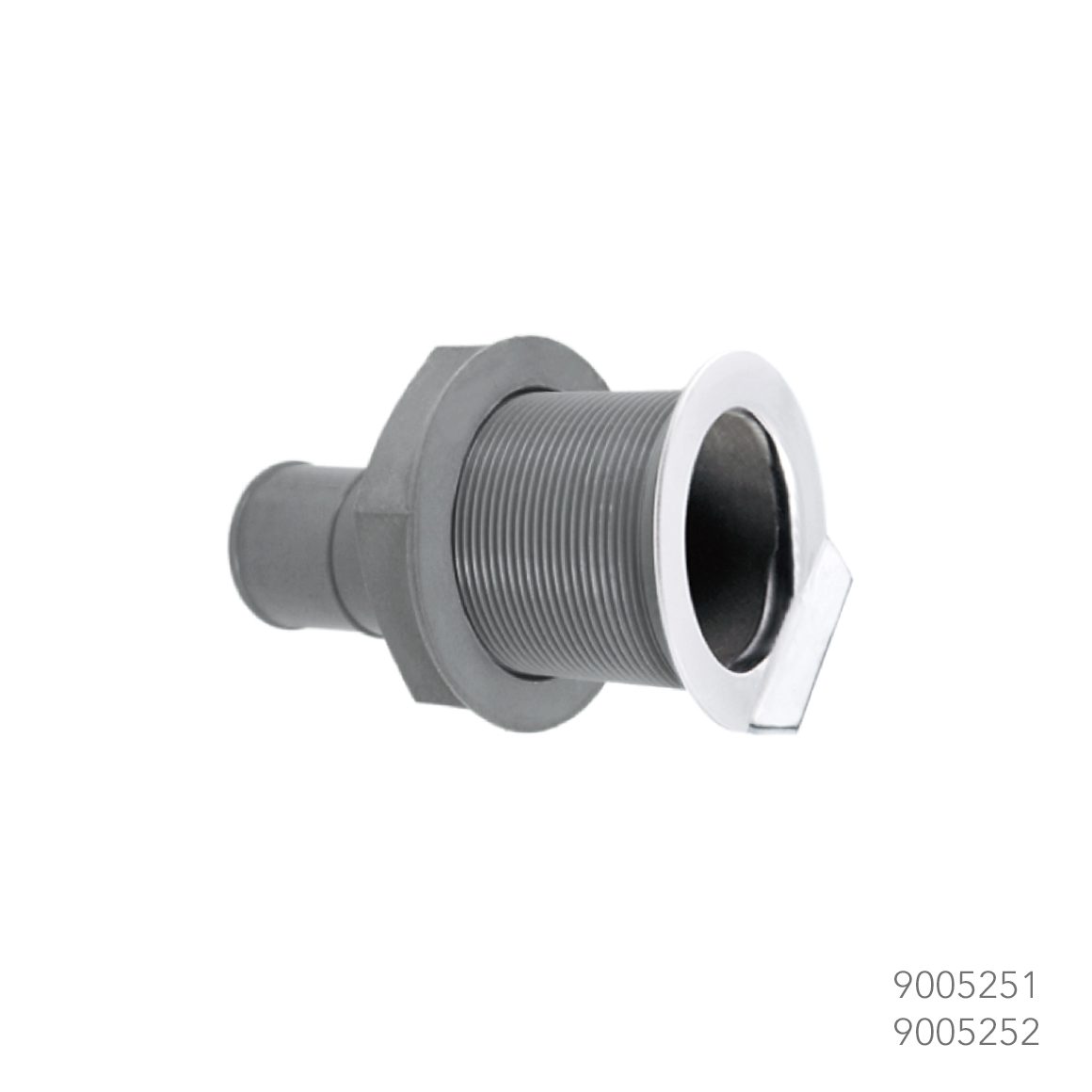

STALON SIDE DECK DRAIN
Stainless Steel 316 Face &
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Flush edge design for lowest possible drainage point.

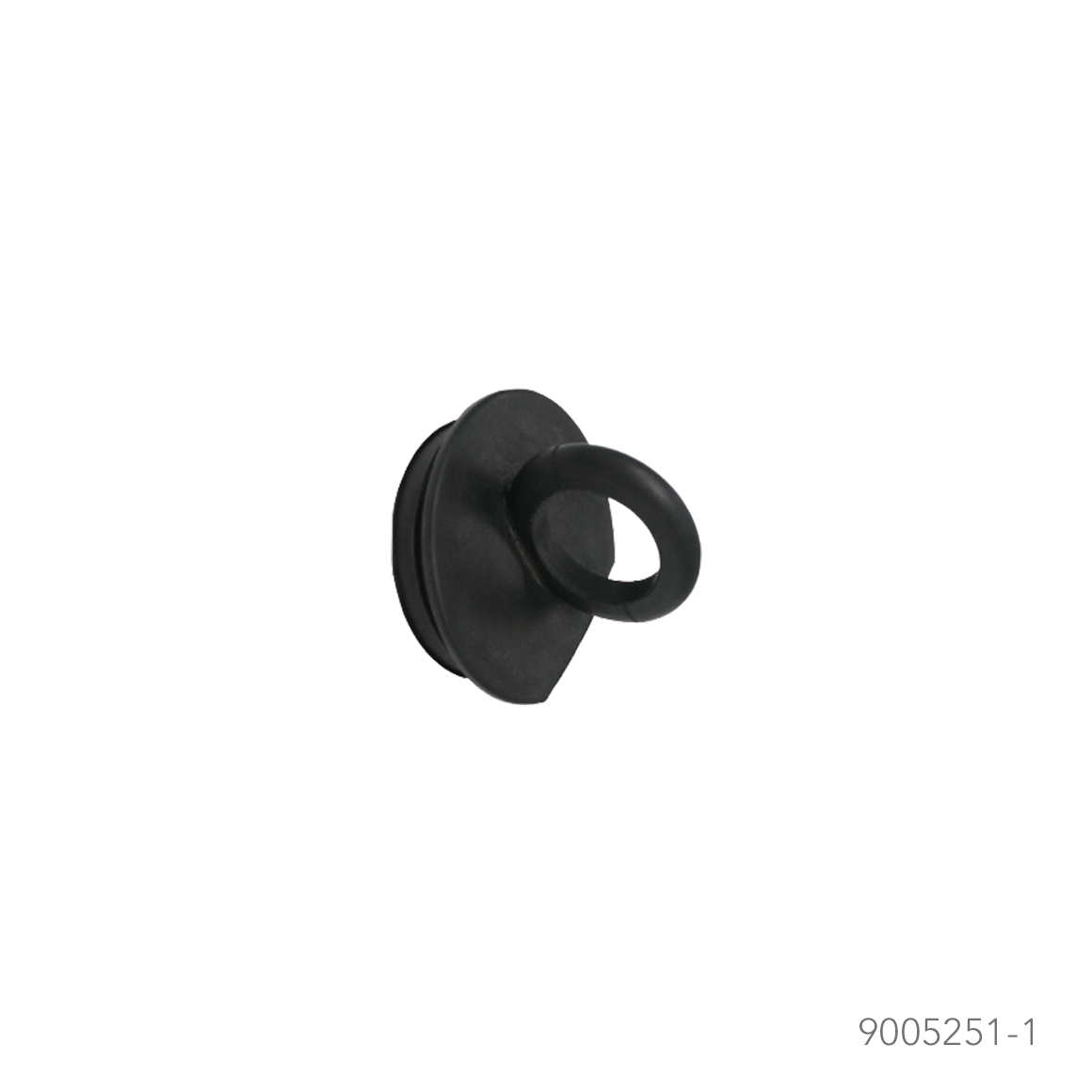

- 9005251-1: Rubber plug to hold water back is sold separately.
Nylon 66 + 30% Fiberglass Filled Body
- Combining the strength and light weight of a reinforced nylon with the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Flush edge design for lowest possible drainage point.
- 9005251-1: Rubber plug to hold water back is sold separately.
Qty
Qty
Qty
Qty
Qty
-

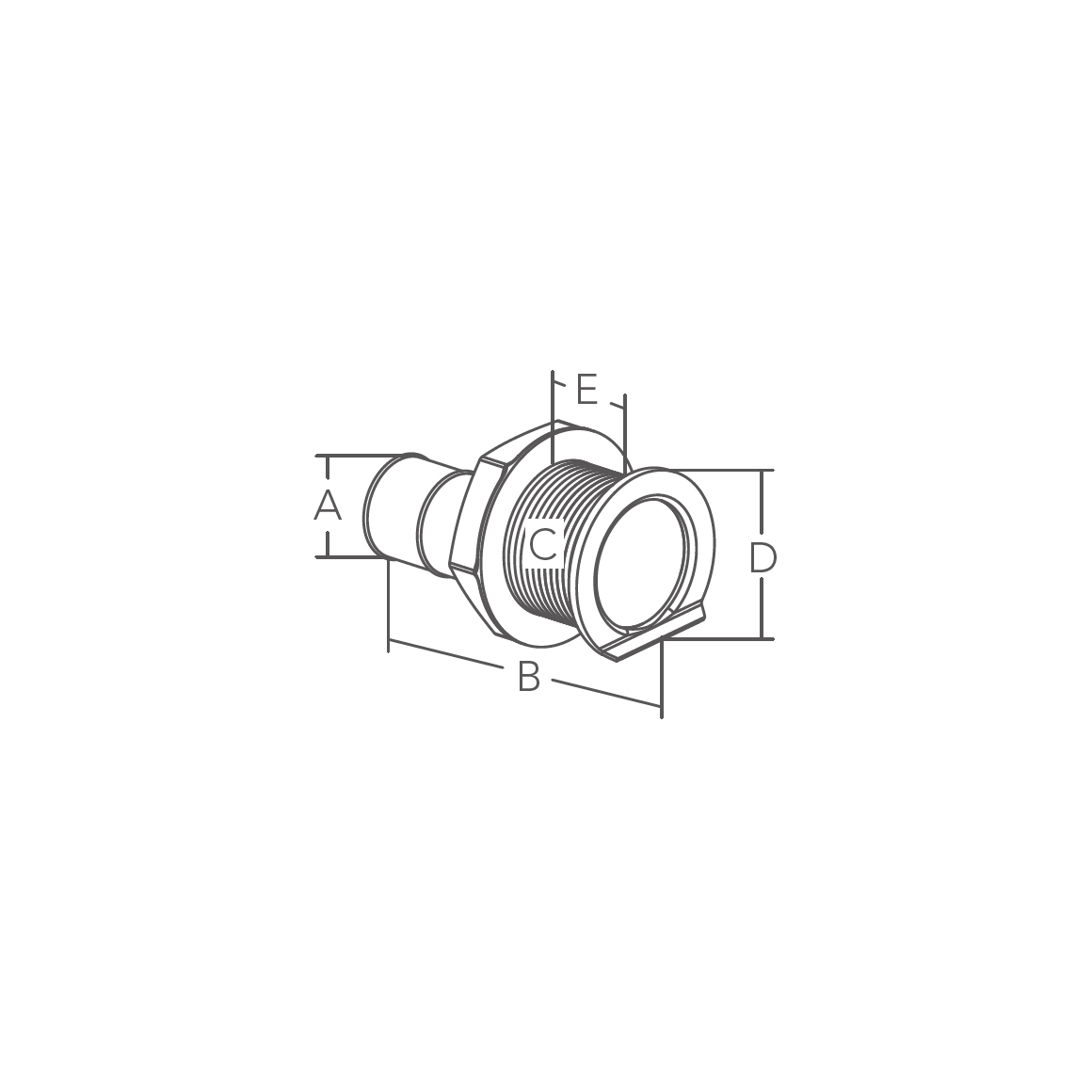

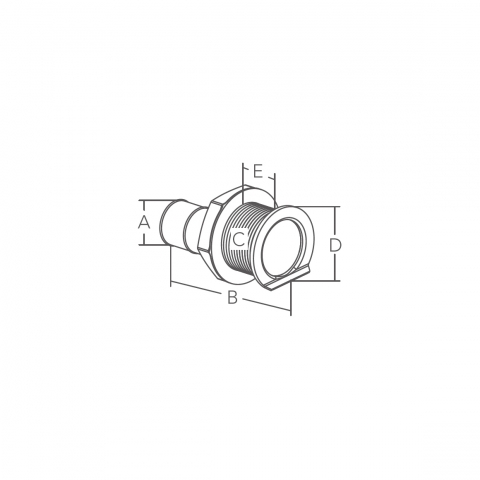

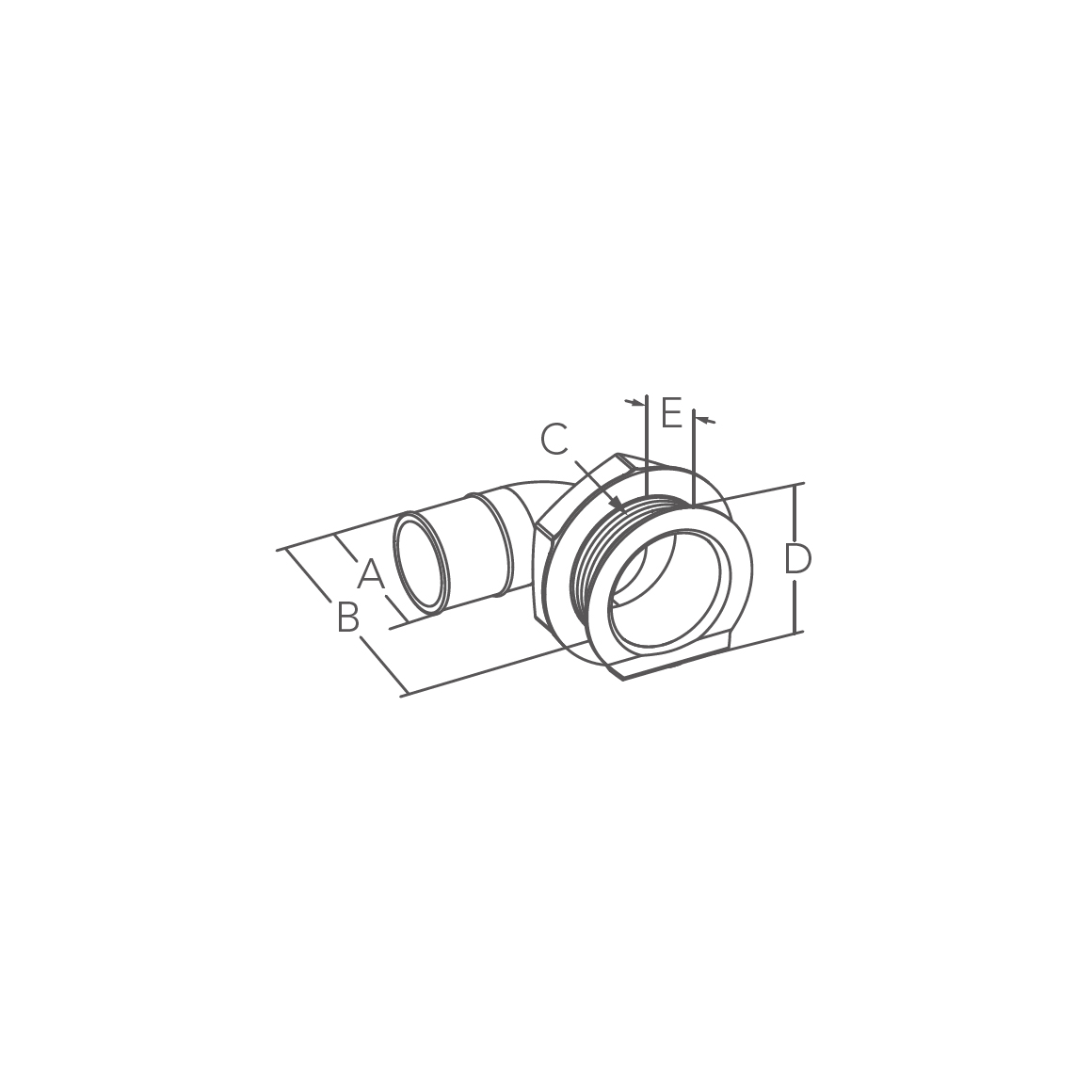

Bulk No.
A mm
B mm
C mm
D mm
E-Max. mm

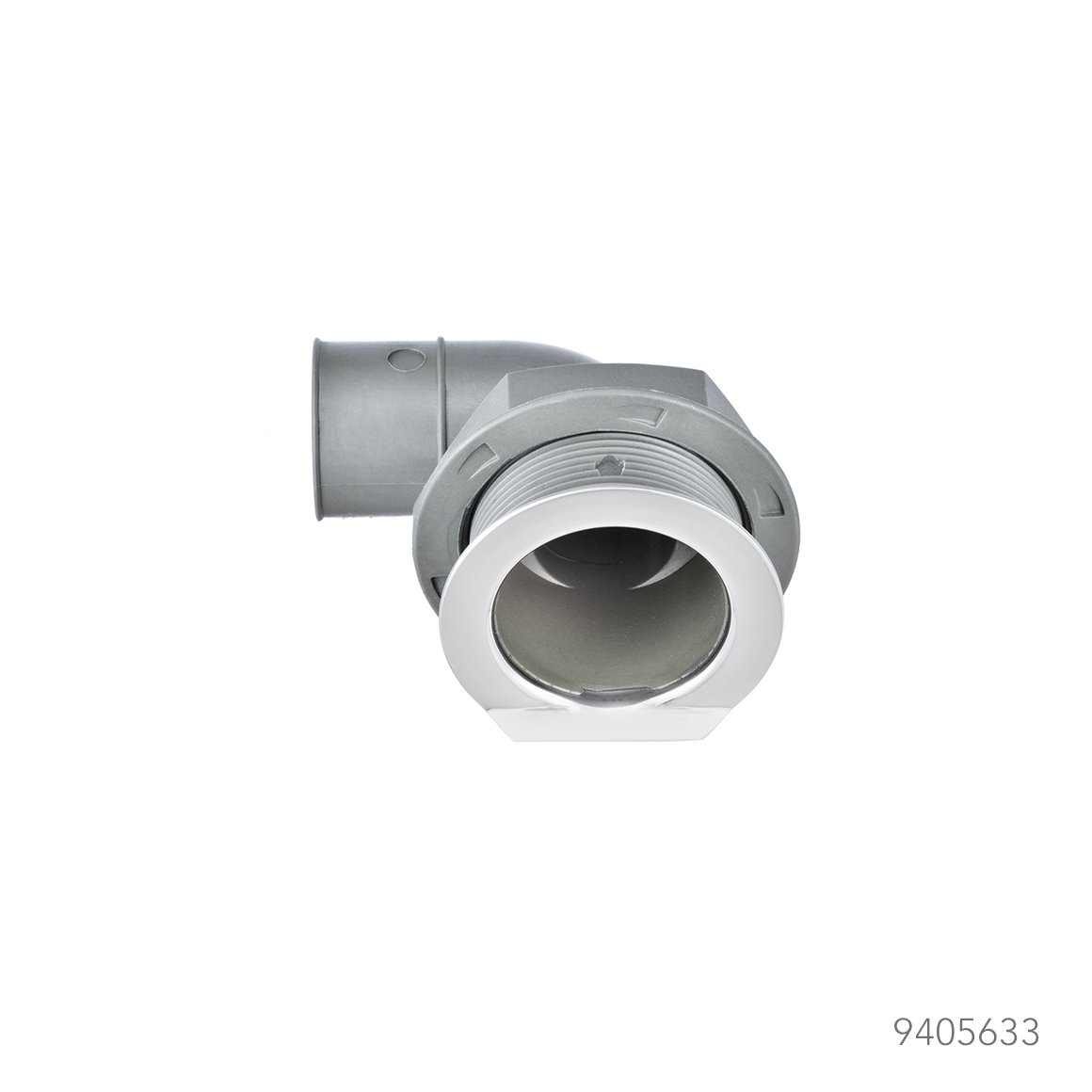

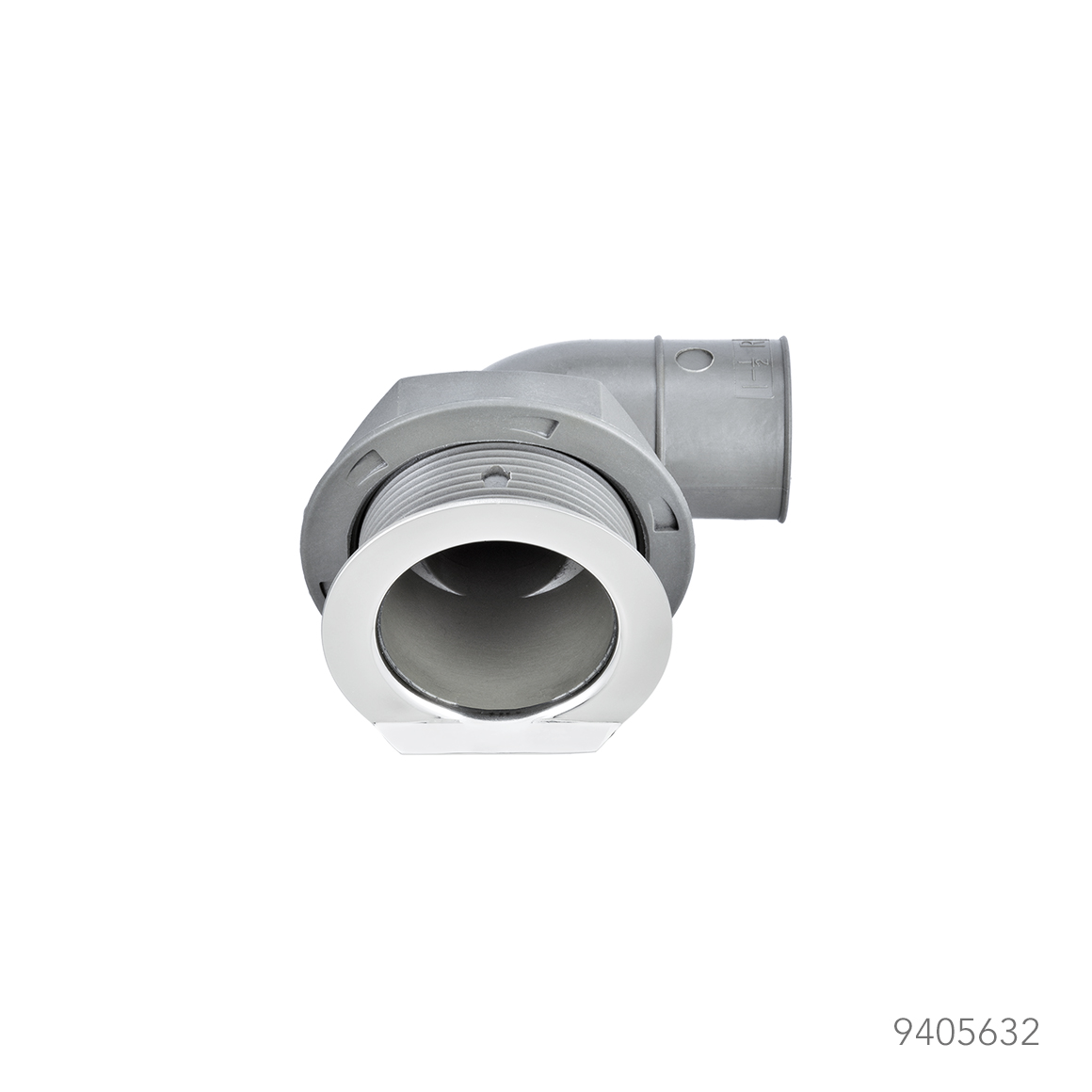

9005251 38(1-1/2") 127(5") 56(2-3/16") 62(2-7/16") 45(1-3/4") 9005252 51(2”) 128(5-1/16") 56(2-3/16") 62(2-7/16") 45(1-3/4") 9405632 38(1-1/2") 92(3-5/8") 56(2-3/16") 62(2-7/16") 20(13/16") 9405633 38(1-1/2") 92(3-5/8") 56(2-3/16") 62(2-7/16") 20(13/16") 9005251-1 Rubber Plug
