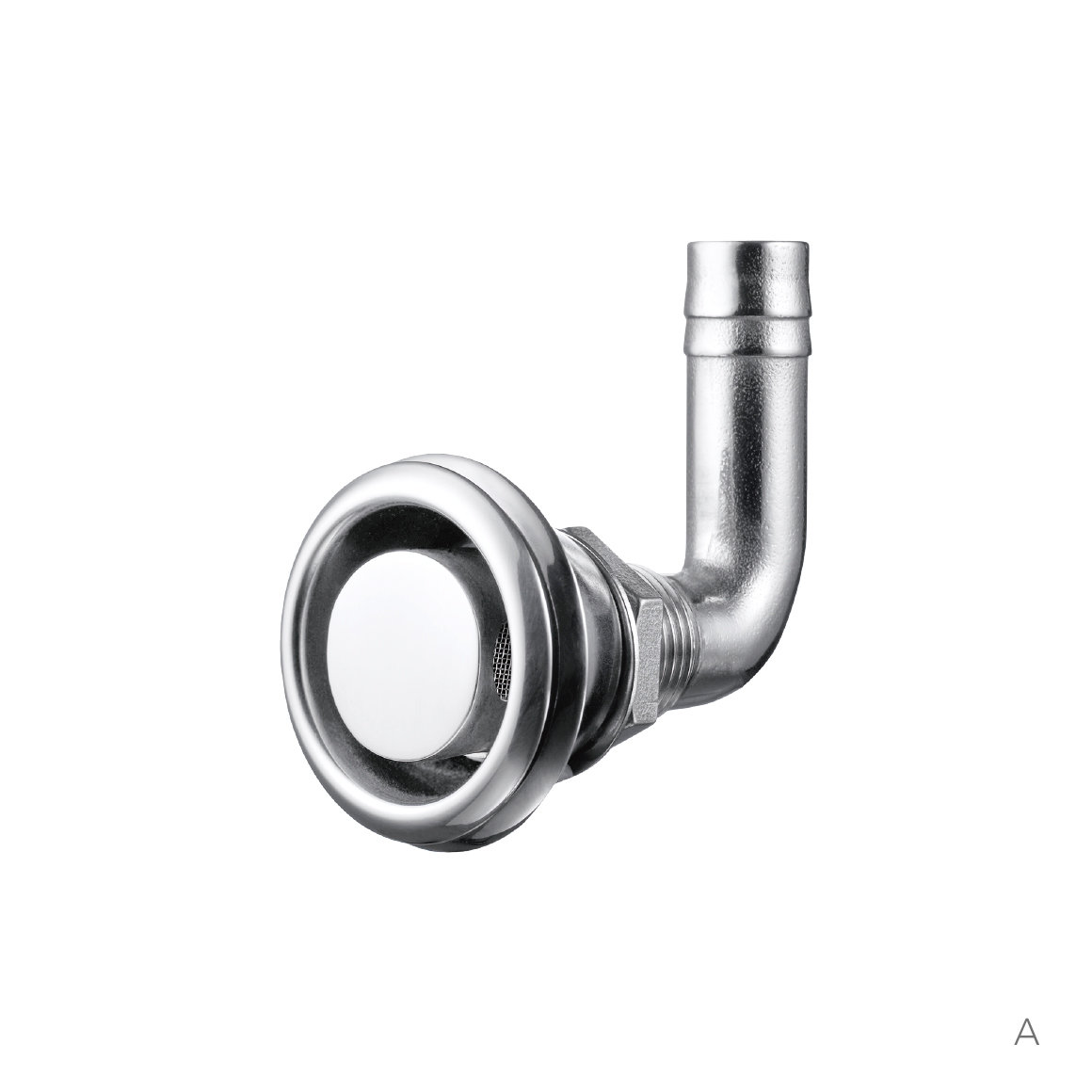

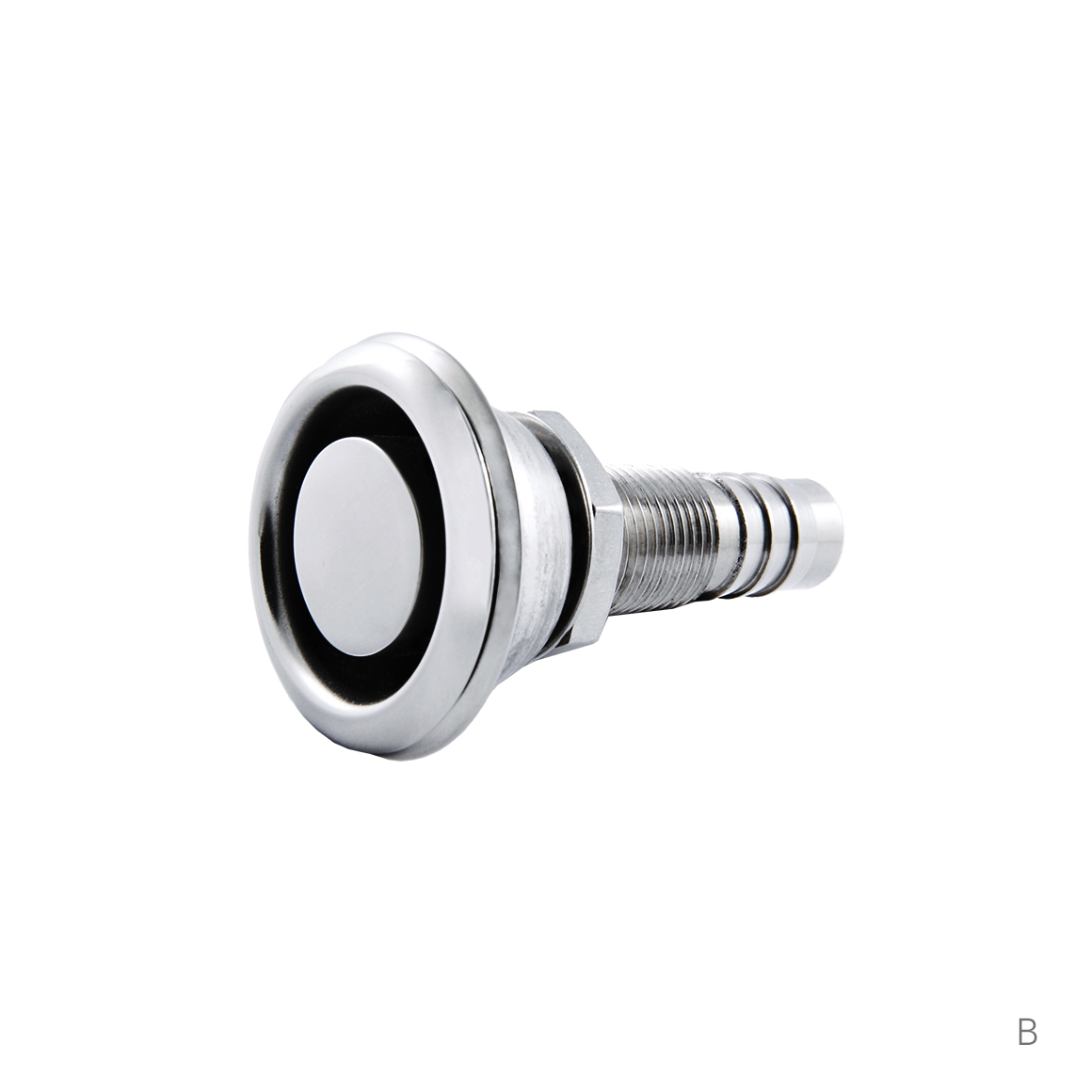

FLUSH TANK VENT
Stainless Steel 316 Body & Stainless Steel 304 Cups

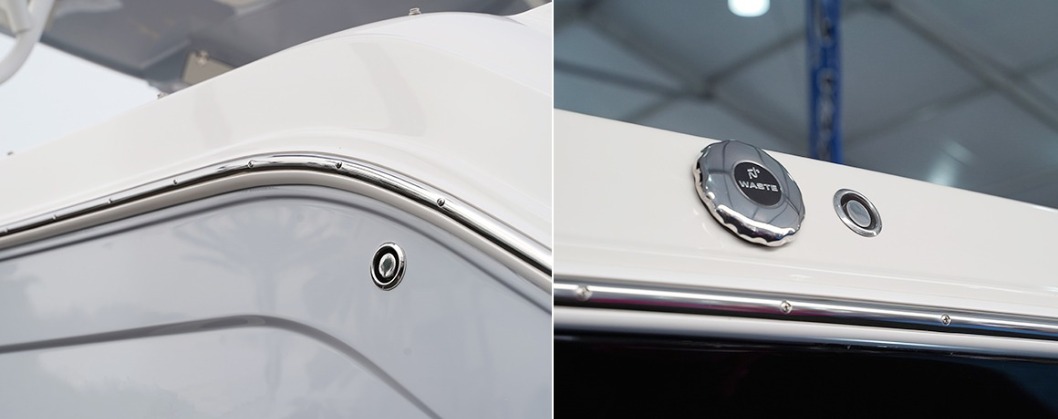

- Provides flush hull installation.
- High airflow capacity.
- Comes with a stainless steel 304 flame arrestor screen.
- Barb up installation to prevent water ingress into the fuel tank,
avoiding contamination of fuel system.

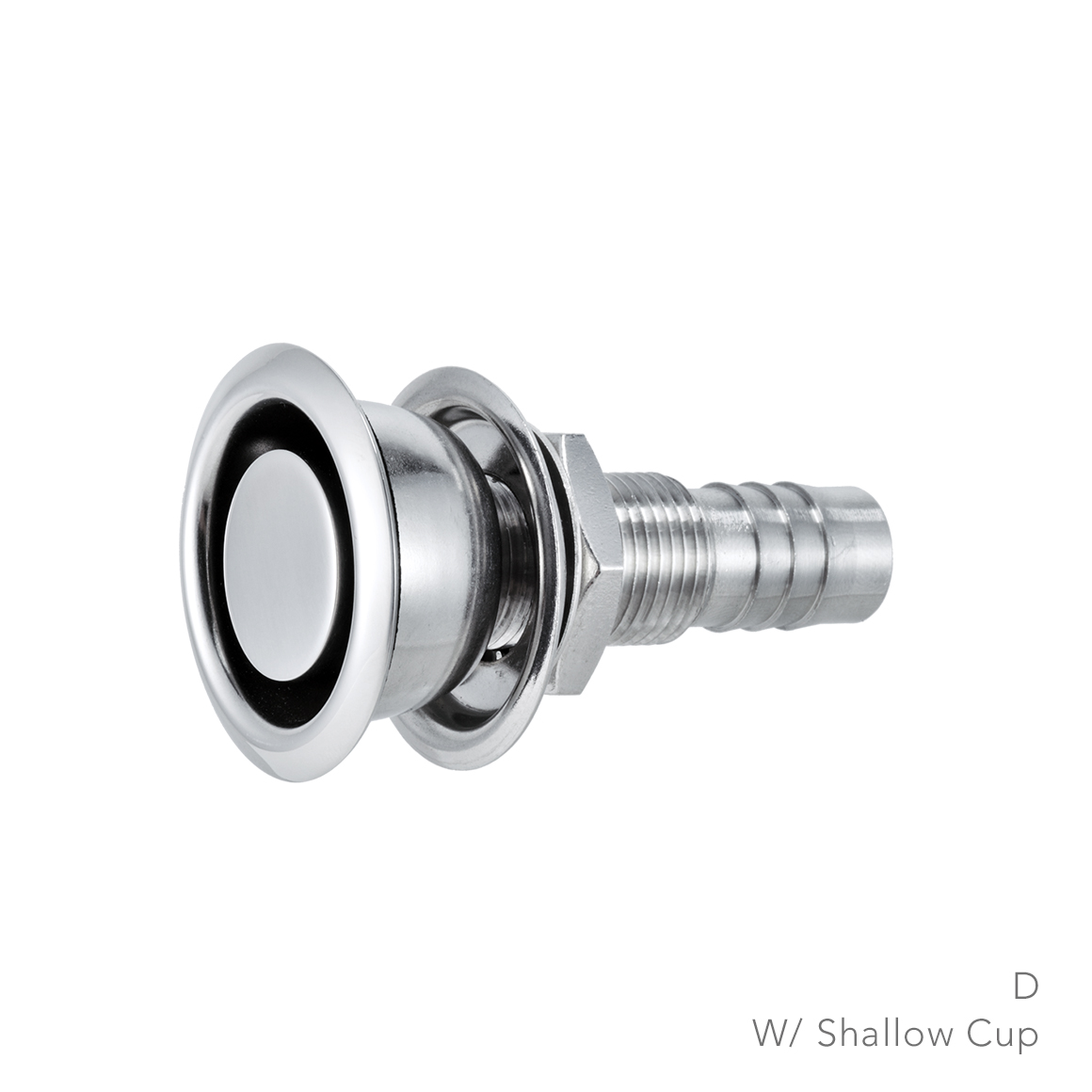

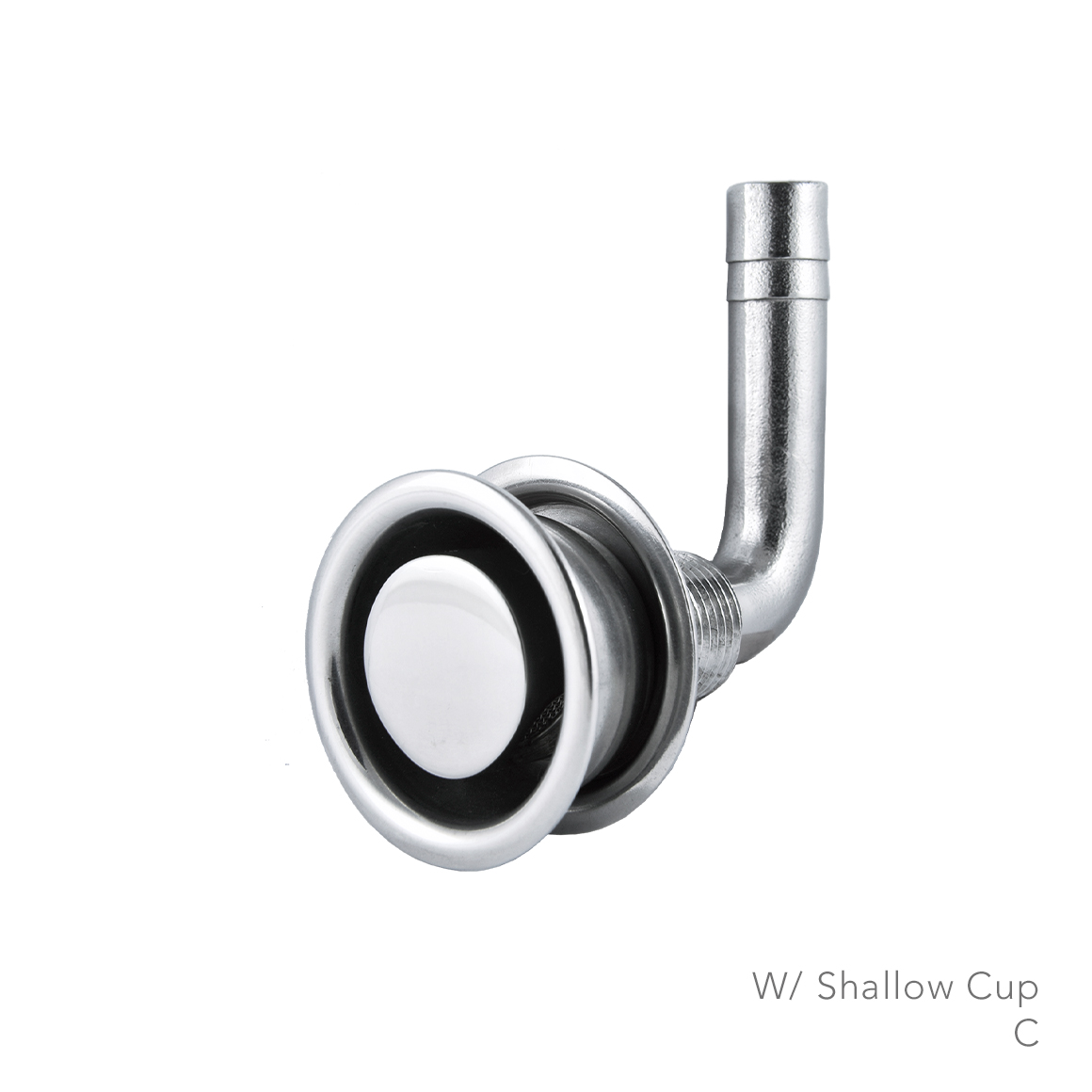

- Model C and D are suitable for thicker hull.
- Provides flush hull installation.
- High airflow capacity.
- Comes with a stainless steel 304 flame arrestor screen.
- Barb up installation to prevent water ingress into the fuel tank,
avoiding contamination of fuel system.
- Model C and D are suitable for thicker hull.
Qty
MOQ
Qty
Qty
Qty
Qty
Qty
Qty
MOQ
Qty
Qty
Qty
Qty
-

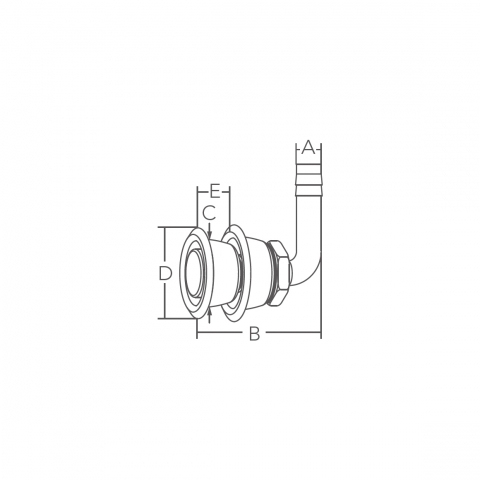

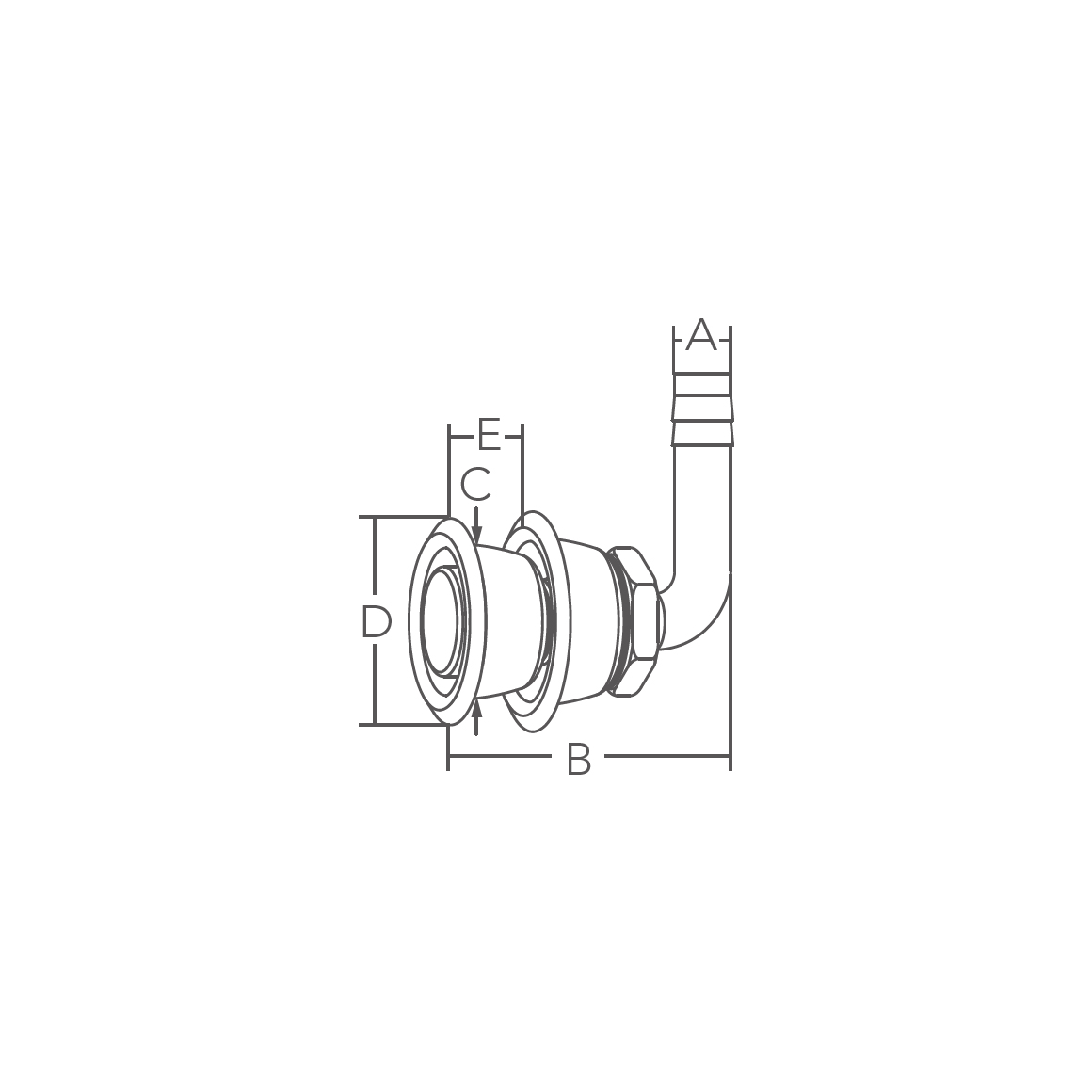

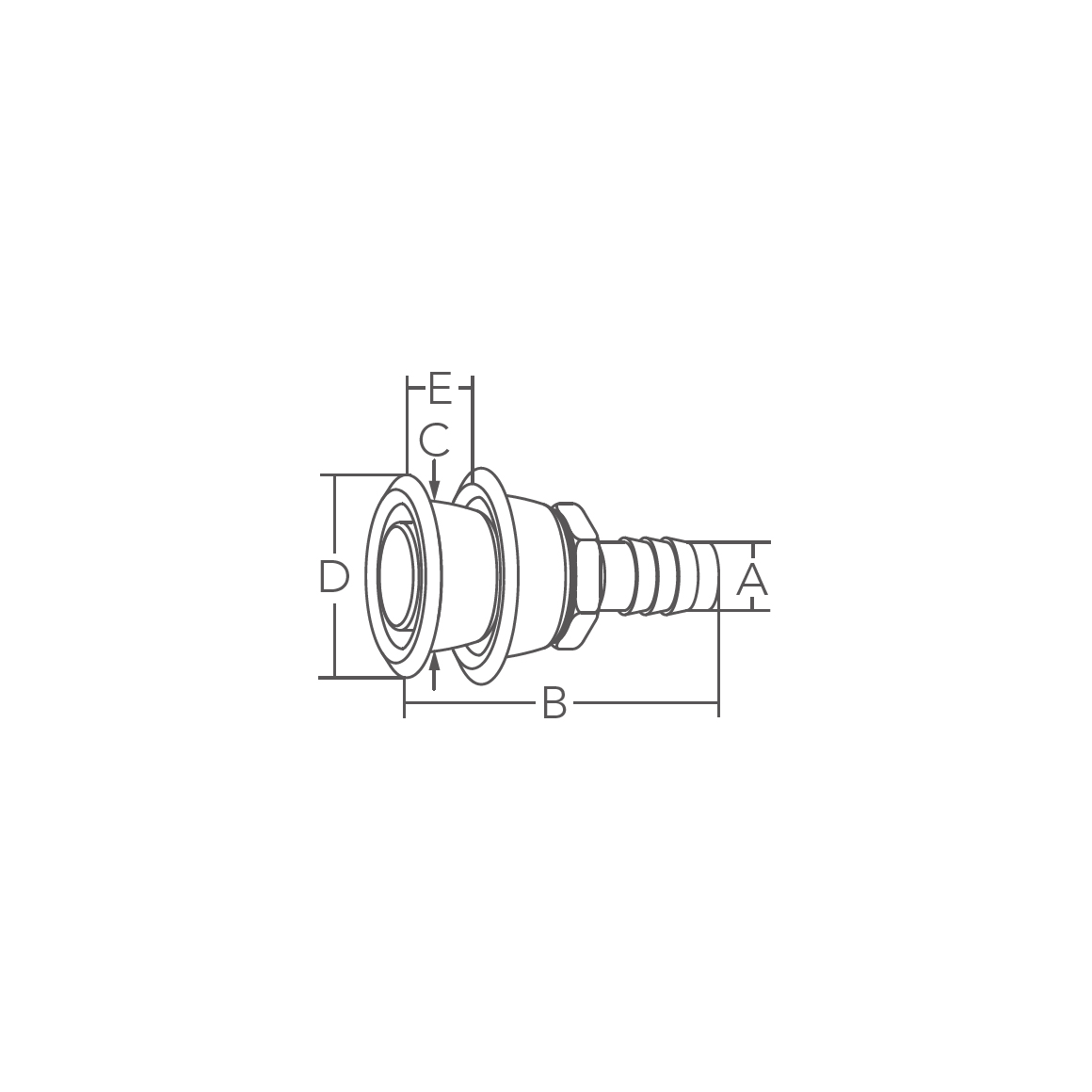

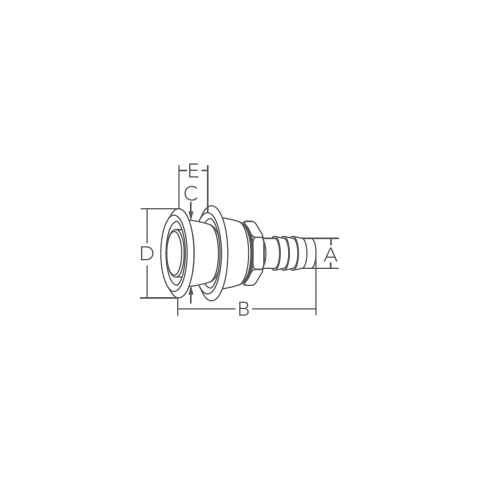

Bulk No.
Angle
Model
A mm
B mm
C mm
D mm
E mm
8906220 90° A 13.5(1/2") 70(2-3/4") 35(1-3/8") 46(1-13/16") up to 15(9/16") 8906222 90° A 16.5(5/8") 70(2-3/4") 35(1-3/8") 46(1-13/16") up to 15(9/16") 8906223 90° A 20(3/4") 76(3") 37(1-7/16") 49(1-15/16") up to 13(1/2") 8906212 0° B 13.5(1/2") 75(3") 35(1-3/8") 46(1-13/16") up to 19(3/4") 8906214 0° B 16(5/8") 75(2-15/16") 35(1-3/8") 46(1-13/16") up to 21(13/16") 8906215 0° B 20(3/4") 75(3") 38(1-1/2") 49(1-15/16") up to 19(3/4") 9106270 90° C 13(1/2") 70(2-3/4") 35(1-3/8") 46(1-13/16") 15~30(9/16"~1-3/16") 9106272 90° C 16.5(5/8") 70(2-3/4") 35(1-3/8") 46(1-13/16") 15~28(9/16"~1-1/8") 9106273 90° C 19(3/4") 76(3") 37(1-7/16") 49(1-15/16") 14~28(9/16"~1-1/8") 9106262 0° D 16(5/8") 75(3") 35(1-3/8") 46(1-13/16") 15~35(5/8"~1-3/8") 9106263 0° D 20(3/4") 75(3") 38(1-1/2") 49(1-15/16") 15~35(5/8"~1-3/8")
