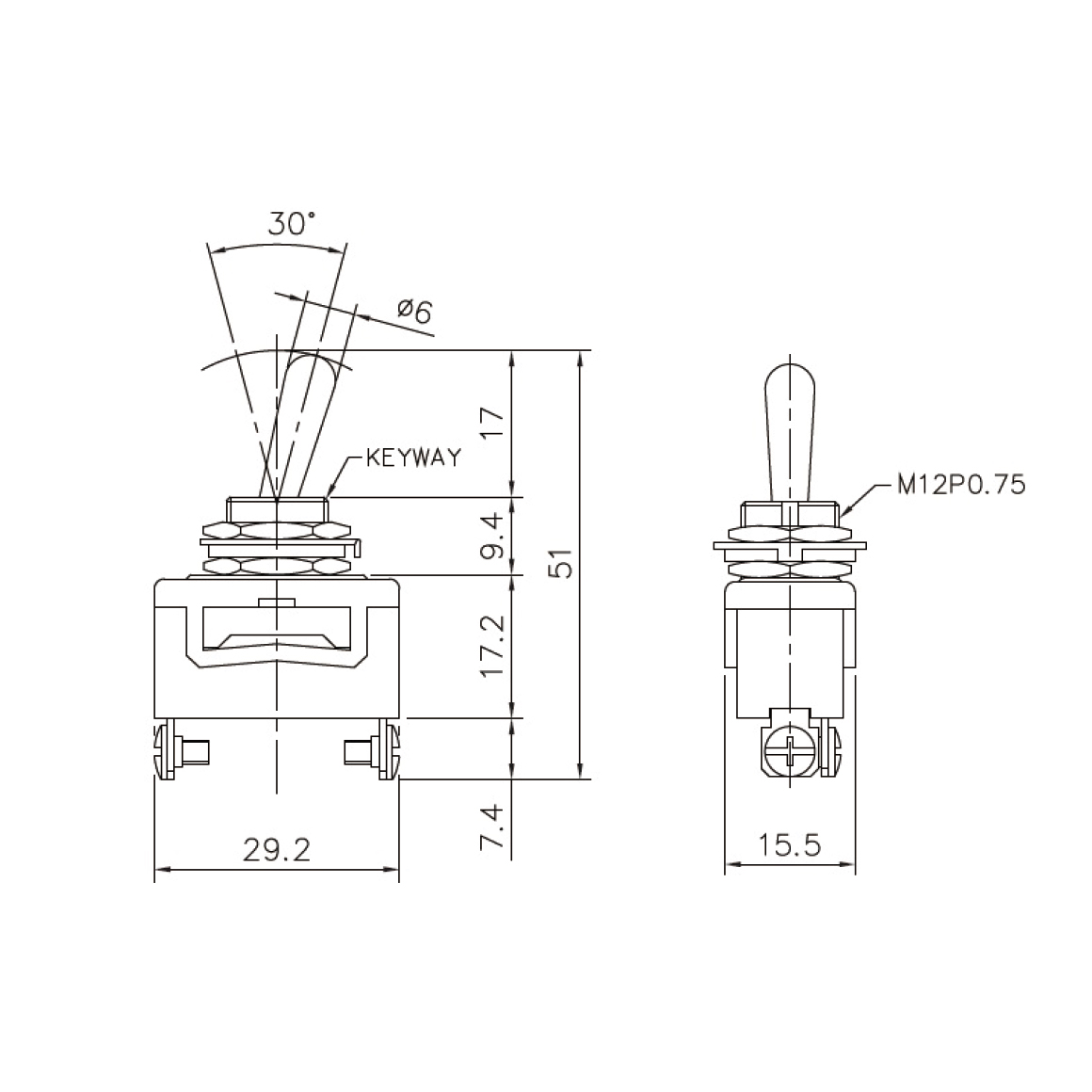

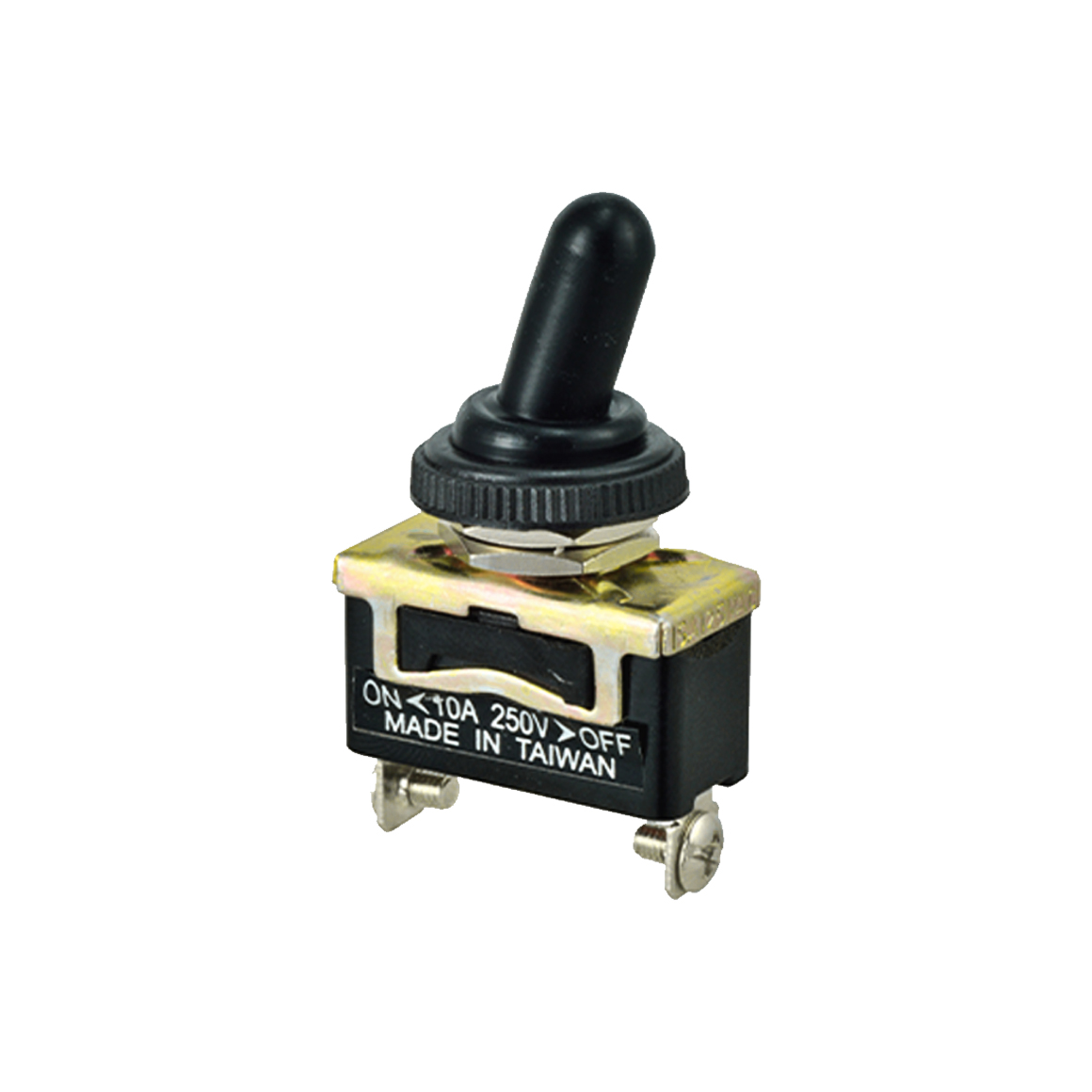

TOGGLE SWITCH - SCREW TERMINALS
Nickle Plated Brass Toggle
- Rating: DC 12V 15A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100mΩ Min.
- Dielectric strength: AC 1500V 1 min.
- Electrical life: 50,000 make and break cycles at full load.
- Rubber boot is included (screw nuts: M12).
- Rating: DC 12V 15A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100mΩ Min.
- Dielectric strength: AC 1500V 1 min.
- Electrical life: 50,000 make and break cycles at full load.
- Rubber boot is included (screw nuts: M12).
Qty
Qty
Qty
Qty
Qty
Qty
-
(ON): MomentaryBulk No.
Type
Terminal
Switch
0402091 SPST 2P ON-OFF 0402092 SPST 2P (ON)-OFF 0402095 SPDT 3P ON-OFF-ON 0402096 SPDT 3P (ON)-OFF-ON 0402097 SPDT 3P (ON)-OFF-(ON) 0402098 Rubber Boot only
