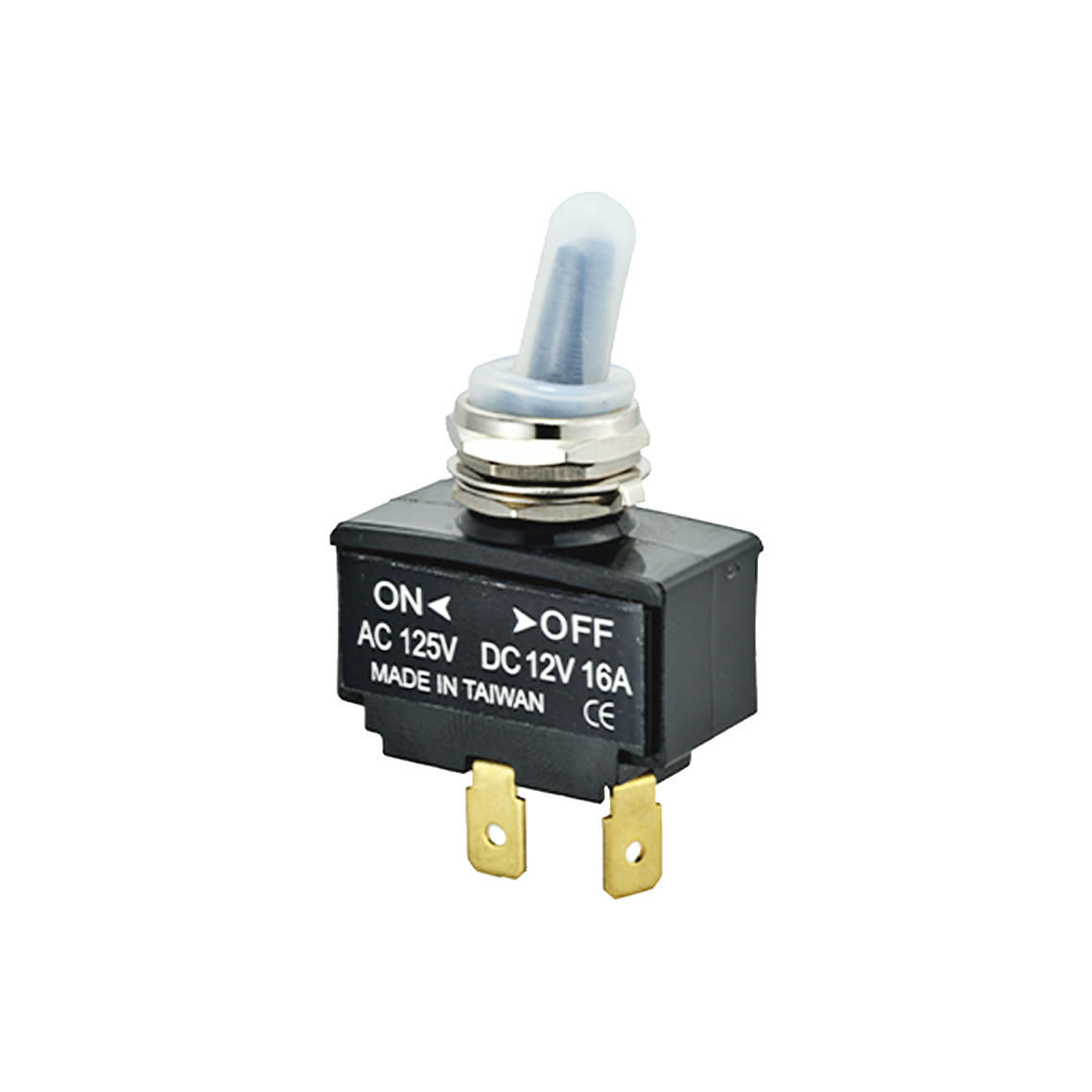

TOGGLE SWITCH
Polycarbonate Handle Bar
Bakelite Switch Body
- Rating: DC 12V 16A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical life: 20,000 make and break cycles at full load.
- Rubber boot is included (screw nuts: M12).
Bakelite Switch Body
- Rating: DC 12V 16A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical life: 20,000 make and break cycles at full load.
- Rubber boot is included (screw nuts: M12).
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Type
Terminal
Switch
0402071 SPST 2P ON-OFF 0402072 SPST 2P (ON)-OFF 0402075 SPDT 3P ON OFF ON 0402077 SPDT 3P (ON) OFF (ON) 0402067 Rubber Boot only
