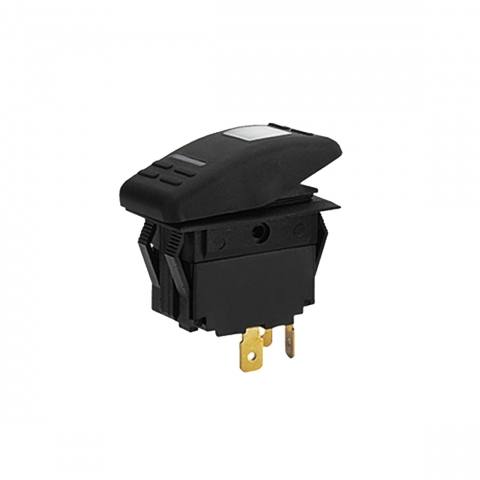

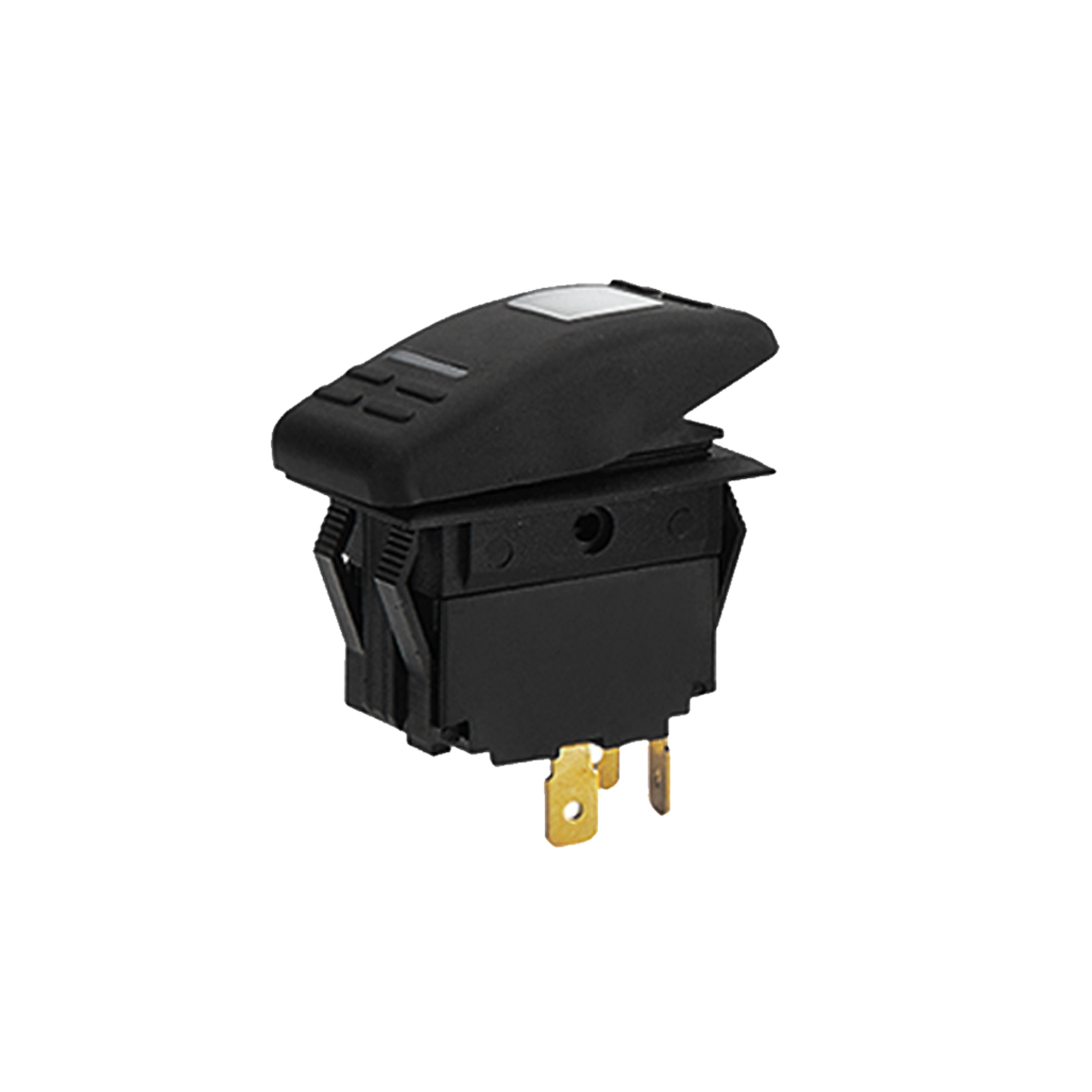

WATER RESISTANT ROCKER SWITCH
- Robust design to withstand outdoor environment.
- PC terminals (0.250˝ quick connect terminals).
- Rating: DC 12V 16A / 24V 10A.
AC 125V 16A / 250V 10A.
- Contact R. : 50mΩ Max.
- Insulation: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical life: 20,000 make and break cycles at full load.
- IP55.
- PC terminals (0.250˝ quick connect terminals).
- Rating: DC 12V 16A / 24V 10A.
AC 125V 16A / 250V 10A.
- Contact R. : 50mΩ Max.
- Insulation: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical life: 20,000 make and break cycles at full load.
- IP55.
Qty
-
Bulk No.
Type
Terminal
Switch
0402670 SPST 3P ON-OFF
