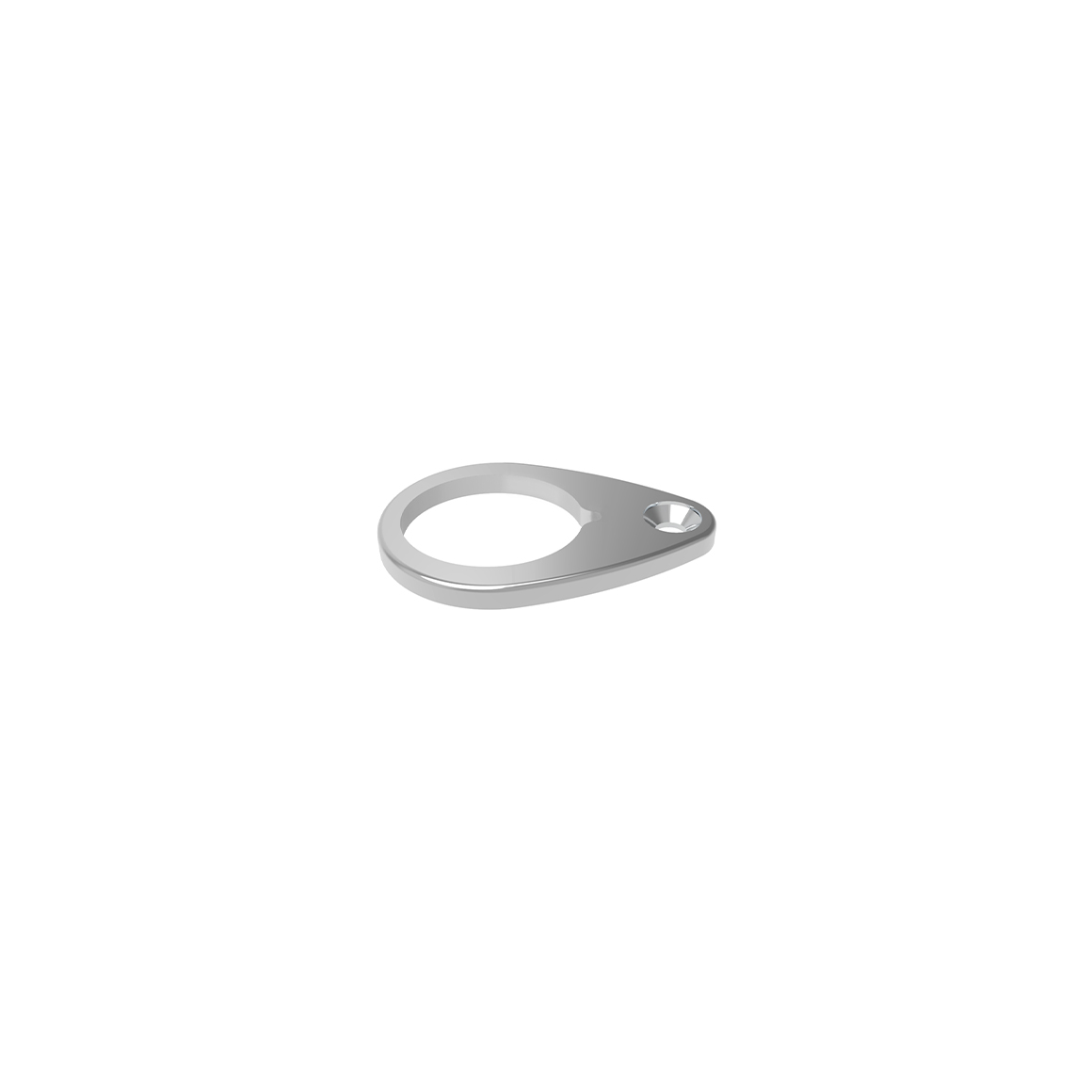

INSTALLATION PLATE
Stainless Steel 316
- Simplifies installation process of 0506867 & 0506867-8.
- Eliminates the need to cut a notch for socket orientation.

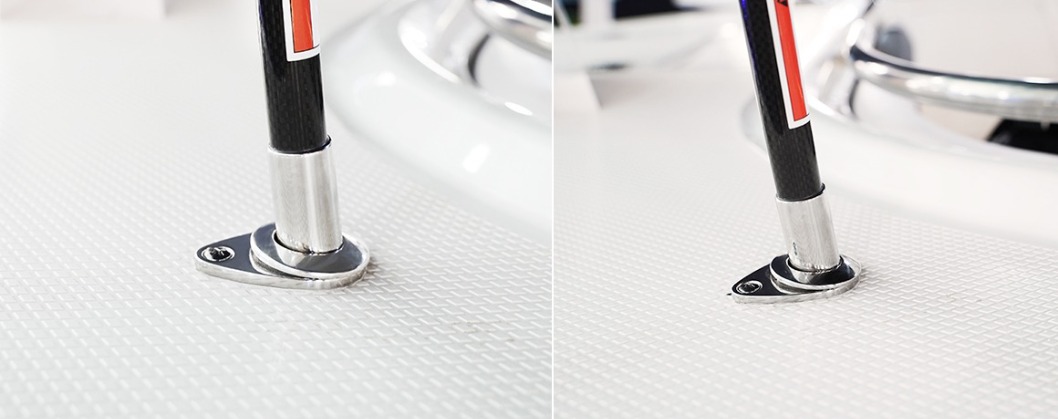

- Plate incorporates a notch hole and screw hole, allowing customers
to easily distinguish the direction and necessary angle to establish
proper tension of sunshade poles.
- Screw size M5 or #10.
- Simplifies installation process of 0506867 & 0506867-8.
- Eliminates the need to cut a notch for socket orientation.
- Plate incorporates a notch hole and screw hole, allowing customers
to easily distinguish the direction and necessary angle to establish
proper tension of sunshade poles.
- Screw size M5 or #10.
Qty
-
Bulk No.

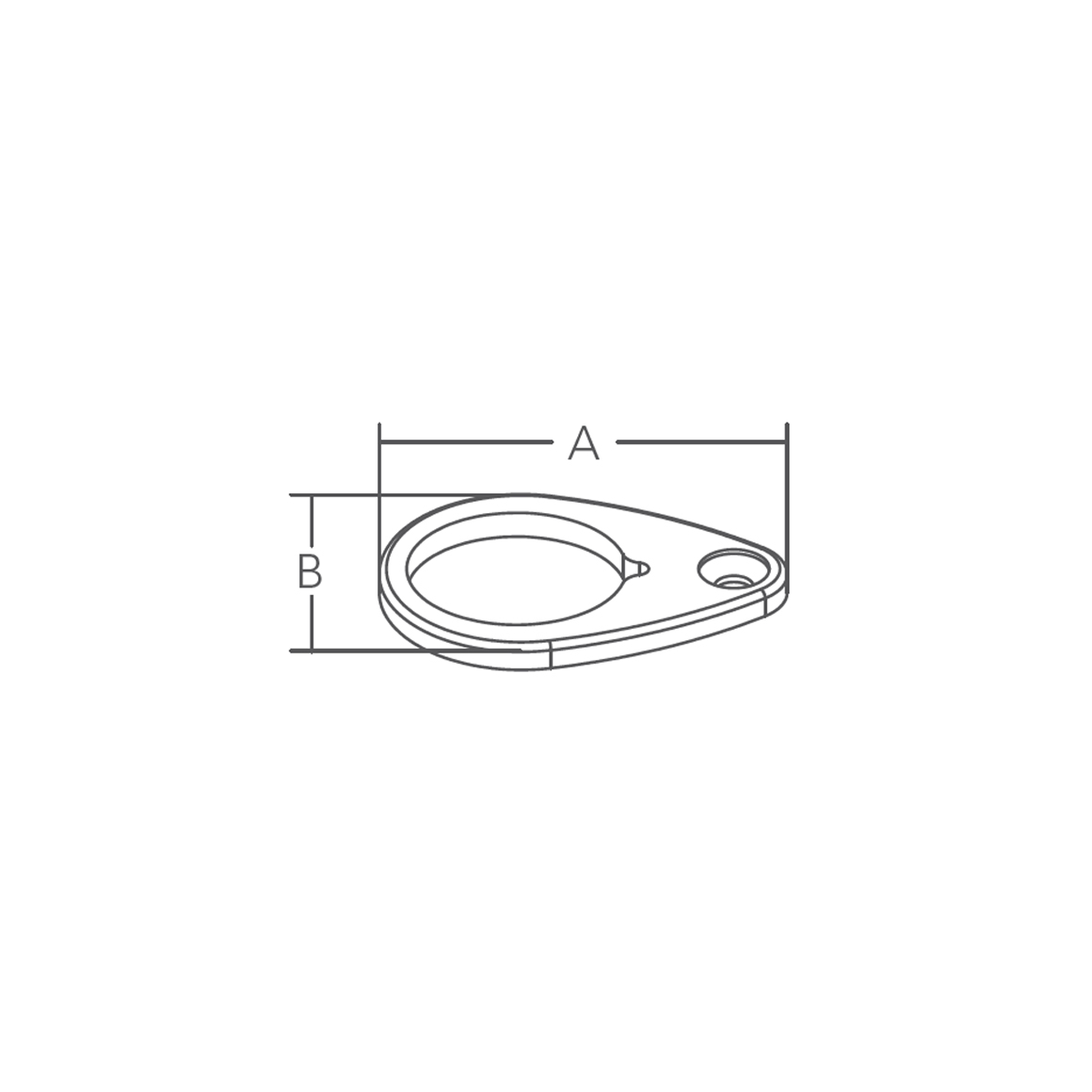

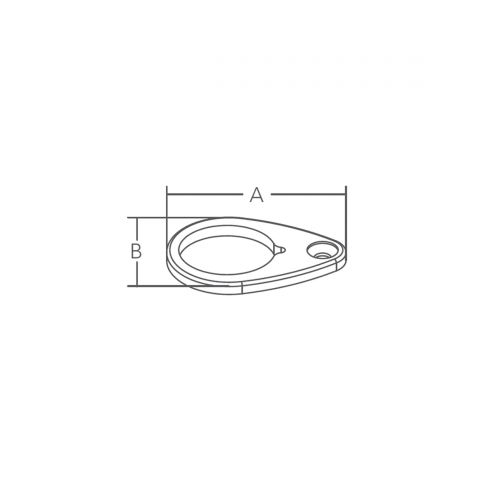

A mm
B mm
0506867-V2 58(2-1/4") 40(1-9/16")
-
Bulk No.
Download
0506867-V2 Drawing
