TUBING HINGE
Stainless Steel 316
- 1" model fits 1" tubing or can be end welded to
1-1/4" tubing.
- 7/8" model fits 7/8" tubing or can be
end welded to 1-1/8" tubing.
- Set screw size 1/4"-28.
- 1" model fits 1" tubing or can be end welded to
1-1/4" tubing.
- 7/8" model fits 7/8" tubing or can be
end welded to 1-1/8" tubing.
- Set screw size 1/4"-28.
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
-
Bulk No.

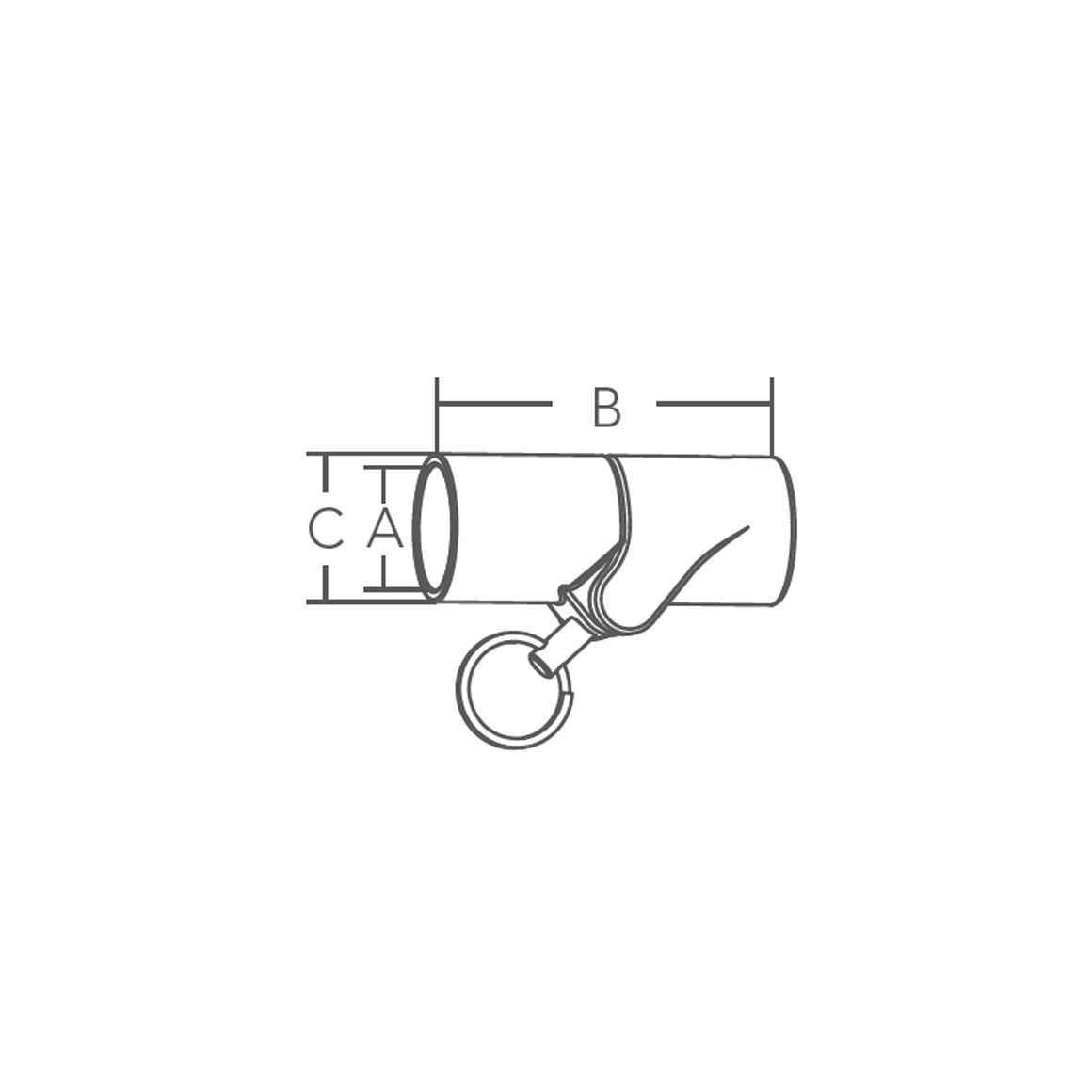

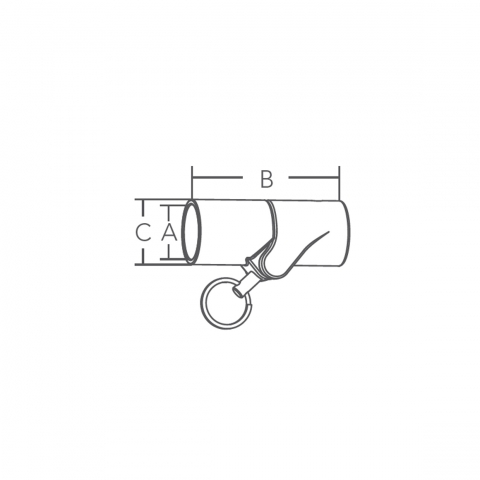

Model
A mm
B mm
C mm

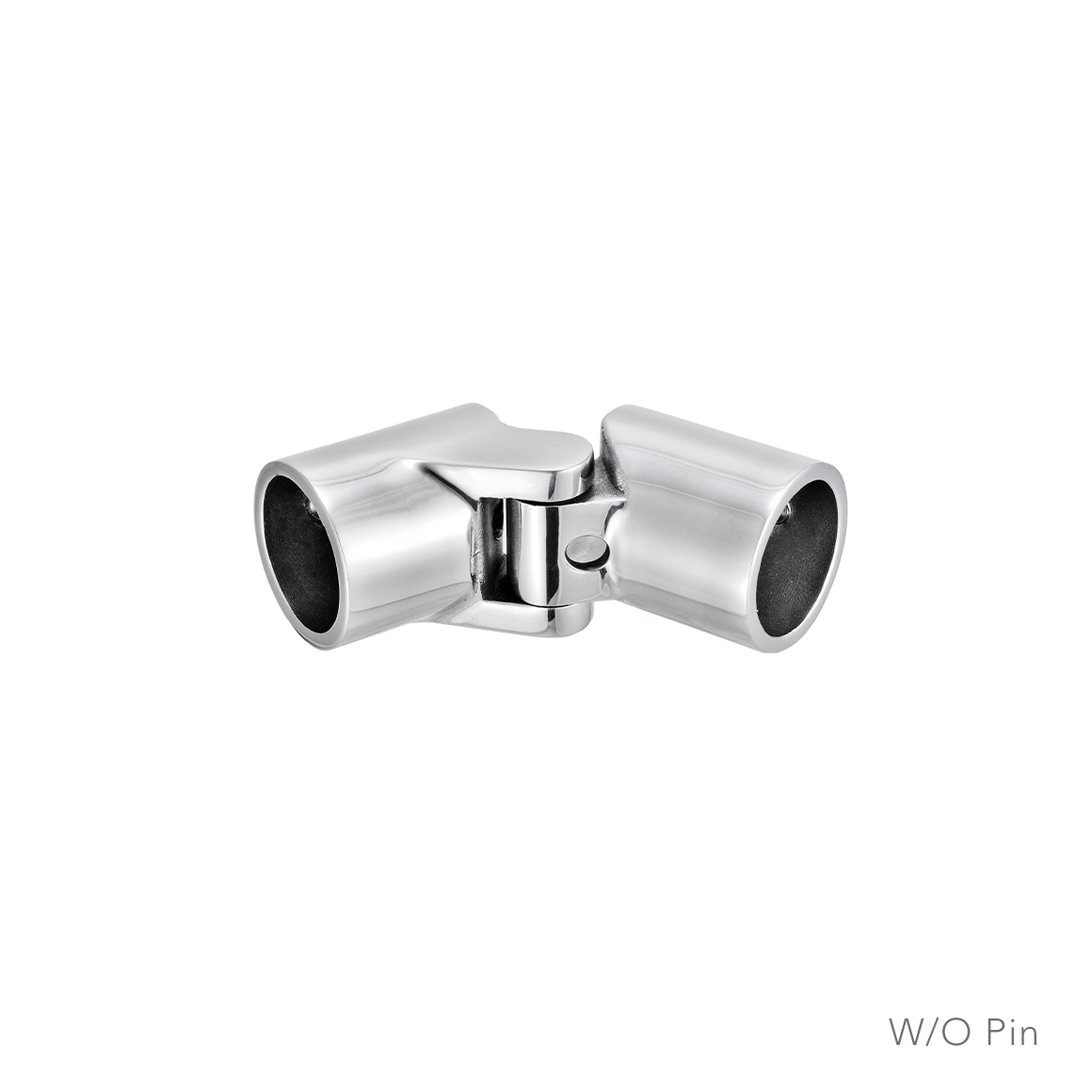

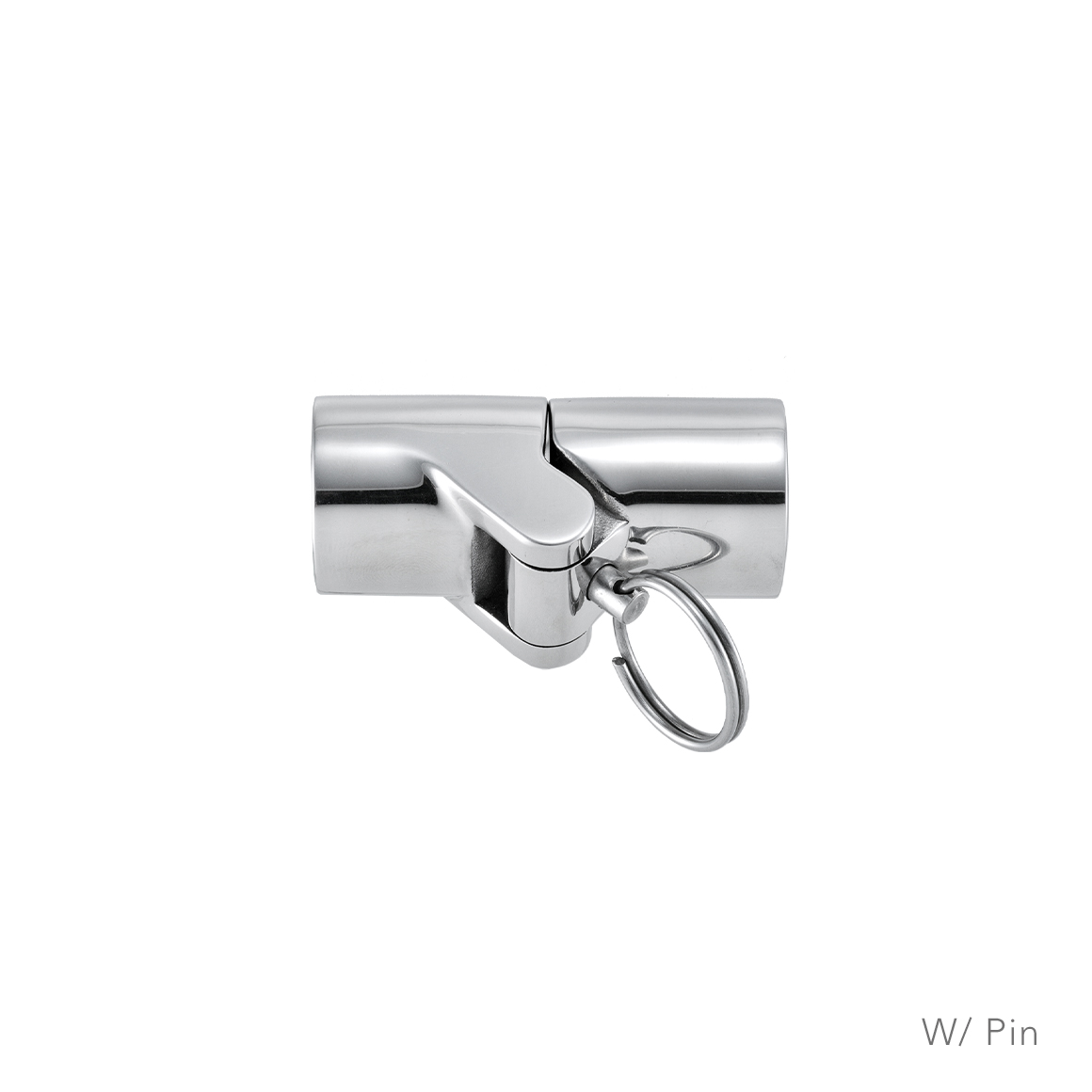

9027201 W/O Pin 25.6(1") 77(3") 32(1-1/4") 9027202 W/ Pin #5460030 25.6(1") 77(3") 32(1-1/4") 9027203 W/O Pin 22.4(7/8") 77(3") 28(1-1/8") 9027204 W/ Pin #5460030 22.4(7/8") 77(3") 28(1-1/8")
