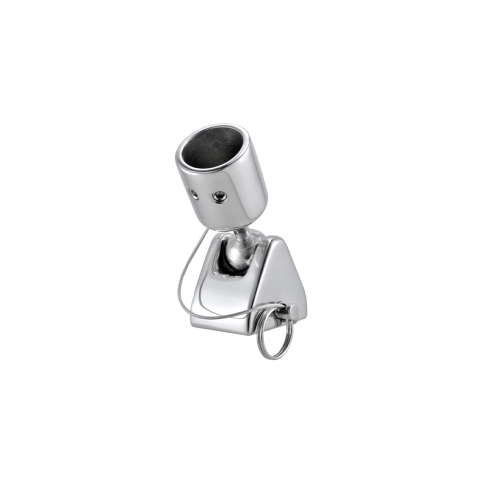

DECK HINGE BALL STYLE TOP CAP
Stainless Steel 316
- Operates 30° side travel and 190° forward and
afterward movement.
- Pull tethered pin, so deck hinge can slide in or out
from low profile deck mount.
- Ball is mounted in a nylon bushing for silent operation.
- Set screw size 1/4"-28.
- Screw size M4 or #8.
- Operates 30° side travel and 190° forward and
afterward movement.
- Pull tethered pin, so deck hinge can slide in or out
from low profile deck mount.
- Ball is mounted in a nylon bushing for silent operation.
- Set screw size 1/4"-28.
- Screw size M4 or #8.
Qty
MOQ
Qty
MOQ
-

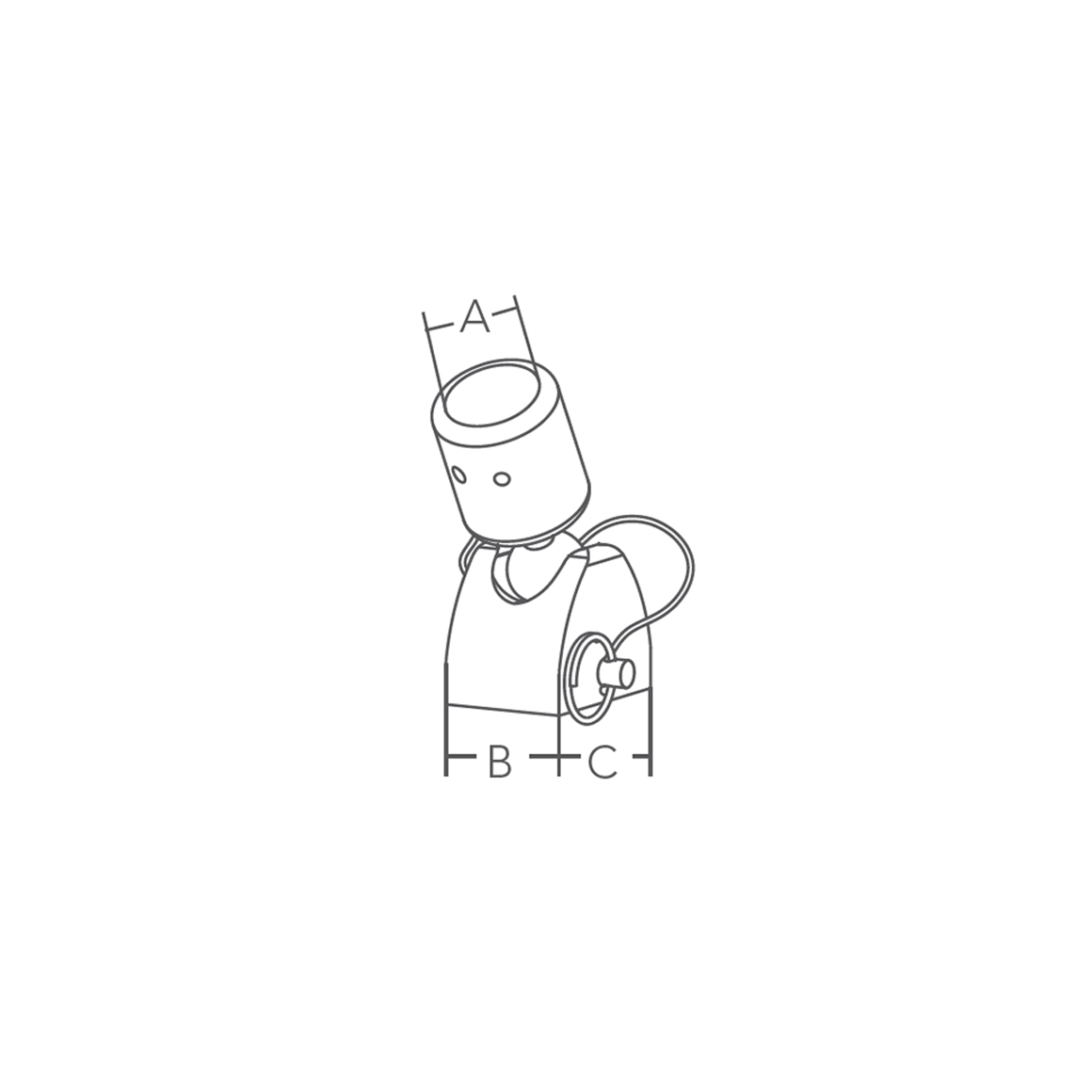

Bulk No.
A mm
B mm
C mm
9114666 22.4(7/8") 30(1-3/16") 42(1-5/8") 9114667 26(1") 30(1-3/16") 42(1-5/8")
