Bulk No.
Model
A mm
B mm
C mm
D mm
Bolt Size
Screw Size
3270213 - 72(2-13/16") 47(1-7/8") 29(1-1/8") - 5/16"-18 1/4" 8514108 Heavy Duty 54(2-1/8") 25(1") 29(1-1/8") 10(3/8") 5/16"-18 1/4" 3230109 Side Mount 50(2") 23(15/16") 31(1-1/4") - 1/4"-20 #10
Bulk No. |
Model |
A mm |
B mm |
C mm |
D mm |
Bolt Size |
Screw Size |

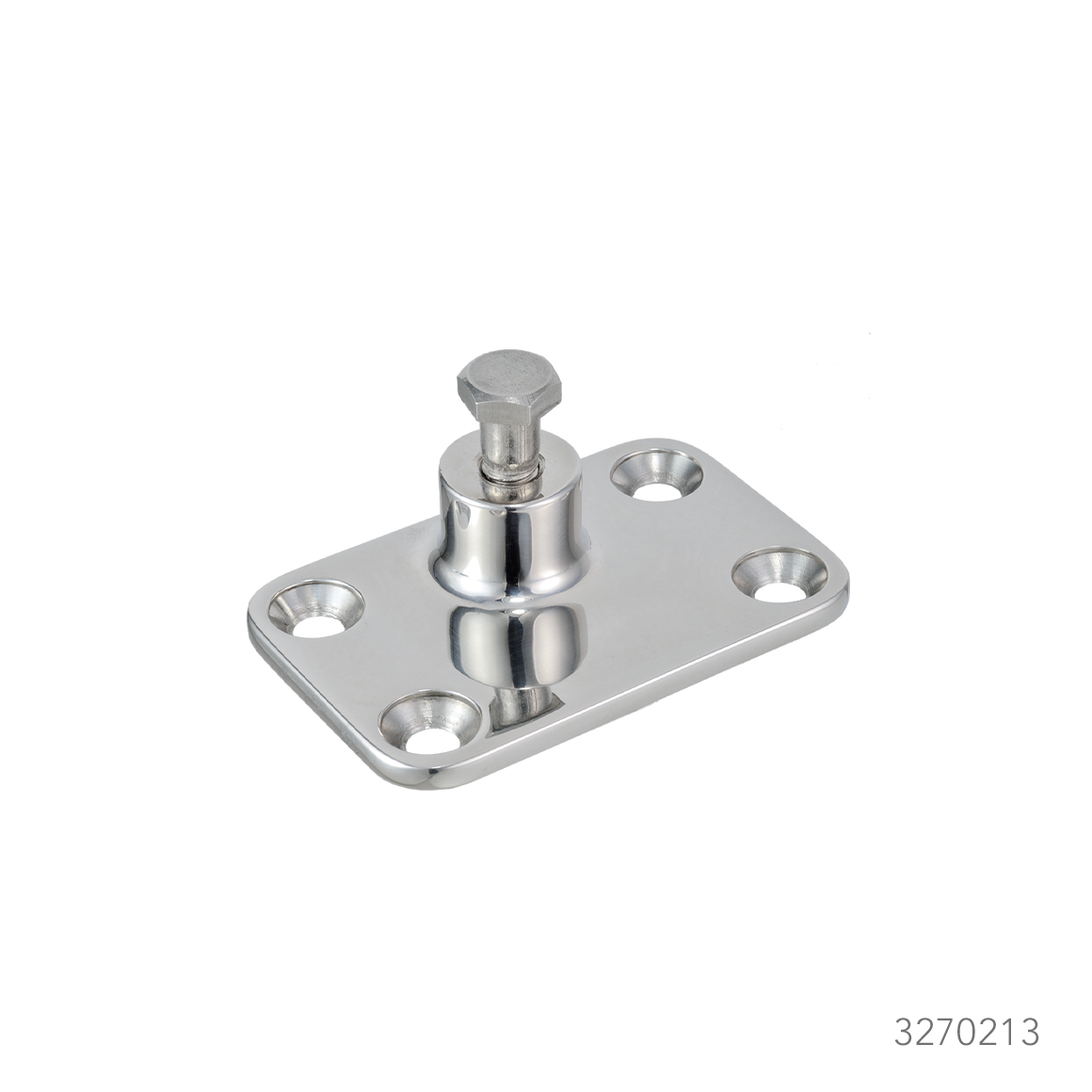

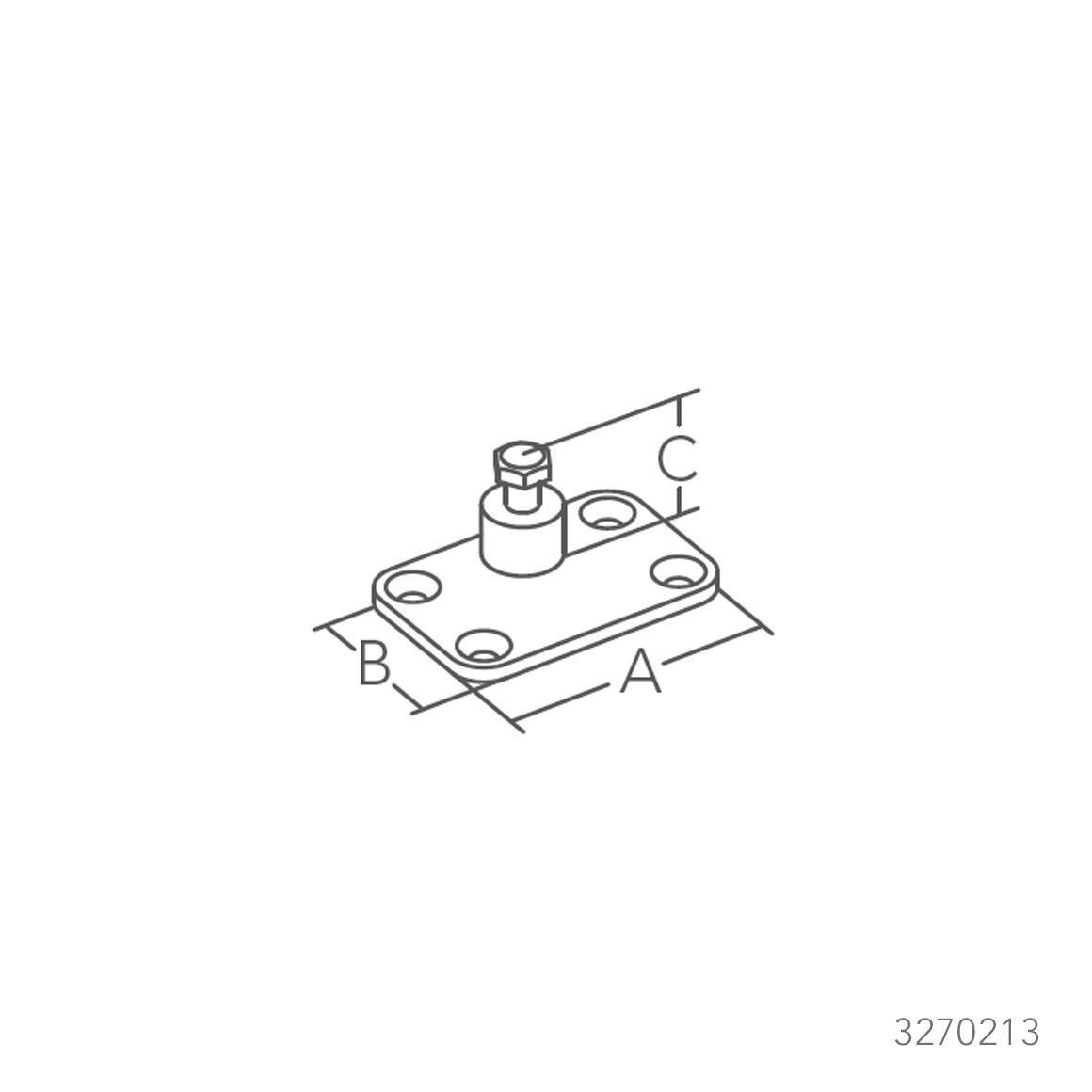

| 3270213 | - | 72(2-13/16") | 47(1-7/8") | 29(1-1/8") | - | 5/16"-18 | 1/4" |

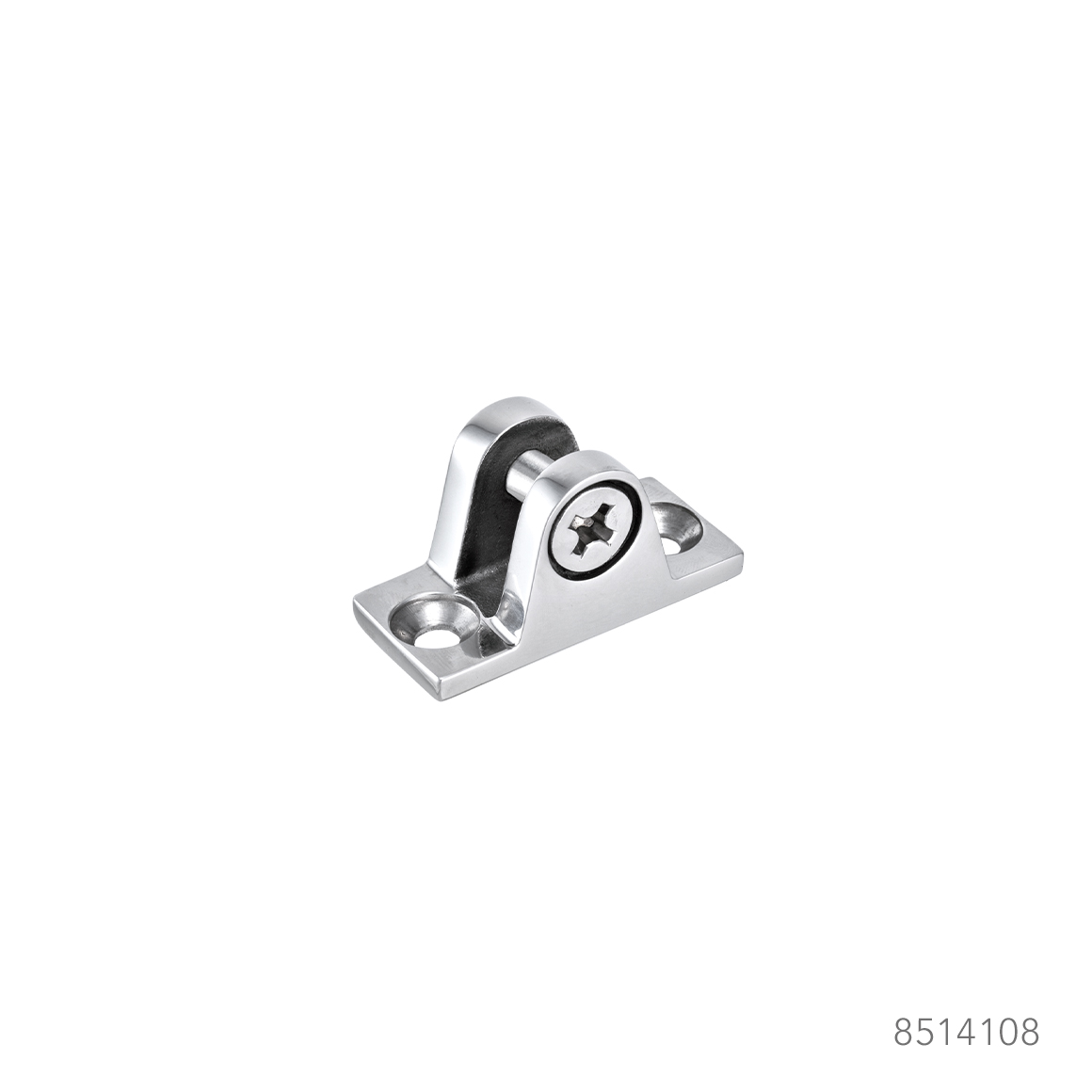

| 8514108 | Heavy Duty | 54(2-1/8") | 25(1") | 29(1-1/8") | 10(3/8") | 5/16"-18 | 1/4" |

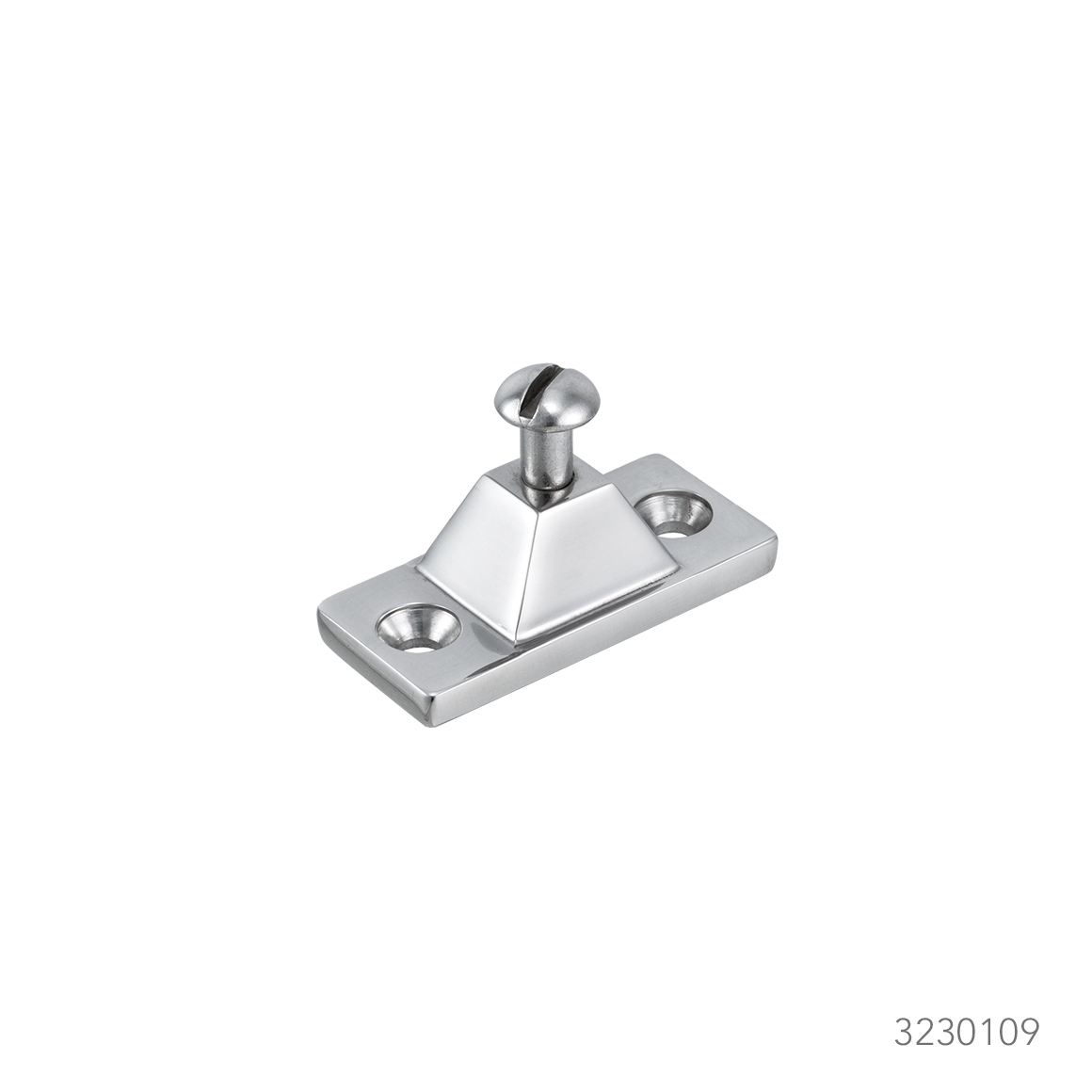

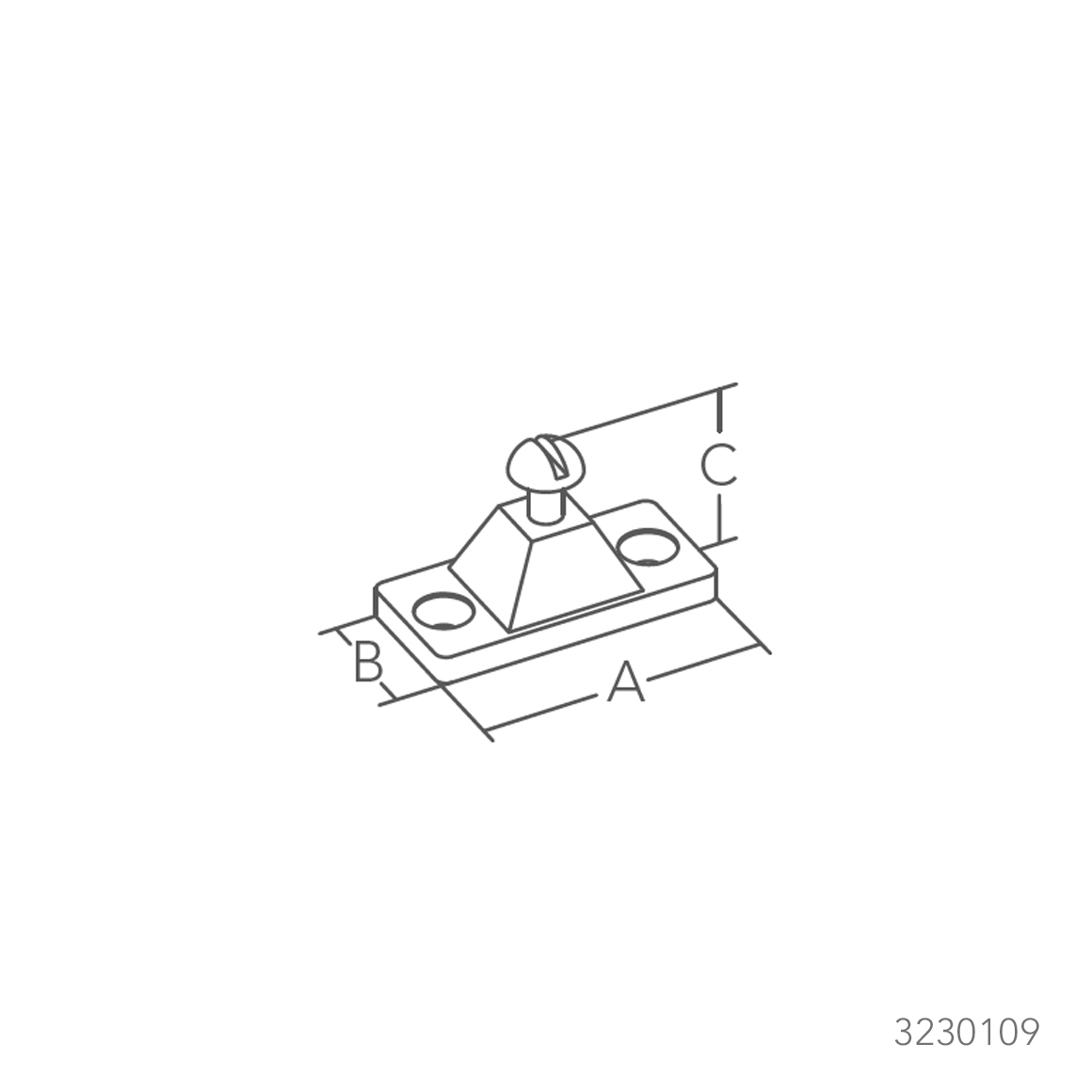

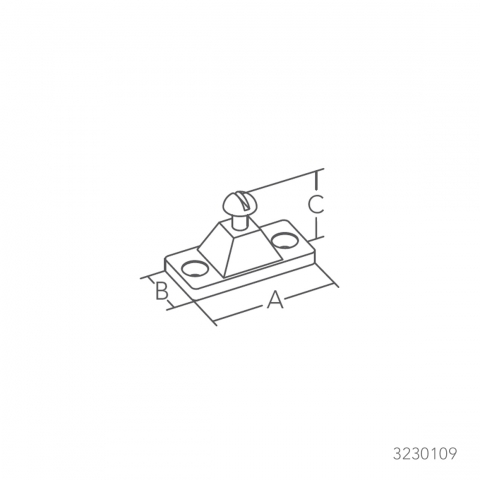

| 3230109 | Side Mount | 50(2") | 23(15/16") | 31(1-1/4") | - | 1/4"-20 | #10 |
