ROLL BACK BOLSTER HINGE
Stainless Steel 304
- Heavy duty marine-grade stainless steel construction.

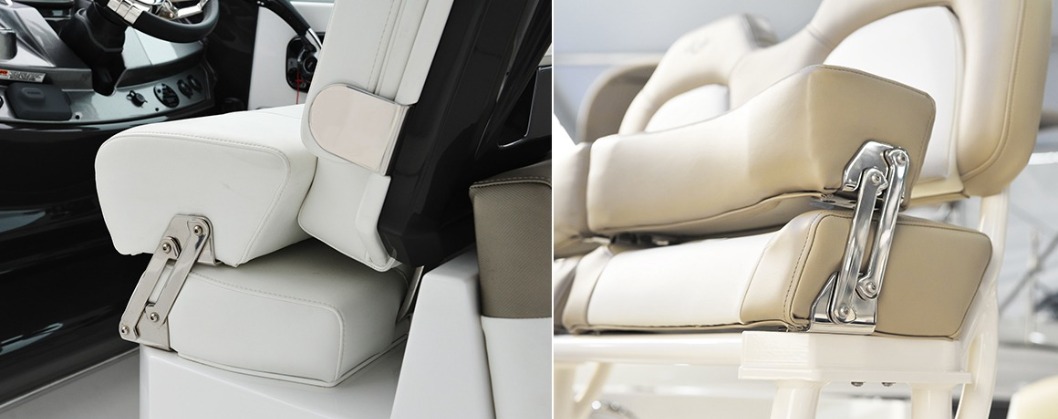

- Bolster can be lifted and positioned.
- No pinch finger design.
- Screw size M6 or 1/4".
- Sold in pairs.
- Heavy duty marine-grade stainless steel construction.
- Bolster can be lifted and positioned.
- No pinch finger design.
- Screw size M6 or 1/4".
- Sold in pairs.
Qty
Qty
-
Bulk No.

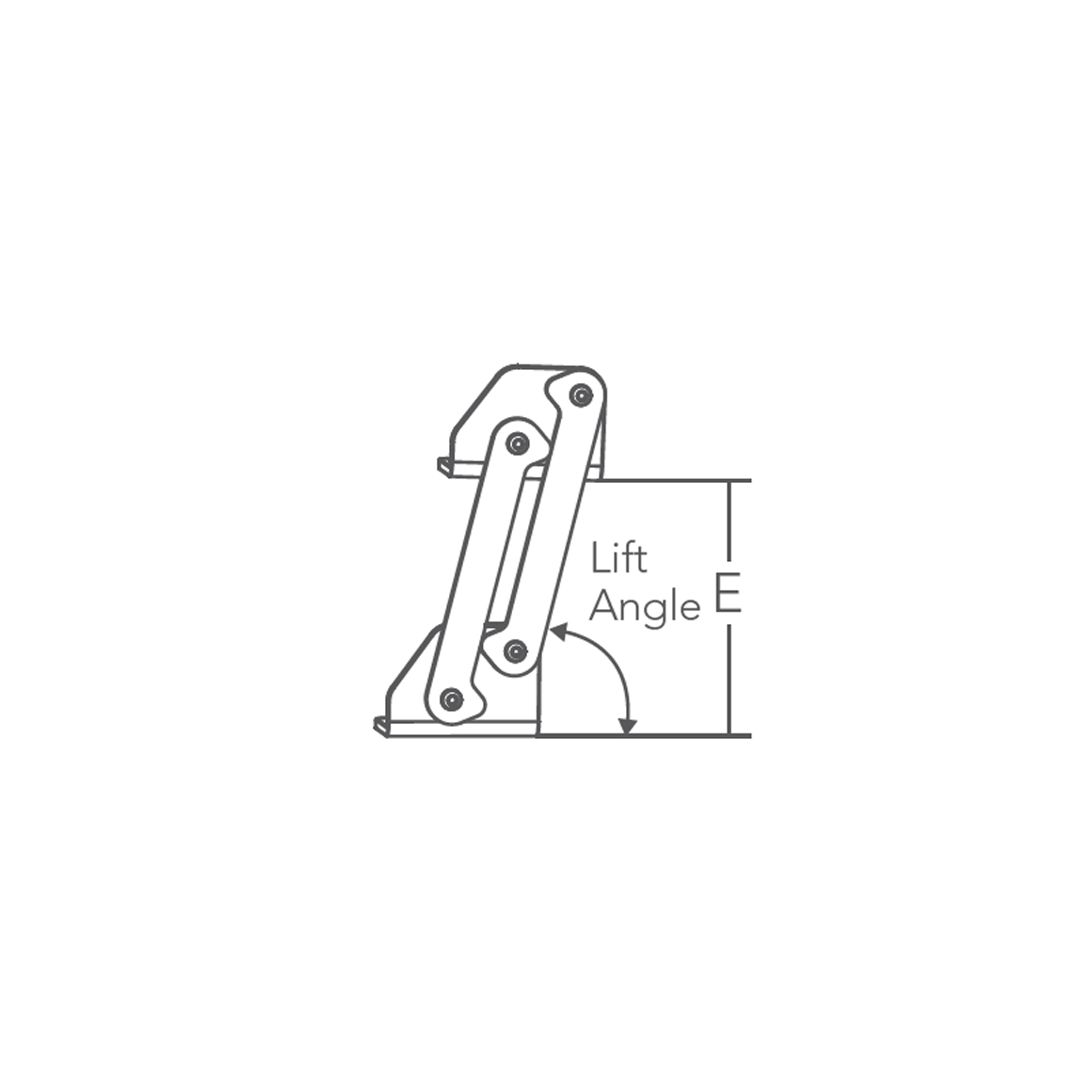

Lift Angle

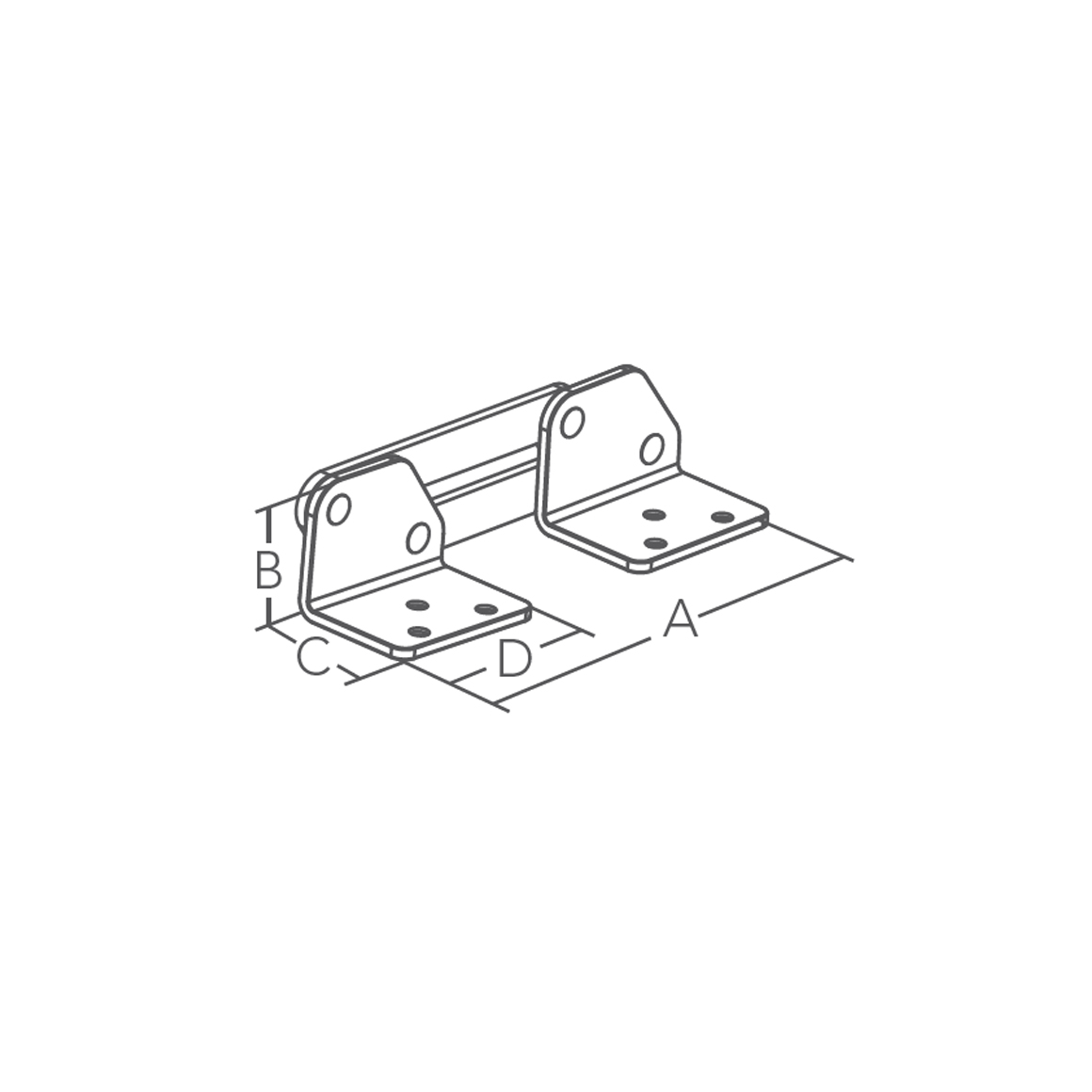

A mm
B mm
C mm
D mm
E mm

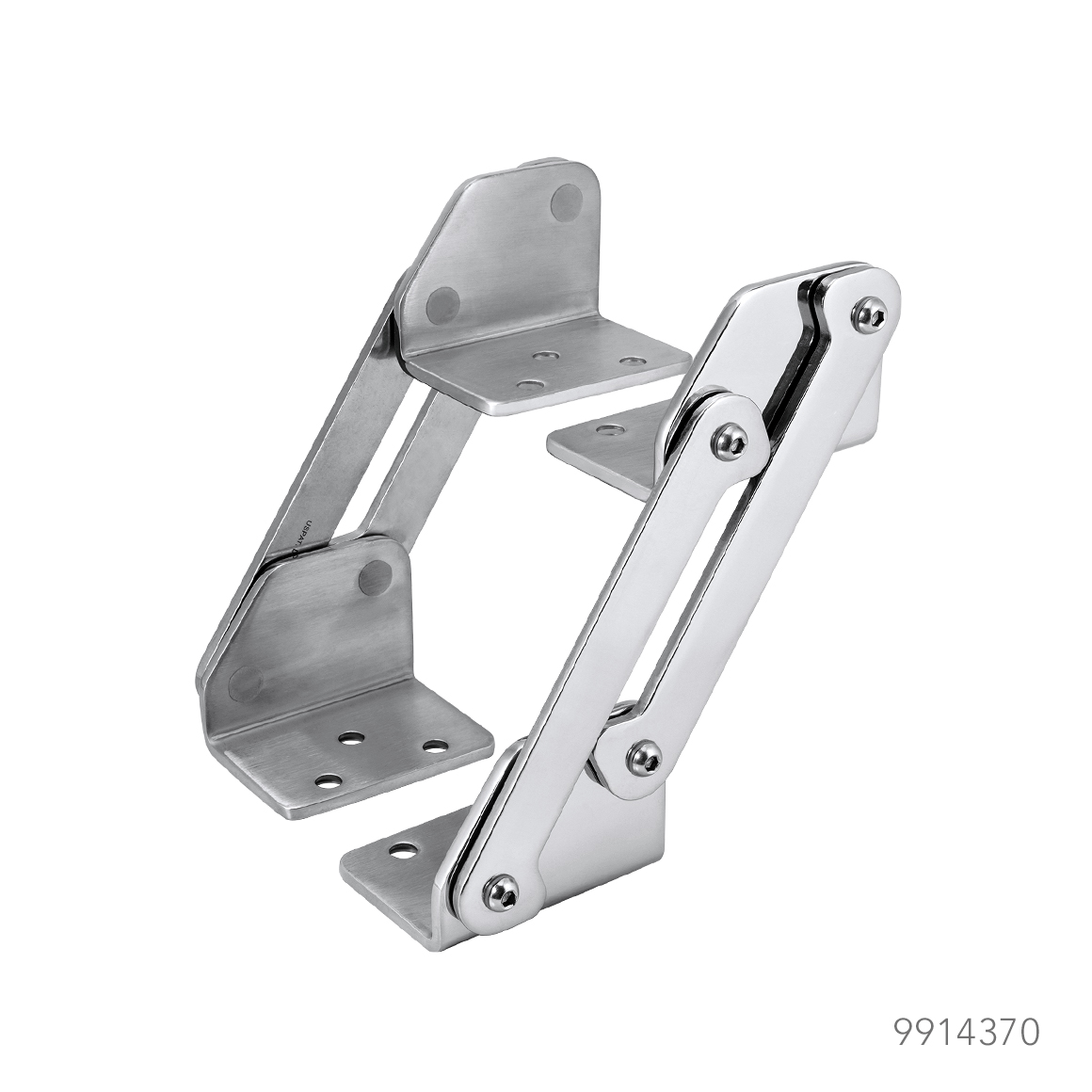

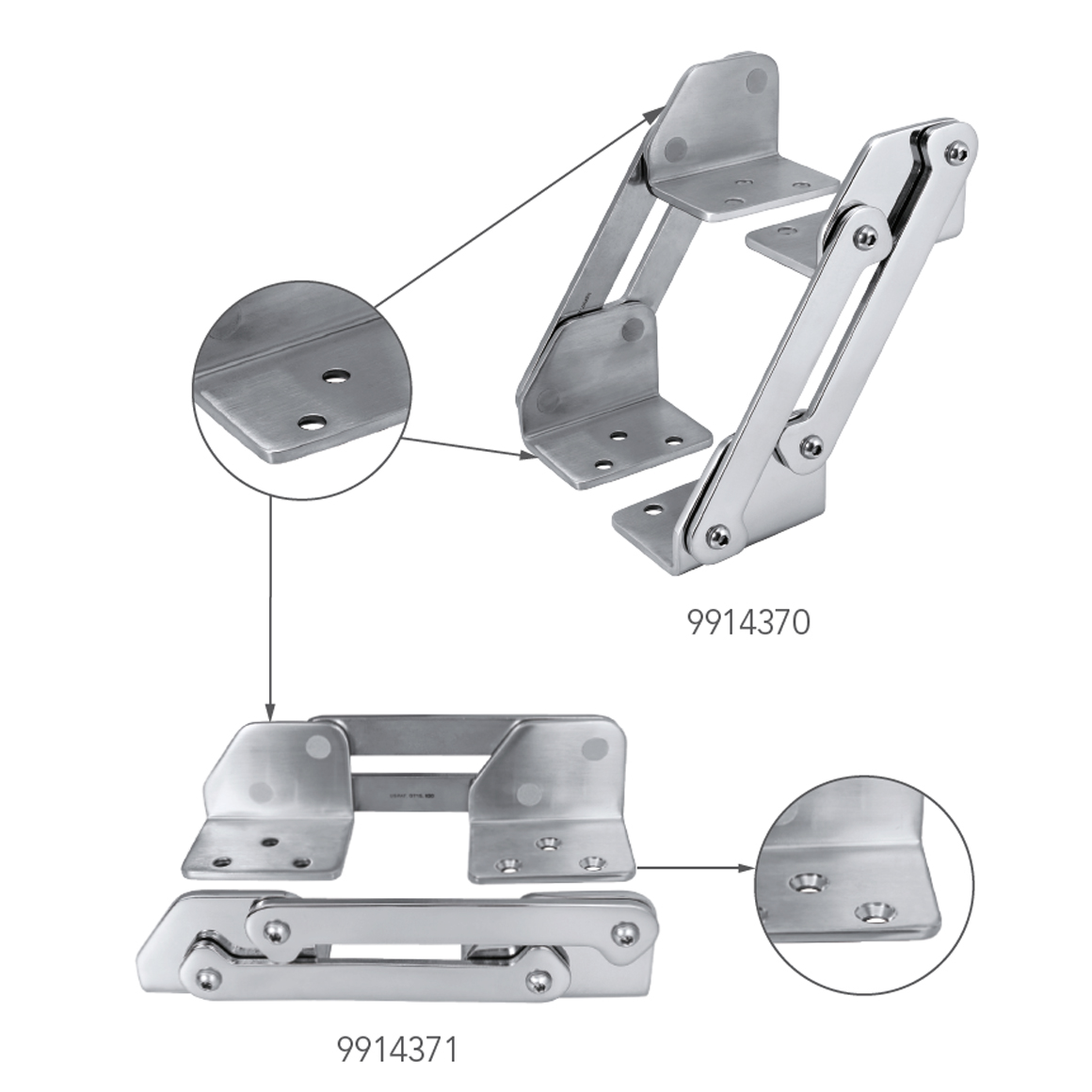

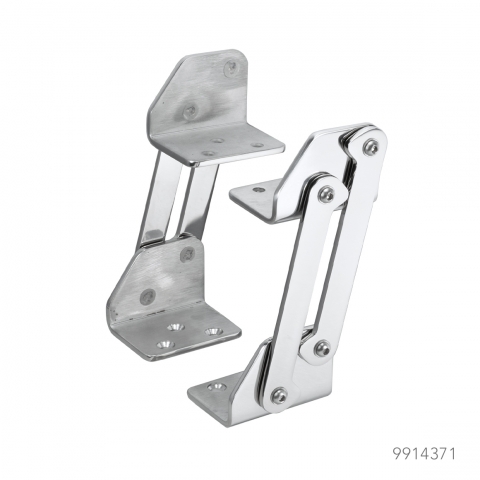

9914370 62° 211(8-5/16") 57(2-1/4") 57(2-1/4") 76(3") 110(4-5/16") 9914371 76° 211(8-5/16") 57(2-1/4") 57(2-1/4") 76(3") 129(5-1/16")
