GRAND SERIES- SLAM LATCH 2"
Stainless Steel 316
- Designed with a 2" installation hole, it’s the perfect direct replacement for
most common applications.
- Anti-rattle design incorporates double springs.
- Stainless steel 316 slide built to endure high-speed impacts under way.
- Adjustable slide accommodates minor adjustments following installation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- 3mm spacer and #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
- Designed with a 2" installation hole, it’s the perfect direct replacement for
most common applications.
- Anti-rattle design incorporates double springs.
- Stainless steel 316 slide built to endure high-speed impacts under way.
- Adjustable slide accommodates minor adjustments following installation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- 3mm spacer and #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
Qty
Qty
-
Bulk No.

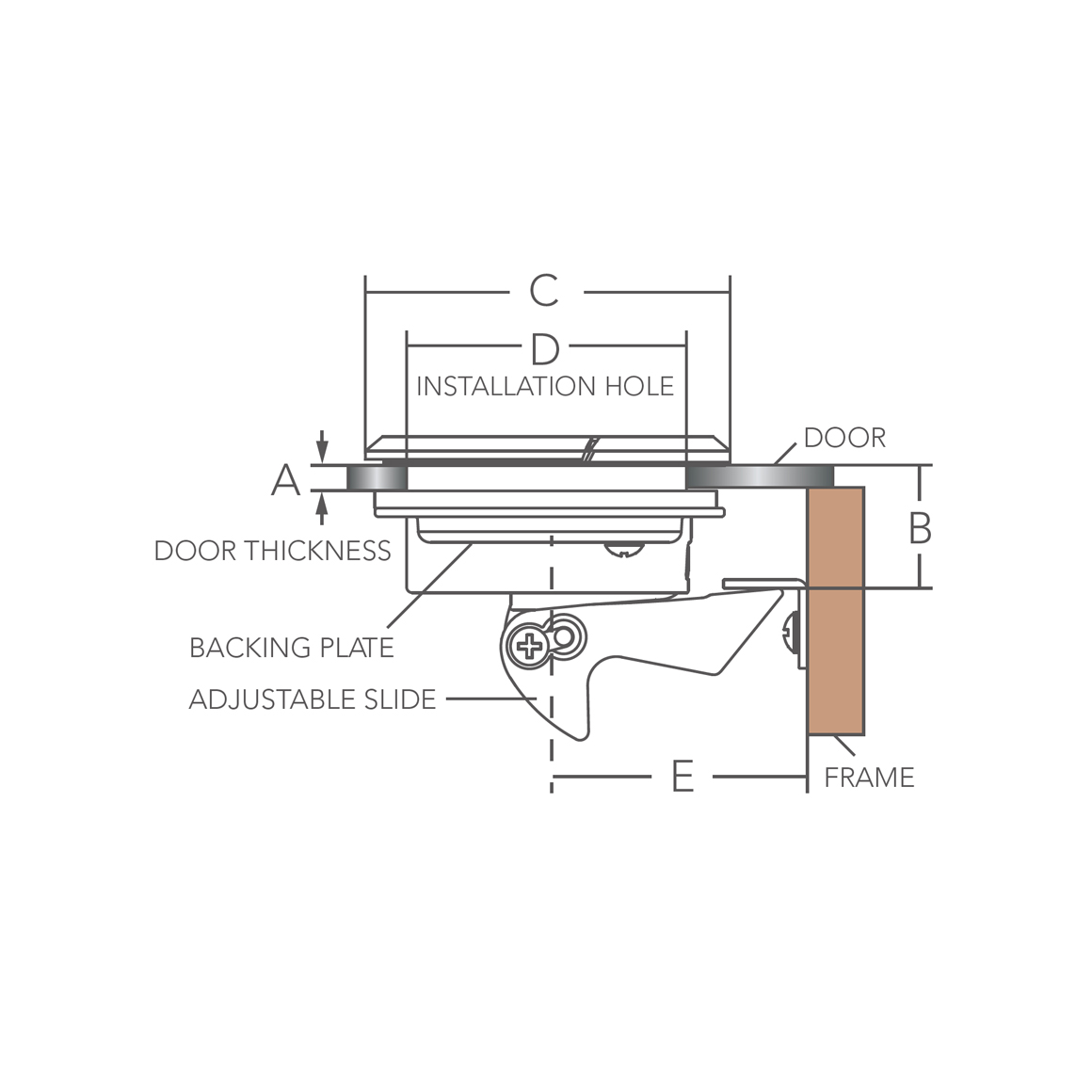

Model
A mm
B mm
C mm
D mm
E mm

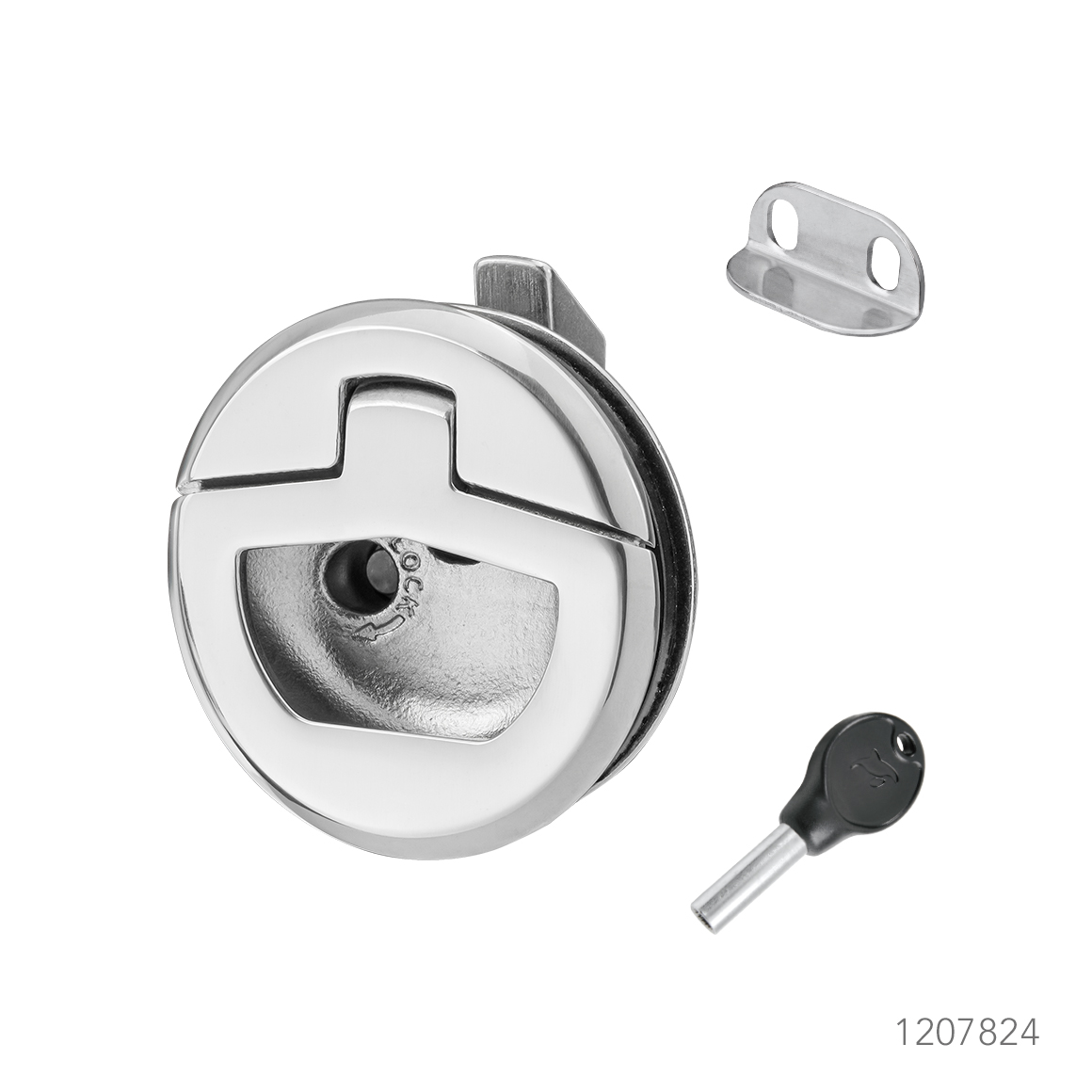

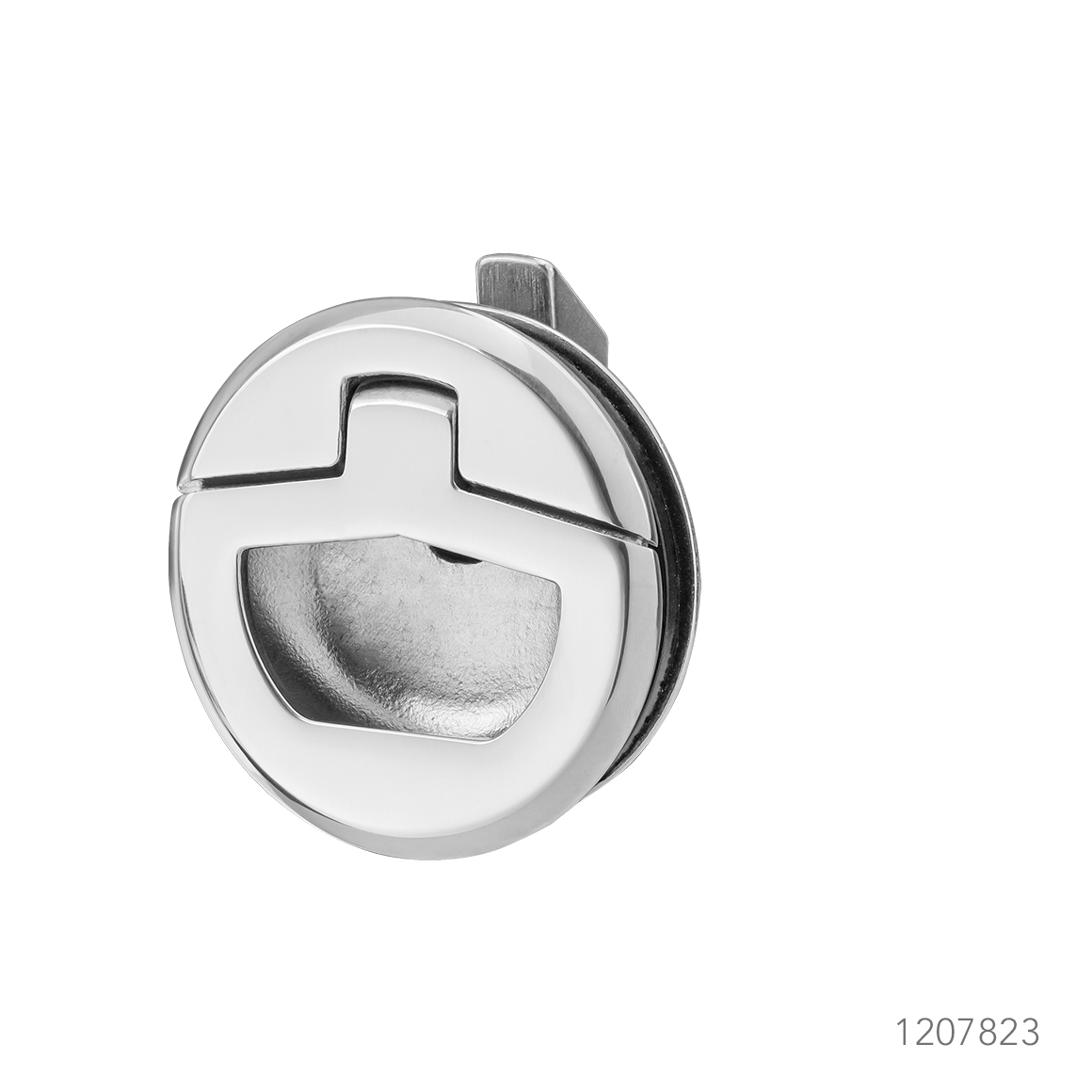

1207823 W/O Lock 6~22(1/4"~7/8") 22~28(7/8"~1-1/8") 63(2-1/2") 51(2") 42(1-5/8") or 48(1-7/8") 1207824 W/ Lock 6~22(1/4"~7/8") 22~28(7/8"~1-1/8") 63(2-1/2") 51(2") 42(1-5/8") or 48(1-7/8")

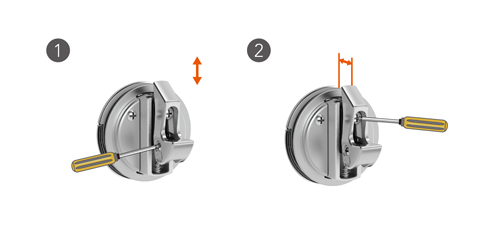

SSLIDE ADJUSTMENT INSTRUCTION
-
Bulk No.
Download
1207823 Drawing 1207824 Drawing
