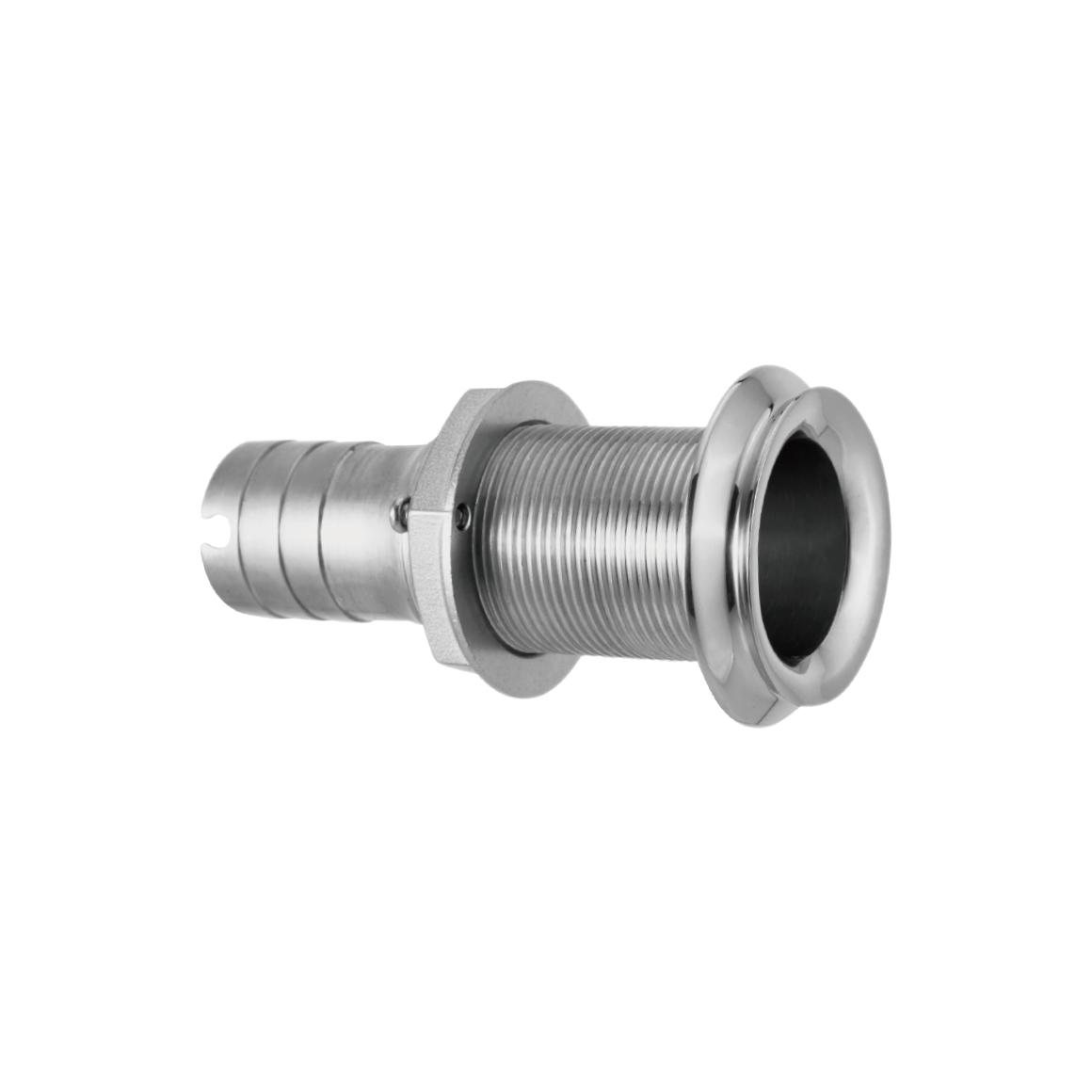

MEGA FLOW DRIPLESS THRU HULL W/ CAST NUT
Stainless Steel 316

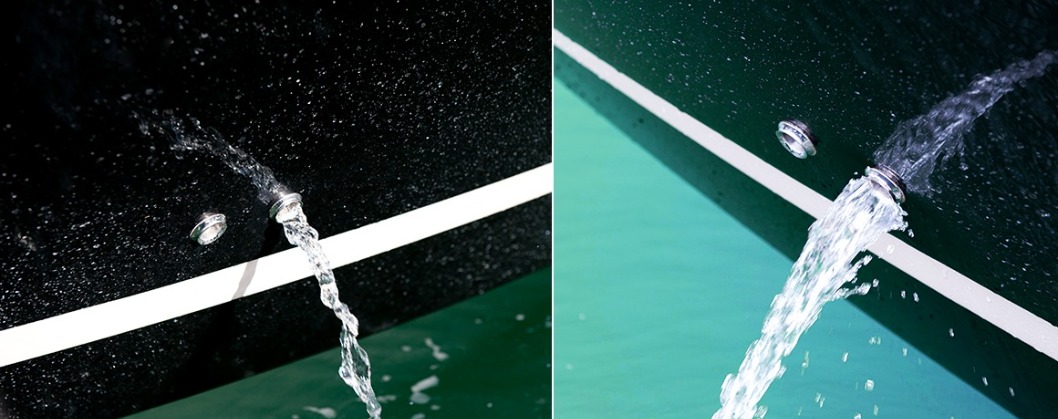

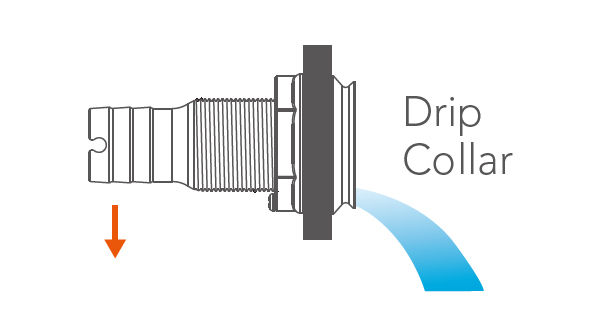

- Drip collar on the face prevents hull streaking.
- Three face sizes with five barb options.
- High density marine-grade stainless steel ensures strength and prevents
crevice corrosion.
- Thin wall construction to ensure maximum water flow.
- Machined inner finish reduces potential for residual debris.
- Watertight gasket and stainless steel 304 ground screw are included.
- Drip collar on the face prevents hull streaking.
- Three face sizes with five barb options.
- High density marine-grade stainless steel ensures strength and prevents
crevice corrosion.
- Thin wall construction to ensure maximum water flow.
- Machined inner finish reduces potential for residual debris.
- Watertight gasket and stainless steel 304 ground screw are included.
Qty
Qty
Qty
Qty
Qty
-

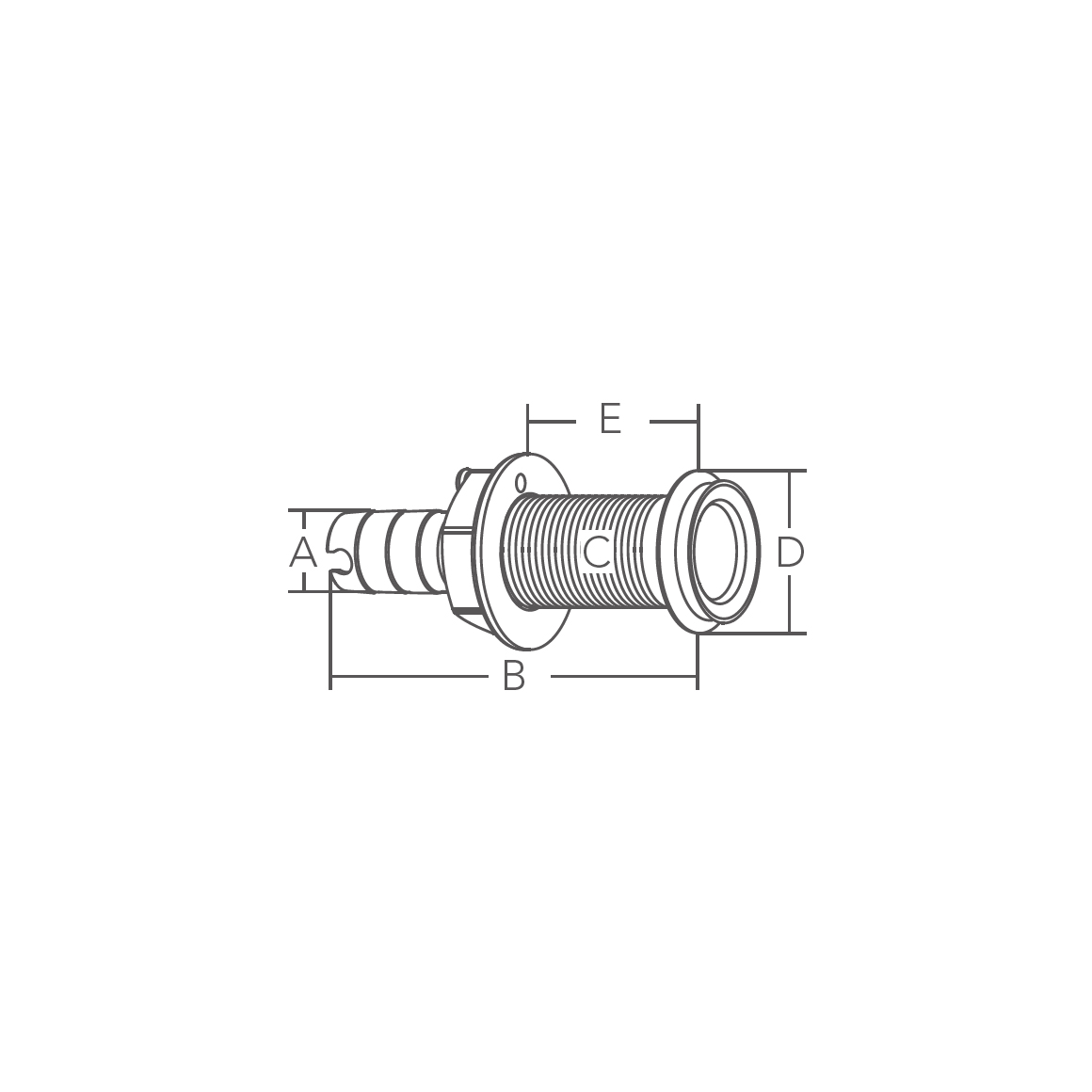

Bulk No.
A mm
B mm
C mm
D mm
E mm
0203801 16(5/8") 80(3-1/8") 22(7/8") 32(1-1/4") 5~38(3/16"~1-1/2") 0203802 19(3/4") 80(3-1/8") 22(7/8") 32(1-1/4") 5~38(3/16"~1-1/2") 0203803 25(1") 83(3-1/4") 32(1-1/4") 48(1-7/8") 5~38(3/16"~1-1/2") 0203804 29(1-1/8") 83(3-1/4") 32(1-1/4") 48(1-7/8") 5~38(3/16"~1-1/2") 0203806 38(1-1/2") 94(3-11/16") 41(1-5/8") 61(2-3/8") 5~38(3/16"~1-1/2")
SIDE LOAD

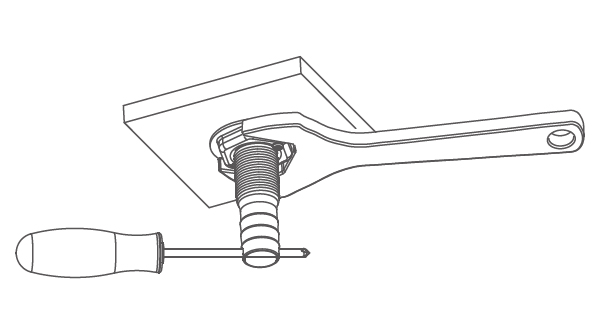

INSTALLATION INSTRUCTION
Compliance to ABYC
H-27 standard.Easy, one-man installation.
