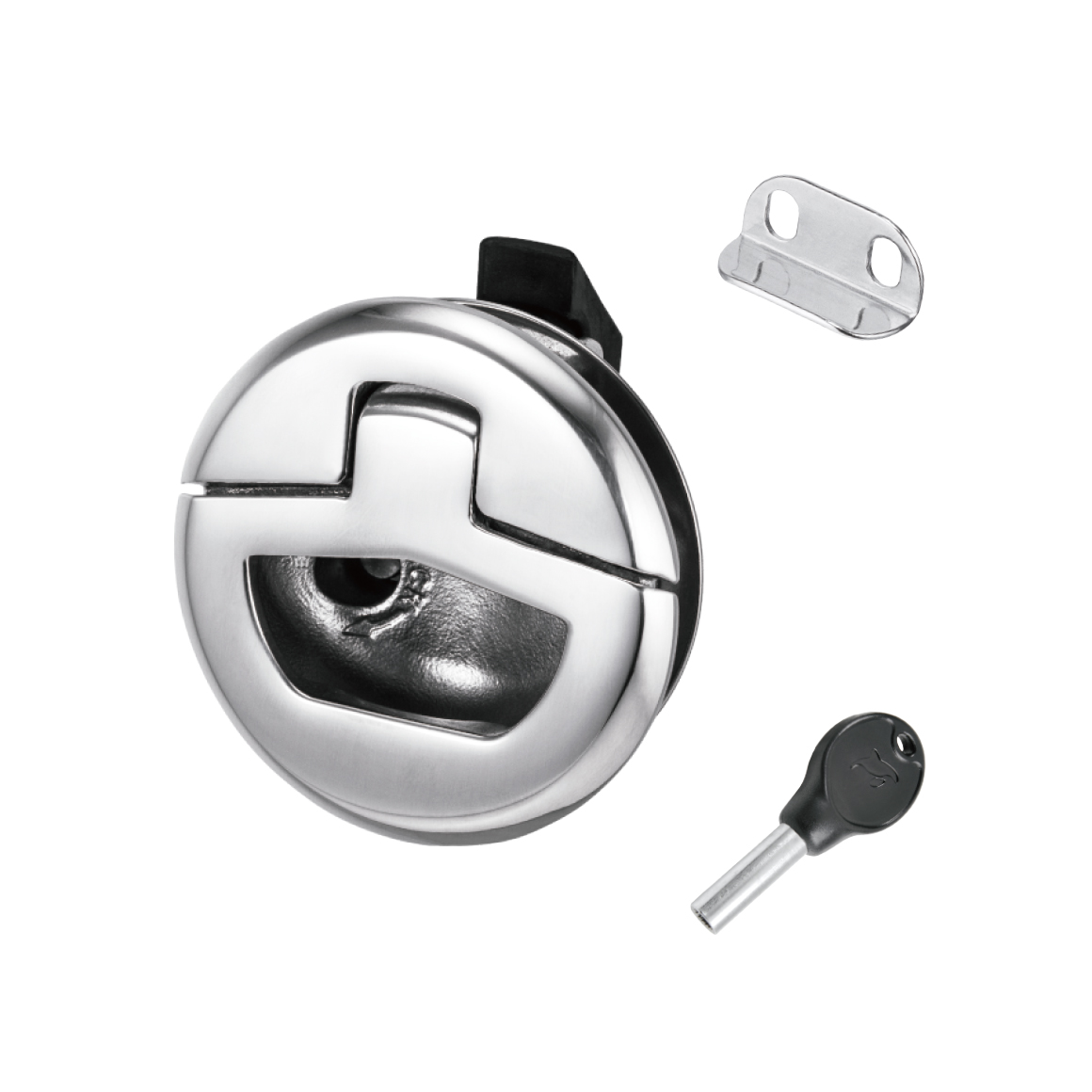

GRAND SERIES - SLAM LATCH 1-3/4"
Stainless Steel 316
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs and plastic slide
to ensure quiet operation, even underway.
- Adjustable slide accommodates minor adjustments
following installation to ensure rattle-free operation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- #6 installation screws are included.
- Strike screw size M4 or #8 (not included).
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs and plastic slide
to ensure quiet operation, even underway.
- Adjustable slide accommodates minor adjustments
following installation to ensure rattle-free operation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- #6 installation screws are included.
- Strike screw size M4 or #8 (not included).
Qty
Qty
Qty
Qty
-

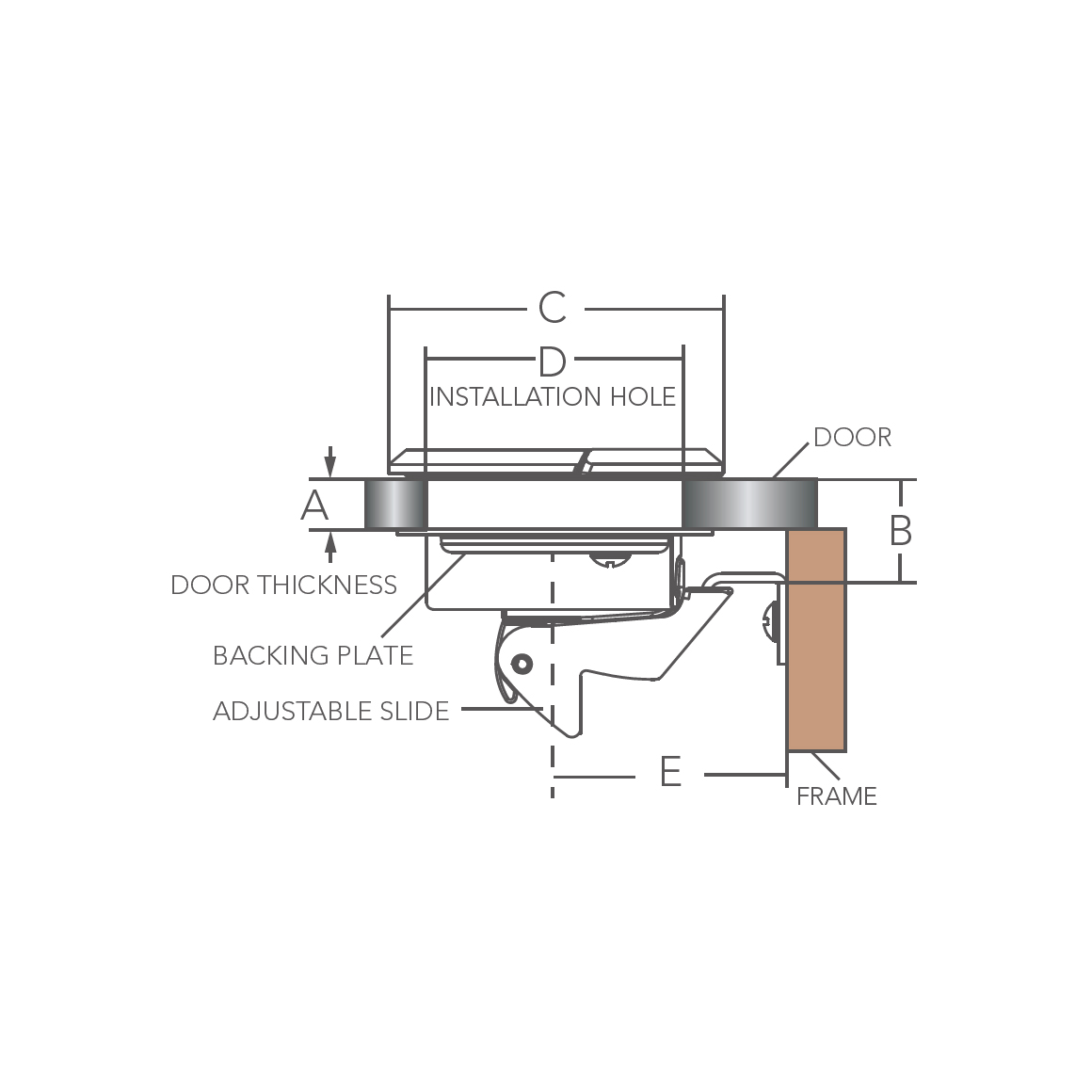

Bulk No.
Shape
Model
A mm
B mm
C mm
D mm
E mm

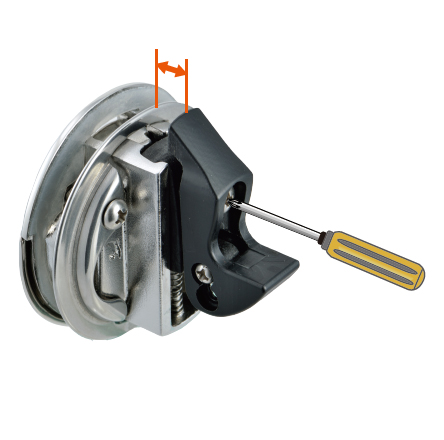

1007811 Round W/O Lock 9~22(3/8"~7/8") 19~25(3/4"~1") 57(2-1/4") 45(1-3/4") 40(1-9/16") 1007812 Round W/ Lock 9~22(3/8"~7/8") 19~25(3/4"~1") 57(2-1/4") 45(1-3/4") 40(1-9/16") 9305351-V1 8mm(5/16") Spacer 1007811-V11 3mm(1/8") Spacer SLIDE ADJUSTMENT DIRECTION
