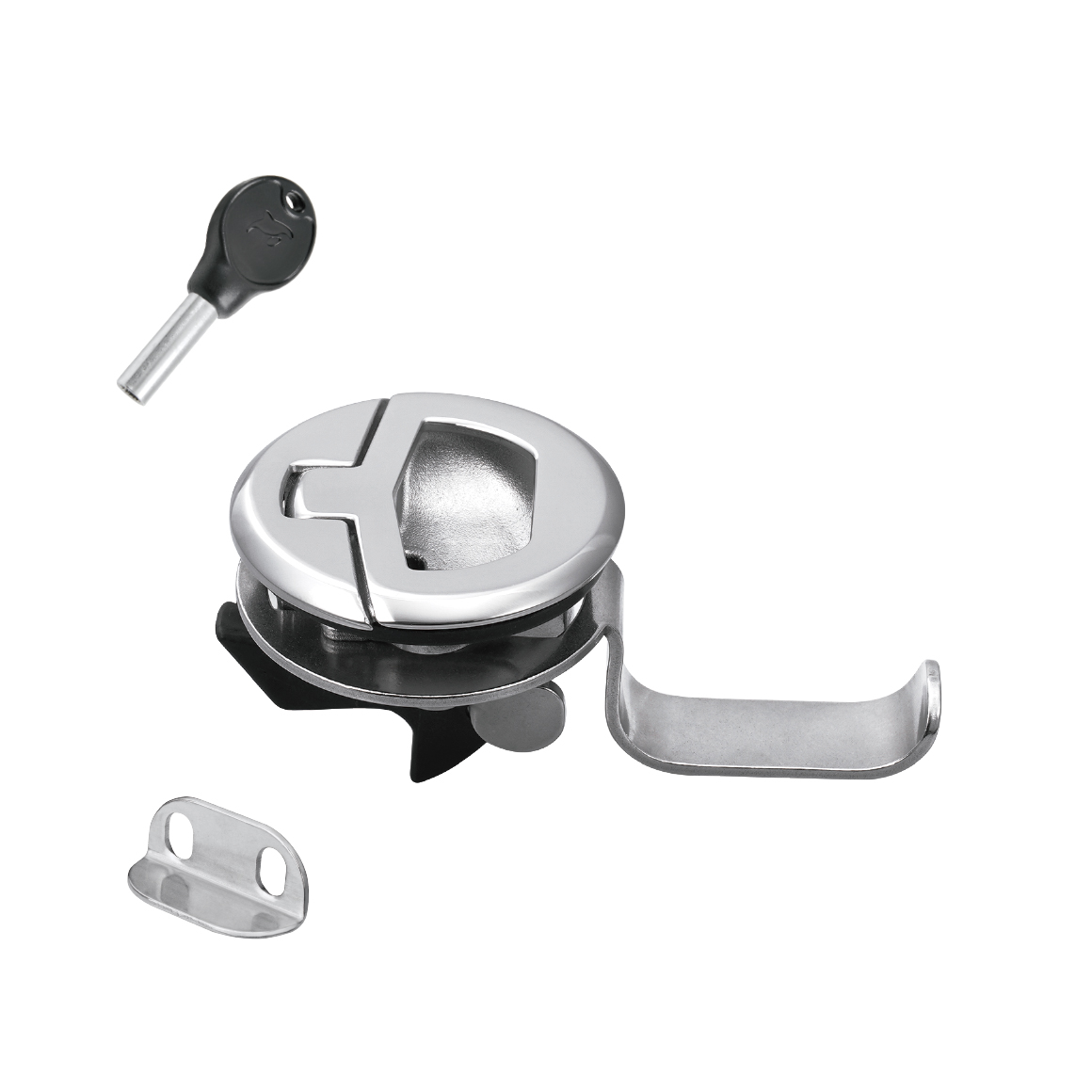

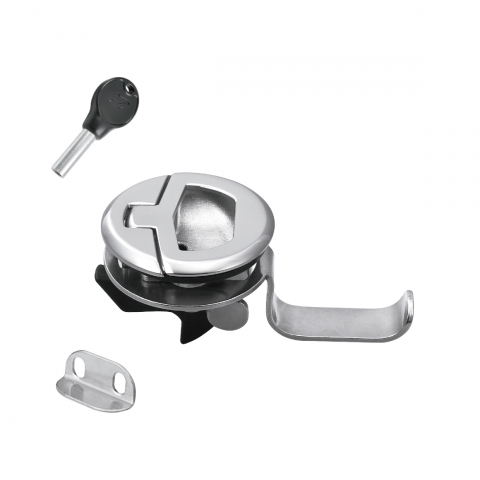

GRAND SERIES - PRIVACY DOOR SLAM LATCH
Stainless Steel 316
- Combines our integral lock slam latch technology with inside egress capabilities.
- Larger handle opening for comfortable grip.
- Comfortable stainless steel 304 inside pull handle.
- Key lock on the outside, lever lock on the inside.
- Adjustable slide accommodates minor adjustments following installation.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Screw size M4 or #8.
- Combines our integral lock slam latch technology with inside egress capabilities.
- Larger handle opening for comfortable grip.
- Comfortable stainless steel 304 inside pull handle.
- Key lock on the outside, lever lock on the inside.
- Adjustable slide accommodates minor adjustments following installation.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Screw size M4 or #8.
Qty
-
Bulk No.

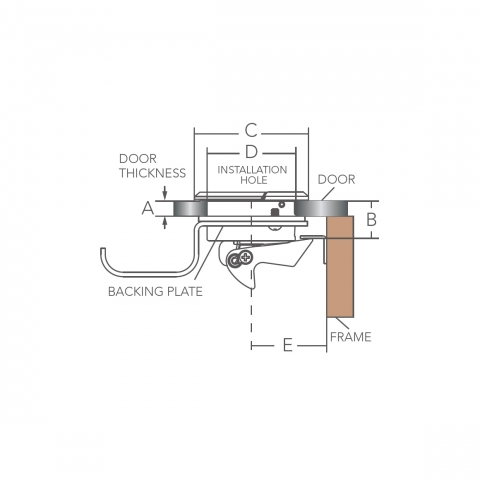

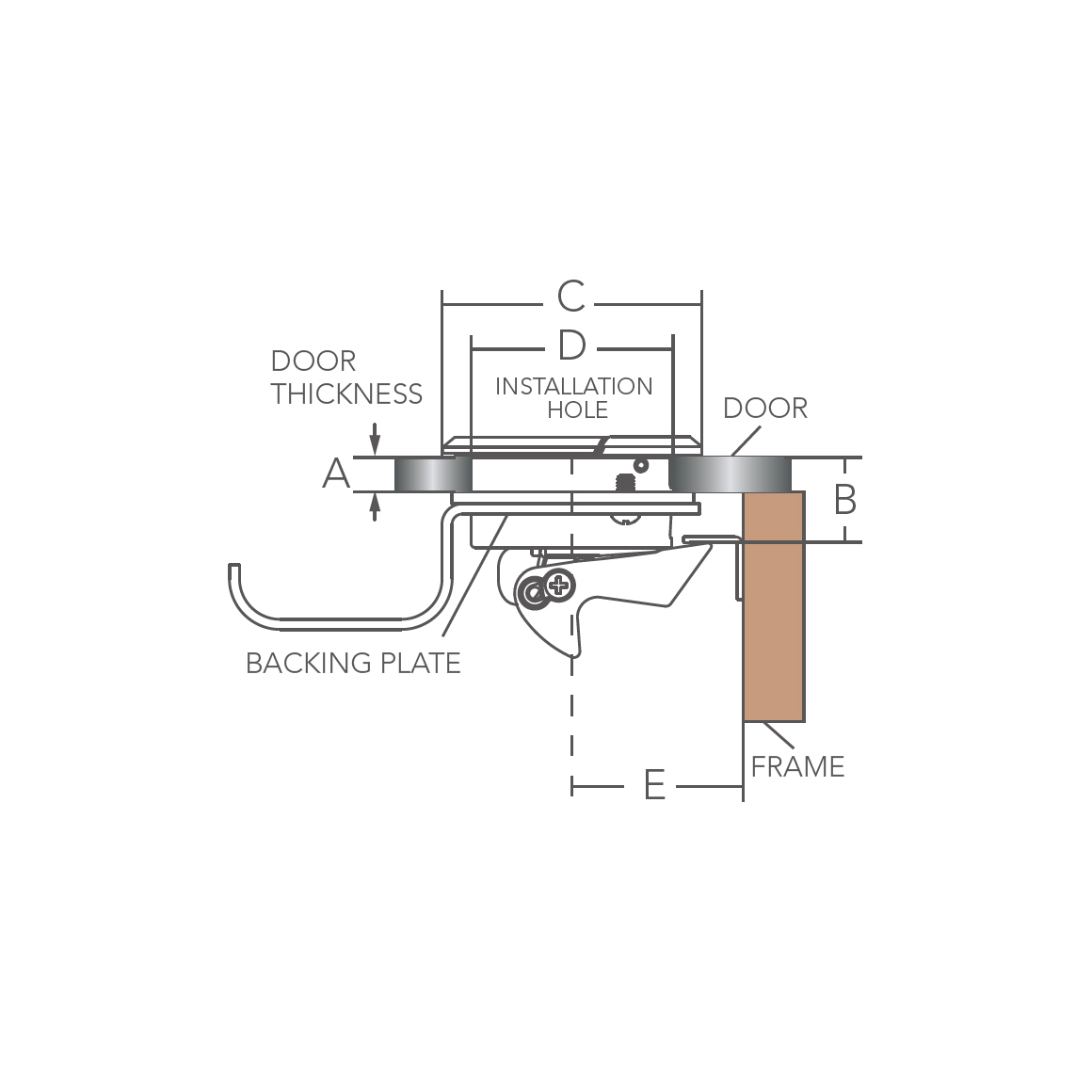

A mm
B mm
C mm
D mm
E mm

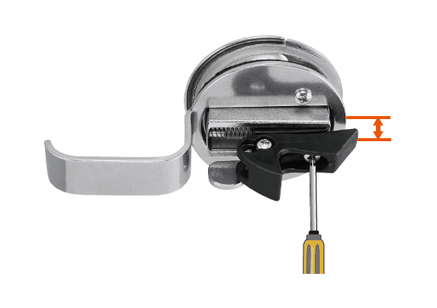

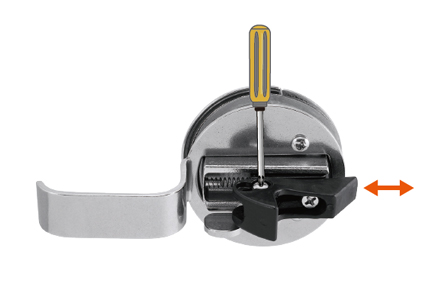

0907795 9~16 (3/8"~5/8") 20 (3/4") 63 (2-1/2") 50 (2") 42 (1-5/8") SLIDE ADJUSTMENT INSTRUCTION
❶
❷
-
Bulk No.
Download
0907795 Drawing
