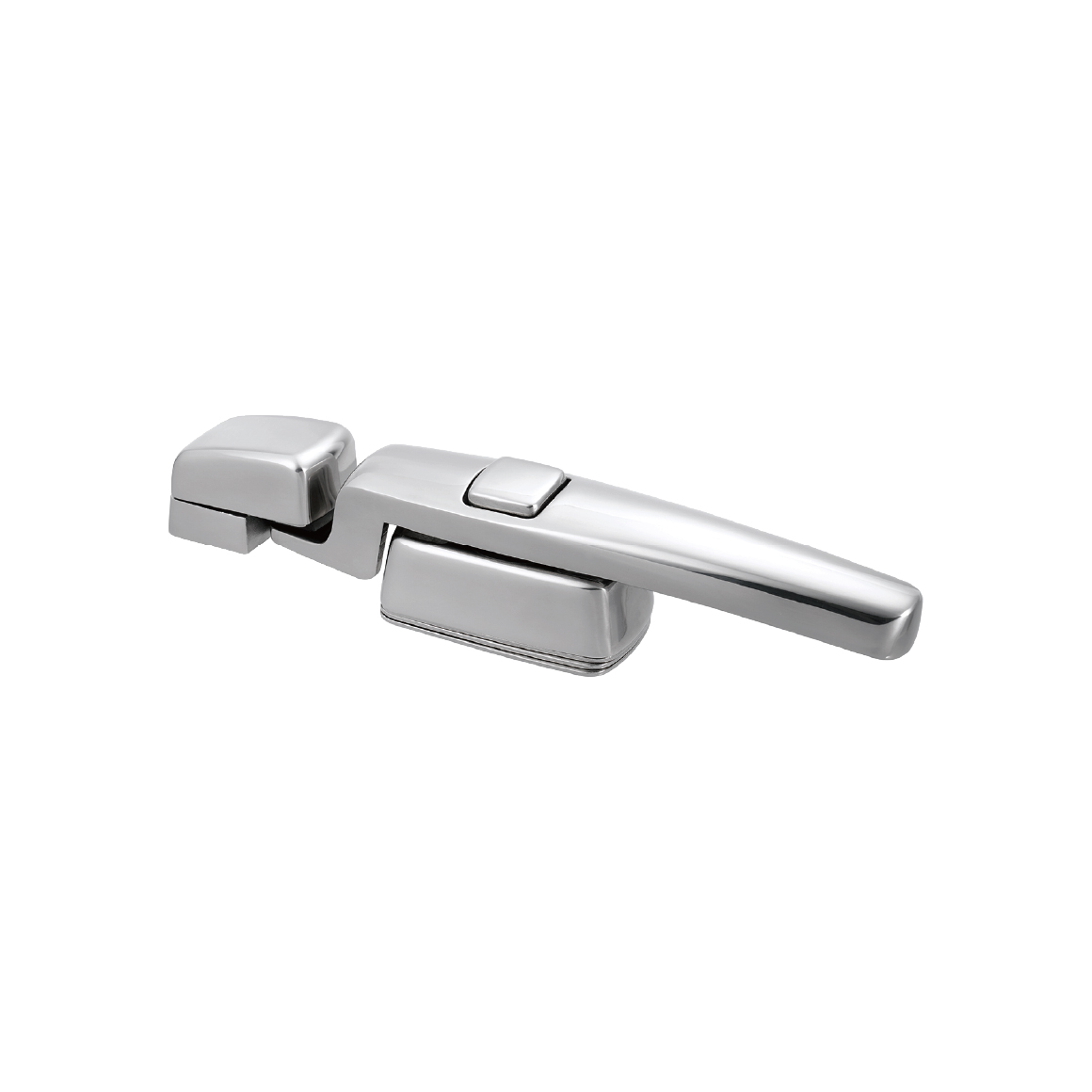

HEAVY DUTY BUTTON RELEASE DOOR LATCH
Stainless Steel 316
- Heavy duty construction ensures durability.
- One hand operation.
- Door can be opened and locked securely by pushing the button and
rotating the handle.
- Every 90° turn can secure the handle in position.

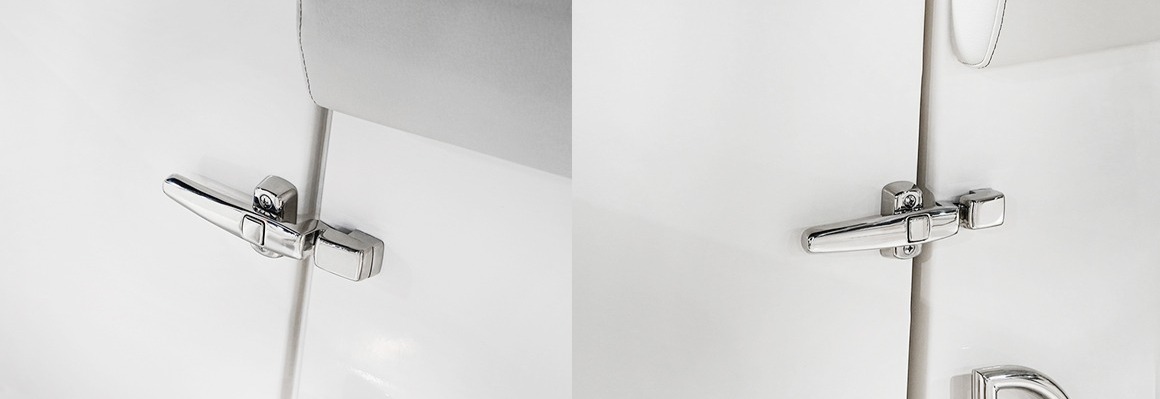

- Works on both right and left hand transom or diving doors.
- Strike is designed to prevent handle surface from scratching.
- Incorporates a stainless steel 316 strike cover to conceal the fasteners and
includes 3 pcs of stainless steel 316 spacers for better adjustment.
- Heavy duty construction ensures durability.
- One hand operation.
- Door can be opened and locked securely by pushing the button and
rotating the handle.
- Every 90° turn can secure the handle in position.
- Works on both right and left hand transom or diving doors.
- Strike is designed to prevent handle surface from scratching.
- Incorporates a stainless steel 316 strike cover to conceal the fasteners and
includes 3 pcs of stainless steel 316 spacers for better adjustment.

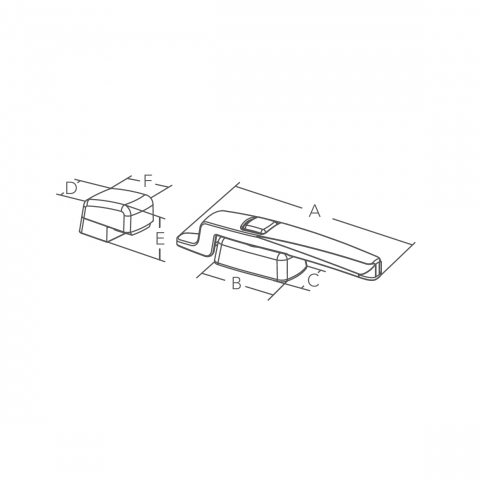

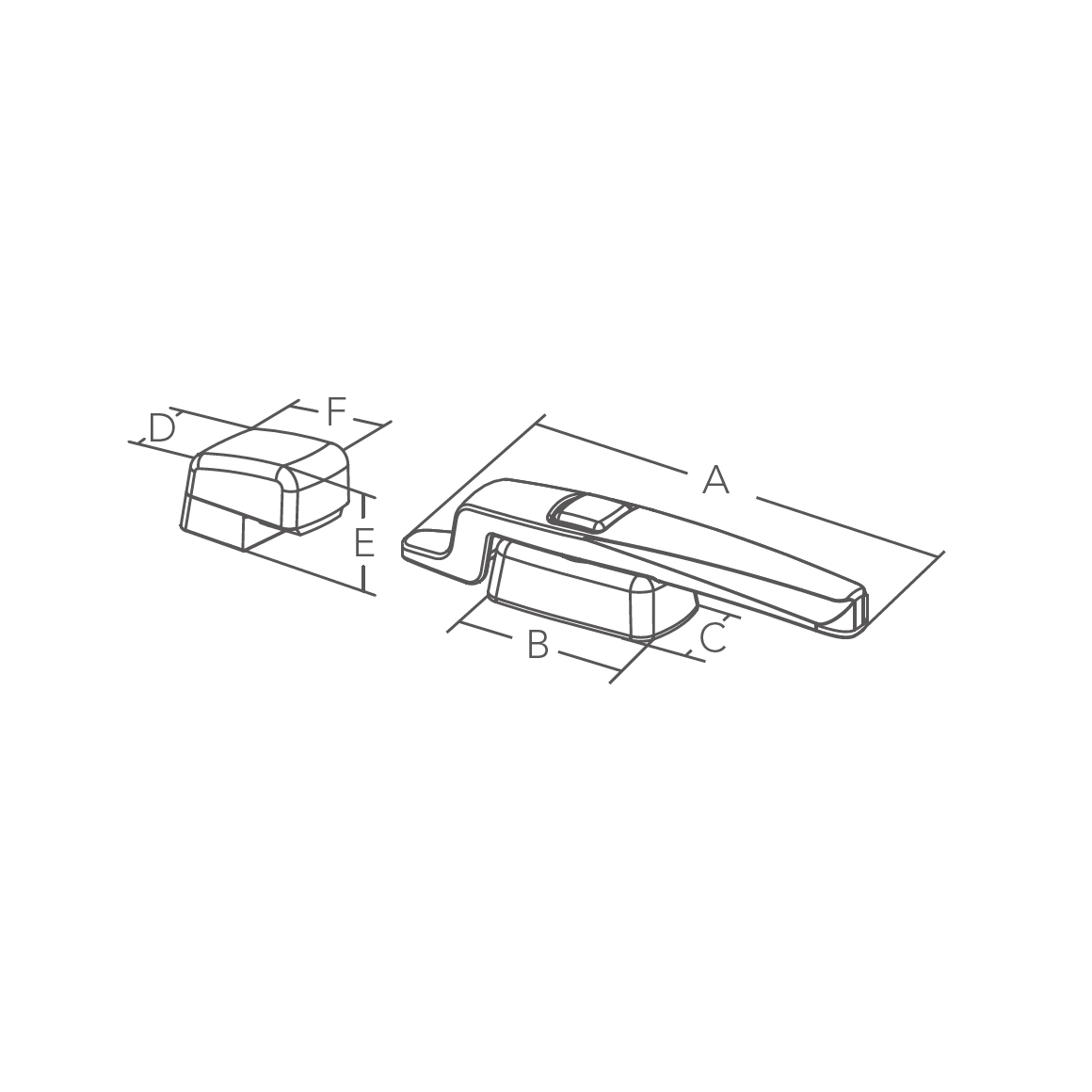

Qty
-
Bulk No.
Strike
A mm
B mm
C mm
D mm
E mm
F mm
0907766 Surface Mounted 186(7-5/16") 73(2-7/8") 39(1-9/16") 34(1-5/16") 33(1-5/16") 50(2") MODEL
SCREW SIZE
Latch Body M6 or 1/4" Surface Mounted Strike M5 or #10
-
Bulk No.
Download
0907766 Drawing
