ROUND HEAD MAG. HOLDER
Stainless Steel 316 & Nylon Base
- Encapsulated magnet for marine use.
- Hidden screw design.
- Wide-angle application.
- 0807331P and 0807333P: Single North magnet only.
- Encapsulated magnet for marine use.
- Hidden screw design.
- Wide-angle application.
- 0807331P and 0807333P: Single North magnet only.
Qty
Qty
Qty
Qty
-
Bulk No.
Mag. Size
Mag. pole

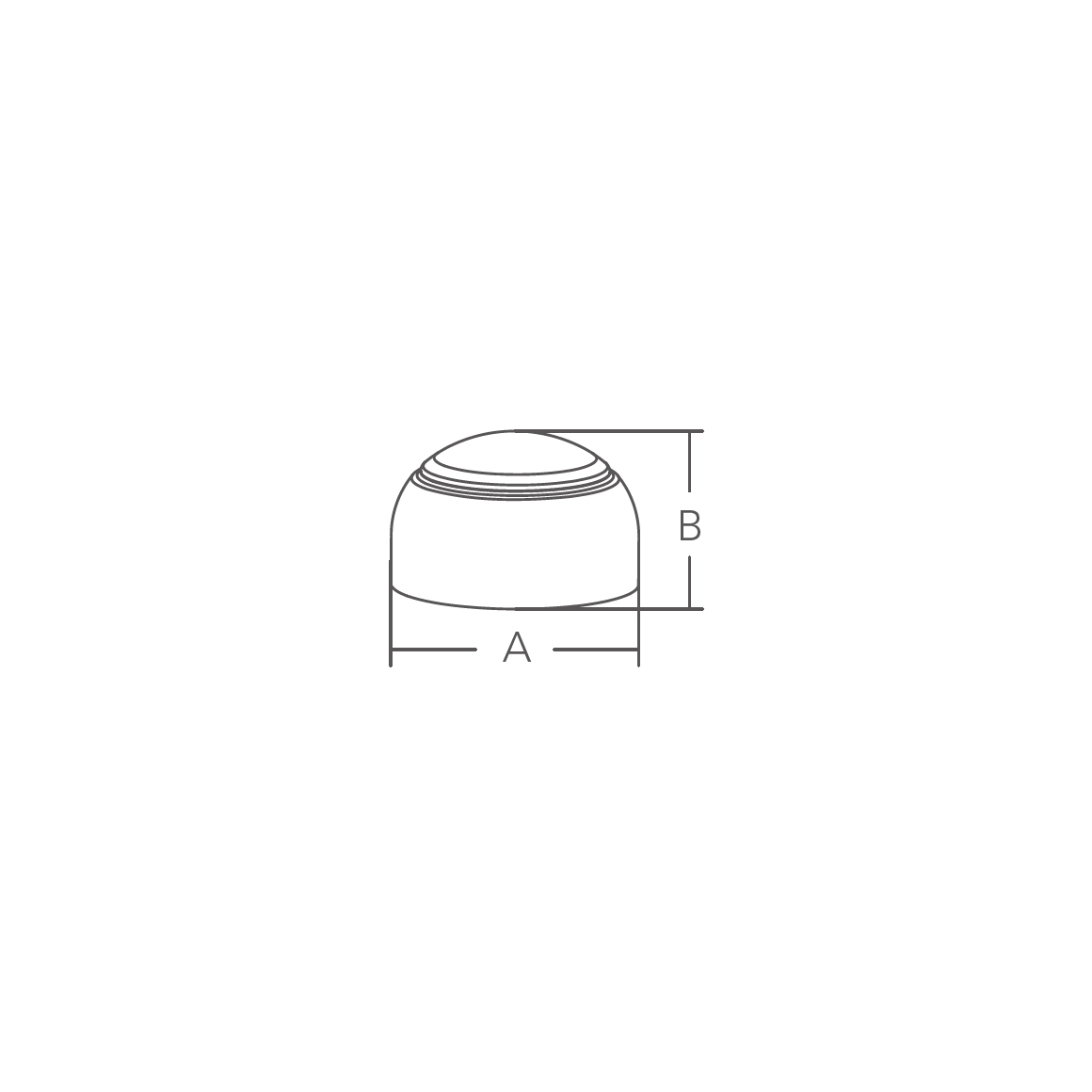

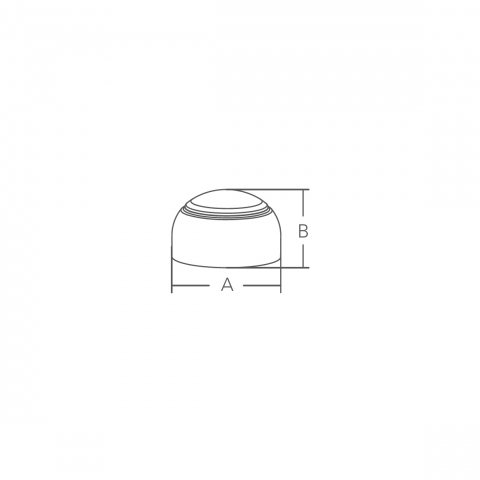

A mm
B mm
Holding Power
Screw Size

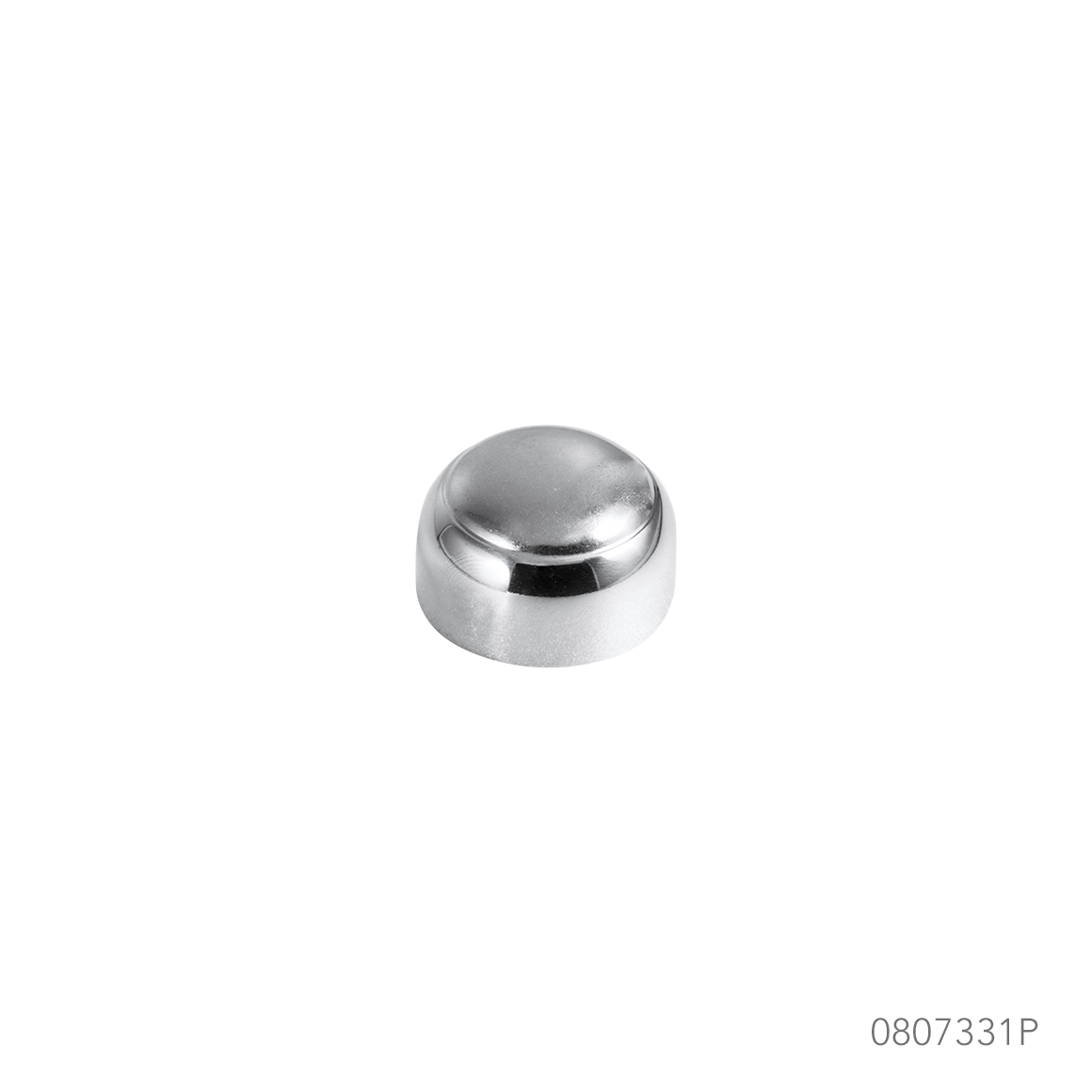

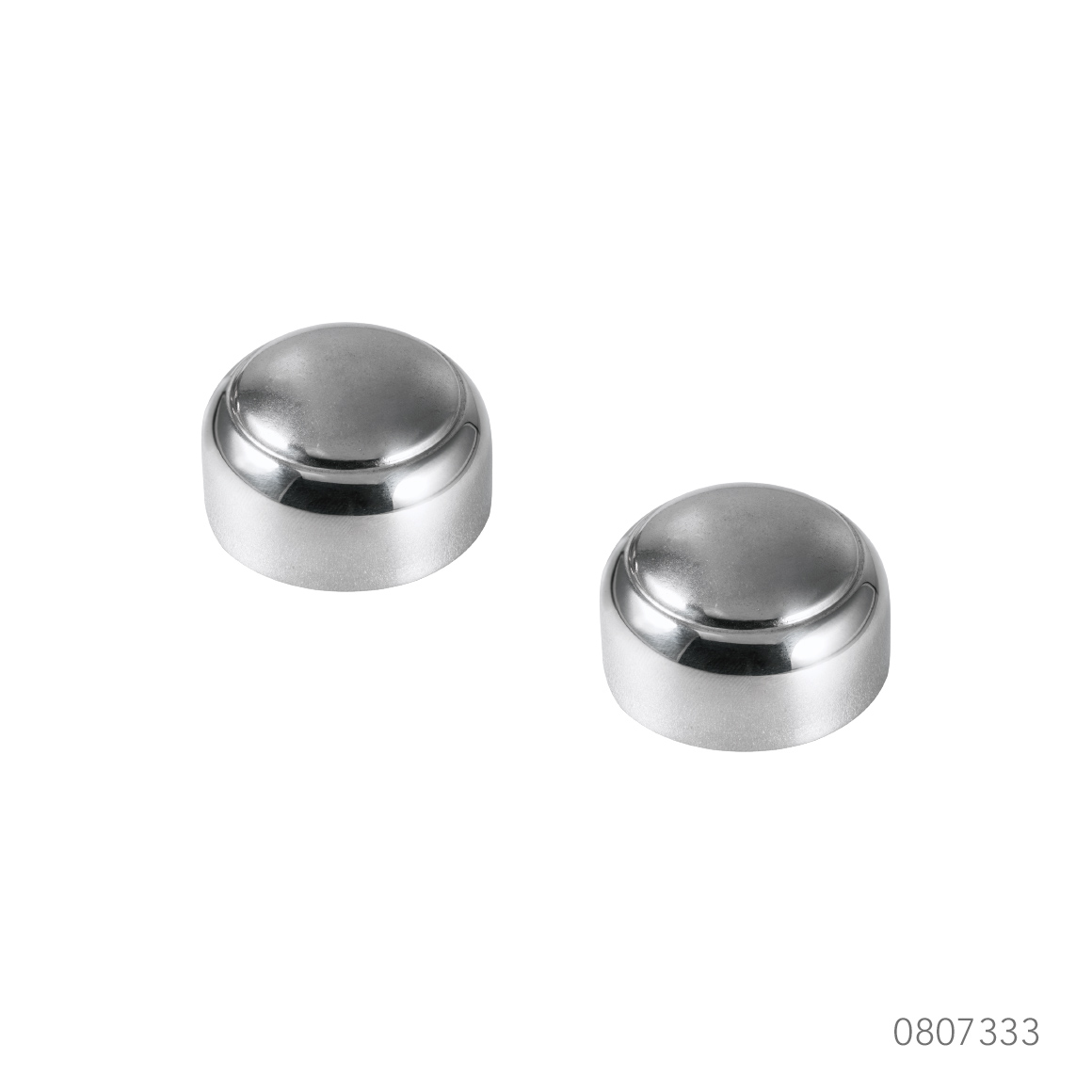

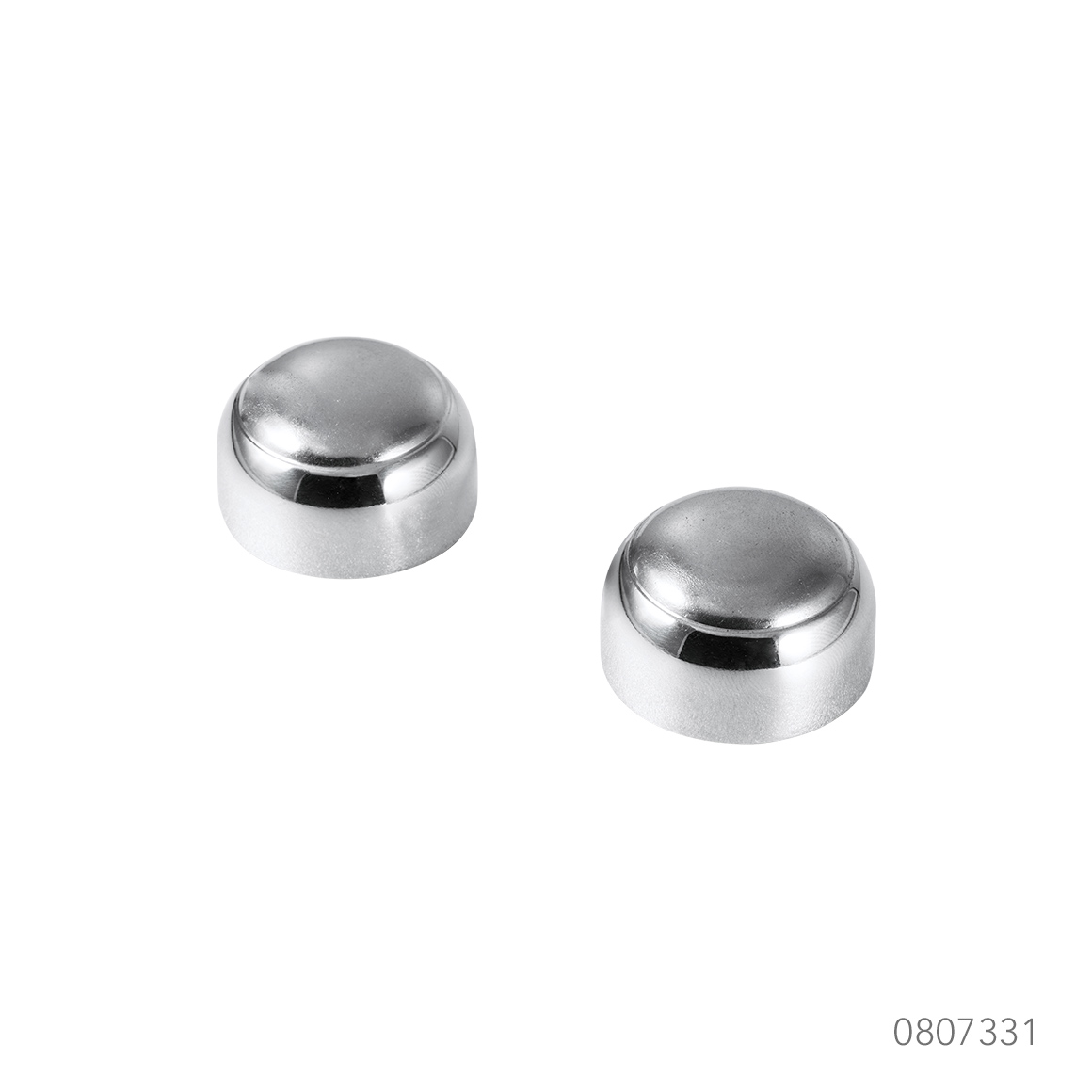

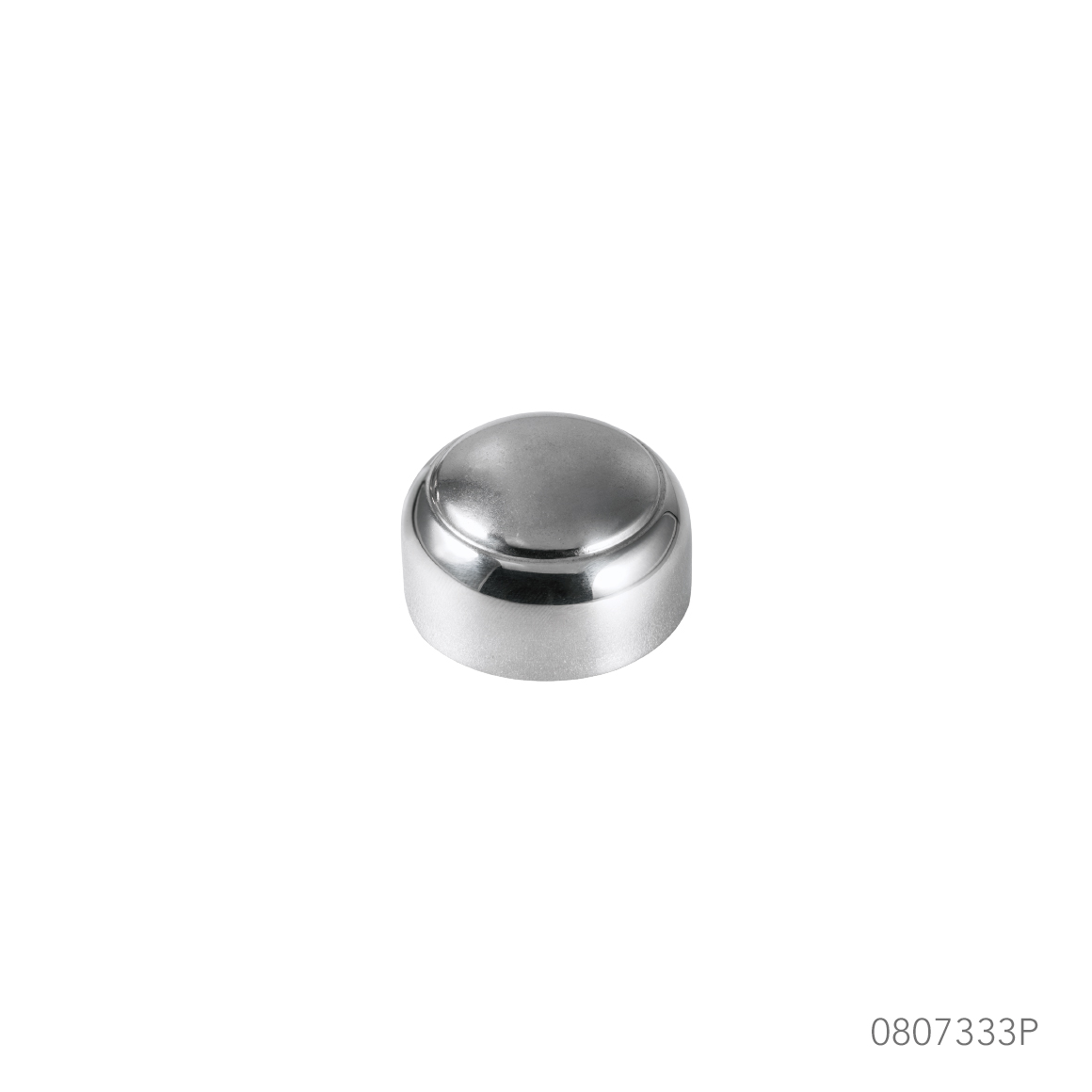

0807331 20 x 10 North / South 34(1-5/16") 21(13/16") 3.4 kg(7.5 lb) M5 or #10 0807331P 20 x 10 North 34(1-5/16") 21(13/16") - M5 or #10 0807333 30 x 15 North / South 46(1-13/16") 28(1-1/8") 7.9 kg(17.4 lb) M6 or 1/4" 0807333P 30 x 15 North 46(1-13/16") 28(1-1/8") - M6 or 1/4"

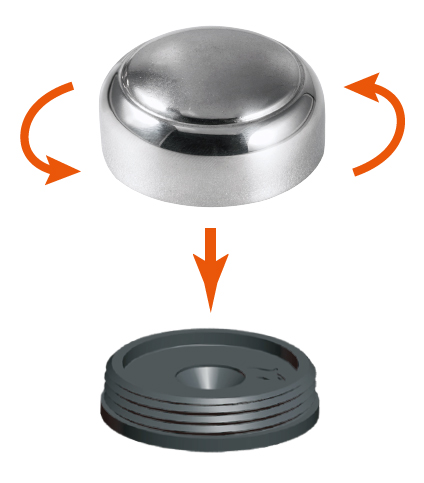

INSTRUCTION
