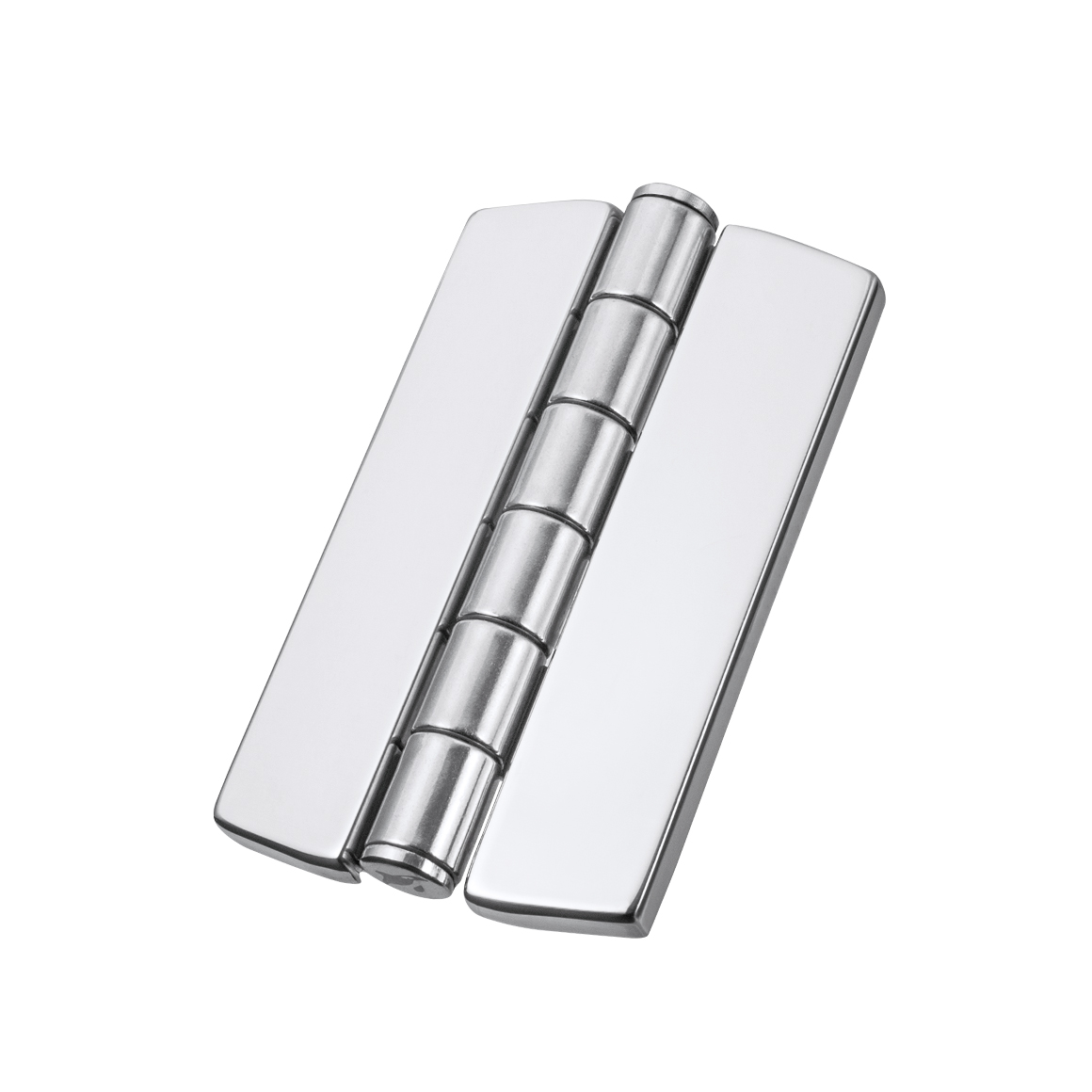

COVERED SEAM DAMPING HINGE
Stainless Steel 316
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Damper hinge keeps the lid from slamming shut.
- Easy installation with 3M VHB double-sided tape.
- The cover can be removed by using a heat gun or hair dryer.
- Innovation and beauty combined.
- Passed 20,000 times cycle test and lost less than 10% on torque.
- Passed 500-hour salt-spray test.
- Screw size M4 or #8.
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Damper hinge keeps the lid from slamming shut.
- Easy installation with 3M VHB double-sided tape.
- The cover can be removed by using a heat gun or hair dryer.
- Innovation and beauty combined.
- Passed 20,000 times cycle test and lost less than 10% on torque.
- Passed 500-hour salt-spray test.
- Screw size M4 or #8.
Qty
MOQ
-
Bulk No.

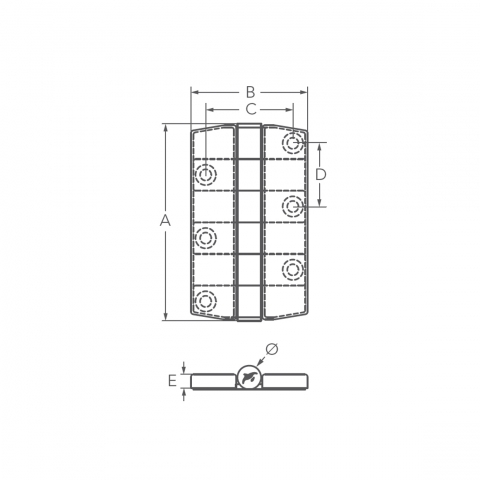

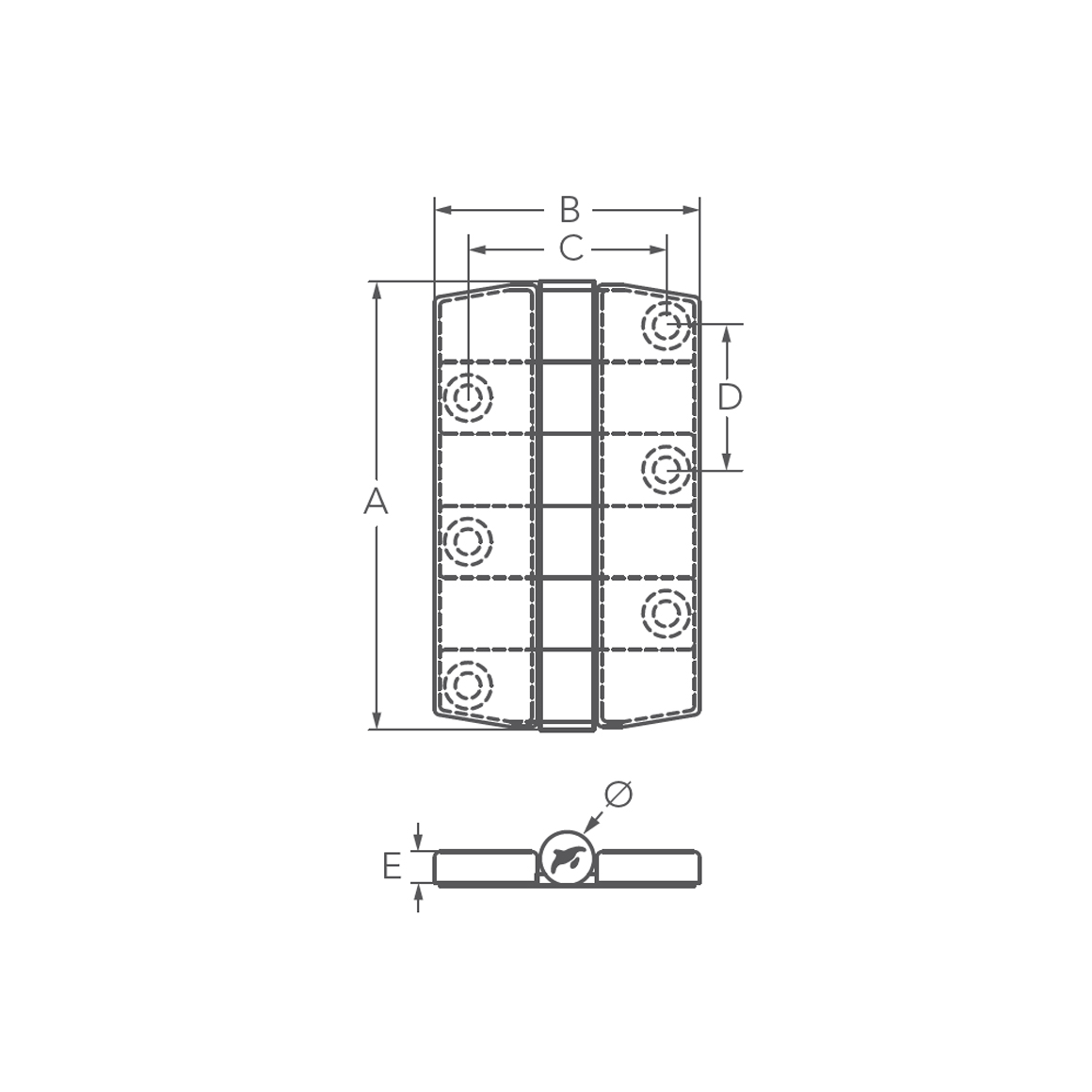

Leaves
A mm
B mm
C mm
D mm
E mm
Ø mm
Torque Range
0719617 Long 79.2(3-1/8") 47(1-7/8") 35(1-3/8") 25.4(1") 6(1/4") 9.5(3/8") 0.75±0.4N-m -
Bulk No.
Download
0719617 Drawing
