SEAT LATCH W/ PLASTIC BUTTON
Stainless Steel 316

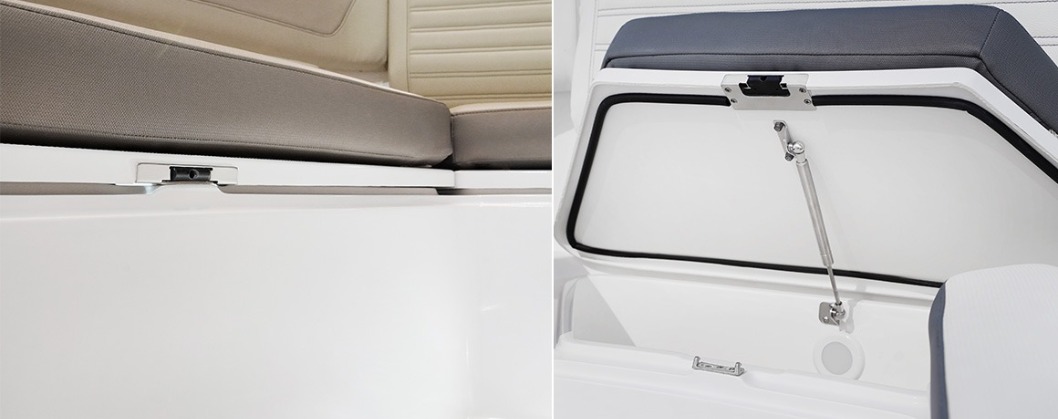

- Compact design fits a multitude of applications including seat cushion,
forward seat, baitwell lid, and cabinet door.
- Push the button and lift for easy operation.
- Fits minimum door thickness 16mm (5/8").
- Slot holes on strike for adjustment.
- Marking pins to ensure correct alignment are included.
- Screw size M4 or #8.
- Compact design fits a multitude of applications including seat cushion,
forward seat, baitwell lid, and cabinet door.
- Push the button and lift for easy operation.
- Fits minimum door thickness 16mm (5/8").
- Slot holes on strike for adjustment.
- Marking pins to ensure correct alignment are included.
- Screw size M4 or #8.
Qty
Qty
-
Bulk No.
Button

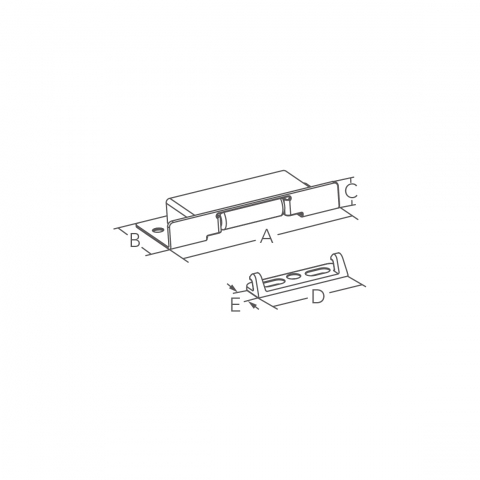

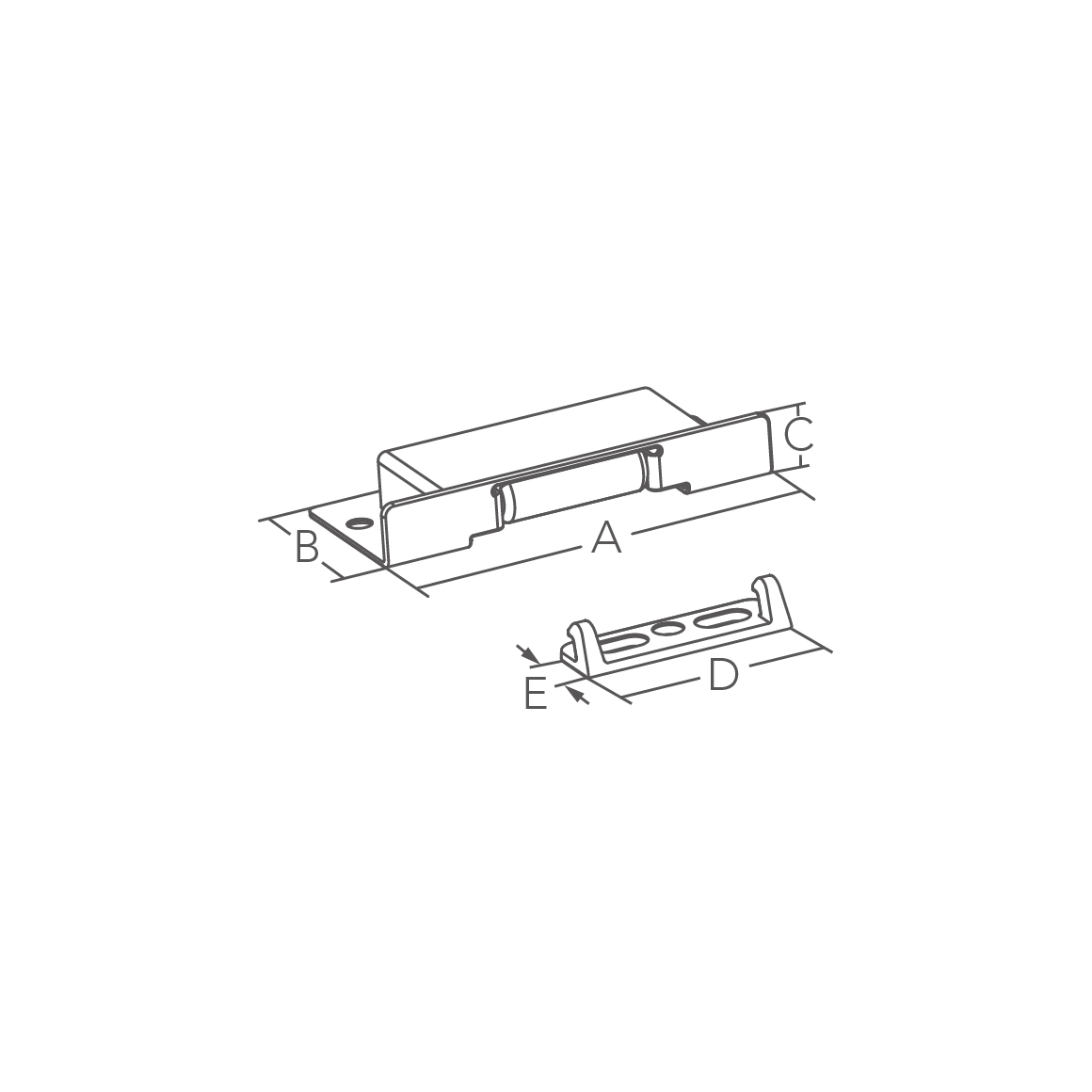

Model
A mm
B mm
C mm
D mm
E mm

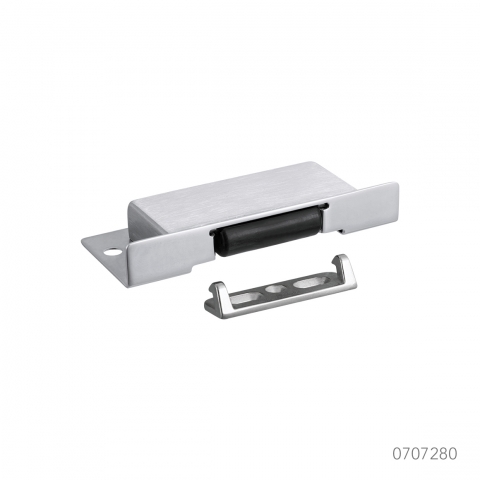

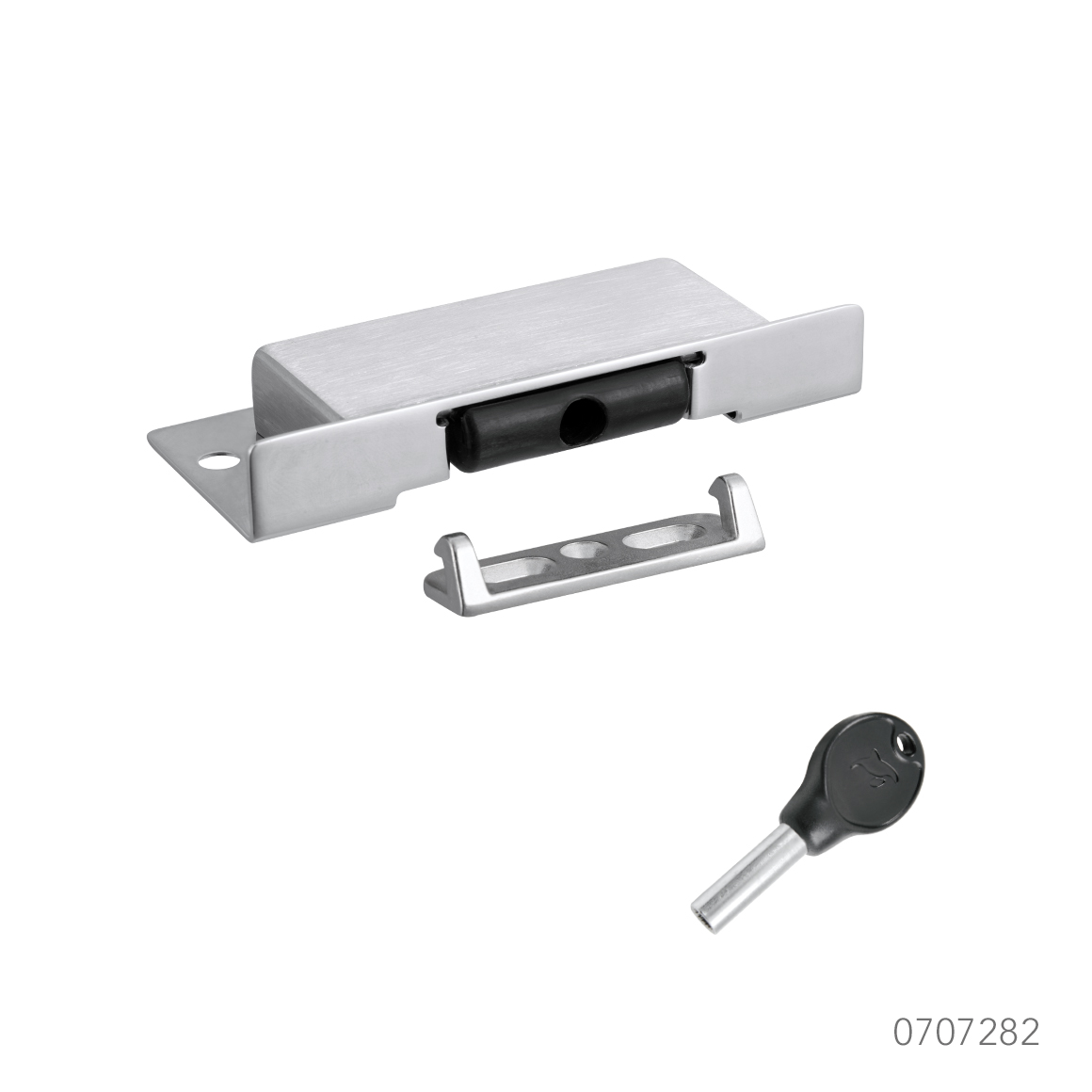

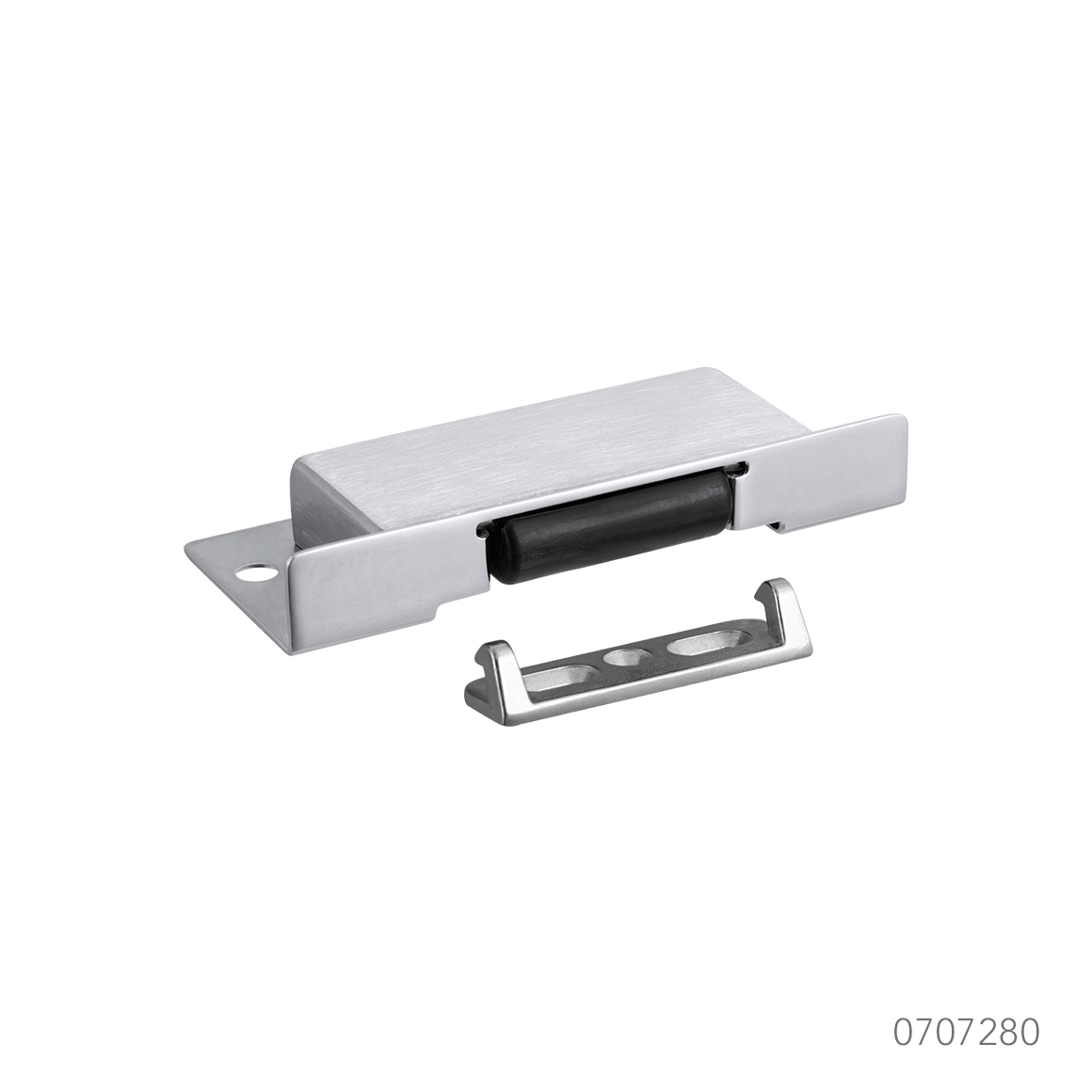

0707280 Plastic W/O Lock 111(4-3/8") 46(1-13/16") 18(11/16") 59(2-5/16") 19(3/4") 0707282 Plastic W/ Lock 111(4-3/8") 46(1-13/16") 18(11/16") 59(2-5/16") 19(3/4")
INSTALLATION INSTRUCTION
❶
❷
❸
❹
Cut a square pocket to install the latch with
M4 or #8 fasteners.Insert two small pins into the holes of latch bottom
to mark the strike position.Install the strike with
M4 or #8 fasteners.Latch in place.
