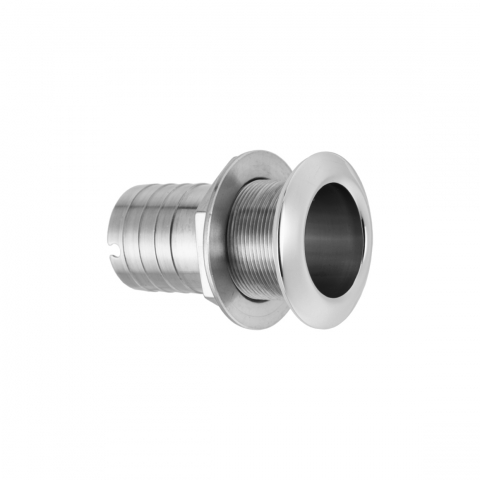

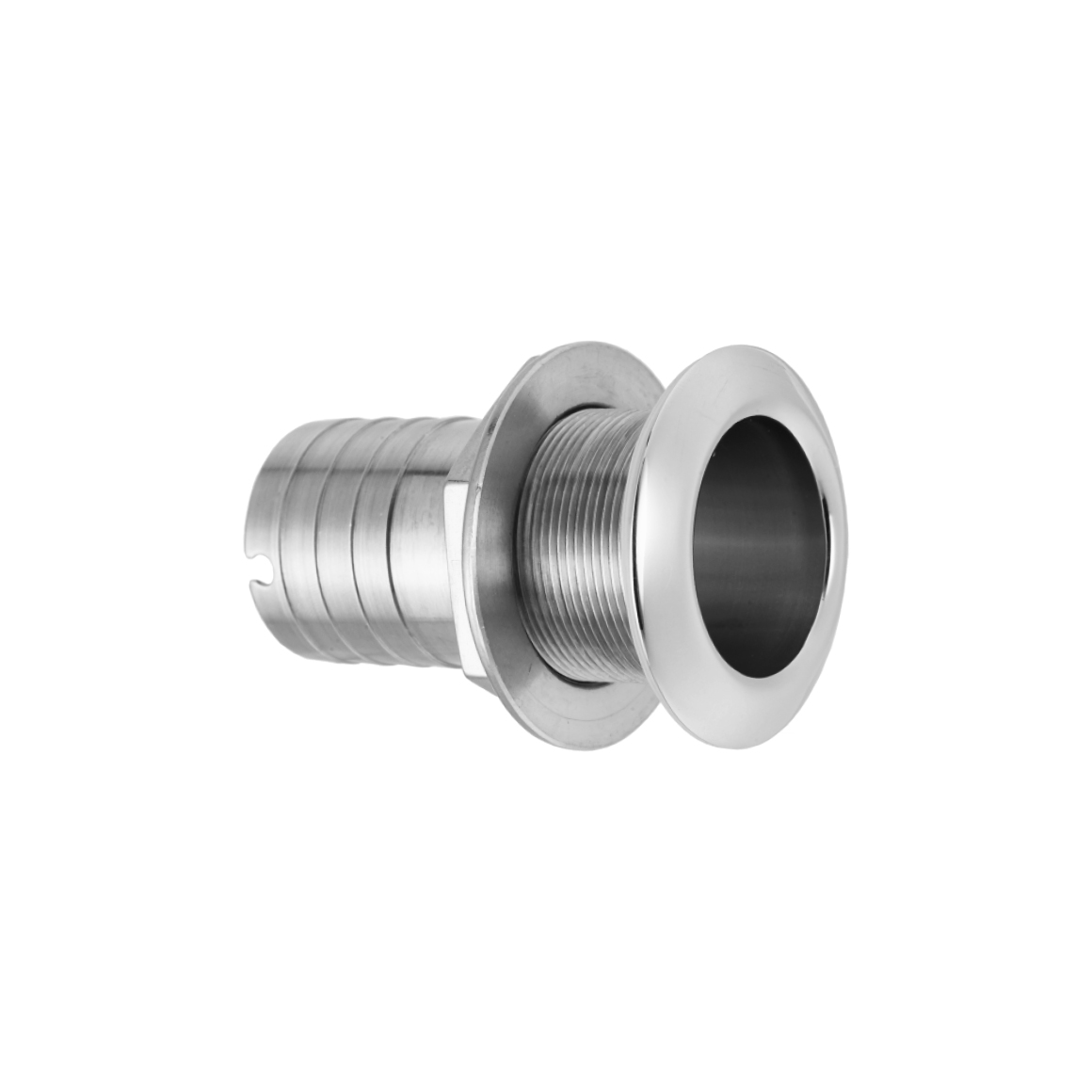

MEGA PRO THRU HULL W/ CAST NUT
Stainless Steel 316
- Upgraded design incorporates stainless steel cast nut.
- High density marine-grade stainless steel ensures strength and prevents crevice
corrosion.
- Thin wall construction to ensure maximum water flow.
- Machined inner finish reduces potential for residual debris.
- Included gasket eliminates the need for caulking.
- Upgraded design incorporates stainless steel cast nut.
- High density marine-grade stainless steel ensures strength and prevents crevice
corrosion.
- Thin wall construction to ensure maximum water flow.
- Machined inner finish reduces potential for residual debris.
- Included gasket eliminates the need for caulking.
Qty
Qty
Qty
Qty
Qty
Qty
-

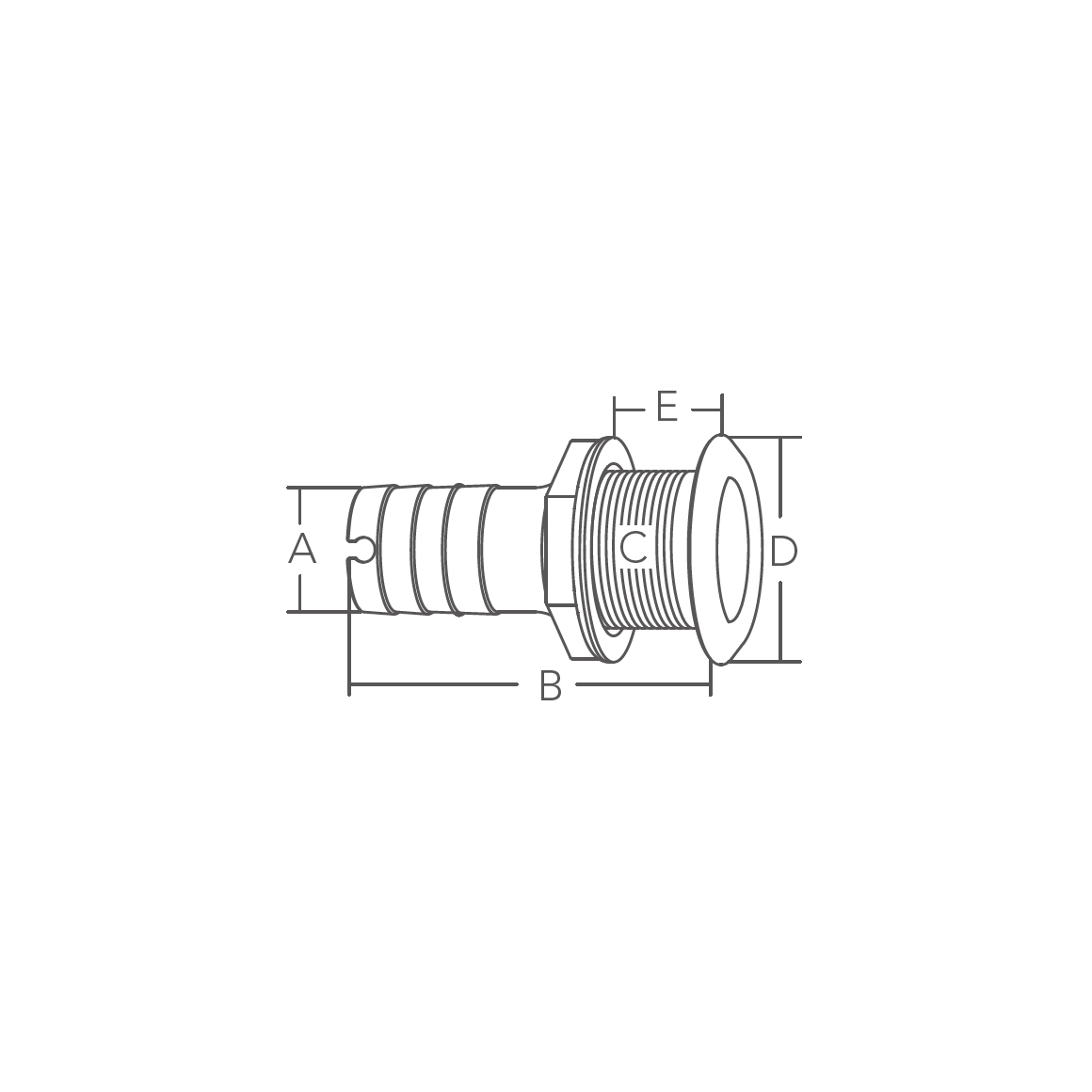

Bulk No.
A mm
B mm
C mm
D mm
E mm
0603271 16(5/8") 64(2-1/2") 22(7/8") 32(1-1/4") 5~22(3/16"~7/8") 0603272 19(3/4") 64(2-1/2") 22(7/8") 32(1-1/4") 5~22(3/16"~7/8") 0603273 25(1") 67(2-5/8") 31.5(1-1/4") 46(1-13/16") 5~22(3/16"~7/8") 0603274 29(1-1/8") 67(2-5/8") 31.5(1-1/4") 46(1-13/16") 5~22(3/16"~7/8") 0603276 38(1-1/2") 78(3-1/16") 41(1-5/8") 59(2-5/16") 5~22(3/16"~7/8") 0603277 51(2") 106(4-3/16") 57(2-1/4") 77(3") 5~32(3/16"~1-1/4")

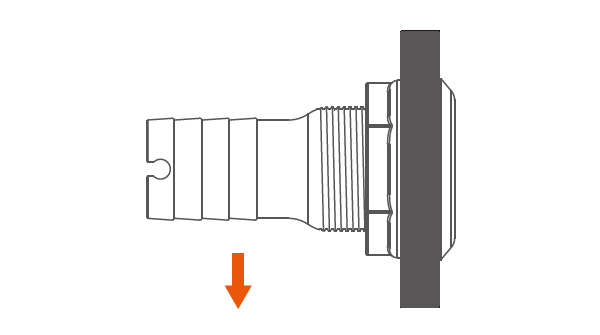

SIDE LOAD

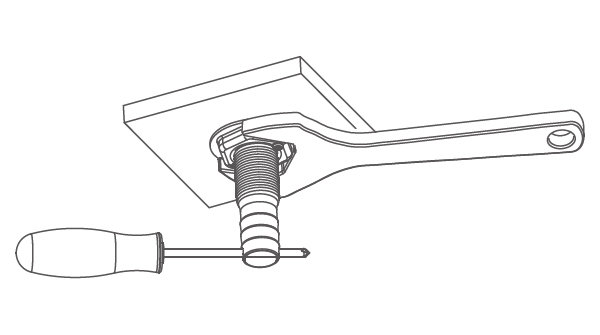

INSTALLATION INSTRUCTION
Compliance to ABYC
H-27 standard.Easy, one-man
installation.
