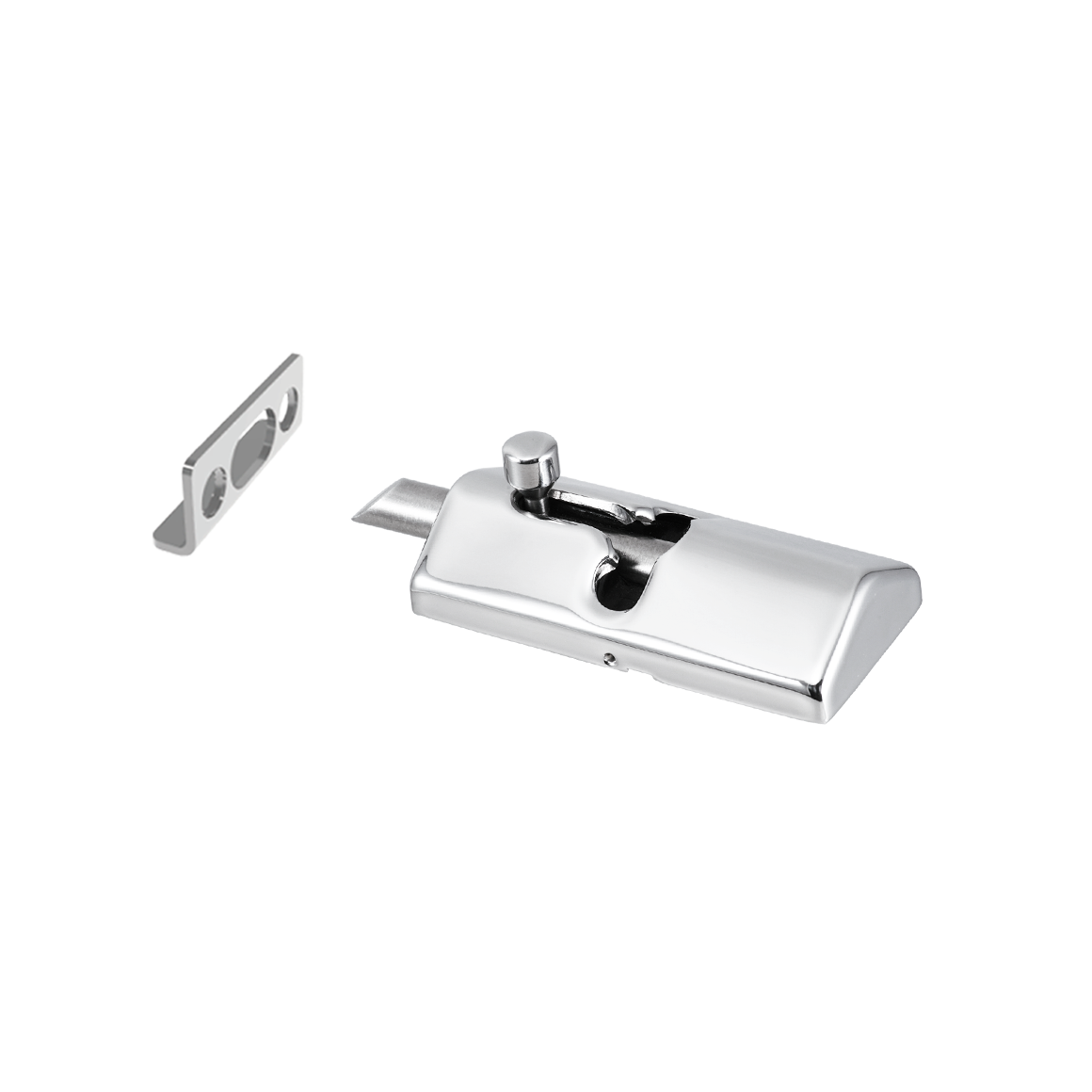

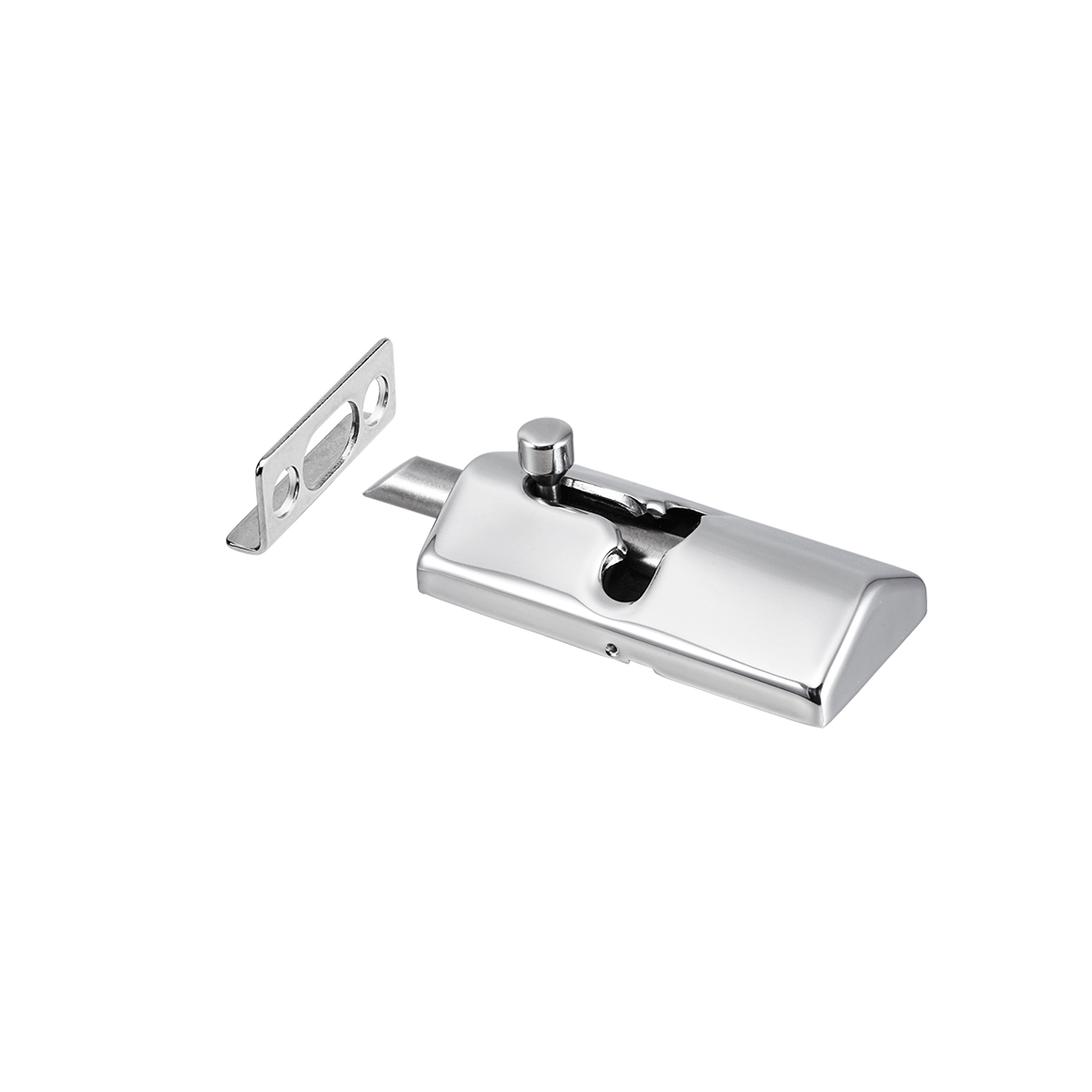

DELUXE SLAM BARREL BOLT
Stainless Steel 316 & Plastic
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Angled barrel design mimics slam latches for worry free closing.
- Knob can be locked in position to keep latch open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8 for latch body, and M3 or #6 for strike.
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Angled barrel design mimics slam latches for worry free closing.
- Knob can be locked in position to keep latch open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8 for latch body, and M3 or #6 for strike.

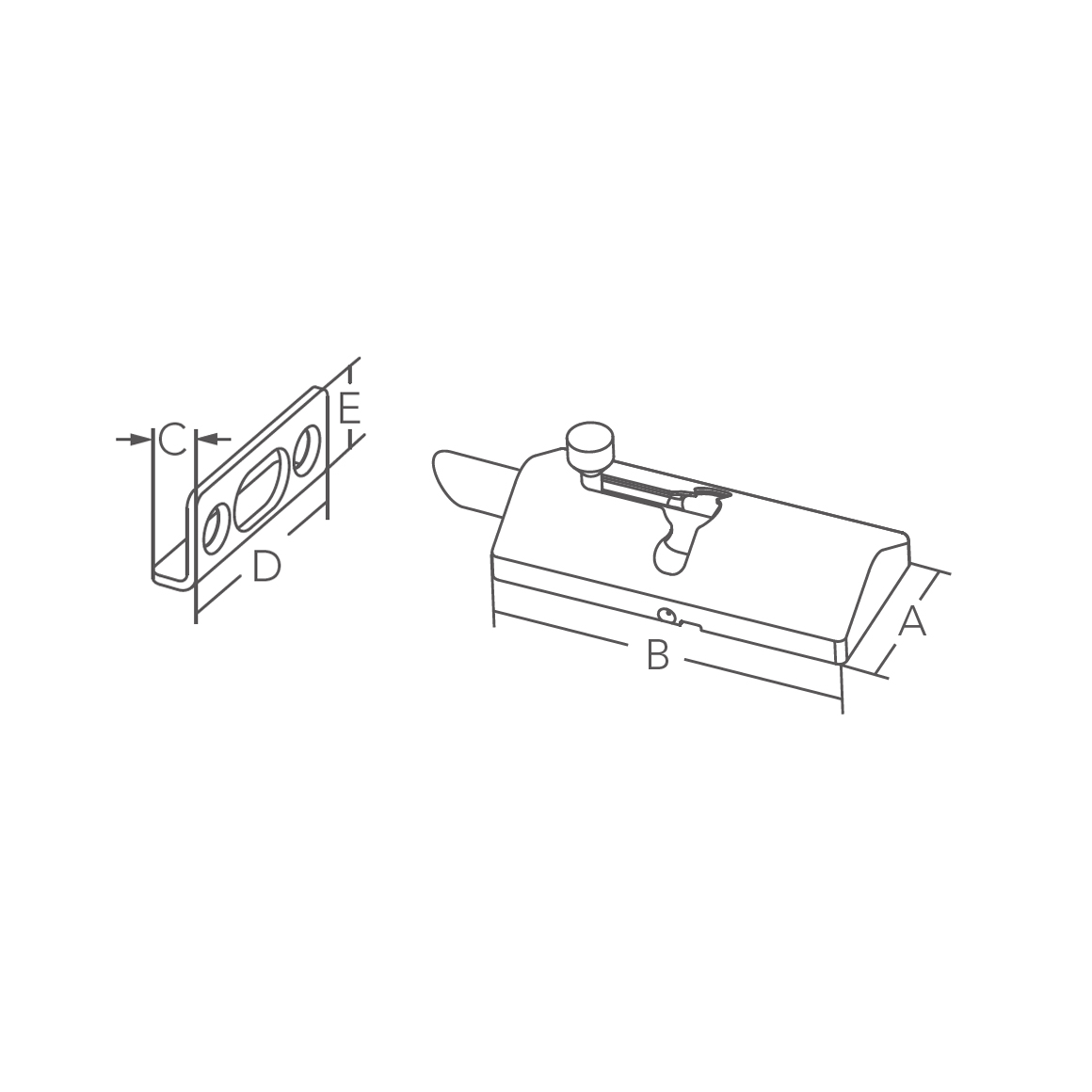

Qty
-
Bulk No.
A mm
B mm
C mm
D mm
E mm
0507157 31(1-1/4") 67(2-5/8") 8(5/16") 38(1-1/2") 16(5/8")
-
Bulk No.
Download
0507157 Drawing
