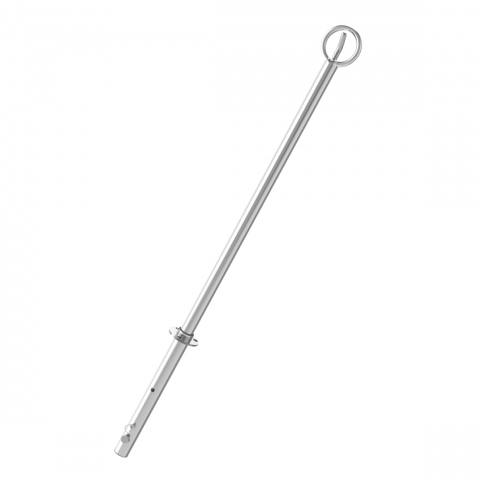

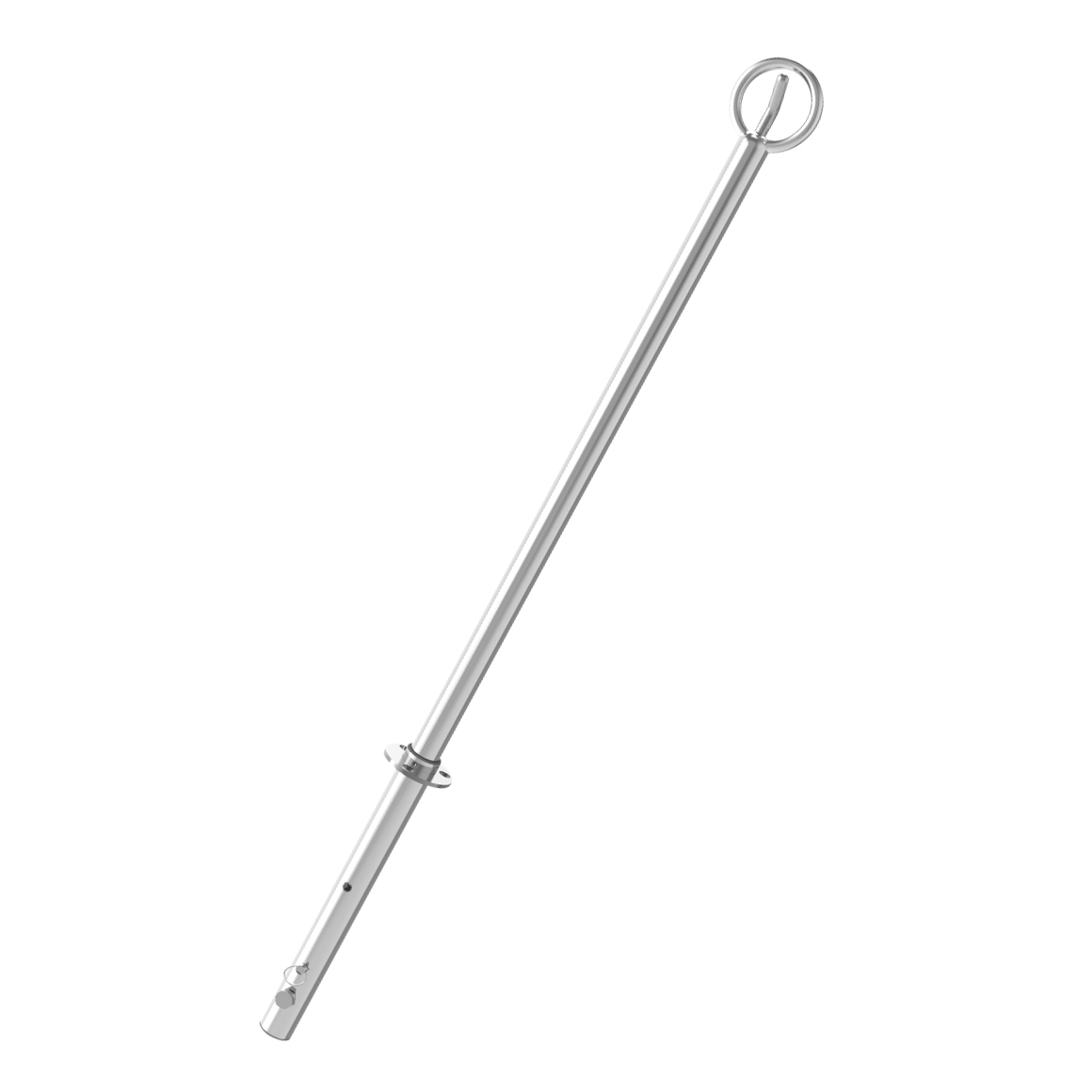

SKI TOW POST
Stainless Steel 316
- Removable ski tow post is held in the socket by 9.5mm (3/8") quick release pin.
- 1/2"-13 threaded hole at the bottom of socket for extra bracket if required.
- Load limit: 362 kg (800 lb).
- Do not use for tubing.
- Screw size M6 or 1/4".
- Stainless steel 304 nut is included.
- Removable ski tow post is held in the socket by 9.5mm (3/8") quick release pin.
- 1/2"-13 threaded hole at the bottom of socket for extra bracket if required.
- Load limit: 362 kg (800 lb).
- Do not use for tubing.
- Screw size M6 or 1/4".
- Stainless steel 304 nut is included.
Qty
MOQ
-
Bulk No.

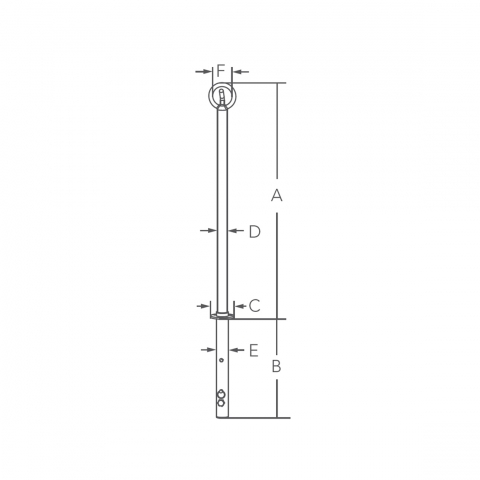

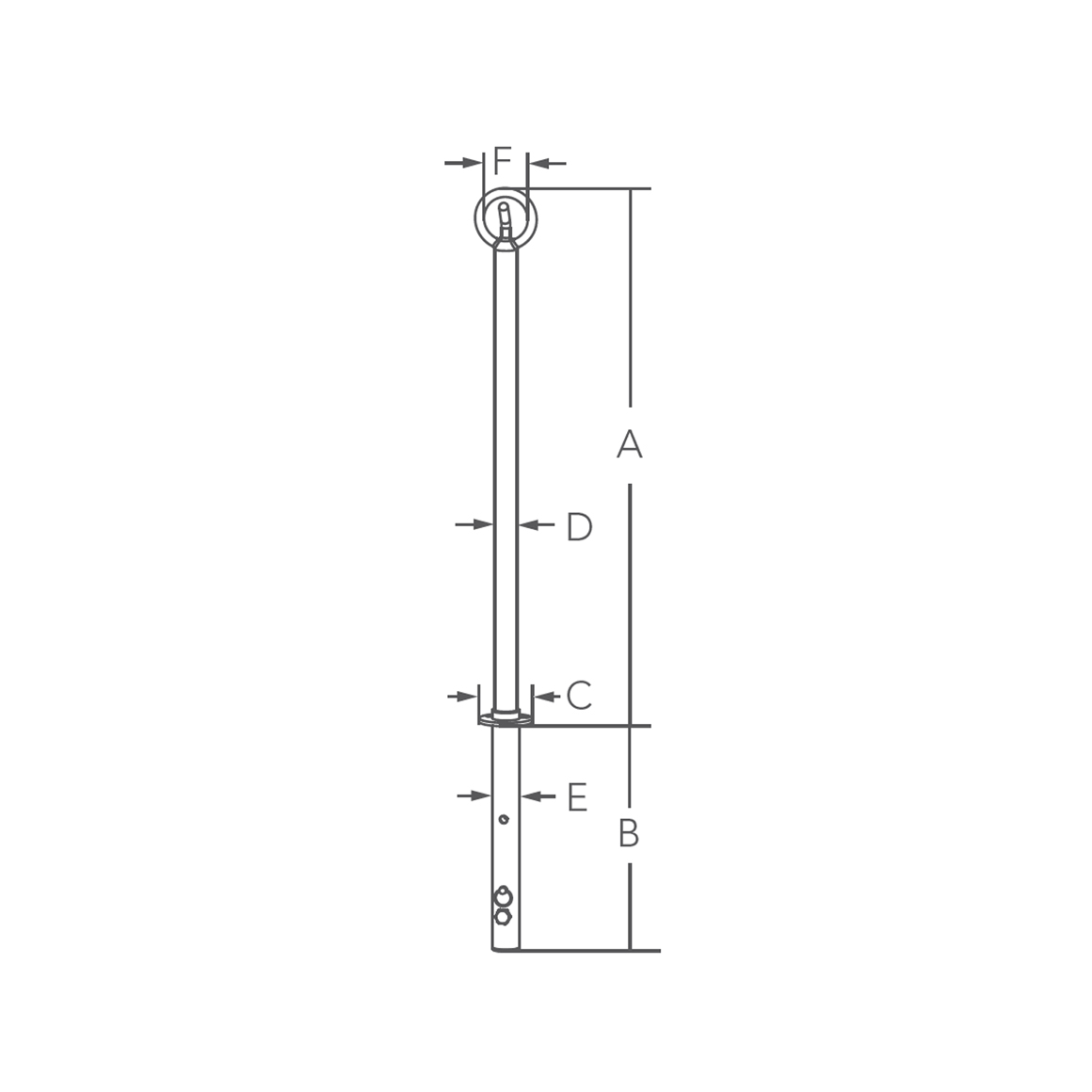

A mm
B mm
C mm
D mm
E mm
F mm
0417068 768(30-1/4") 329(12-15/16") 76(3") 32(1-1/4") 38(1-1/2") 64(2-1/2")
SPECIFICATION
0417068

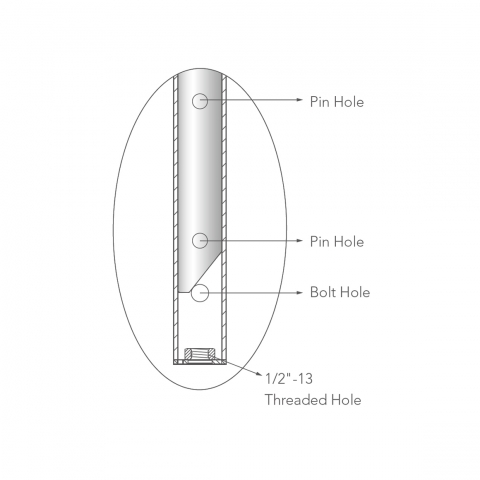

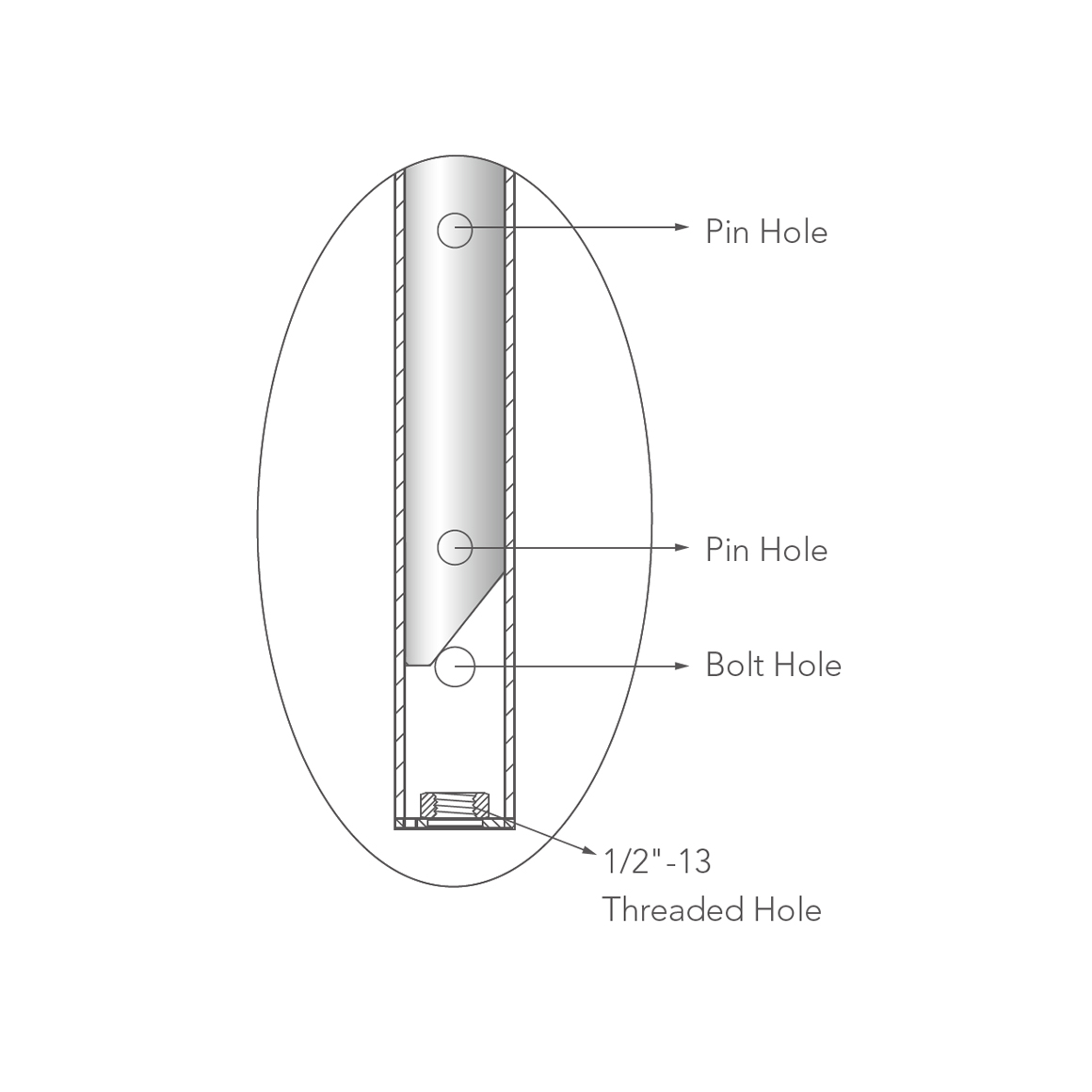

Pin hole Two pin holes Bolt stops the
post from dropping12.7mm (1/2")

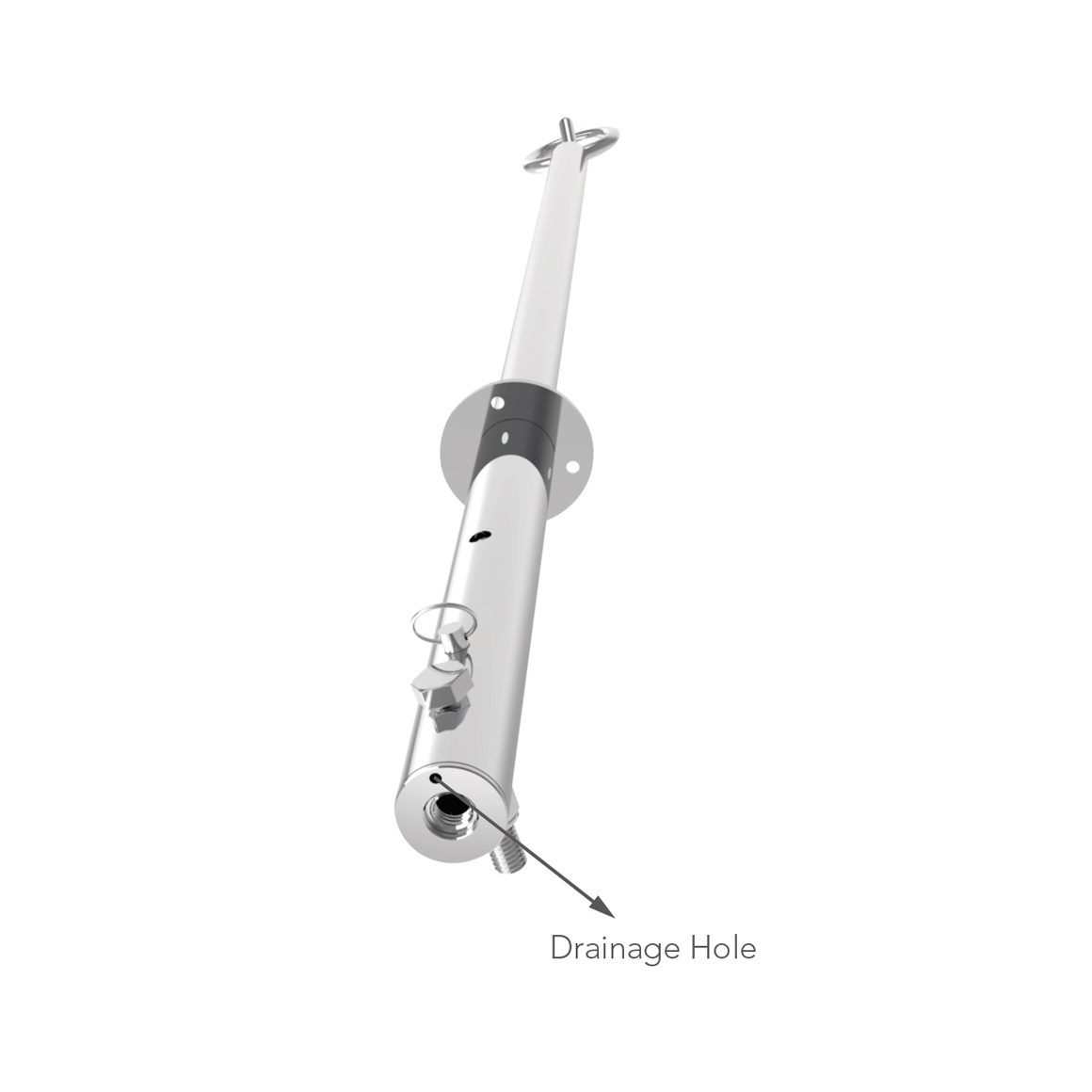

Bolt includedDrainage hole 4mm (5/32") Quick release pin 9.5mm (3/8")
Pin included -
Bulk No.
Download
0417068 Drawing
