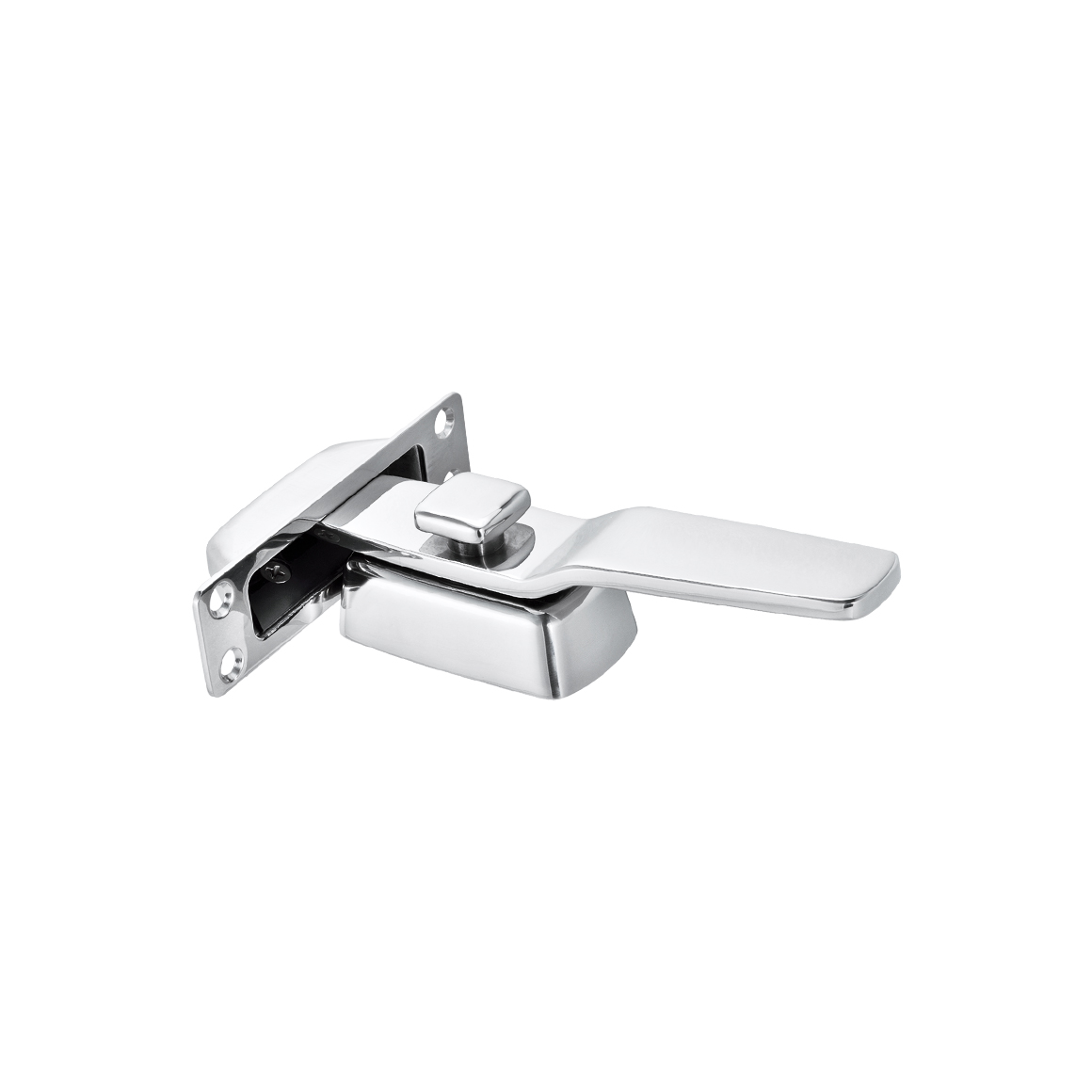

BUTTON RELEASE DOOR LATCH W/ FLUSH STRIKE
Stainless Steel 316
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90° turn can secure the handle in position.

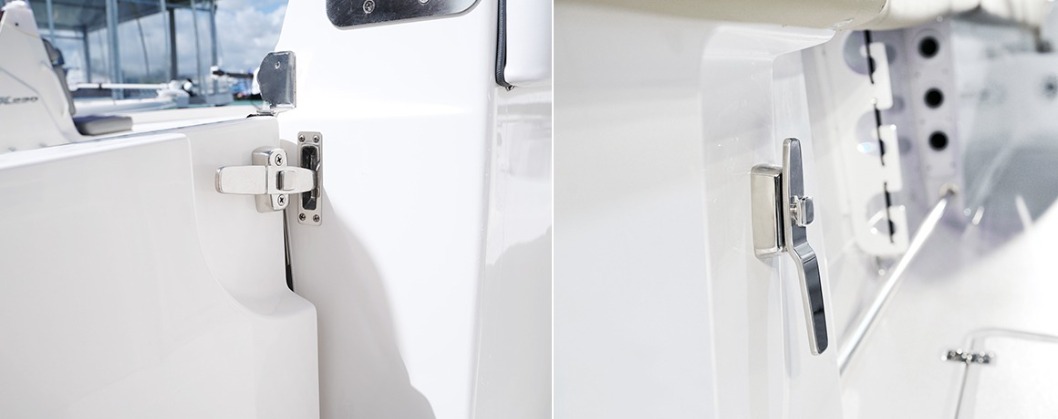

- Works on both right and left hand transom doors.
- Strike is designed to prevent handle surface from scratching.
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90° turn can secure the handle in position.
- Works on both right and left hand transom doors.
- Strike is designed to prevent handle surface from scratching.
Qty
Qty
-
Bulk No.

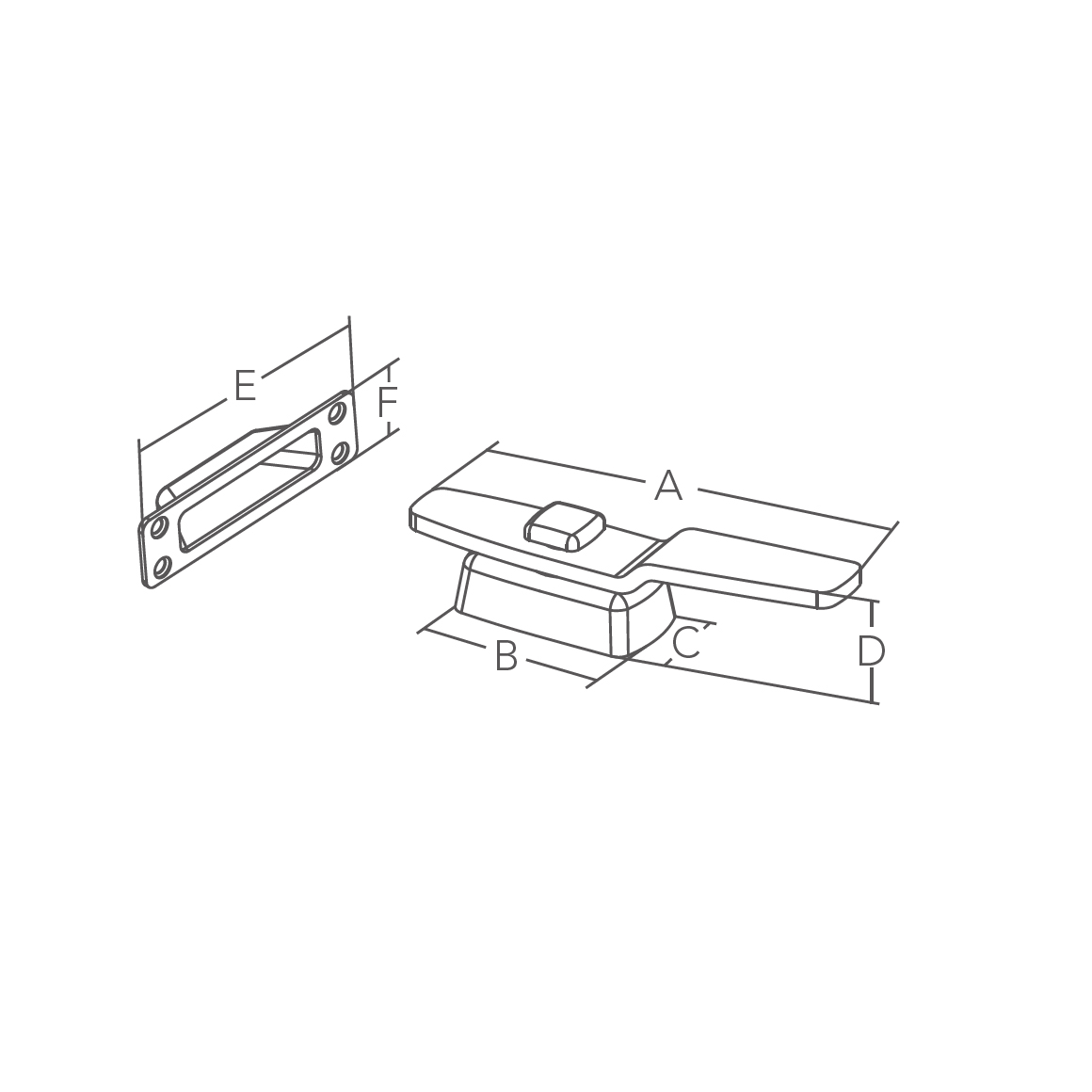

Strike
A mm
B mm
C mm
D mm
E mm
F mm
0407368 Flush 166(6-9/16") 73(2-7/8") 39(1-9/16") 43(1-11/16") 108(4-1/4") 30(1-3/16") 0407369 Flush 213(8-3/8") 84(3-5/16") 49(1-15/16") 53(2-1/16") 108(4-1/4") 30(1-3/16") MODEL
SCREW SIZE
Latch Body 0407368 M6 or 1/4" Latch Body 0407369 M5 or #10 Flush Strike M4 or #8
