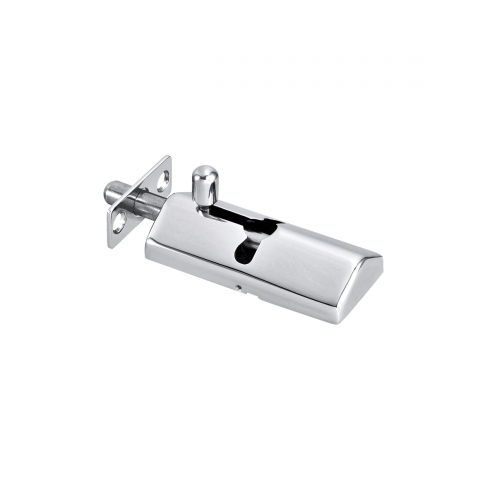

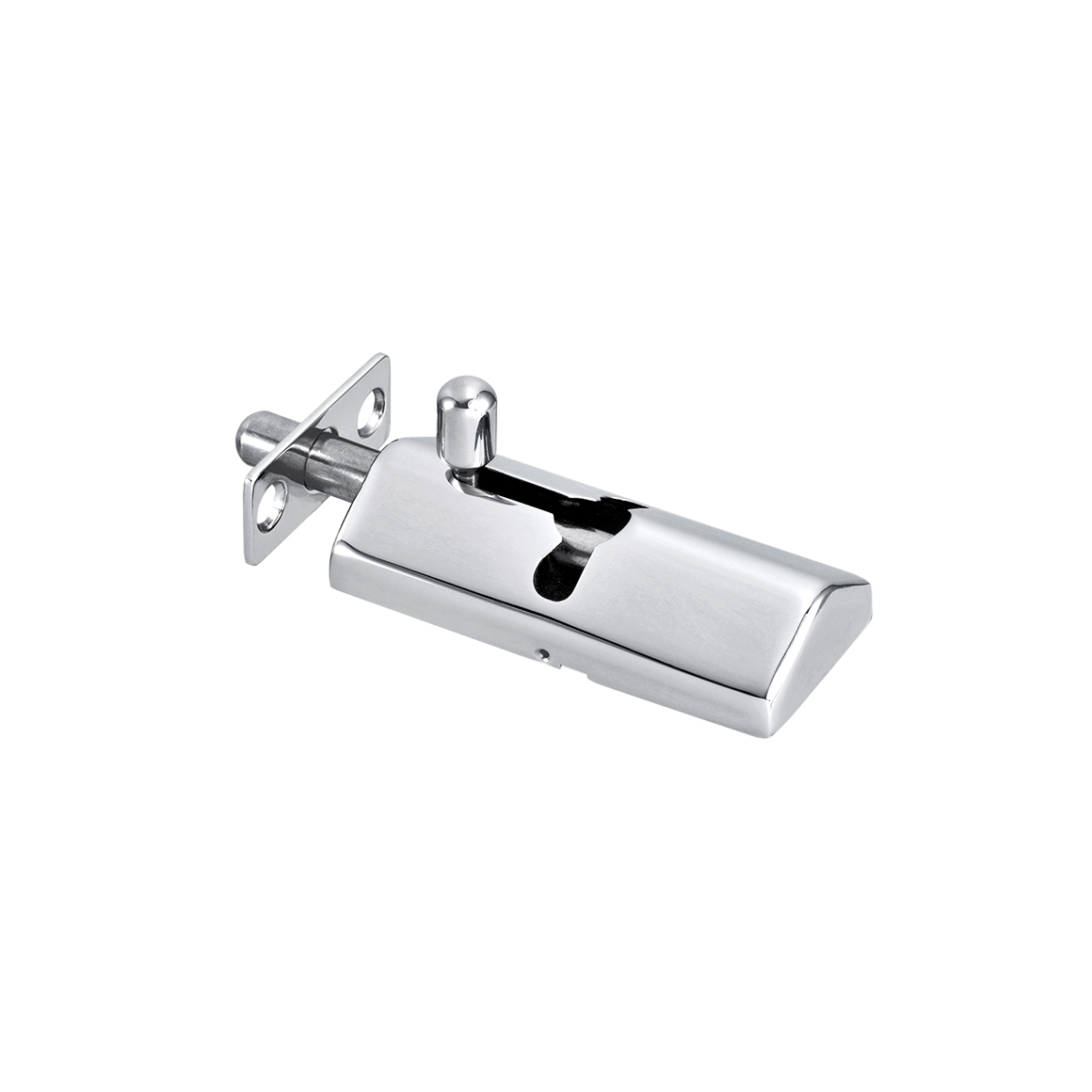

DELUXE BARREL BOLT - FLUSH STRIKE
Stainless Steel 316 & Plastic
- Clean and elegant appearance with snap-on SS316 cover to conceal installation
fasteners.

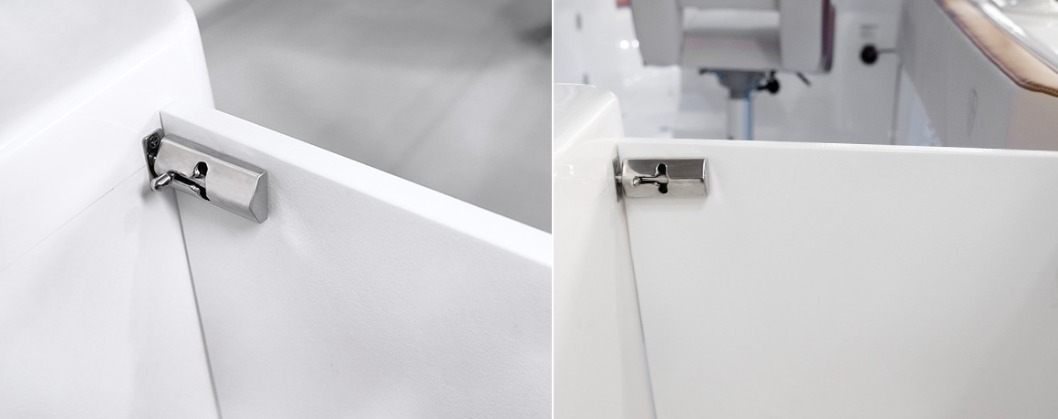

- Knob can be positioned to keep the door open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8 for latch body, and M3 or #6 for strike.
- Clean and elegant appearance with snap-on SS316 cover to conceal installation
fasteners.
- Knob can be positioned to keep the door open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8 for latch body, and M3 or #6 for strike.

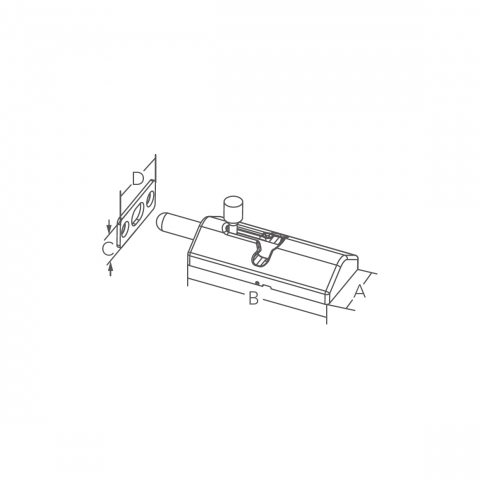

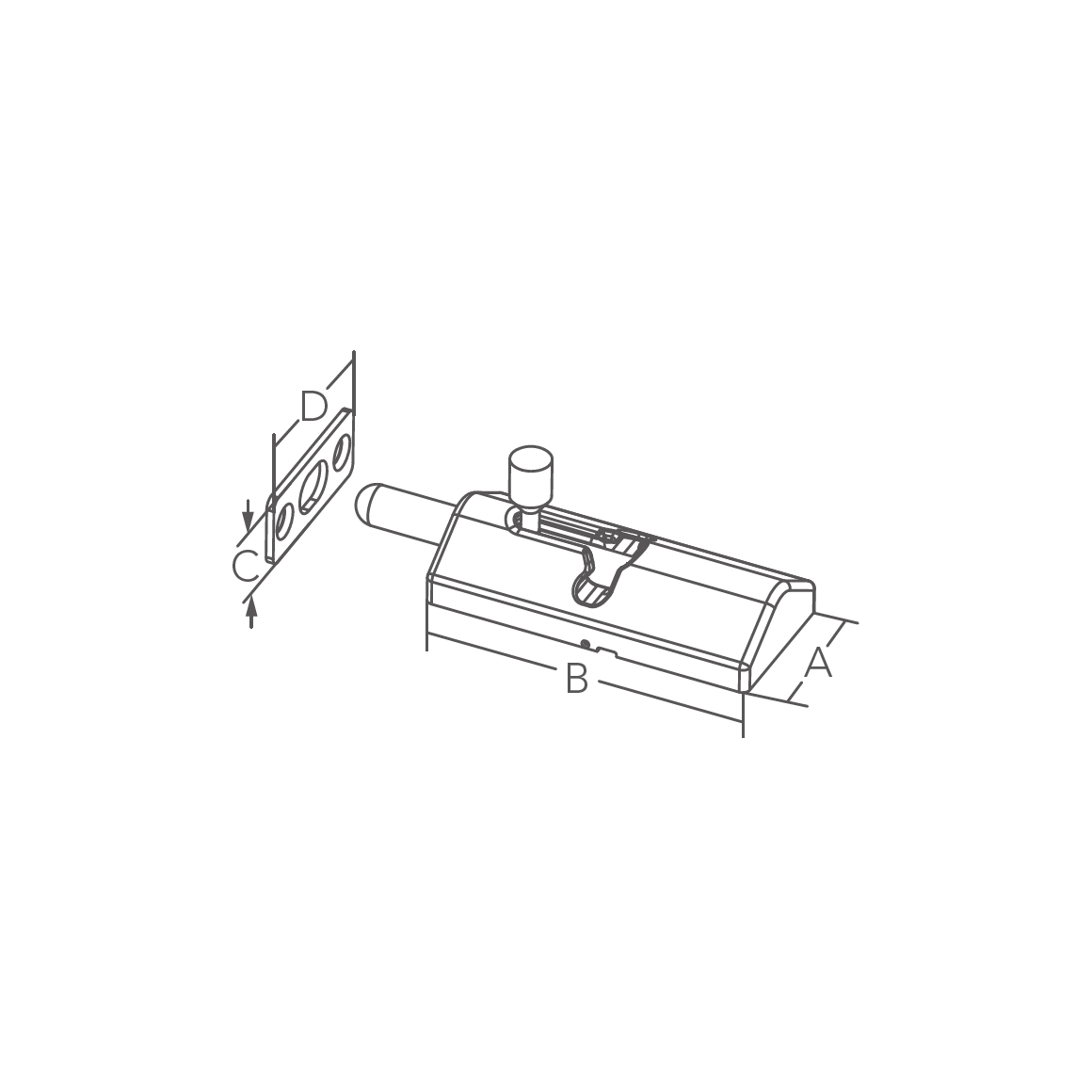

Qty
-
Bulk No.
Strike
A mm
B mm
C mm
D mm
0407123 Flush 31(1-1/4") 67(2-5/8") 15(9/16") 35(1-3/8")
-
Bulk No.
Download
0407123 Drawing
