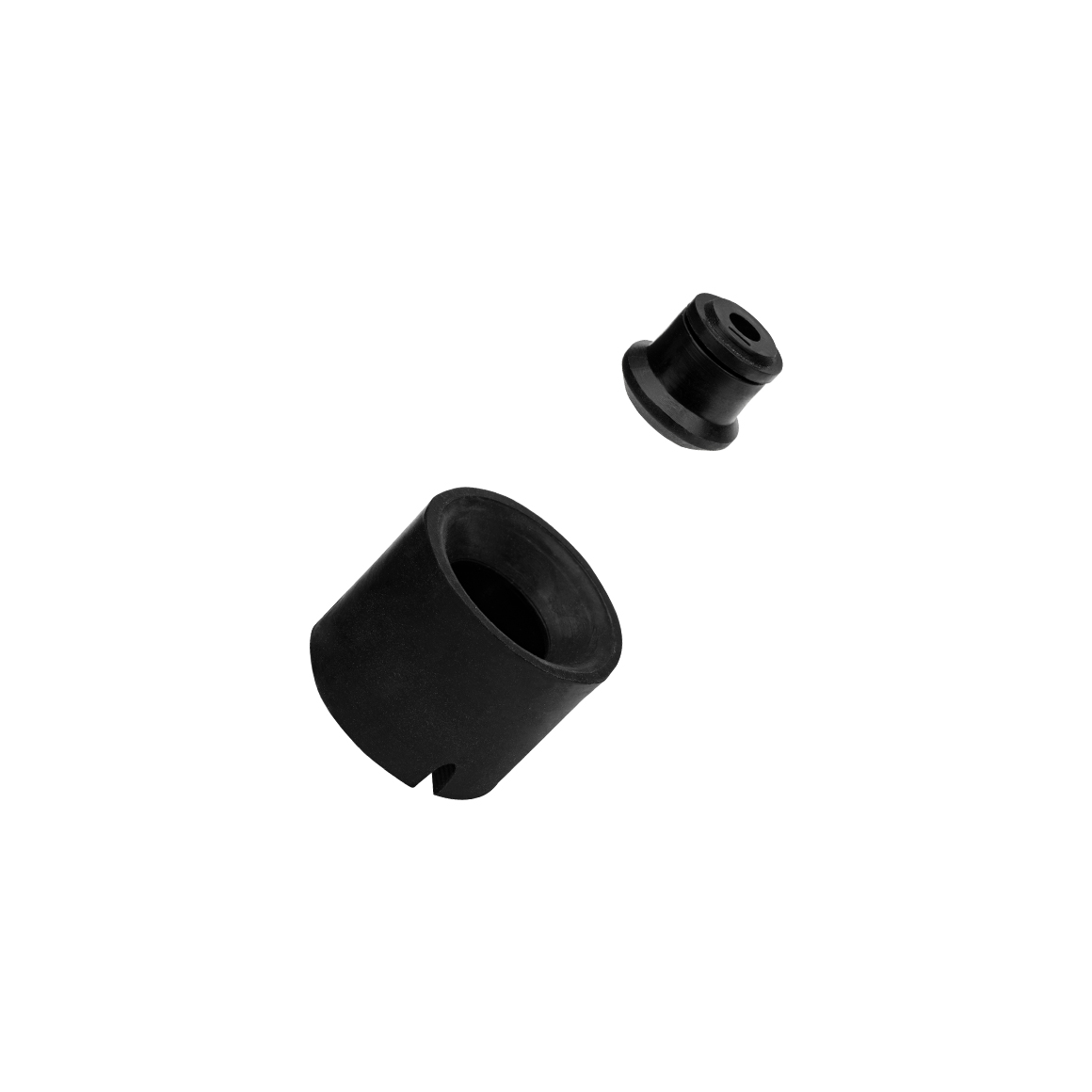

CATCH PLUNGER
Rubber & PP
- Easy to install.
- Different holding power can be customized upon request.
- Engagement can be adjusted by reversing or removing the spacer under catch.
- Reusable marking punch is required for proper installation and warranty will
be voided in the event one is not used.
- Marking punch should be replaced after prolonged use to ensure ongoing
proper alignment during installation.
- Screw size: M4 or #8 for male part, and M5 or #10 for female part.
- Easy to install.
- Different holding power can be customized upon request.
- Engagement can be adjusted by reversing or removing the spacer under catch.
- Reusable marking punch is required for proper installation and warranty will
be voided in the event one is not used.
- Marking punch should be replaced after prolonged use to ensure ongoing
proper alignment during installation.
- Screw size: M4 or #8 for male part, and M5 or #10 for female part.
Qty
Qty
Qty
-

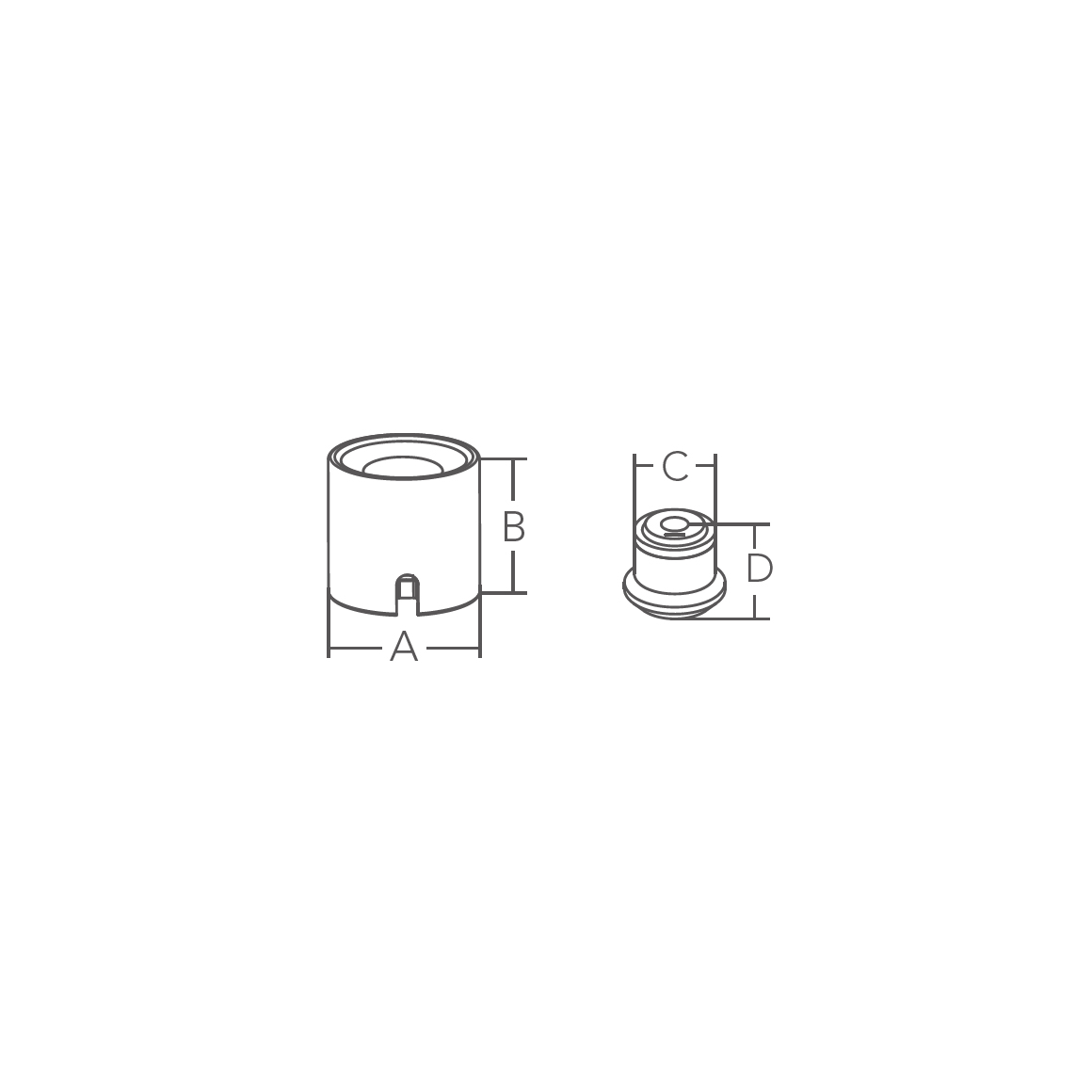

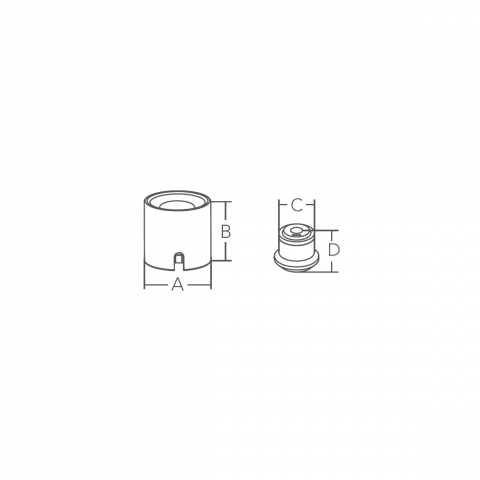

Bulk No.
A mm
B mm
C mm
D mm
Holding Power

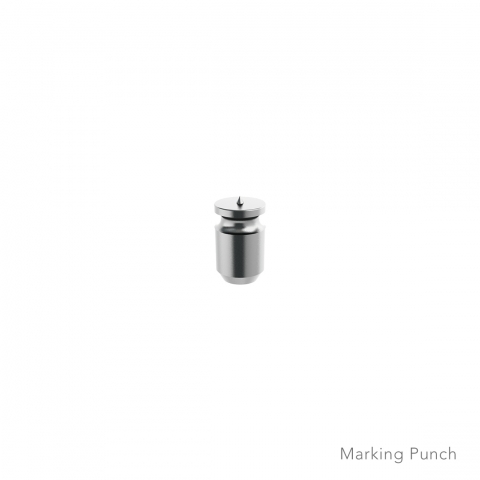

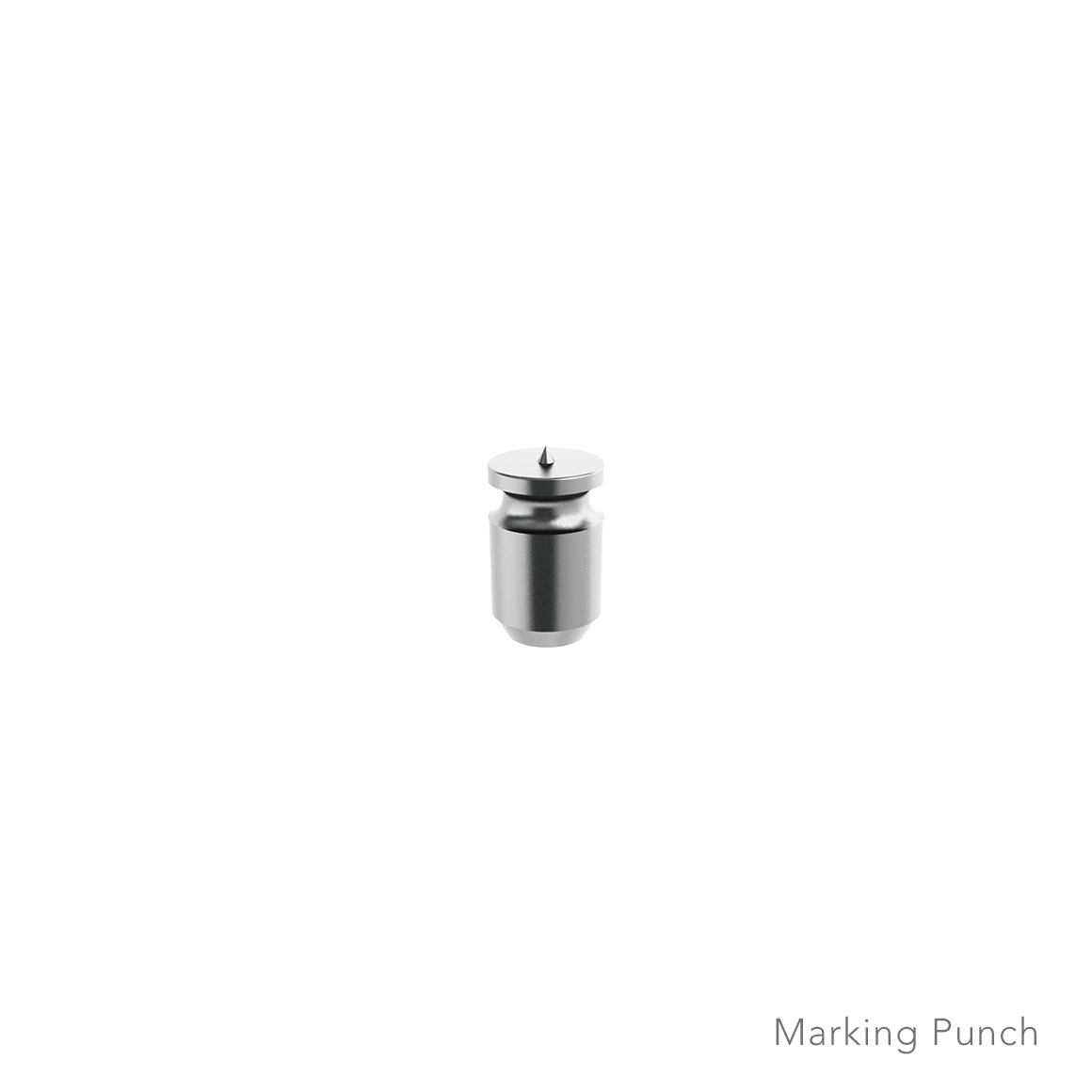

0307424 21(13/16") 20(13/16") 12.5(1/2") 13.5(1/2") 8 kg(17 lb) 0607425 21(13/16") 20(13/16") 12.5(1/2") 13.5(1/2") 16 kg(35 lb) 0107426-G Aluminum Marking Punch for 0307424/0607425
0307424/0607425 CATCH HEIGHT
Without Spacer With Spacer Reverse Spacer
11(7/16") 13.5(1/2") 16(5/8") Tighter
Engagement
Looser
Engagement
