OVAL SLAM LATCH
Stainless Steel 316
- Concealed handle hinge design for modern style.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Reversible backing plate for wide range of door thickness.
- 3mm spacer and #6 installation screws are included.
- Strike screw size M4 or #8 (not included).
- Concealed handle hinge design for modern style.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Reversible backing plate for wide range of door thickness.
- 3mm spacer and #6 installation screws are included.
- Strike screw size M4 or #8 (not included).
Qty
MOQ
Qty
MOQ
-

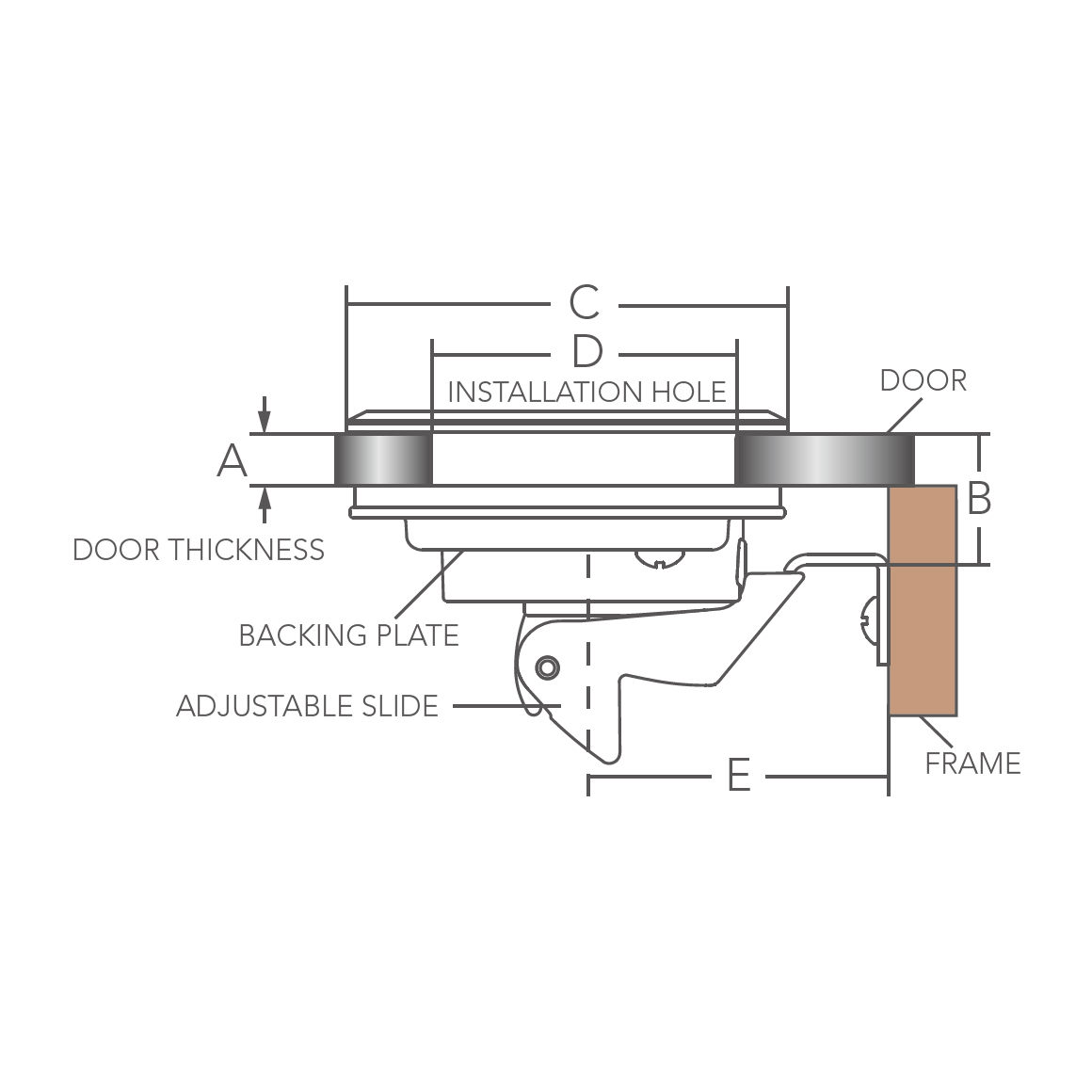

Bulk No.
Model
A mm
B mm
C mm
D mm
E mm

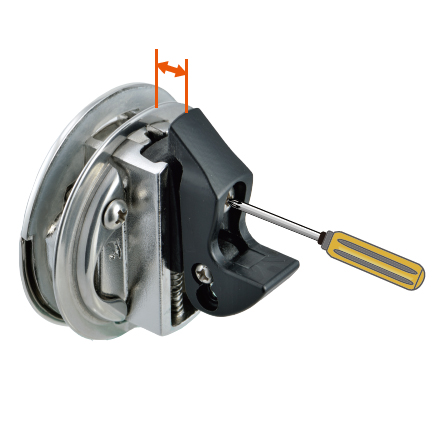

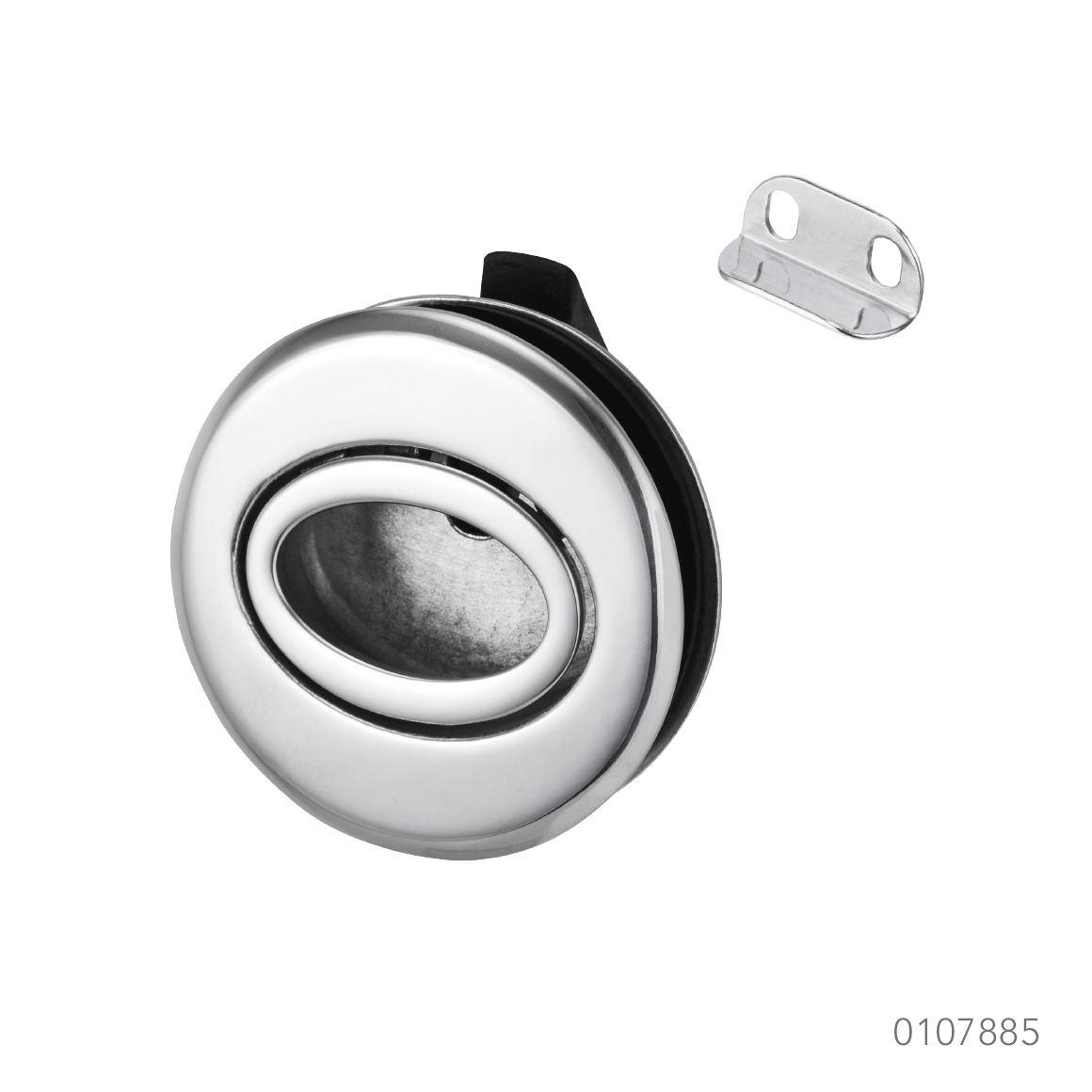

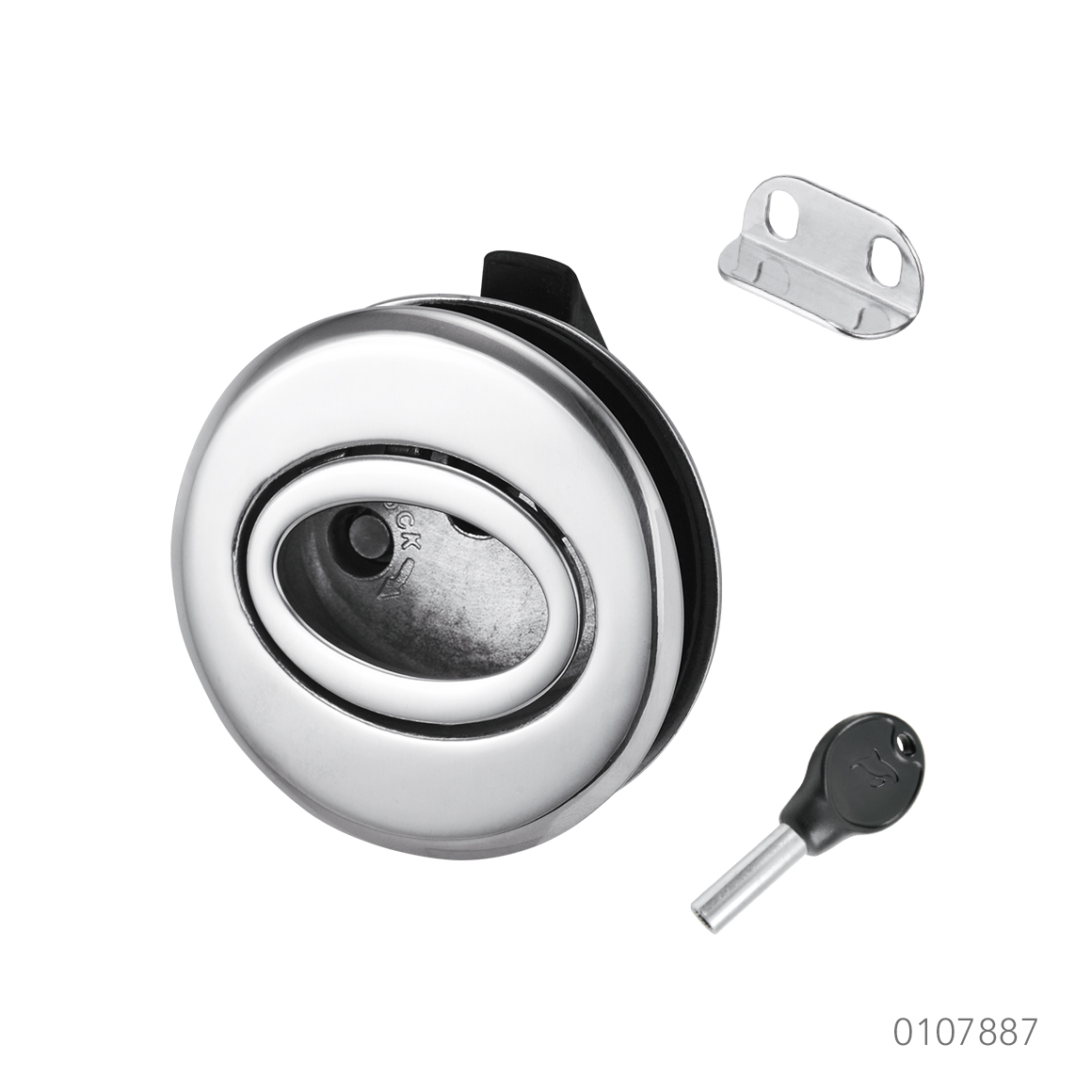

0107885 W/O Lock 8~22(5/16"~7/8") 19~25(3/4"~1") 62(2-7/16") 51(2") 41(1-5/8") 0107887 W/ Lock 8~22(5/16"~7/8") 19~25(3/4"~1") 62(2-7/16") 51(2") 41(1-5/8") SLIDE ADJUSTMENT INSTRUCTION
